How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Wilson 850036 Four-Way Wide-Band Splitter with F-Female Connectors
$119.99
Unit price
/
Unavailable
Product Information
Product Information

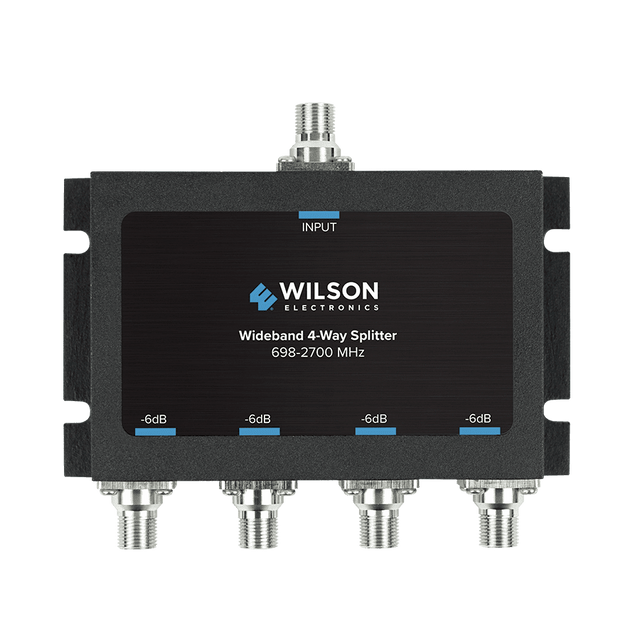

The Wilson Four-Way 700-2500 MHz 75 Ohm Splitter with F Female Connectors (850036) is designed to divide a single input signal into four outputs, each with F-Female connectors. This device is ideal for distributing signal efficiently in various installations.
- Frequency Range: Operates across a wide frequency spectrum from 700 to 2500 MHz, suitable for various signal types.
- Connector Type: Equipped with F-Female connectors, ensuring compatibility with many cable types and enhancing installation flexibility.
- Signal Splitting: Efficiently splits a single input into four outputs, with each output experiencing a signal loss of -6 dB, a typical attenuation that helps manage signal strength across multiple outputs.
Product Documents
