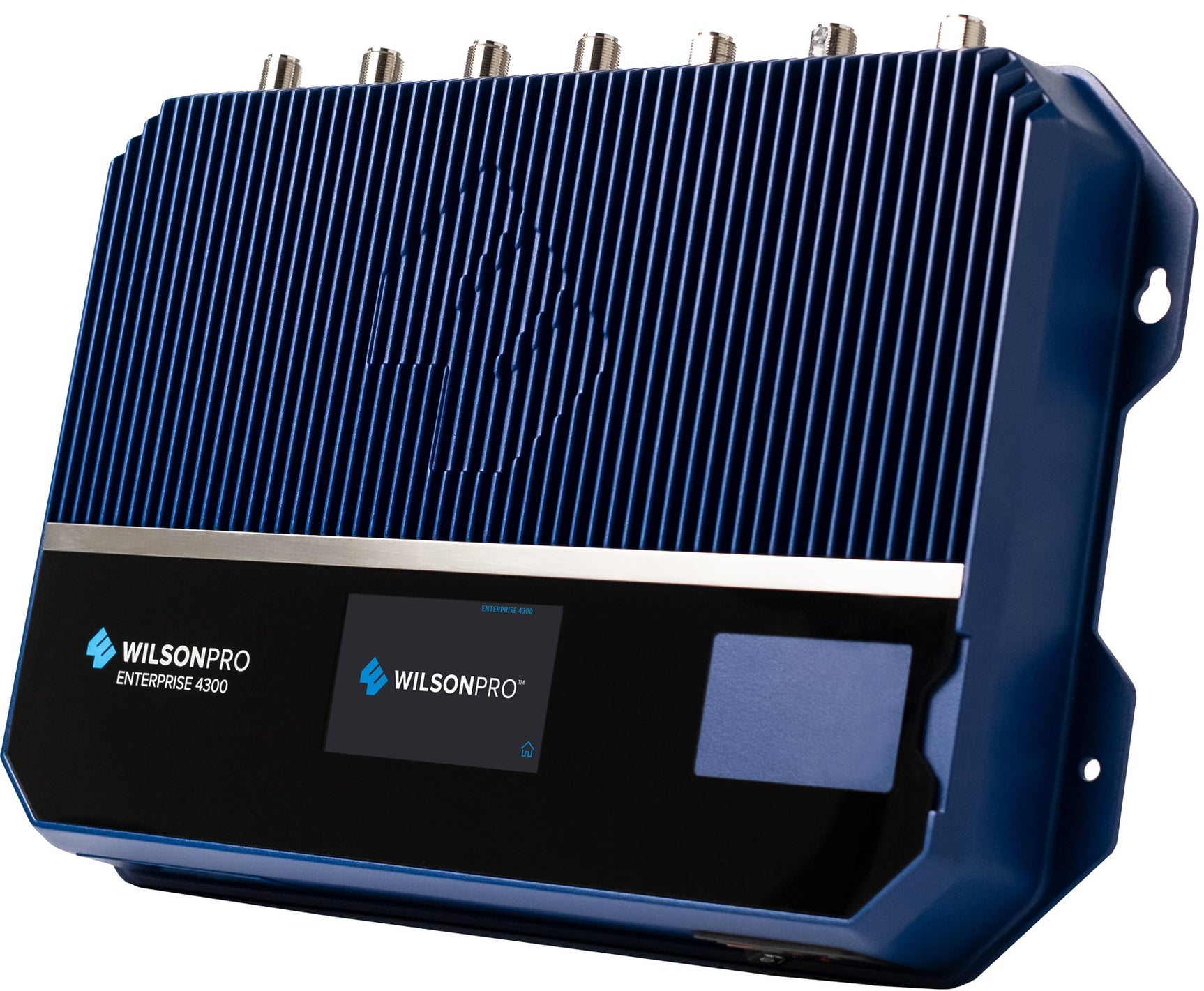

WilsonPro Enterprise 4300 Signal Booster with Multi-Tower Targeting

The WilsonPro Enterprise 4300/4300R Signal Booster with Multi-Tower Targeting (MTT), Cloud Monitoring and Extended Dynamic Range (XDR) technology is the best amplifier for boosting cell signal in a large building where you're able to centralize the location of the booster, and need the equivalent of 4 individual amplifiers to cover a very large area. While it can be used as a standalone system, the WilsonPro Enterprise 4300 is designed to be used with a network of internal antennas to provide excellent coverage to very large areas, and with multiple 4300 amplifiers, can cover buildings in size of up to 500k sq ft and larger.

That said, if the layout of the building does not allow you to centralize the location of the 4300 amplifier, then you may be better off with multiple WilsonPro Enterprise 1300/1300R amplifiers (460149/460150) located in strategic areas around the building, as this will minimize the cable run lengths and provide for a much more efficient and powerful cell phone signal booster system.

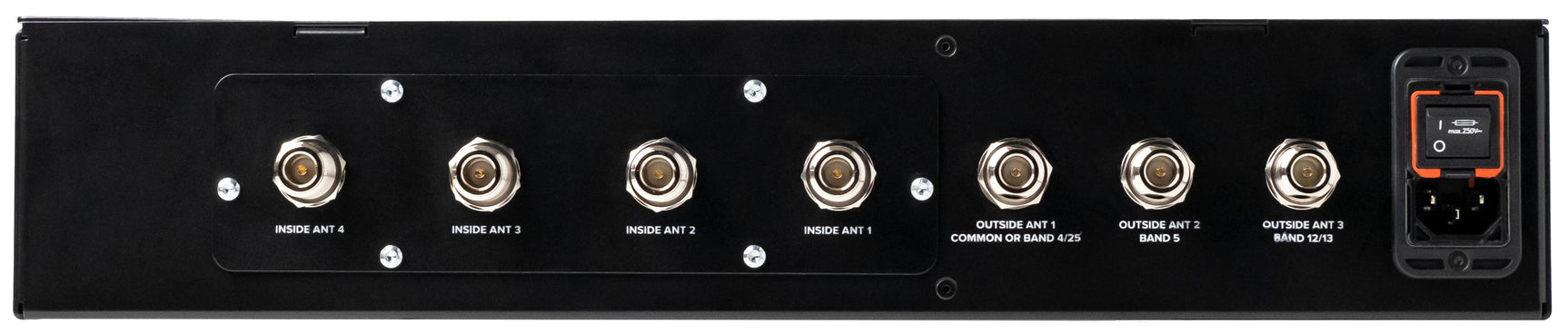

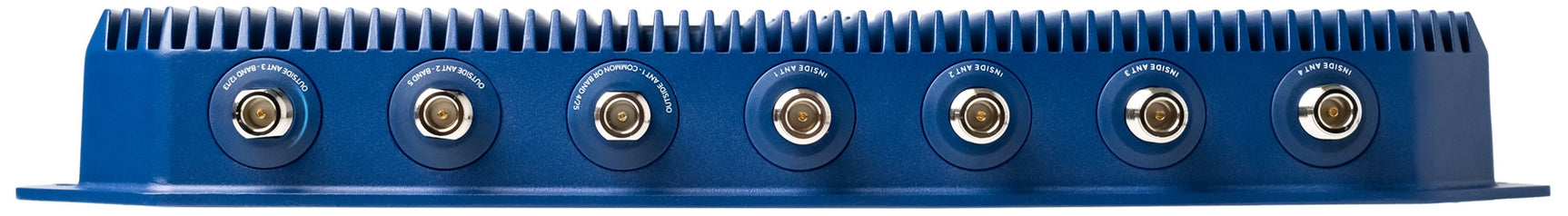

The WilsonPro Enterprise 4300 (wall mount - SKU 460152) and the 4300R (rack mount - SKU 460153) is the first amplifier to have the ability to selectively target individual cell towers for different frequency bands for a higher quality donor cell signal and ultimately a better-amplified signal throughout the building. The 4300 comes defaulted to the standard single shared outside antenna port, so it will function as a standard booster, but then can be toggled to MTT mode, where there are 3 external antenna ports for different frequency bands, so you can use 3 donor antennas to selectively target different cell towers.

The WilsonPro Enterprise 4300 also includes remote monitoring capabilities through a standalone cellular connection to the WilsonPro cloud-based monitoring service, so it never touches the organization's network, or through an ethernet connection to a company's existing network (though there is the option to connect directly to the network with an ethernet cable). This allows for 24/7 monitoring of the health of the signal booster system, with alerts for any interruptions or irregularities, and remote troubleshooting to remedy any issues that may arise.

The WilsonPro Enterprise 4300/4300R features a 17 dBm downlink power, for maximum inside coverage with a strong outside signal, the new Extended Dynamic Range (XDR) technology, which allows the amplifier to scale from full power all the way down to 0, so it can handle any type of outside signal environment, and up to +26 dBm of uplink power to get the cell signal back to the distant cell towers.

The WilsonPro Enterprise 4300/4300R features:

• An enterprise-grade, wall mount or rack mount amplifier with a power supply integrated into the amplifier.
• Multi-tower targeting (MTT) allows different donor antennas to target different external cell towers for the highest quality donor signal possible.
• Cloud-connected 24/7 remote monitoring and troubleshooting through an integrated cellular modem uplink to the WilsonPro cloud.
• Extended Dynamic Range (XDR) Technology allows the amplifier to scale the boosting power on each frequency band from the maximum of 72 decibels, all the way down to 0 decibels, in order to prevent a strong outside signal from overloading and shutting down the booster. This new technology eliminates the possibility of overload from nearby towers.
• An amplifier with the equivalent boosting power of four WilsonPro 1300 signal boosters for maximum indoor coverage.
• The FCC maximum +17 dBm downlink power for the largest possible inside coverage area with a strong outside signal.
• Up to +26 dBm uplink power to get the cell signal back to the distant cell towers.

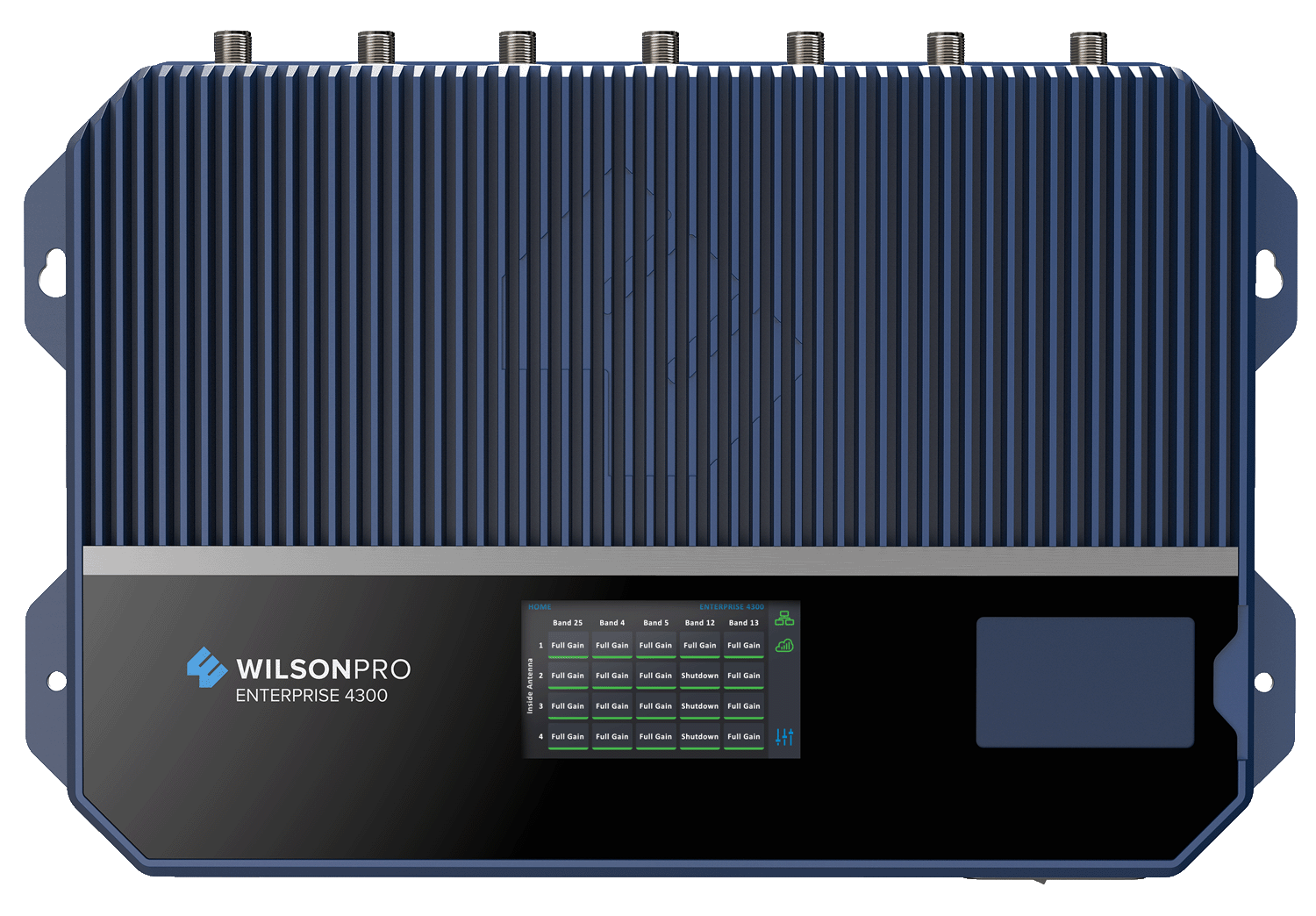

• A color digital display with a built-in signal meter that allows the installer to have a complete view of the current signal environment and state of the AGC.

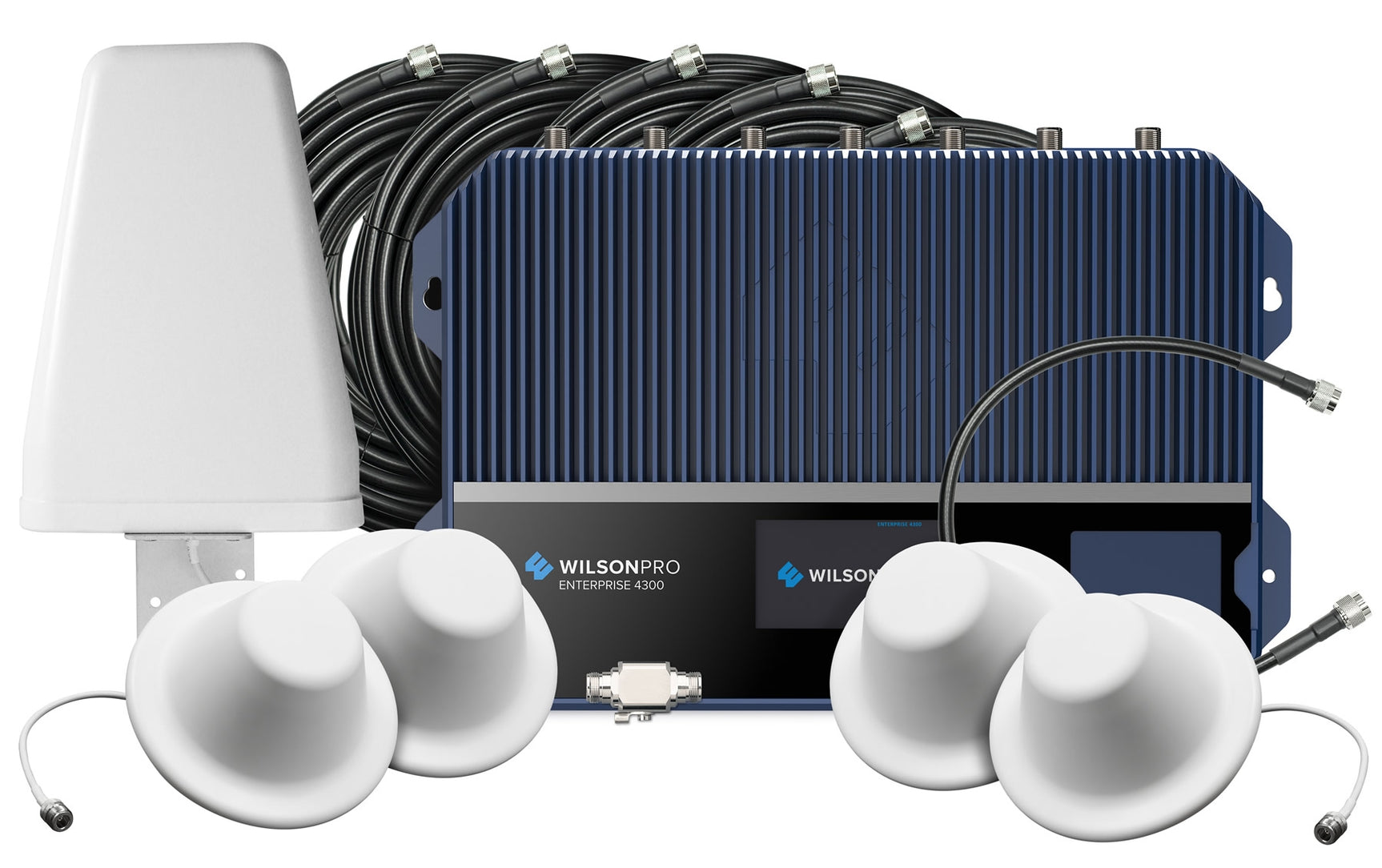

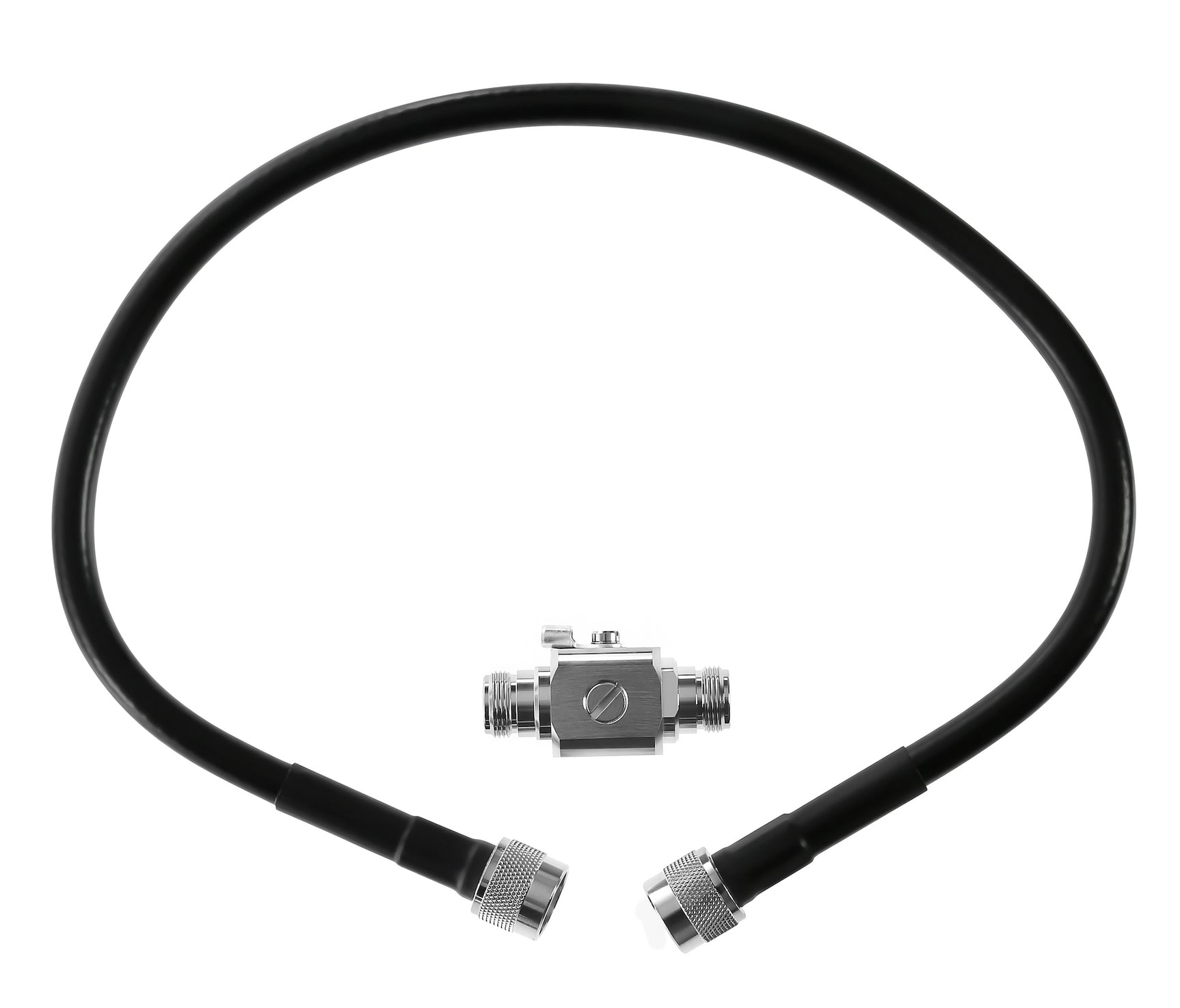

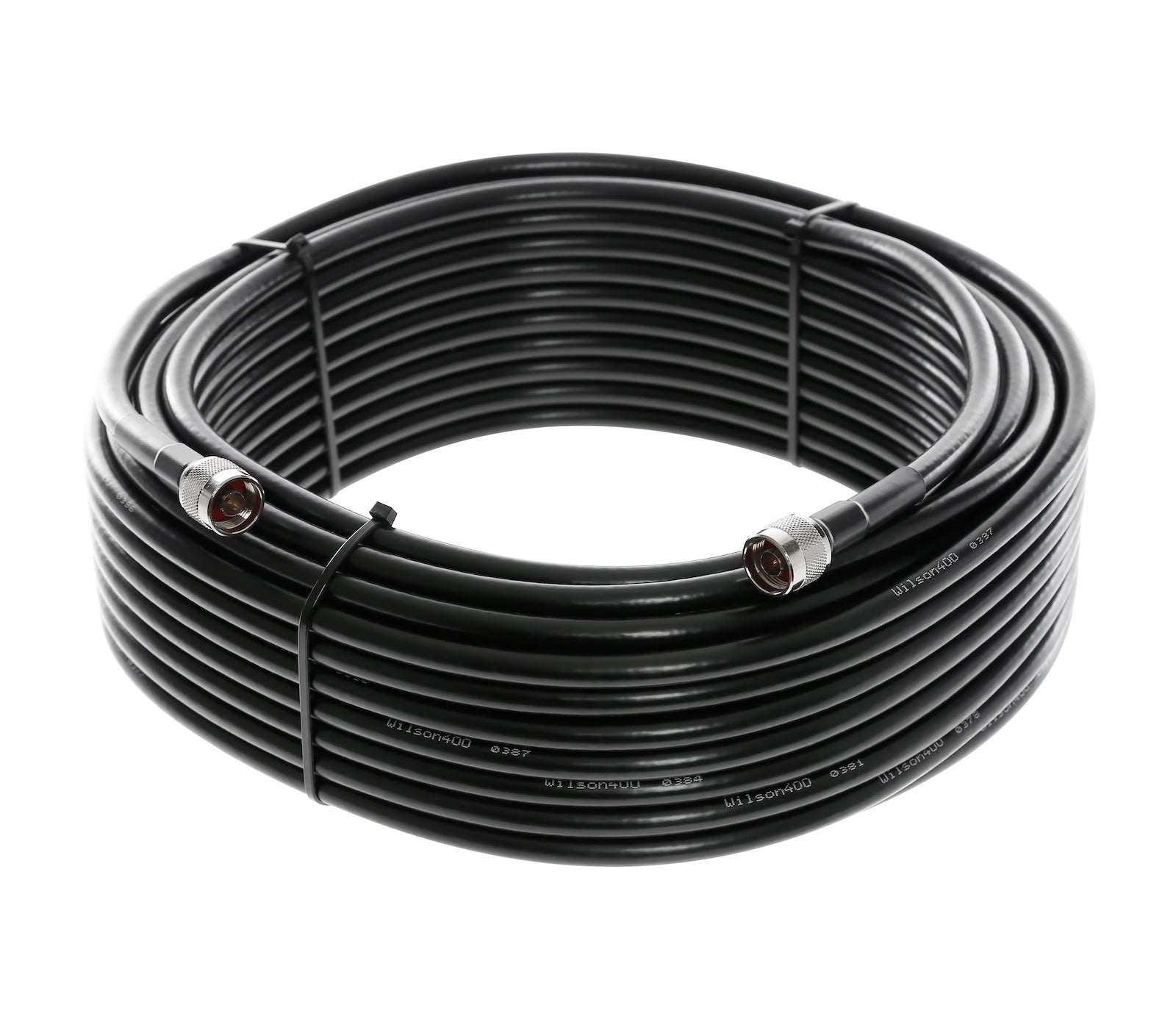

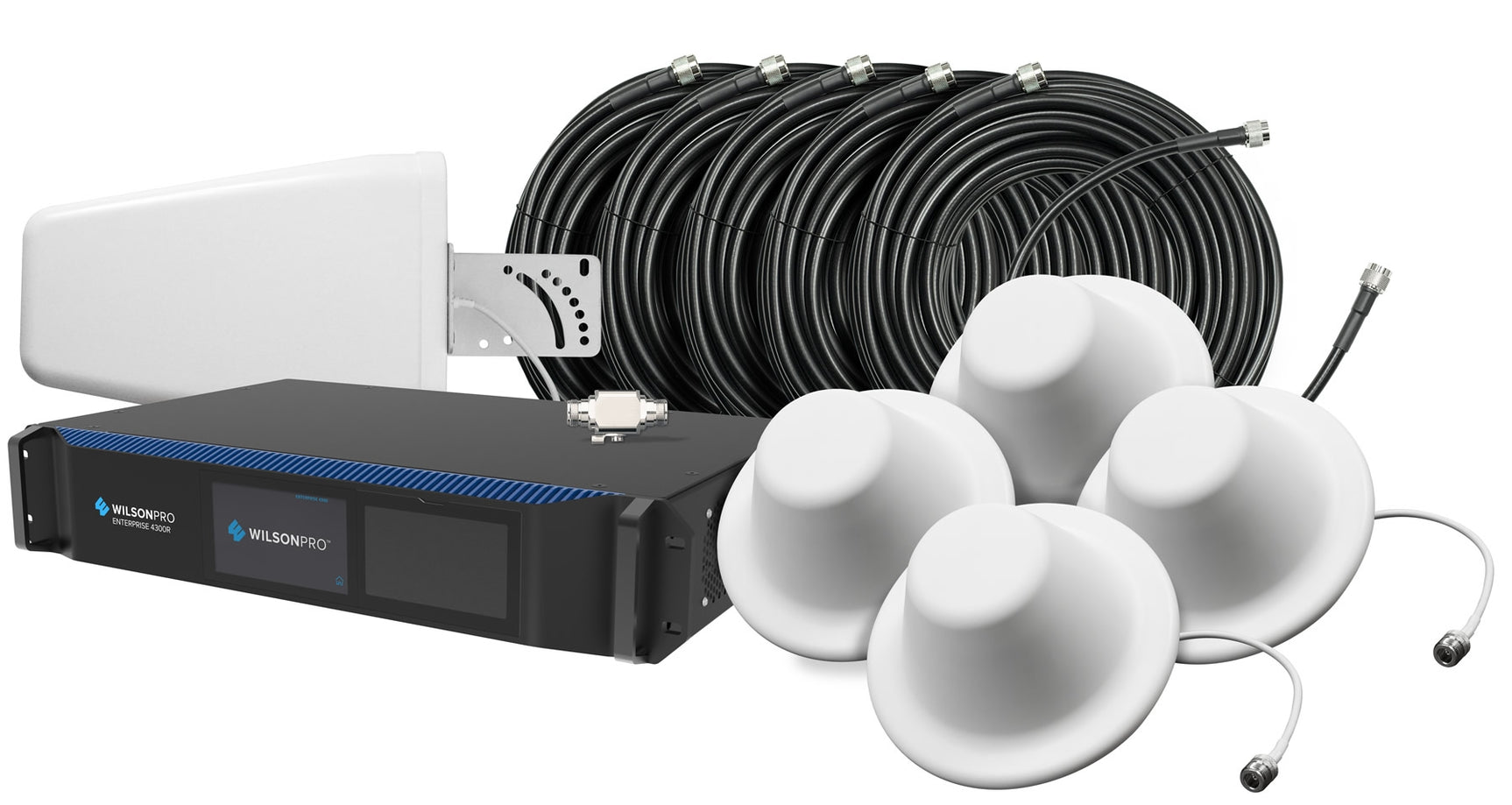

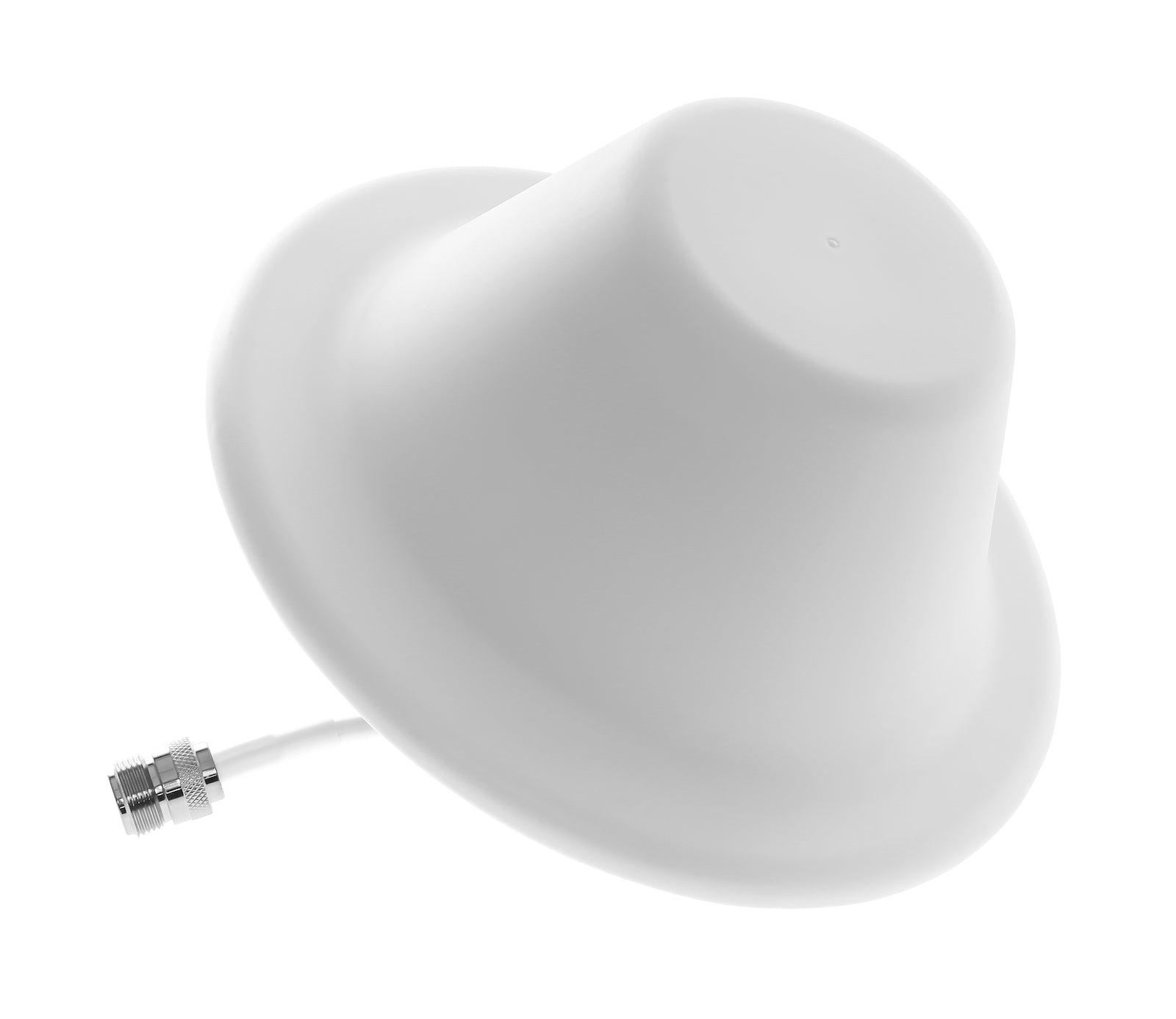

• The full kit includes ultra-low loss cables, commercial-grade internal and external antennas, and a lightning protector kit for additional external surge suppression.

WilsonPro Remote Monitoring Cloud Service

The WilsonPro Enterprise 4300 features the integrated WilsonPro Cloud service, which allows an installer to manage and monitor cellular amps from a phone, tablet, laptop, or any device that runs a Web browser.

The WilsonPro Cloud Service includes the following features:

• Remotely reset an amp or turn specific frequency bands on & off.
• Generate reports & view performance histories on your phone.
• Organize monitored amps by account and location.
• Remote donor antenna tuning tool.
• Annual WilsonPro Cloud subscription includes a wireless LTE connection; no additional internet connection is required.
• Provides end users with high reliability and minimal downtime.

Custom System Design

While the WilsonPro Enterprise 4300 and 4300R kits can cover a wide variety of situations, there are many scenarios where a custom-designed system using the WilsonPro 4300 amplifier and components will result in more complete coverage throughout the space. We offer a free system design service that builds off of the WilsonPro 4300 amplifier and incorporates even better quality components and higher-grade cable for maximum effectiveness. Please contact us at (888) 974-8237 for more details or to get started.

Coverage Area

The coverage area that a signal booster will provide is directly dependent on the strength of the existing outside cell signal for each of the carriers. The stronger the outside signal, the larger the coverage area that the booster will provide. The weaker the outside signal, the smaller the inside coverage area will be.

You should also keep in mind that there are many other factors that contribute to the overall coverage area, including the construction of internal walls, the height of ceilings, the shape of the building, and more. In order to get the best possible results, it is recommended that you have a custom system designed by our RF engineers, free of charge. Please contact us to get started, or if you would like more information on that service.

• If you have an existing strong 5-bar outside signal, you may receive up to 100,000 sq ft of boosted signal inside the building (requires multiple internal antennas).*
• If you have an existing 3 to 4-bar outside signal, you may receive up to 37,500 sq ft of boosted signal inside the building.*
• If you have an existing 1 to 2-bar outside signal, you may receive up to 10,000 sq ft of boosted signal inside the building*.
• If you have no existing outside signal, then a signal booster likely will unfortunately not work in your situation.

Additional Coverage

If you require more coverage than you can get from a single WilsonPro Enterprise 4300 Signal Booster system, it is possible to use multiple kits within the same building. If you would like a free system design for your large building, please fill out our custom signal booster system design form or contact us at (888) 974-8237 to get started.

Supported Carriers

The WilsonPro Enterprise 4300 Signal Booster Kit supports the 2G, 3G, and 4G LTE networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies outlined below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
• Verizon 2G, 3G, 4G LTE & 5G
• Sprint 2G, 3G & 4G LTE
• T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
• US Cellular 2G, 3G & 4G LTE
• All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

Accessories

While the WilsonPro Enterprise 4300 and 4300R Signal Booster kits come with all of the components necessary to install and immediately start boosting your cell signal, the following accessory may be worth considering.

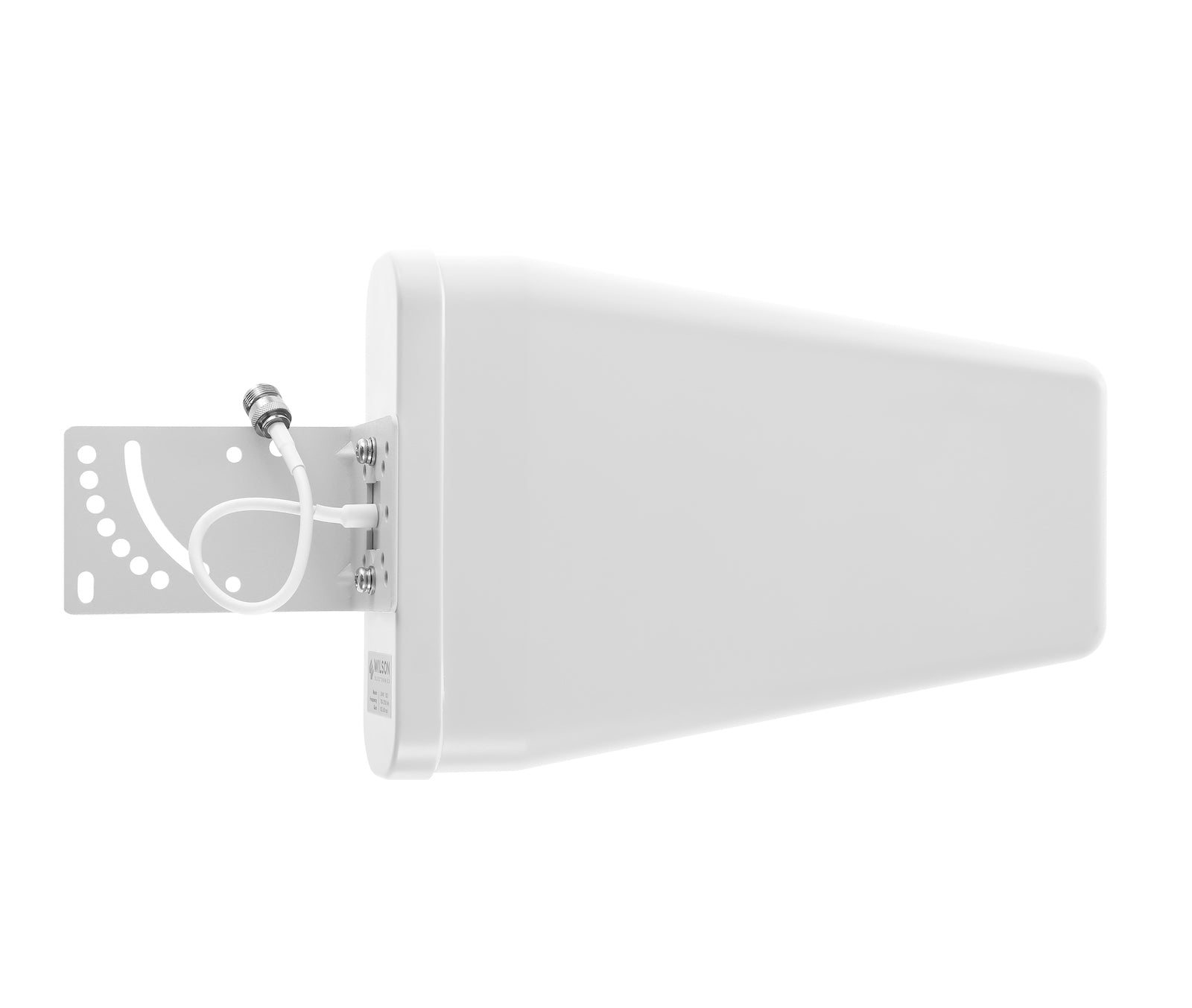

The yagi directional external antenna that is included with the kit is meant to be mounted to a vertical pole that is 2 inches in diameter or less on the roof of the building. Many times there may be an existing pole that can be used, but if not, the Pole Mount Assembly will provide you with a 10-inch pole to mount the antenna to.

* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
