Expected Coverage by Outside Signal

Strong signal outside 5 bars The whole cab
Moderate signal outside 3 to 4 bars A few feet from the inside antenna
Weak signal outside 1 to 2 bars 18 inches or less from the inside antenna
For Side by Sides & UTVs

weBoost SxS Cell Signal Booster for Side by Sides & UTVs | 4709061

The weBoost SxS puts the Drive Reach amplifier in a sealed enclosure and the Overland antenna on a roll cage clamp, so a side by side or UTV gets a booster built for it, on every major US carrier at once.

$599.99


Included with your order:

Erin
Erin

We answer questions for free, before and after you buy.

Signal SpecialistMon to Fri, 9 to 5 ET

Boosts 5G and 4G LTE on Every US Carrier, Including:

MVNOs like Mint, Cricket, and Visible run on these networks too, along with more than 90 regional carriers.

Introducing the SxS

The whole point of a side by side is that it goes where a truck can't, and that is usually somewhere the phone can't follow. It is two miles of fence line out from the house, a switchback climbing out of the canyon, or the ridge you sit on at first light, and the phone on the dash shows a bar, then nothing, and the people who might need you cannot get through.

The weBoost SxS is a cell signal booster made for side by sides and UTVs. It runs the same Drive Reach amplifier that goes into our car and truck boosters, but a side by side rarely has a dry, closed cab to tuck an amplifier into, so this one rides in a sealed IP66 enclosure that mounts to the roll cage, under the seat, or in the cargo bed. The outside antenna is the Overland whip on a 13 inch mast, and it clamps to a roll cage bar so it stands clear above the roof, out in the open where it receives from towers your phone cannot reach on its own. Whatever that antenna receives, the amplifier boosts, and a slim inside antenna on the dash broadcasts it to every phone in the cab at once.

Once it is on, you can tell the house the north gate is down and keep working instead of heading back to say so, the weather comes up on the phone while there is still time to get off the hill, and the ride stays together when the trail splits because the texts keep landing. On a hunt, camp is a phone call away from wherever the machine happens to be parked. Every phone riding with you gets the boost, on every US carrier, and there is nothing to subscribe to and nothing to pay after the box arrives.

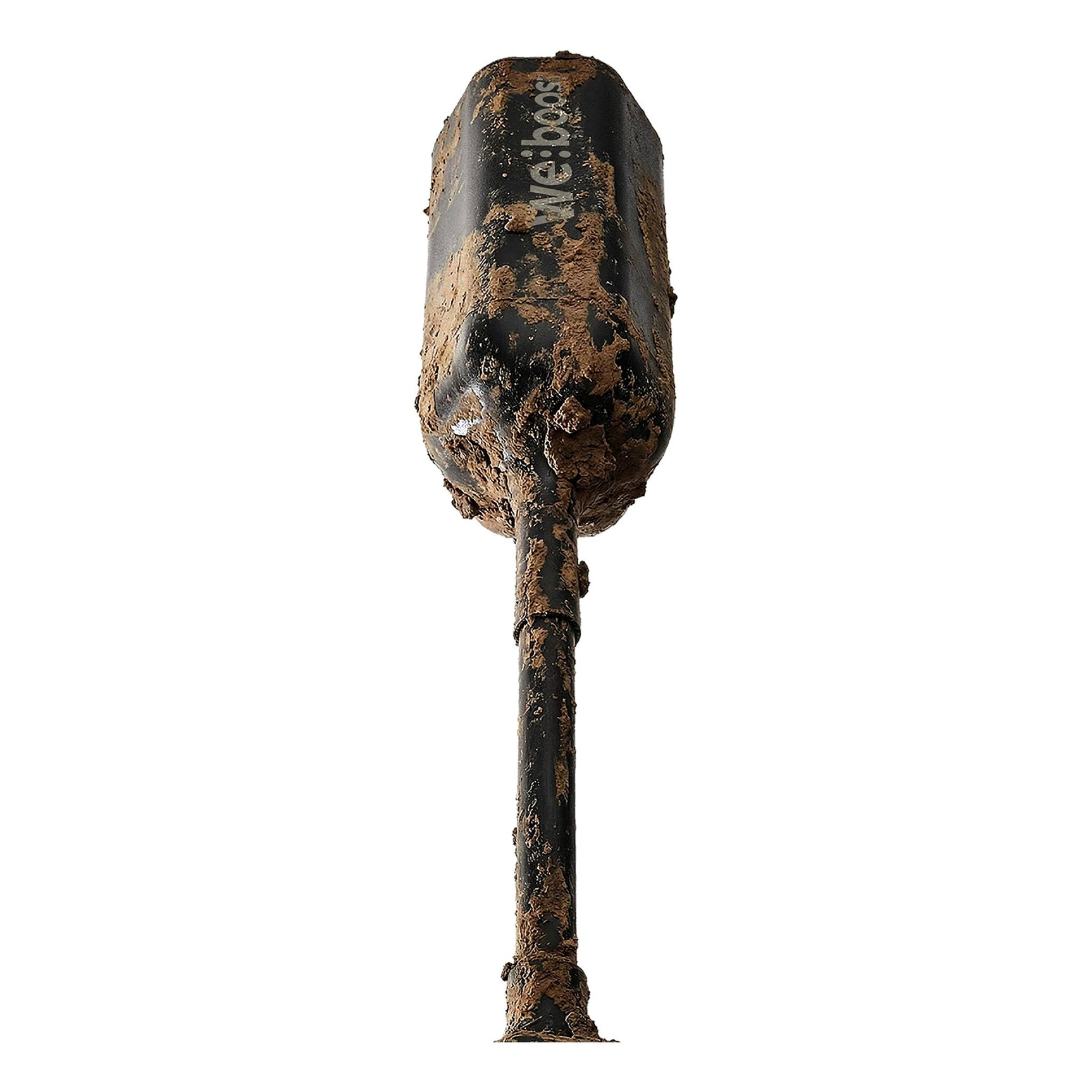

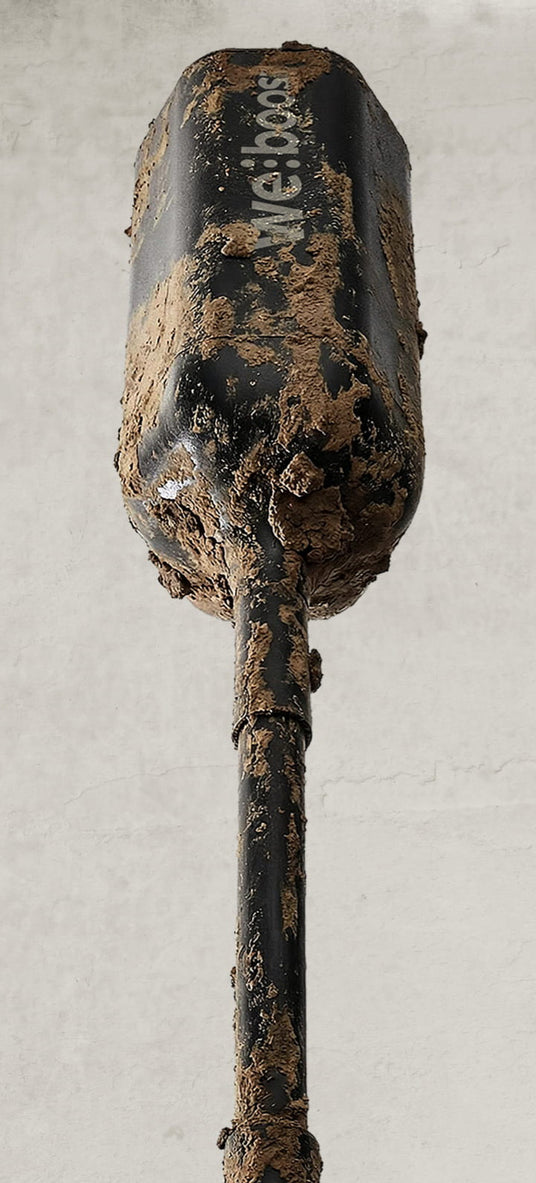

The antenna rides on a spring, so a low branch bends it over instead of breaking it, and it sits on a quick release above the clamp, so it lifts off the mount with one pull when the trailer or the garage door is too low and clicks back into place before the next ride. The clamp fits the roll cage on the machines people actually ride, and where yours already has an antenna spring or a whip light mount, the antenna goes there instead. The enclosure keeps the dust and the mud off the amplifier and stands up to the hose at the end of the day, and the power cord runs to the 12 volt outlet and has its own switch.

Like every booster, it needs some signal in the air to work with, and there are canyon bottoms where there is none and nothing to be done about it. Those spots are fewer than you would guess from the phone, and 90 days is plenty of time to run it on your own ground and find out. If the side by side is what you work the place with, or what the weekend is built around, and you are tired of the phone quitting the moment the pavement does, this is the booster made for that machine.

At a glance

Works While You Ridenot just when you are parked
Every US CarrierVerizon, AT&T, T-Mobile, US Cellular
Sealed Against Dust and Waterthe amplifier rides in an IP66 rated enclosure
Antenna Off in Secondsa quick release, no tools
$0 Monthlyyou own the system outright

Where the SxS Works Best

If any of these look familiar, this is the booster to start with.

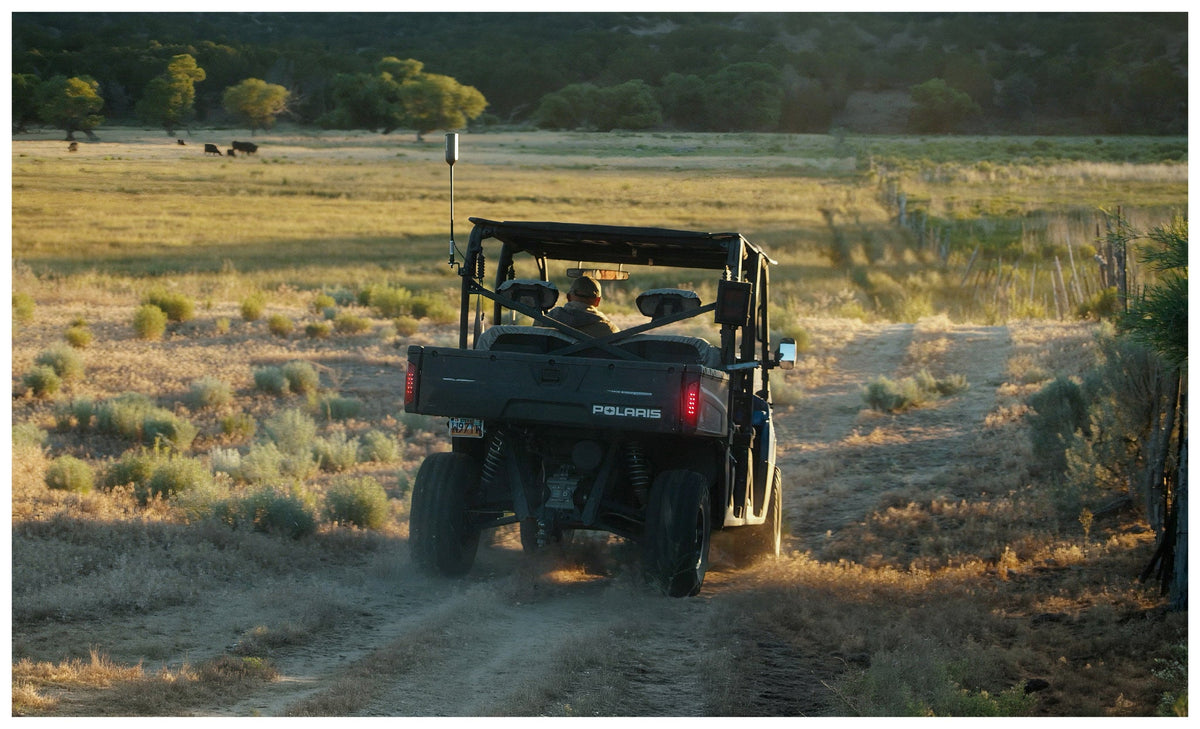

  • Ranch & Farm Work

    Ranch & Farm Work

    The downed fence gets reported from the pasture, not from the barn.

  • Trails & Dunes

    Trails & Dunes

    Texts keep landing when the ride spreads out.

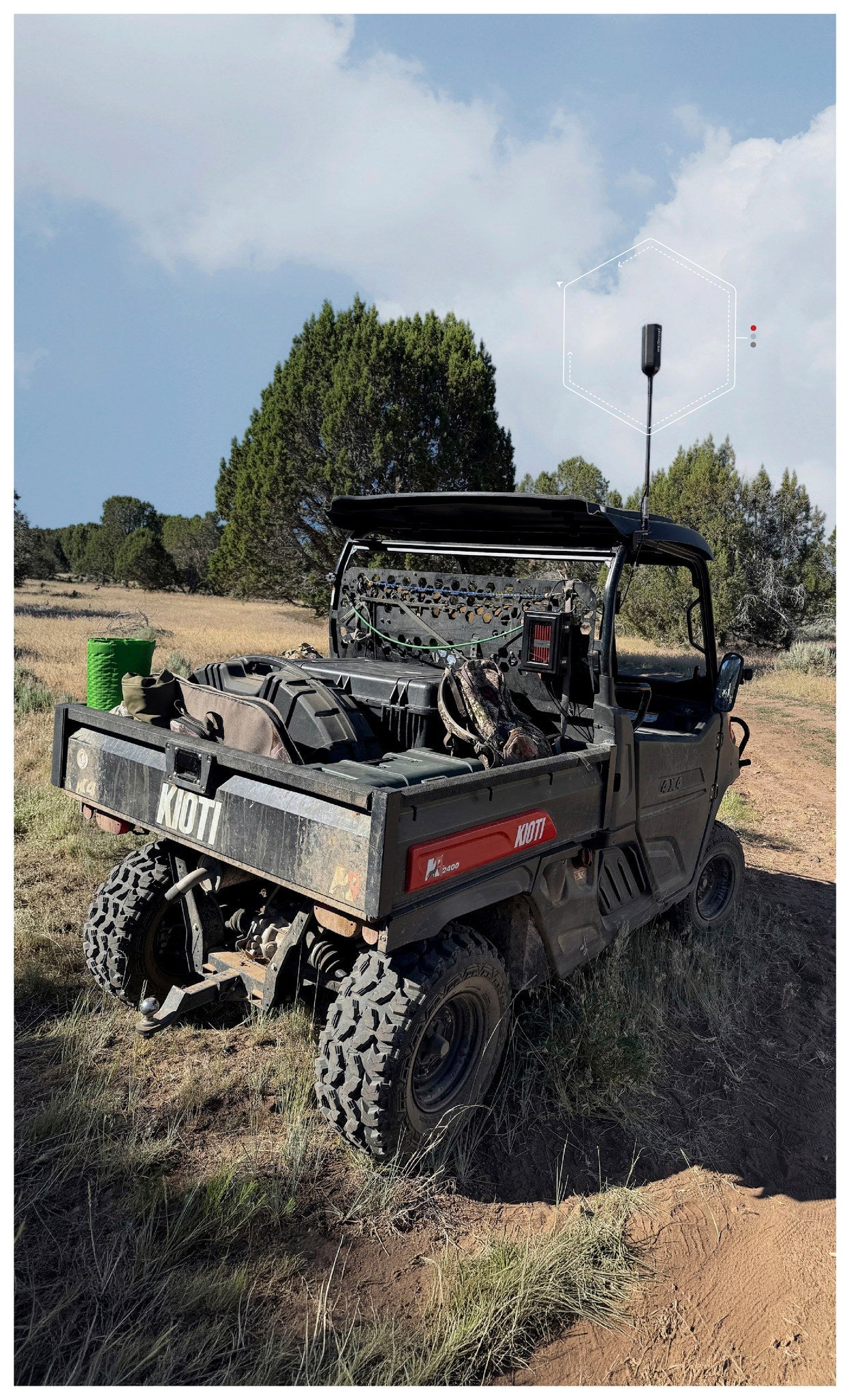

  • Hunting Camp

    Hunting Camp

    Camp answers from the ridge, not just from the truck.

How It Works

Each of the three pieces below does a different job, and where you put it decides how well the next one works.

How the weBoost SxS works
How the weBoost SxS works

The Outside AntennaReceives signal from distant cell towers and passes it over a cable to the amplifier.

How the weBoost SxS works

The AmplifierReceives the signal from the outside antenna, boosts it significantly, then passes it to the inside antenna.

How the weBoost SxS works

The Inside AntennaBroadcasts the boosted signal throughout the space for clear calls, reliable texts, and fast data.

The booster also works in reverse. The inside antenna receives signal from the devices in the vehicle, the amp boosts it up, and then the outside antenna broadcasts the strong signal back to the distant cell towers. This gives you a strong, reliable two-way connection to the cell tower.

How Much Coverage Should You Expect?

How much coverage you get depends on the signal you already have outside. The stronger it is out there, the farther the boosted signal carries inside.

Strong signal outside5 bars, -80 dBm or better
The whole cab
Moderate signal outside3 to 4 bars, about -90 dBm
A few feet from the inside antenna
Weak signal outside1 to 2 bars, about -100 dBm
18 inches or less from the inside antenna
Not sure what signal you have outside? Call us at 1-888-974-8237.

How the Installation Process Works

There are five steps, all of them on the machine, and the decisions that matter most are where the antenna clamps on and where the enclosure rides.

Assemble the Outside Antenna

The antenna, the 13 inch mast, the side exit adapter, and the spring screw together in that order, with a drop of thread locker on each metal thread and none of it on the antenna's plastic body, so the trail does not shake the joints loose, and the socket half of the quick release goes on last. The antenna's cable runs down through the mast and out the side exit adapter to a connector. The spring below the adapter lets the antenna bend away from a branch instead of taking the hit. The mast lifts the antenna over the roof, and you can leave it out if the antenna already clears everything without it. Two heat shrink tubes come in the box for weatherproofing that cable joint, and once one is shrunk over it you would have to cut it away to unscrew the cable, so leave them off if you plan to take the antenna all the way off the machine.

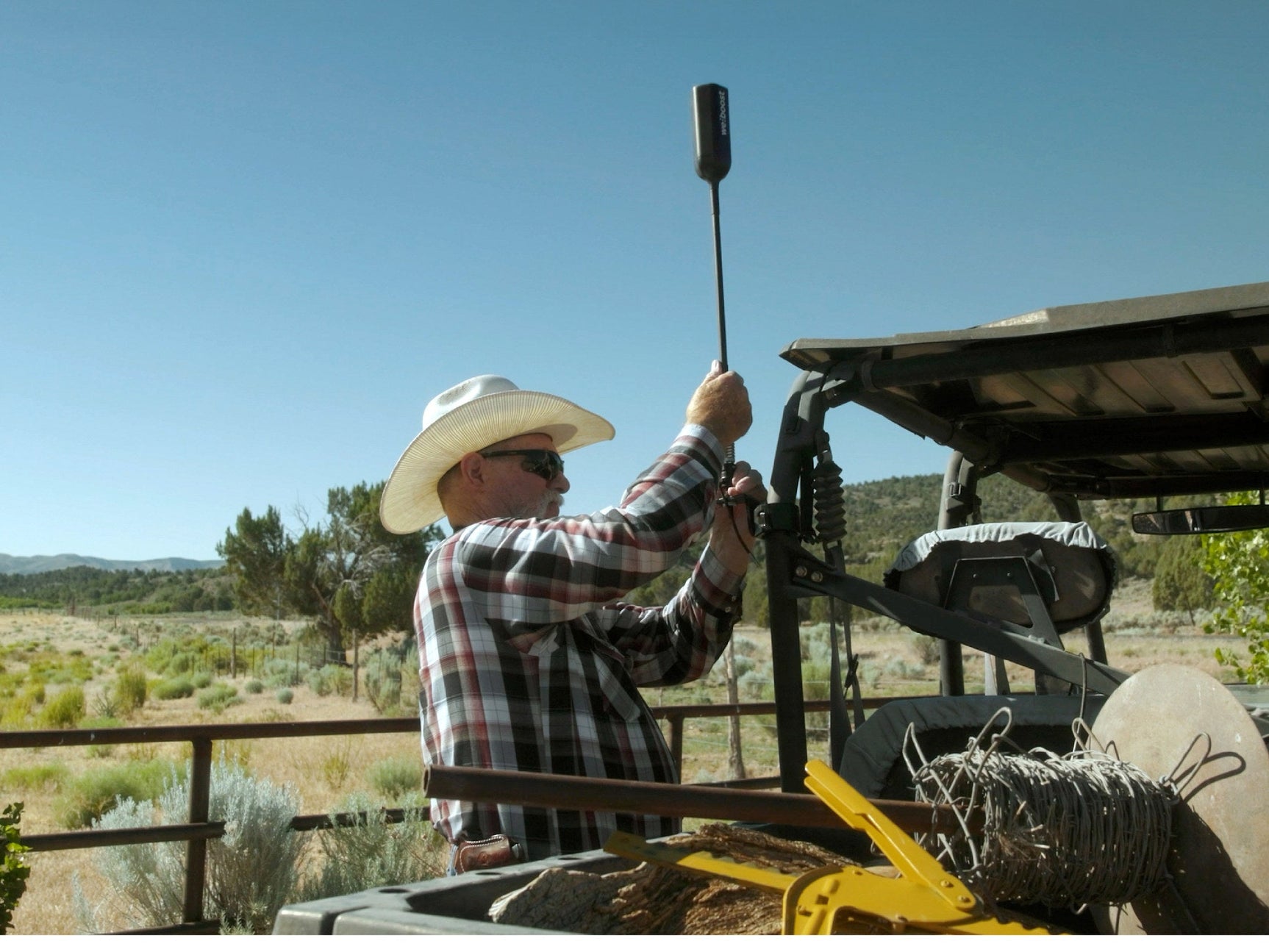

Clamp It to the Roll Cage

Pick the rubber insert that fits your bar, close the clamp on it, and set the geared bracket so the antenna will stand straight up. The stud half of the quick release bolts through the bracket, and the antenna clicks onto it. It needs to sit above the roof and the cage to work its best, the system only runs properly with the antenna upright, and it has to stand at least 8 inches from anyone riding. If your machine already carries a 3/8-24 antenna spring, the quick release stud threads straight onto it. If it has an open whip light mount hole instead, the stud drops through the hole and a nut holds it underneath. Either way the clamp stays in the box.

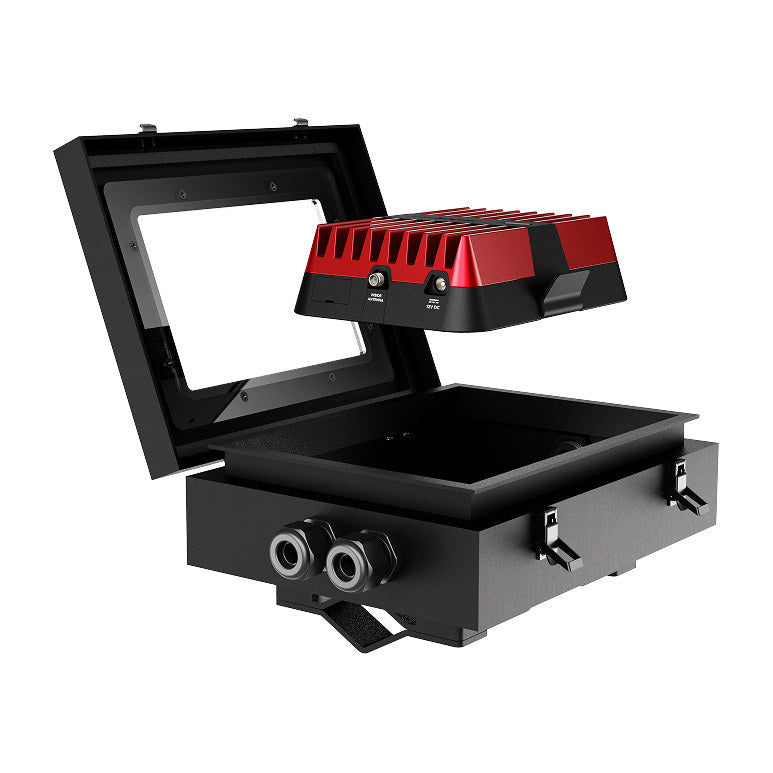

Mount the Enclosure with the Amplifier Inside

The amplifier sticks into the enclosure with the long Velcro strips. The enclosure then mounts to a cage bar with the rubber strips and the two pole mount brackets, upright or on its side, or to a flat spot under the seat or in the bed with the wide Velcro strips or the threaded holes in its base, and if you bolt it down through those holes the fasteners are yours to supply. The antenna cable comes in through a gland, straight to the outside antenna port with the SMA adapter if the enclosure is right by the antenna, or through the 2 foot or 10 foot cable if it is farther away.

Set the Inside Antenna Where Your Phone Rides

It Velcros to the dash or the side of the seat, as close to your phone as you can get it and never more than 36 inches away, and at least 8 inches from anyone in the cab. Its cable comes in through the second gland to the inside antenna port.

Plug It In and Seal It Up

The power cord goes through the last gland to the 12 volt port, the plug goes in the machine's 12 volt outlet, and the switch on the cord turns it on. A solid green light means it is working. Tighten the glands by hand, latch the lid, and zip tie the cables along the cage. On a machine whose outlet stays live with the key out, that switch is also how you park it for a week without coming back to a flat battery.

Not sure it will fit your vehicle? Call us before you order and we will work out where the outside antenna goes on yours. 1-888-974-8237

Still Deciding?

  • Try It for 90 Days

    Signal changes as you move, so the test that counts is watching your own bars with the booster in place. If it does not do enough, send it back within 90 days for a full refund.

  • 2-Year Warranty

    weBoost covers the hardware itself. If something stops working, call us first and we will help you figure out whether it is the equipment or the install.

  • We're Here to Support You

    The team that answers the phone here has decades of combined experience fixing signal on the road, and you get them before you buy and long after.

    Call 1-888-974-8237

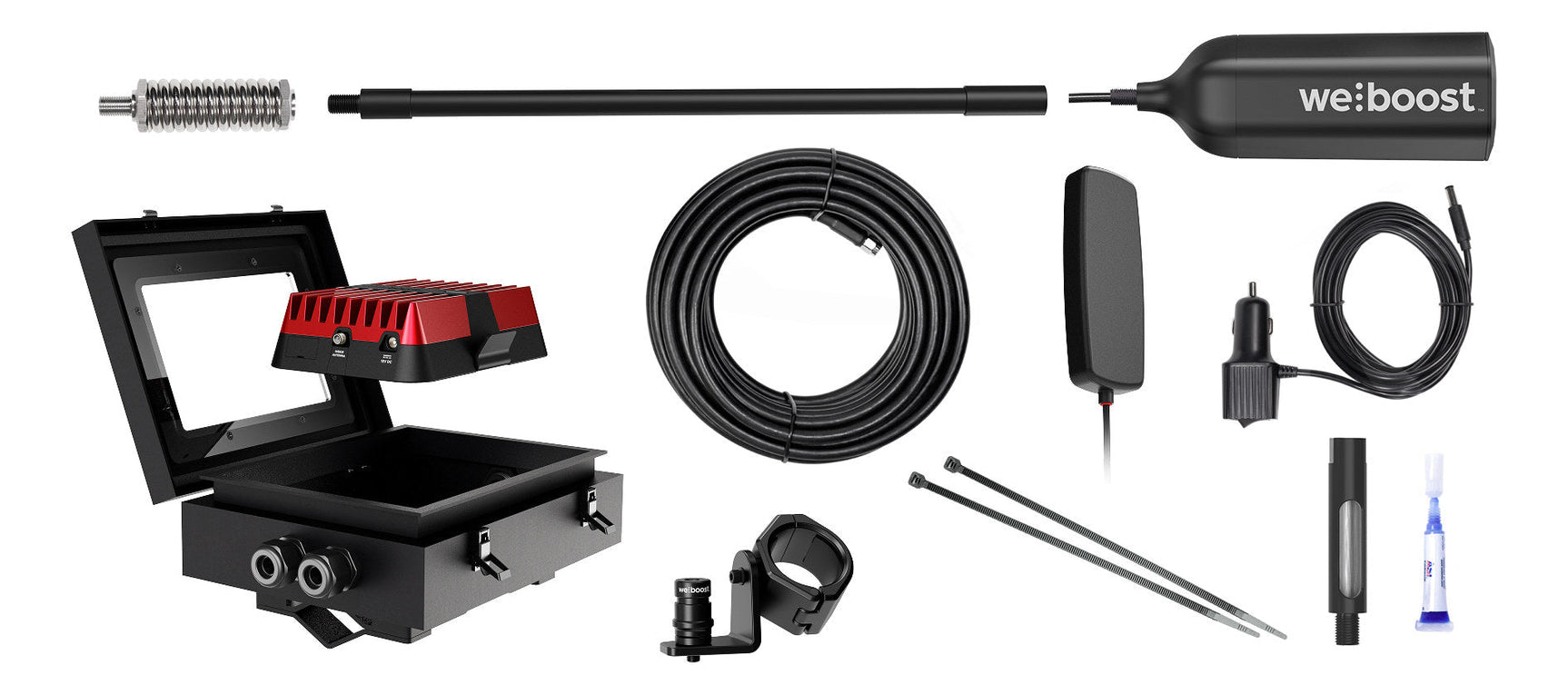

What's Included

Everything below ships together.

The Support That Comes With It

Installation Support

Our team has guided thousands of vehicle installs. Call while you're in the driveway.

Placement Help

If the boost is smaller than you expected, call us and we will work through where the antennas are sitting. That is one of the first things to check.

Lifetime Support

The help does not run out when the warranty does. Call us about a different vehicle, a new phone, or a setup that stopped working the way it used to.

Recommended Accessory

The 18 inch mast lifts the antenna higher over a roof or a light bar. The 18 foot cable is for the machine where the enclosure ends up too far from the antenna for the 10 foot cable to reach, and the shorter cable is the better one whenever it will do the job.

Specifications

These are the specifications we have on file for this booster.

SKU4709061
UPC810005966634
Warranty2 Years
ConditionNew
Gain (Up/Down)50dB / 50dB
Frequencies Supported700MHz, 850 MHz, 1700/2100MHz, 1900MHz
Outside Antenna TypeOmnidirectional
Inside Antenna TypeOmnidirectional
Number of Inside Antennas1 Inside Antenna
Impedance50 ohm
Power Requirements12V 1.8A
ConnectorsSMA Female
Dimensions6 x 4.5 x 1.5 in (amplifier)

Product Documents

Open any of them before you order or after your booster arrives.

weBoost SxS Installation Guide weBoost SxS Spec Sheet weBoost SxS One Pager

Regulatory Advisories

The FCC requires the advisory below on every consumer signal booster, including this one.

This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the three largest carriers (AT&T, T-Mobile, and Verizon) and more than 90 regional carriers have given blanket consent for use of all boosters certified to the current FCC standards.

Why Buy from Us

Authorized weBoost Dealer

You're not just buying a booster. You're getting the team behind it.

Steph
Steph
Sales & weBoost Expert
Dan
Dan
Founder & Installation Expert
Erin
Erin
Sales & Signal Specialist
Jason
Jason
System Design, iBwave Certified

These are the people who pick up the phone when you call.

13+
Years in business
80,000+
Lifetime Customers
4.8/5
Store Rating on Google
1-888-974-8237
Mon to Fri, 9 to 5 ET

Frequently Asked Questions

Will it fit my side by side?

Yes. The clamp closes on roll cage bars from 1.75 to 2 inches across, with three rubber inserts so it sits tight on any bar in that range, and the system is built for the sport, utility, recreational, and crossover machines from Polaris, Can-Am, Kawasaki, Honda, and Yamaha, two seats or four.

If your machine already has an antenna spring on it or an open whip light mount hole, the antenna mounts to that and the clamp stays in the box. If you're not sure what you have, call us with the make and model and we'll sort it out before you order.

Will it work where my phone shows no service?

More often than you would expect. The phone is reading what reaches it down in the cab, and the antenna standing above the cage receives signal the phone cannot. When there is any usable signal in the air, the amplifier boosts it to a level the phone can work with.

Where there is truly nothing to receive, a booster has nothing to boost. Those places are rarer than the phone makes them look, and the 90 day return window is there so you can find out on your own ground.

Does it work with my carrier?

Yes. It boosts every major US carrier at the same time. That covers Verizon, AT&T, T-Mobile, and US Cellular, along with the smaller networks that run on them.

Everyone in the cab gets the boost at once, so it does not matter if the passenger is on a different carrier than the driver.

Do I need my carrier's permission?

No. The major US carriers have given blanket consent for boosters certified to current FCC standards, and this one is certified. You do have to register it with your carrier, which is a short form on their website.

You can register before the booster ever goes on the machine, and there is no approval to wait on once you have.

Do I have to take the antenna off for the trailer or the garage?

Only if it won't clear. With the mast on, the antenna stands high enough over the cage that a low garage door, a trailer with a roof, or branches on a tight trail can catch it, which is what the spring under the antenna is for on the trail and what the quick release is for everywhere else.

Pull the collar and the antenna lifts off the mount, and if you want it off the machine altogether, the cable unscrews at the connector below the antenna. It goes back on with the same pull. The system needs the antenna upright to run properly, so it is on or off, never folded down.

Can I hose the machine down with the booster on it?

Yes. The amplifier lives inside an enclosure rated IP66, which keeps dust out entirely and stands up to heavy spray, and the cable glands seal around the cables once you tighten them by hand.

The enclosure is not built to sit under water, so keep it out of the creek, and keep a pressure washer's wand back from the glands rather than driving it straight at them. Otherwise wash the machine the way you always have.

Will it drain the battery?

Only on a machine that keeps the 12 volt outlet live after the key comes out, and only if you let it. The booster draws its power from that outlet, so your phone's battery never comes into it.

If your outlet stays powered and the machine will sit for more than a day, the switch on the cord shuts the booster down so nothing keeps drawing. If the outlet only has power with the key on, there is nothing to think about, because the booster goes off when the machine does.

Can I hardwire it instead of using the 12 volt plug?

Yes. The cleanest way is a switched accessory circuit, so the booster comes on and goes off with the key and never touches the battery while the machine sits. Check your owner's manual for the accessory power points, since they vary by make and model.

There is a Rocker Switch Hardwire Kit built for this booster that replaces the plug with a fused connection and a switch on the dash. We do not stock that part today, so call before you order and we can tell you where it stands.

How close does my phone need to be to the inside antenna?

Within 36 inches, and closer is better. Mount the inside antenna on the dash or the side of the seat, as near to where your phone rides as you can, and keep it at least 8 inches from anyone in the cab.

How far the boosted signal reaches depends on the signal outside. With strong signal outside it fills the cab, with a moderate signal it reaches a few feet from the inside antenna, and with a weak signal about 18 inches. A phone in a mount on the dash right next to the inside antenna gets the most out of it.

Does it help my GPS or my maps app?

It helps the maps, not the GPS itself. Your position comes from satellites and the booster does nothing to that, but the map, the route, and the traffic all load over cellular data, and that data is what the booster improves.

Your position comes from the satellites either way. What changes is that the map around it keeps loading when you leave good coverage behind.

Is this a Wi-Fi booster?

No. It boosts the cellular signal your phone uses for calls, texts, and mobile data. It does nothing for Wi-Fi or for satellite internet, and it does not create a hotspot.

If you carry a cellular hotspot on the machine, that gets the same boost your phone does. Keep it near the inside antenna the same way.

Does it work outside the US?

It covers the United States, Canada, and Mexico. Most European, Asian, and African networks run on different frequencies, so it will not help you there.

In Canada there are requirements to meet before you use it, and they are published by ISED.

Is the SxS more powerful than the Drive Reach or the Overland?

The boost is the same on all three. Every one of them runs the same 50 dB amplifier, and 50 dB is the ceiling the FCC sets for a booster that covers every carrier at once in a vehicle. The antenna is where they separate. The SxS carries the same antenna the Overland does, and that antenna is a stronger one than the Drive Reach's, so it receives from towers that are further off and the amplifier has more signal to boost. Against the Overland, the SxS is an even match on both counts.

What the SxS adds is the packaging around all of that: an enclosure that keeps dust and water off the amplifier, and a roll cage clamp with a quick release so the antenna has somewhere to mount on a machine with no roof to speak of. If the booster is going on a pickup or a rig with a roof rack, look at the Work Truck, the Drive Reach, or the Overland instead.

Why buy it here instead of Amazon?

Because fitting it to your machine is the part that matters, and we do that with you. Tell us the make and model and we'll tell you whether the clamp, a whip light mount, or a spring base is the right way to put the antenna on, and where the enclosure should ride.

We've sold the Drive Reach amplifier for years and know it inside and out, our people answer the phone while you have the machine apart, and you have 90 days to decide it earned its place on it.

Reviews

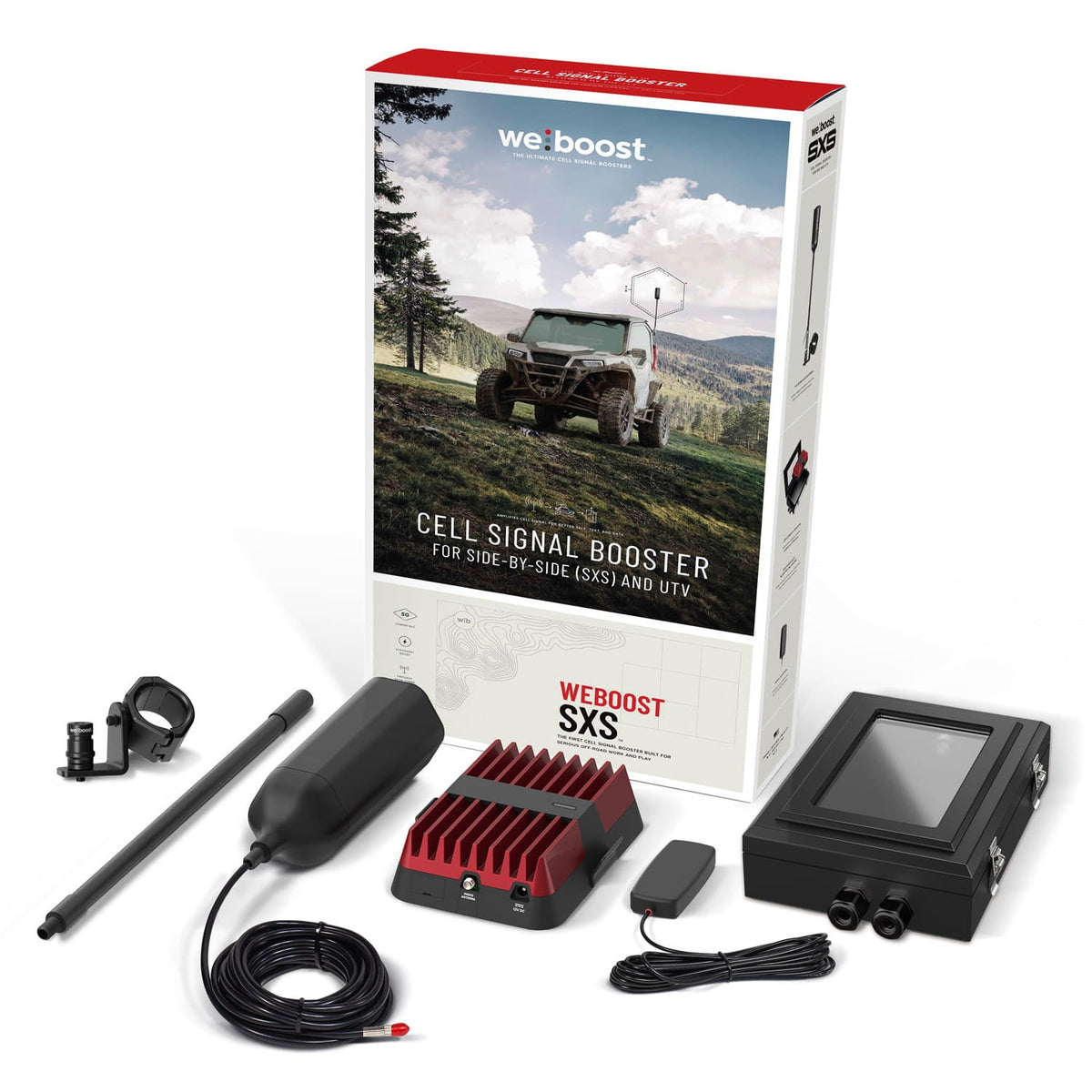

weBoost SxS cell signal booster for side by sides and UTVs with the box, amplifier, enclosure, antenna, and clamp
