weBoost 470166 Home Studio Signal Booster Kit

SKU: 470166 |
$349.99

Do You Have a Question?
Our friendly signal experts are ready to help you.
Call us: 1-888-974-8237 or send us a message.

Description

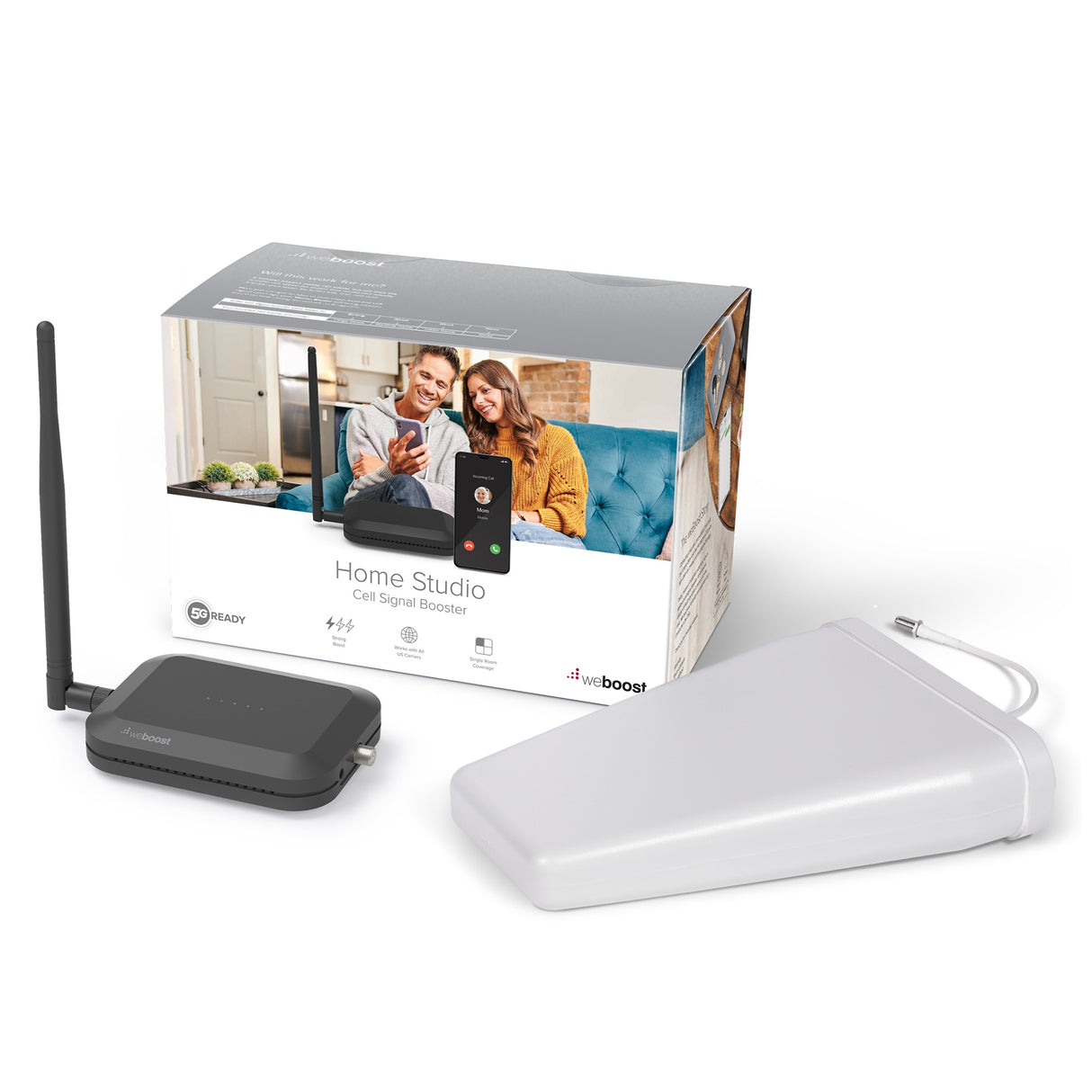

The weBoost 470166 Home Studio Signal Booster Kit is designed to improve poor cell reception, increase Internet speeds, and eliminate dropped calls in your home or office. The Home Studio is an affordable, entry-level signal booster that's ideal for covering a small space or a single room with boosted signal. It's also a great option for small cabins, construction trailers, shipping containers, cubicles, and more.

You Should Choose This Kit If

The weBoost Home Studio Signal Booster Kit is ideal for the following situations:

You are looking for an affordable signal booster for one or multiple carriers
The Home Studio is the most affordable entry-level signal booster that can boost voice and high-speed data from multiple carriers at the same time.

You only need to cover a small area inside with boosted signal
The weBoost Home Studio is designed to cover a small area inside of a home or office. Depending on where you mount the outside antenna and how strong the existing signal is in that location, it may be possible to receive up to 1,500 sq ft of coverage from the Home Studio. However, locations with a weaker outside signal will receive a small coverage area from the Home Studio.

Coverage Area

Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.

  • If you have an existing strong 5-bar outside signal, you may get one large room of coverage inside**
  • If you have an existing 3 to 4-bar (-90 dB) outside signal, you may get one small room of coverage inside**
  • If you have an existing 1 to 2-bar (-100 dB) outside signal, you may get coverage a few feet from the inside antenna**
  • If you have no existing outside signal, you likely will not get any coverage from the Home Studio

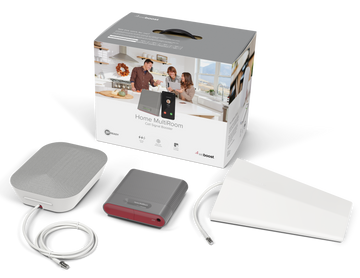

If you need more coverage than you can get from a single weBoost Home Studio system, take a look at the more powerful weBoost Home MultiRoom or weBoost Office 100.

Supported Carriers

The weBoost 470166 Home Studio supports virtually all of the networks and carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

  • AT&T 2G, 3G, 4G HSPA+ & 4G LTE
  • Verizon 2G, 3G, 4G LTE & XLTE
  • Sprint 2G, 3G & 4G LTE
  • T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
  • US Cellular 2G, 3G & 4G LTE
  • All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

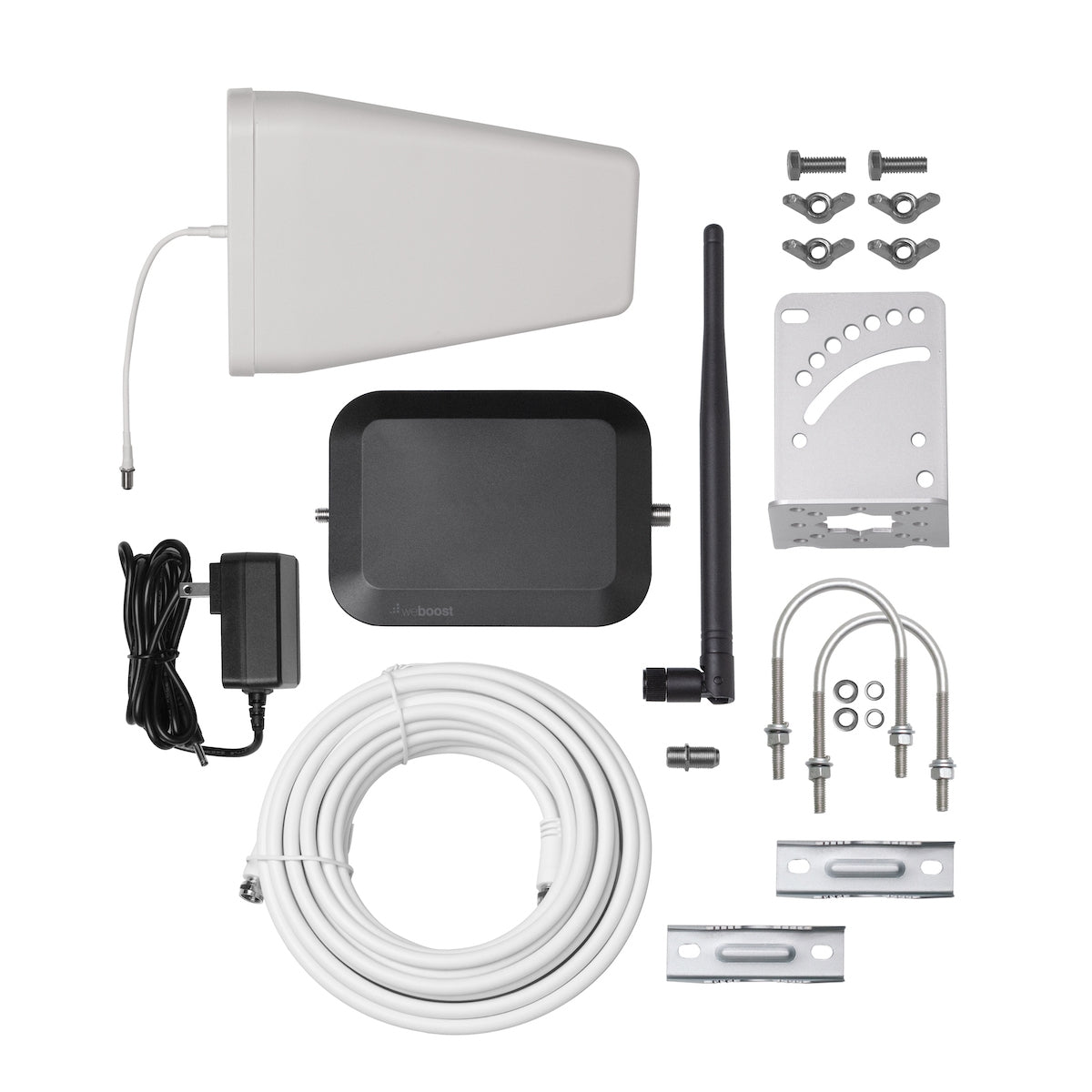

In the Box:

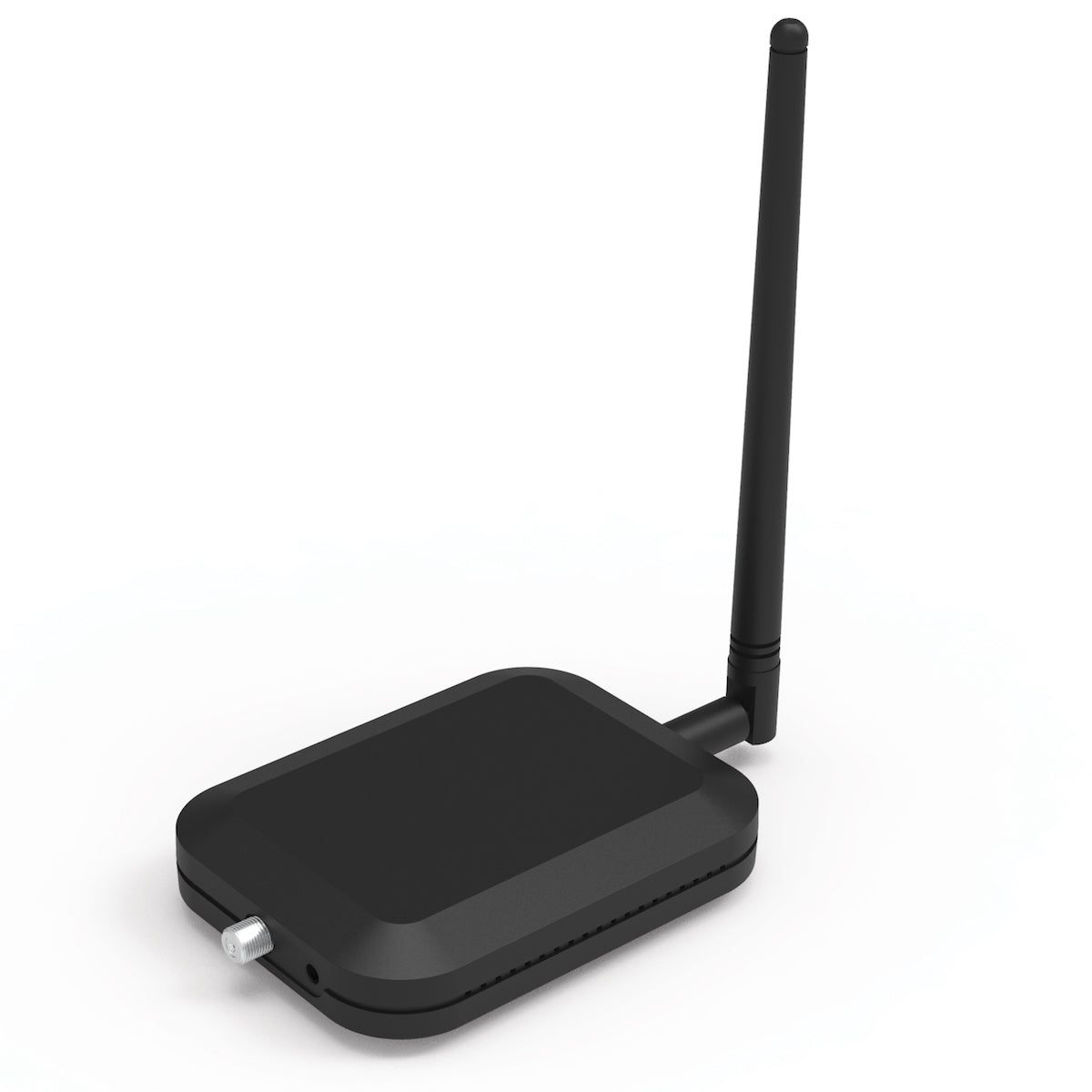

  • weBoost Home Studio 60 dB Amplifier and Inside Antenna Combination Unit
  • Yagi Directional Antenna with F-Female Connector and Mounting Hardware

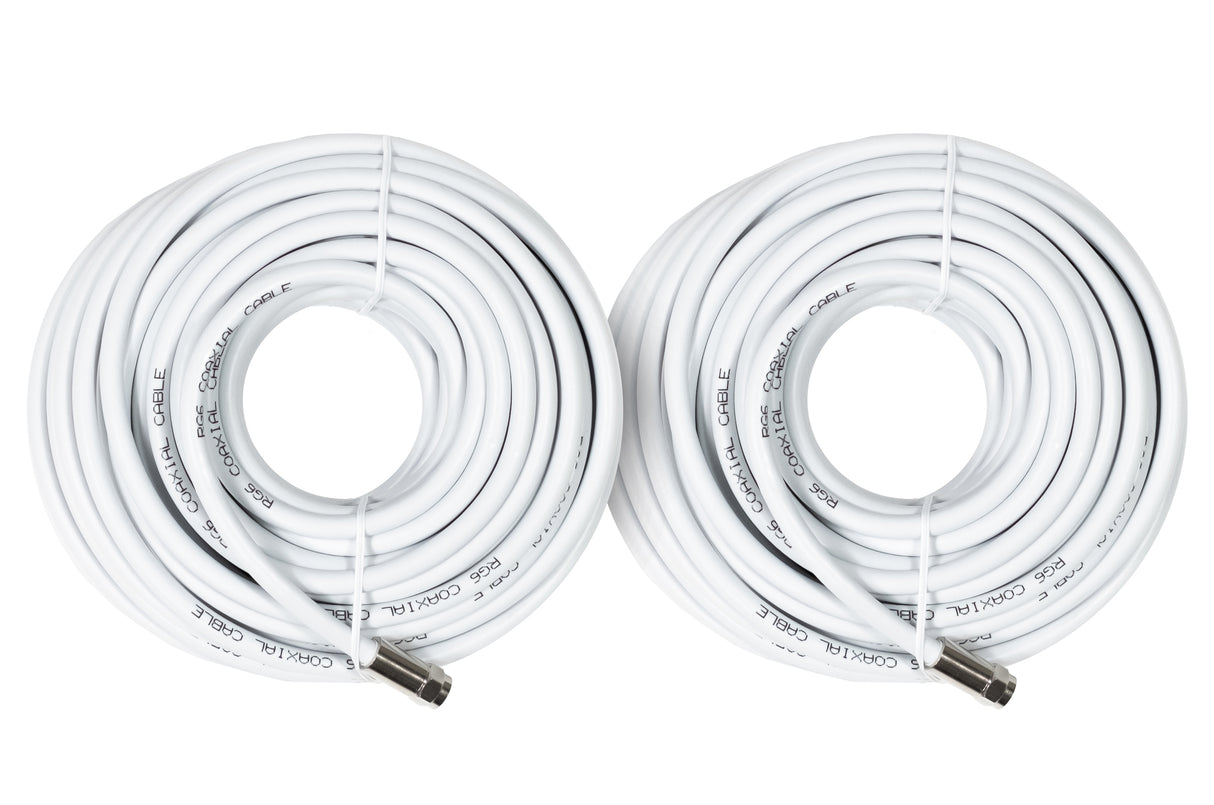

  • 2 x 30 ft White RG6 Low Loss Coax Cable

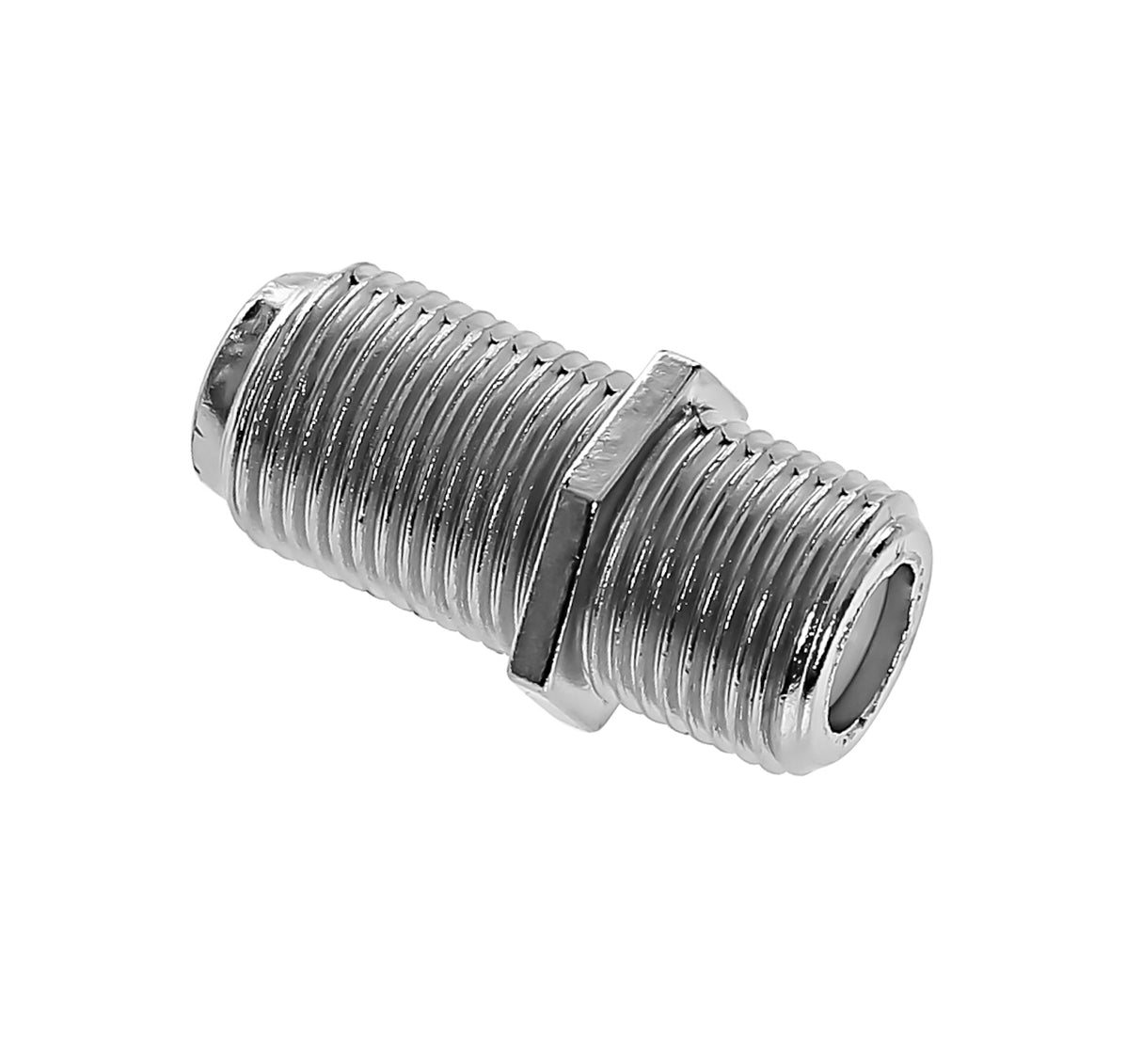

  • F-Female Barrel Connector for RG6 Cable (allows you to combine two of the RG6 cables together if you need a longer length)

Installation Overview

Before you begin, we recommend performing a soft installation where you don't permanently mount components, drill holes or finalize cable runs until you're sure that the system is performing to the level that you would like. Once you've tested out antenna and component locations and are satisfied with the results, then you can go ahead and permanently install everything. Finally, read through the entire set of installation instructions both here and in the included manual before beginning, and feel free to call us with any questions before you proceed.

To install, just follow these steps:

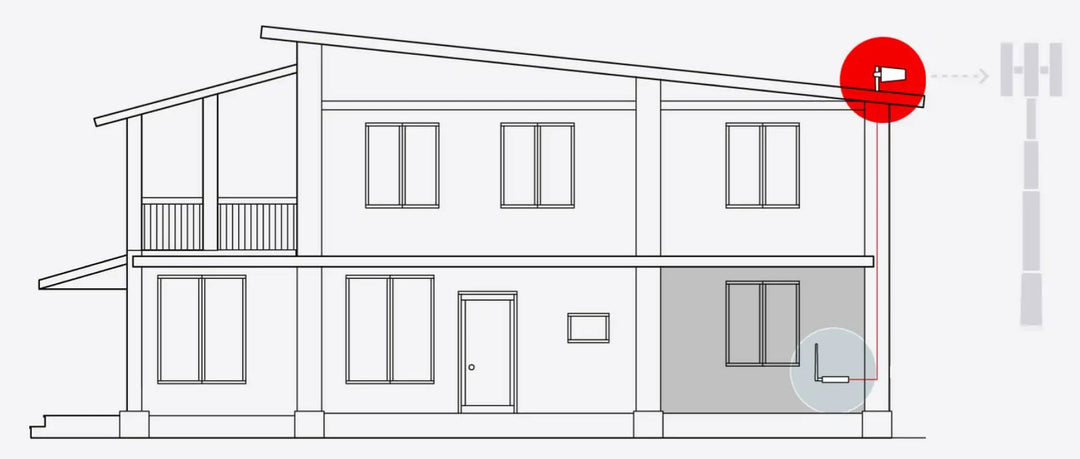

  1. First, you'll need to determine the side of the building that gets the strongest signal. Once that's been identified, then you'll need to install a vertical pole on the roof of that side of the building to mount the antenna to, such as the pole mount assembly, which you can purchase from Wilson Signal Booster or something similar from a local hardware store. Once you have the pole installed, attach the external yagi antenna, point away from the building, connect the included RG6 cable and then run into the building. You may be able to enter the building through a vent or soffet, but may need to drill a hole if no other opening is available.
  2. If you've purchased a lighting surge protector, connect that now to the RG6 cable, and then attach the 2ft cable to the "Outside Antenna" port of the inside unit. If you did not purchase a lightning protector, then directly connect the outside cable to the "Outside Antenna" port. Locate the inside unit in the area where you need better signal and plug it in. As it's powering up, you should see the lights flashing, and then check to see that they turn solid green. If they are blinking or are any other color than green, you'll need to troubleshoot the setup by consulting the manual or contact us for help.
  3. If you mounted the outside antenna outside on a pole, you'll need to aim it for the best results. Start with the antenna high on the roof pointed in one direction. Turn on the system and have an inside helper inside stand near the inside antenna and take a signal reading with their phone in field test mode. Rotate the antenna 45 degrees and then pause for 60 seconds. After the pause, the person inside should take another signal reading, and then you can repeat the process. Each time your partner checks the signal strength, also check to make sure there aren't any warning lights on the amplifier. After you've gone all the way around, mount the antenna facing in the direction with the strongest signal.

The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.

* Will boost all 2G, 3G, and 4G LTE networks with the exception of Clearwire WiMAX. Contact us to verify that your carrier is supported.

** The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. The actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.

Specifications

  • Warranty Length
    2 Years

Regulatory Advisories

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
