WilsonPro Enterprise 1300 Signal Booster with Multi-Tower Targeting

Product Highlights

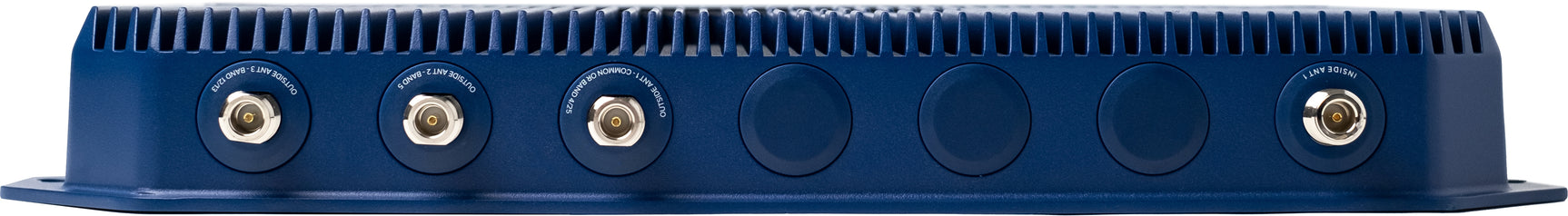

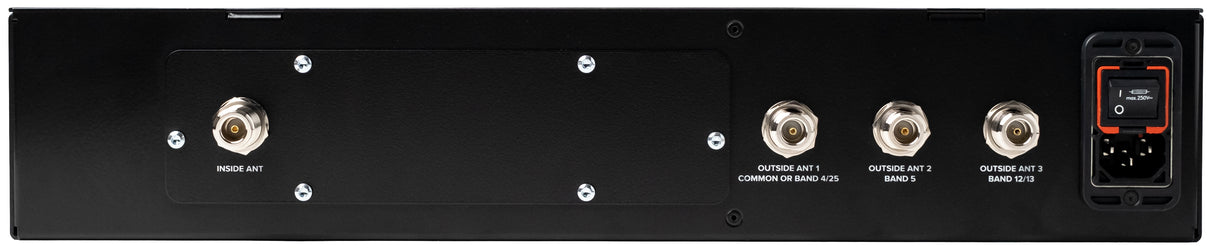

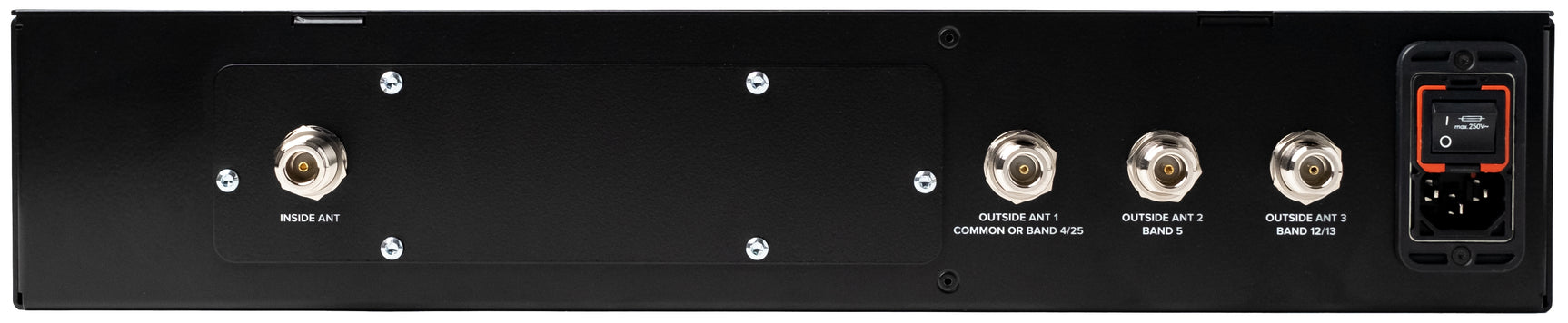

• Multi-tower targeting (MTT) with three donor antenna ports for separate frequency bands
• Operates in either split mode (multiple towers) or common mode (single donor antenna)
• Integrated LTE modem for cloud monitoring without using your building’s network
• Up to +26 dBm uplink and +17 dBm downlink power for maximum range and performance
• XDR (Extended Dynamic Range) automatically adjusts gain to prevent overload
• Color LCD touchscreen for local diagnostics and system monitoring
• Supports all major North American carriers and cellular devices
• 70 dB max gain, the highest allowed by the FCC for this class

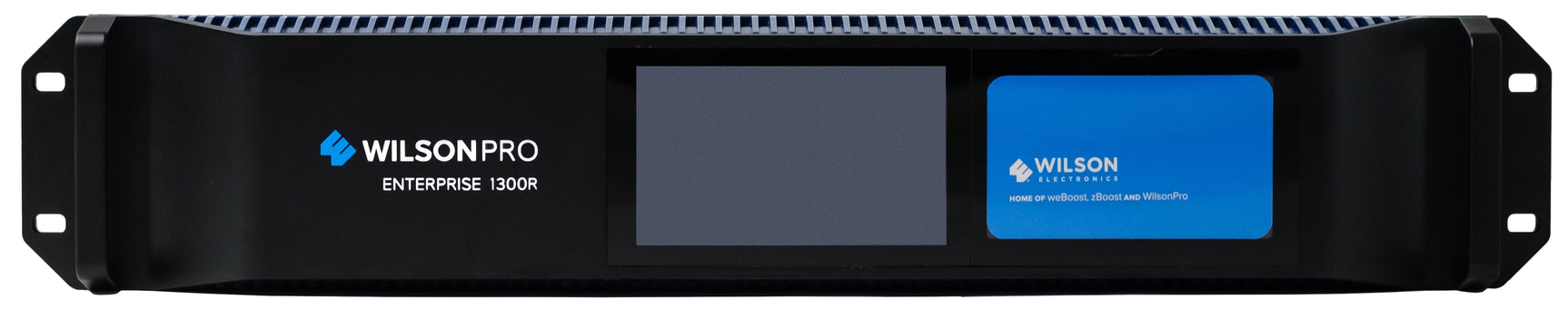

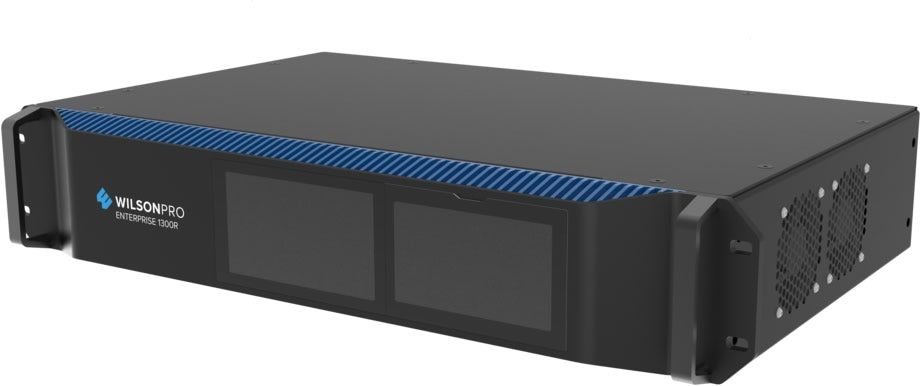

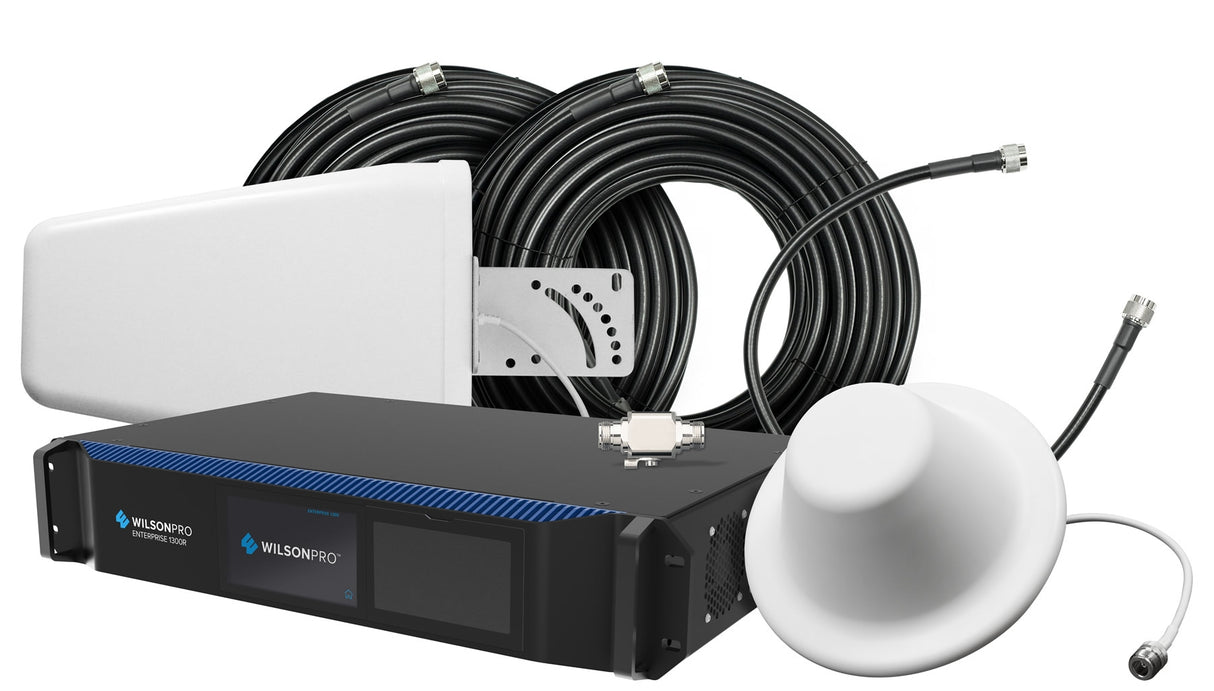

• Available in wall-mount (1300) or rack-mount (1300R) formats

Top Benefits

• Reliable coverage in large buildings even when carriers broadcast from different directions
• No surprises during installation thanks to built-in tools and automatic gain control
• Works in complex environments like hospitals, warehouses, and urban offices
• Peace of mind for IT teams with hands-off remote monitoring and alerts
• Supports every carrier and device simultaneously without needing manual adjustments

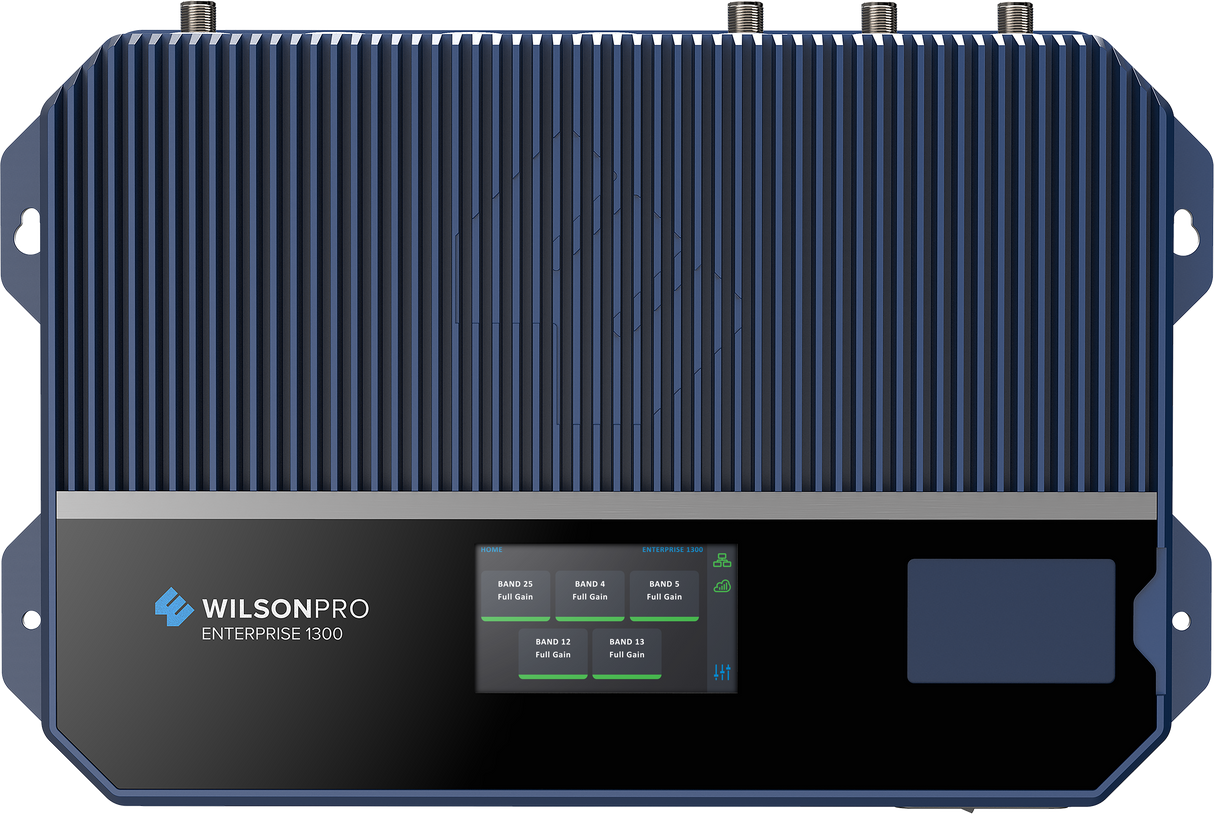

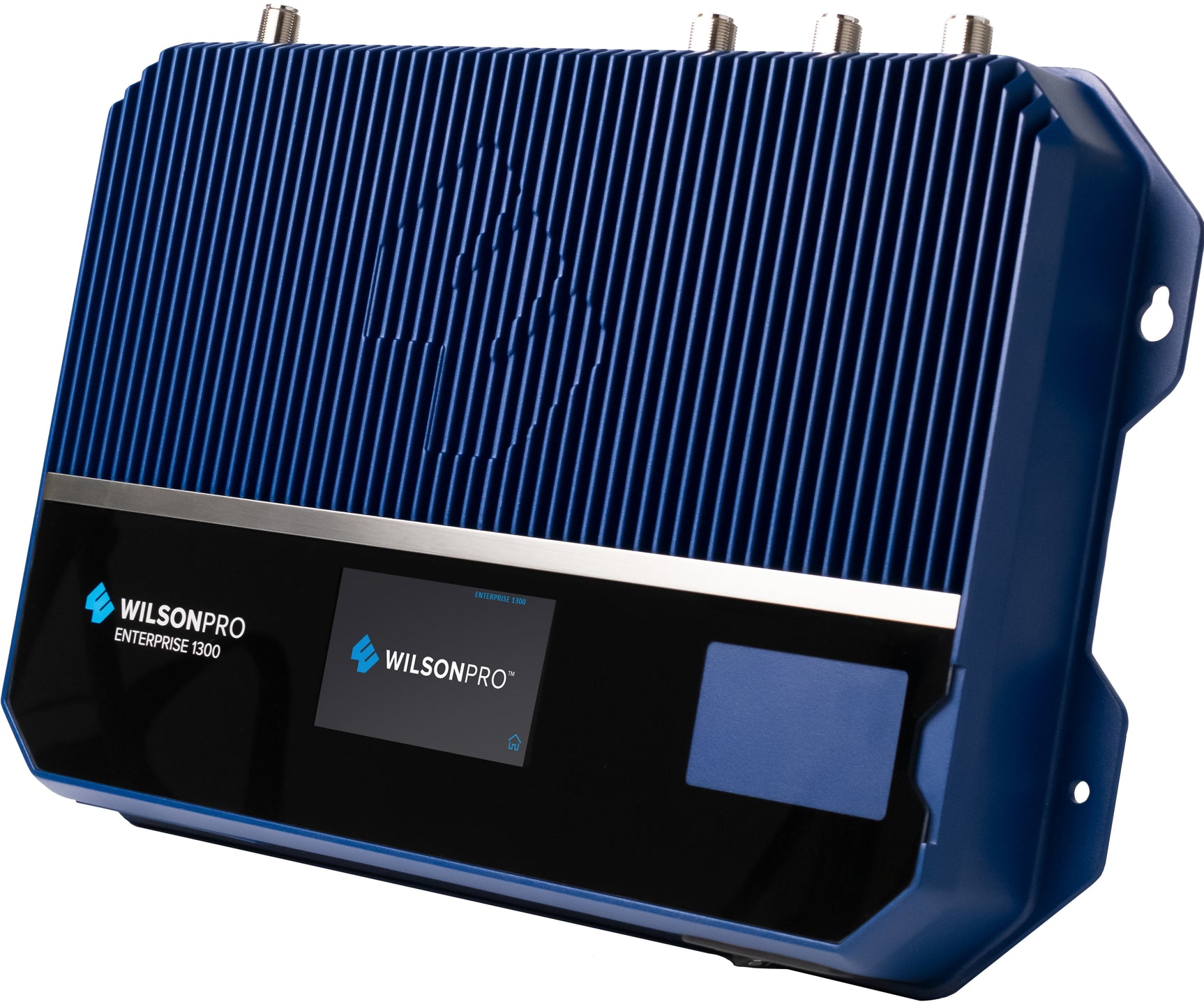

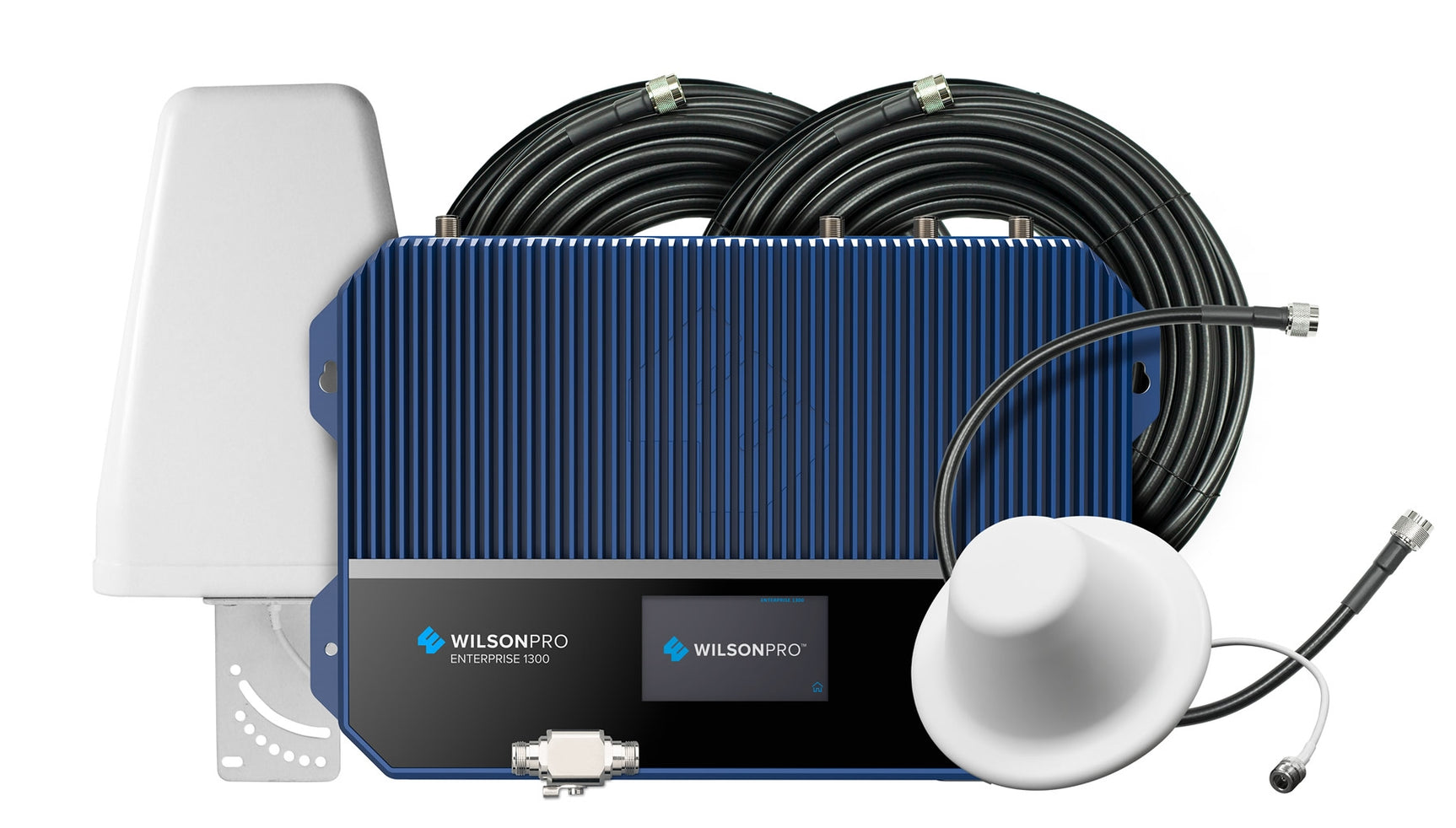

• Enterprise 1300 Amplifier

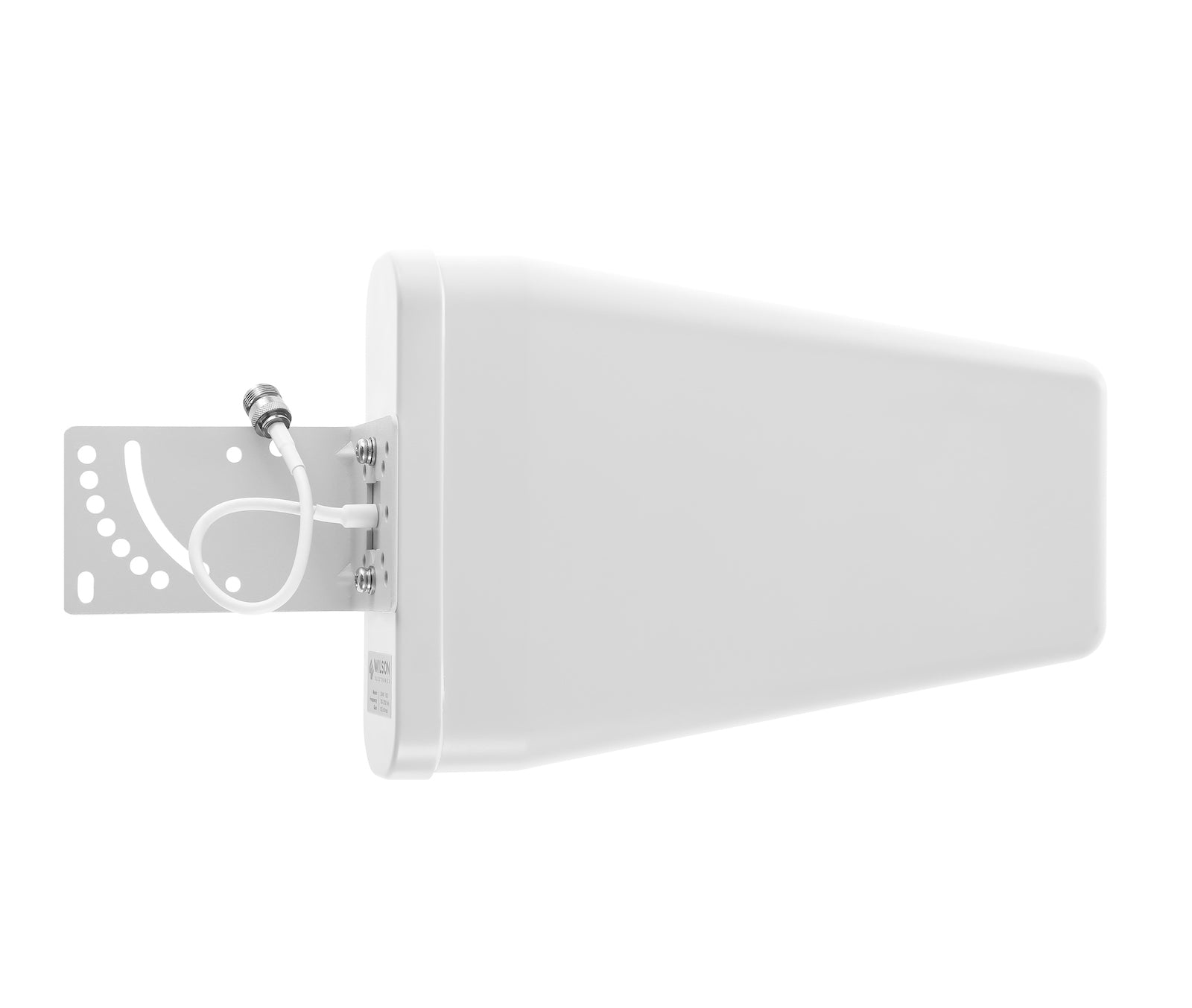

• 1 × Wideband Directional Outside Antenna (314411)

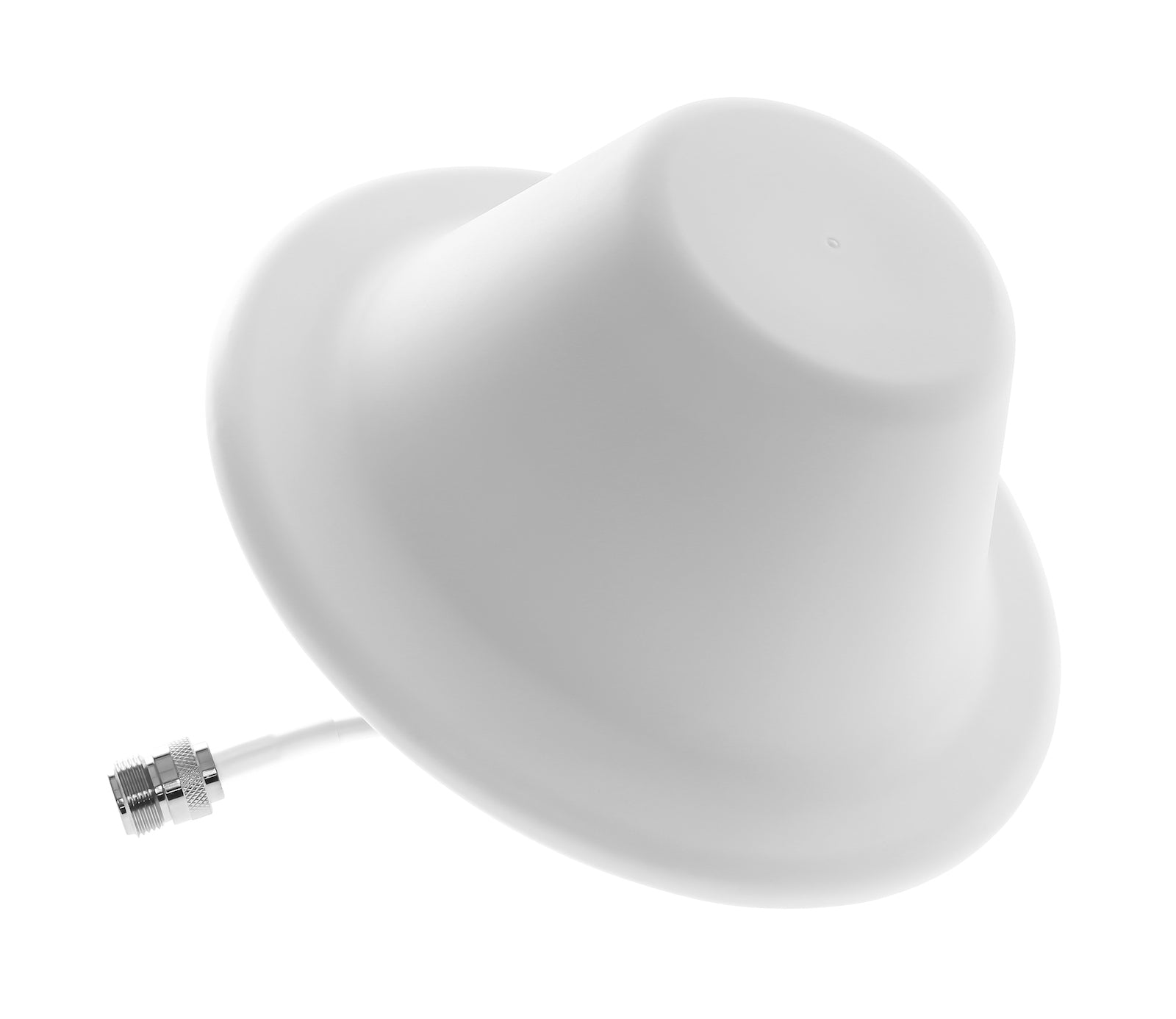

• 1 × Dome Inside Antenna (304412)

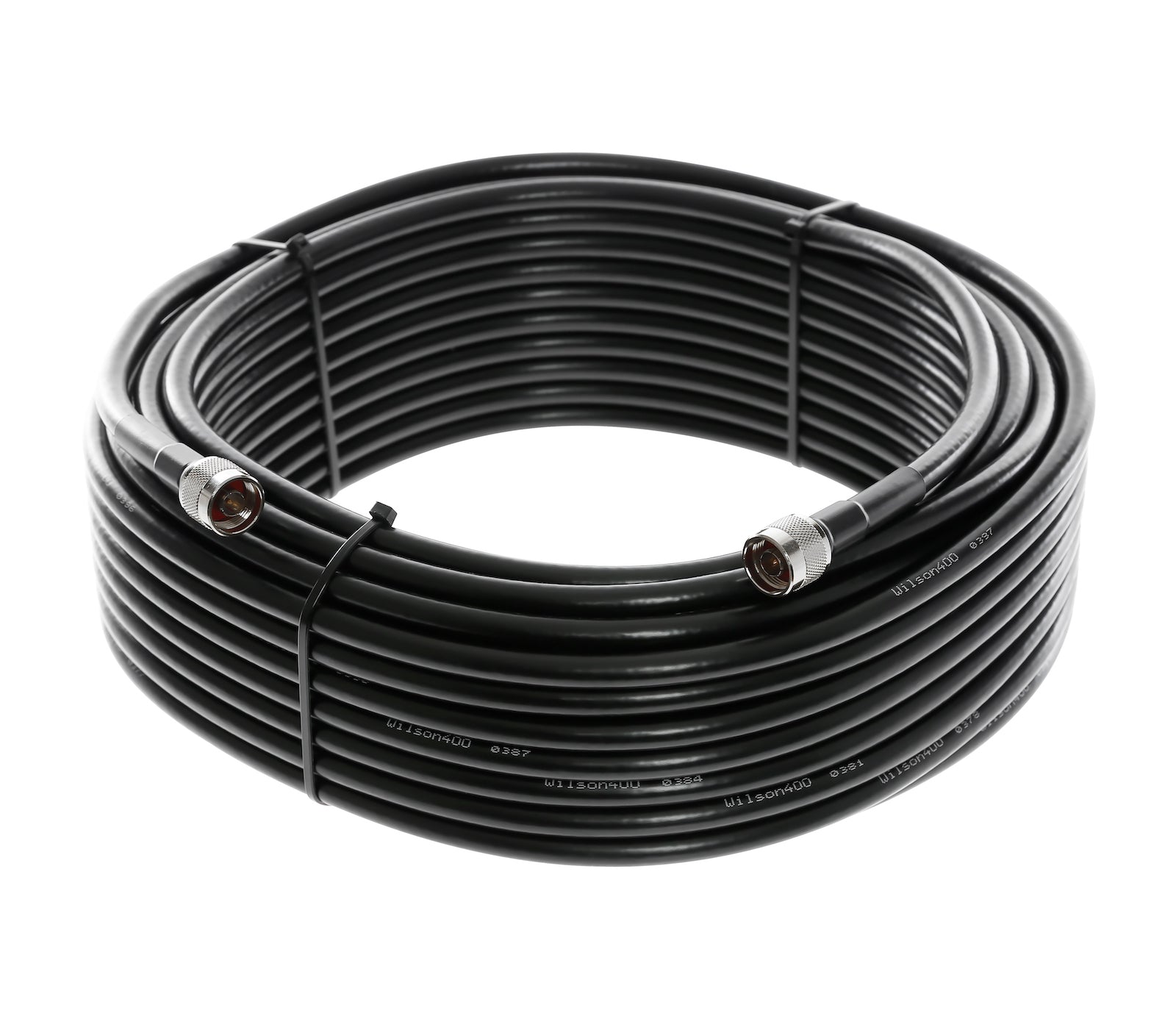

• 2 × 100 ft Wilson400 Coaxial Cable (952300)
• 1 × 2 ft Wilson400 Coaxial Cable (952402)

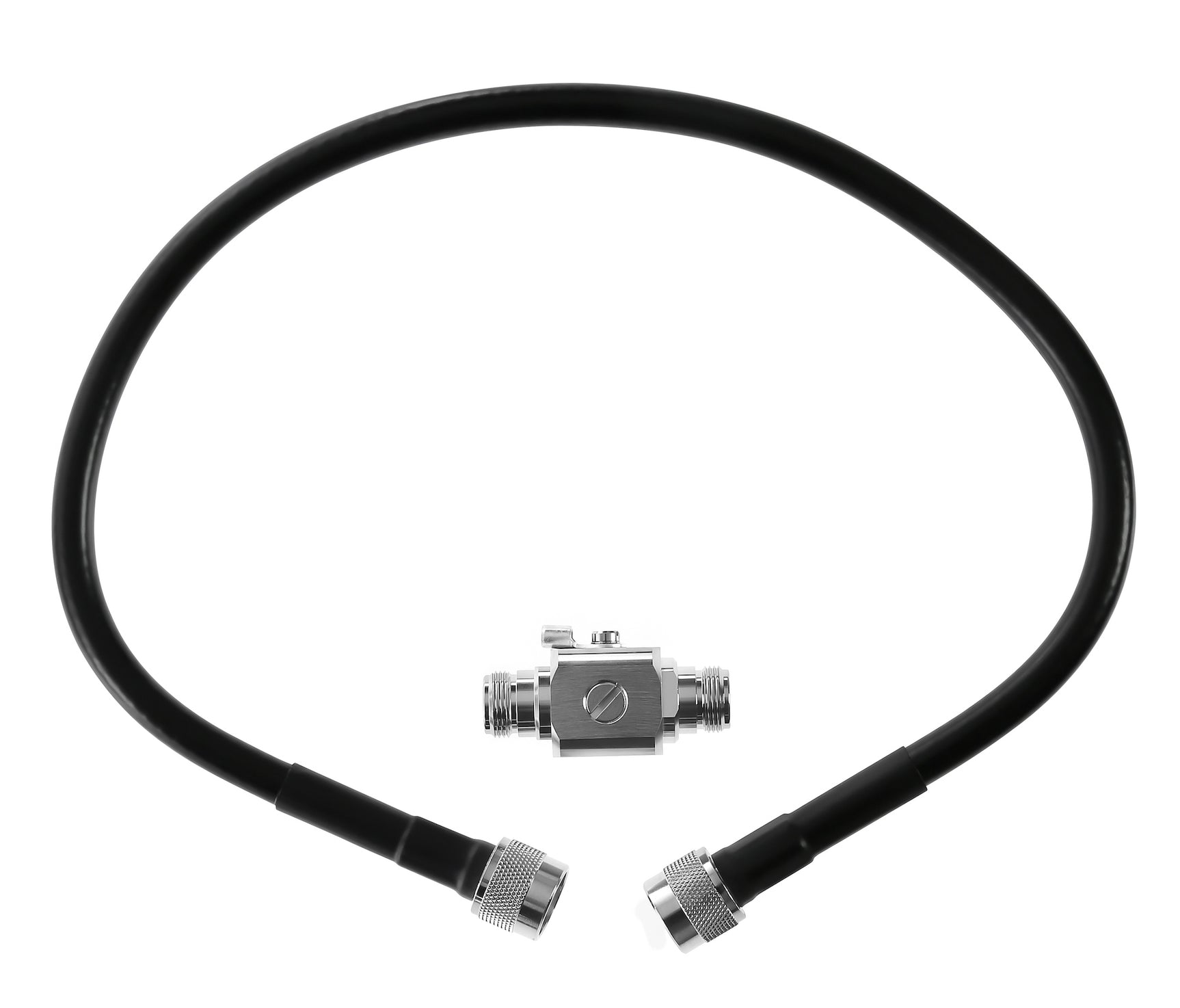

• 1 × 50 Ohm Lightning Surge Protector (859902)

The strength of your outside signal, measured where you mount the antenna, affects how much indoor coverage the system provides. Use the chart below for general guidance:

Coverage Estimates

• Strong (5 Bars): Up to 40,000 sq ft
• Medium (3–4 Bars): Up to 12,000 sq ft
• Weak (1–2 Bars): Up to 2,000 sq ft
• None (0 Bars): No coverage



Please note: Many factors impact indoor coverage, so results may vary.

Supported Devices

• All phones, tablets, hotspots, and cellular-connected devices

Supported Networks

• 2G, 3G, 4G LTE, and 5G (on supported frequency bands)

Frequencies Boosted

• 700 MHz (Bands 12/13/17)
• 800 MHz (Band 5)
• 1900 MHz (Band 25)
• 1700/2100 MHz (Band 4)

Compatible Carriers

• Verizon
• AT&T
• T-Mobile
• UScellular
• Also works with MVNOs and smaller regional carriers in the U.S., Canada, and Mexico

Note: This booster will not work in most European, Asian, or African countries due to different cellular bands.

The Enterprise 1300 is designed for professional-grade performance, but the actual setup can be done by a qualified installer or an experienced in-house team. It supports two installation modes: common mode and split mode.

Common Mode Setup

In most standard installations, you'll use one donor antenna to capture outside signal. This setup is easier and works well when all carrier towers are in the same direction. The system defaults to this mode out of the box.

Split Mode Setup

If your building is in an area where cell towers for different carriers are in different directions, you can connect up to three donor antennas. Each port handles a different set of frequency bands, so each antenna can be aimed independently to maximize signal from specific towers. This setup gives you better control and stronger indoor coverage, especially in complex environments.

Antenna Placement Tips

• Outdoor antenna: Mount it as high as possible in the direction of the strongest signal. Try multiple locations before finalizing placement.
• Indoor antenna: Install it in the center of your target coverage zone. If you’re using multiple antennas, each one should serve a separate zone.
• Separation is key: Keep indoor and outdoor antennas far apart to avoid feedback (oscillation). At least 50 feet apart with physical barriers between them is a good starting point.
• Cable routing: Use the provided Wilson400 coaxial cable, and avoid coiling excess cable near the amplifier.

Remote Monitoring Setup

You can monitor and manage the system in real-time using WilsonPro Cloud. The amplifier connects through its built-in LTE modem (no internet connection required), or optionally through a hardwired Ethernet connection. Just scan the QR code on the unit to register it.

From there, you can:

• Get email or text alerts
• View signal history
• Reset or adjust the system remotely
• Use the antenna tuning tool during install

Once everything is in place and powered on, the onboard LCD touchscreen will show the status of each band and help you troubleshoot any issues.
