How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
weBoost Drive Reach OTR Fleet Signal Booster | 471254
Product Information
Product Information
The Drive Reach OTR Fleet by weBoost is a comprehensive solution designed to amplify cellular signals in fleet vehicles, ensuring reliable communication and data transfer on the road. With a robust set of features and specifications, this system addresses the connectivity challenges often faced in mobile environments, making it a valuable asset for a wide range of vehicle classes.
Key Features:
- Enhanced Cellular Signals: It significantly improves wireless network signals and speeds across all cellular devices and carriers, enhancing talk, text, and high-speed internet access.
- Designed for Fleet Vehicles: Optimized for all fleet vehicles from classes 1-8, it includes a versatile 3-way antenna mount with mast extensions for optimal placement.
- Durability: The product meets U.S. Military and NEMA IP66 standards, ensuring it can withstand all-terrain and all-weather conditions.
- Extended Range: Its design allows for a 74% farther reach than other vehicle boosters, ensuring efficient amplification of cell signals.
- Multi-User Support: Simultaneously boosts cell signals for multiple users and devices, making it ideal for teams on the move.
- Professional Installation Required: Ensures optimal setup and performance for fleet vehicles.
Specifications:
- Frequencies Covered: Includes bands 12/17 (700 MHz), 13 (700 MHz), 5 (850 MHz), 4 (1700/2100 MHz), and 25/2 (1900 MHz), covering a wide spectrum of cellular signals.
- Max Gain: Offers up to +50 dB gain, enhancing weak signals effectively.
- Power Requirements: Operates on 12V 1.8A, compatible with vehicle power systems.
- Connectors: Uses SMA Female connectors for reliable and secure connections.
- Dimensions and Weight: Compact design with dimensions of 6 x 4.5 x 1.5 inches and a weight of 1.80 lbs, facilitating easy installation without taking up much space.
Installation and Use:
The system includes a detailed step-by-step installation guide, making the setup process straightforward. It involves selecting mounting locations for both the outside and inside antennas, hardwiring to power, and connecting coax cables, ensuring the booster is positioned for optimal airflow and signal amplification.
For those seeking a robust, reliable solution to in-vehicle connectivity challenges, the Drive Reach OTR Fleet offers an impressive blend of performance, durability, and ease of use, tailored specifically to meet the needs of fleet vehicles on the move.

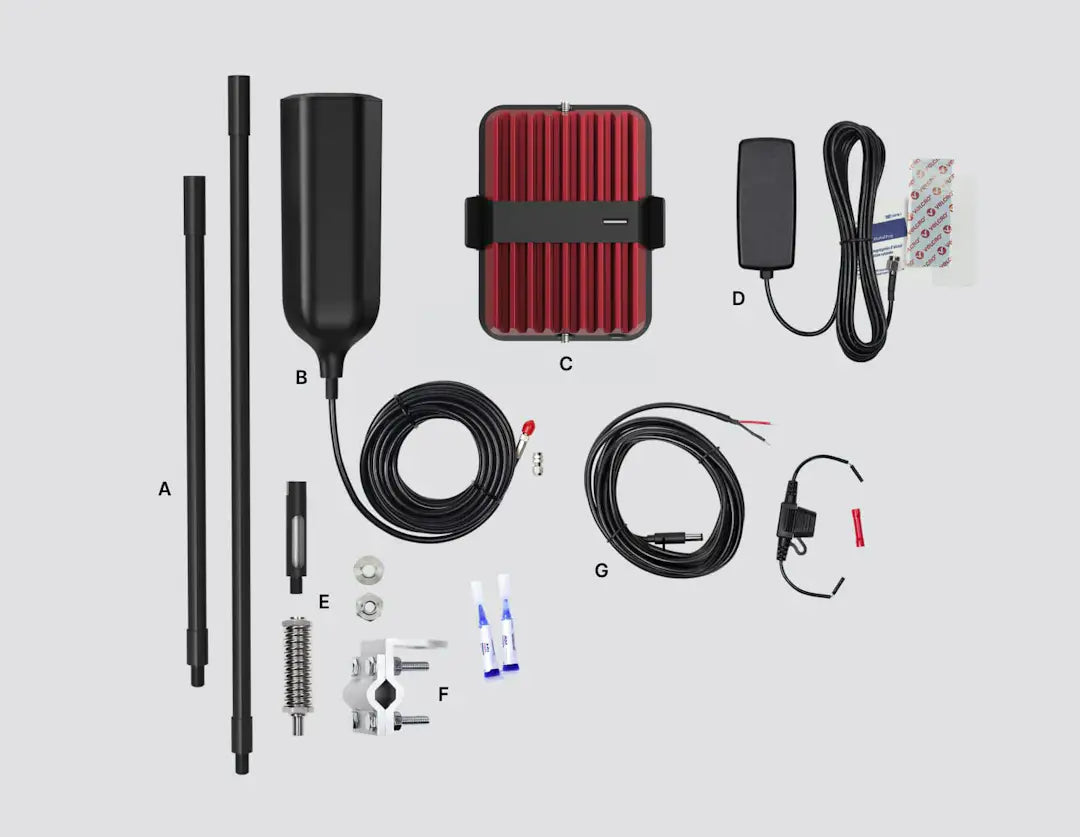

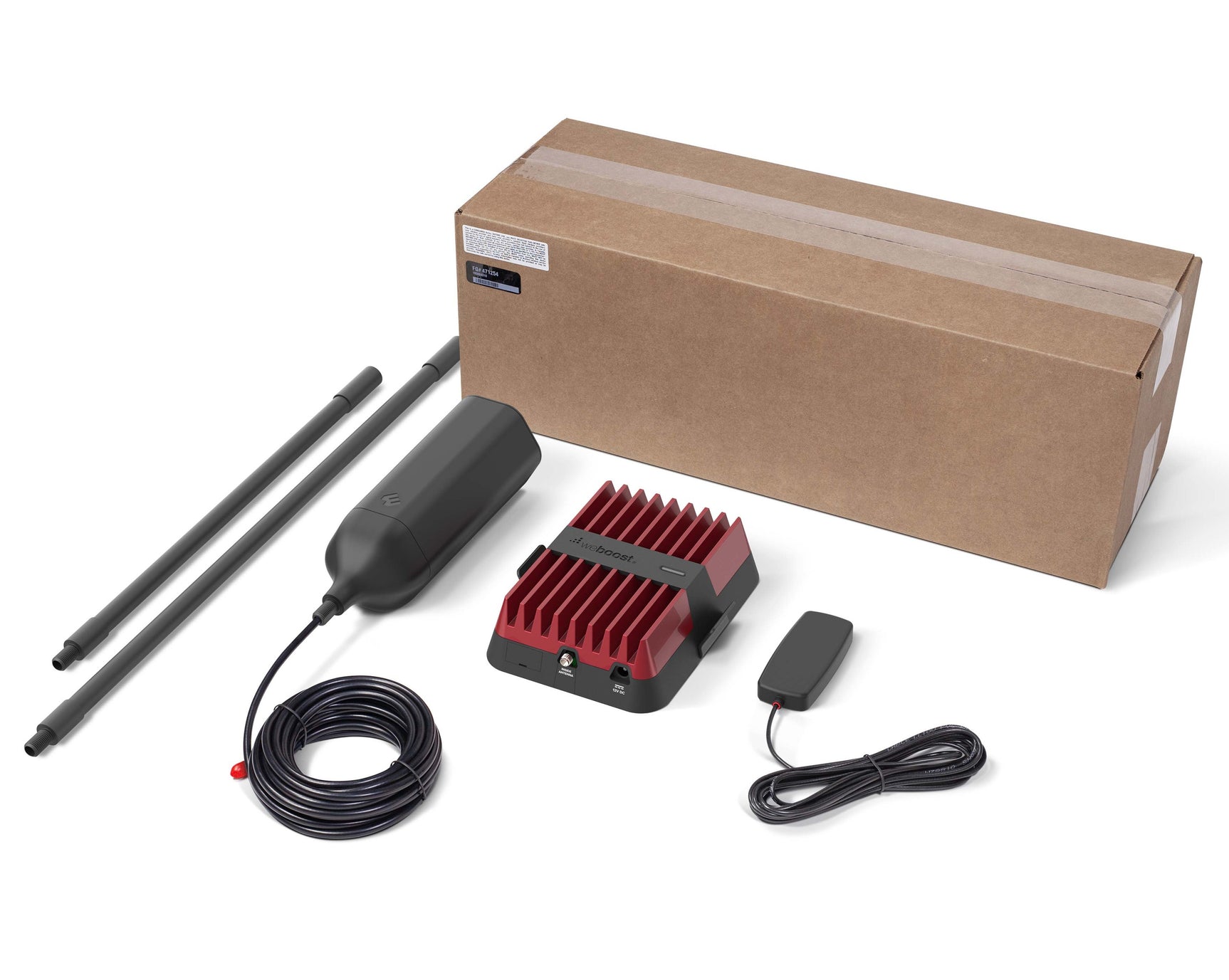

In the Box
In the Box

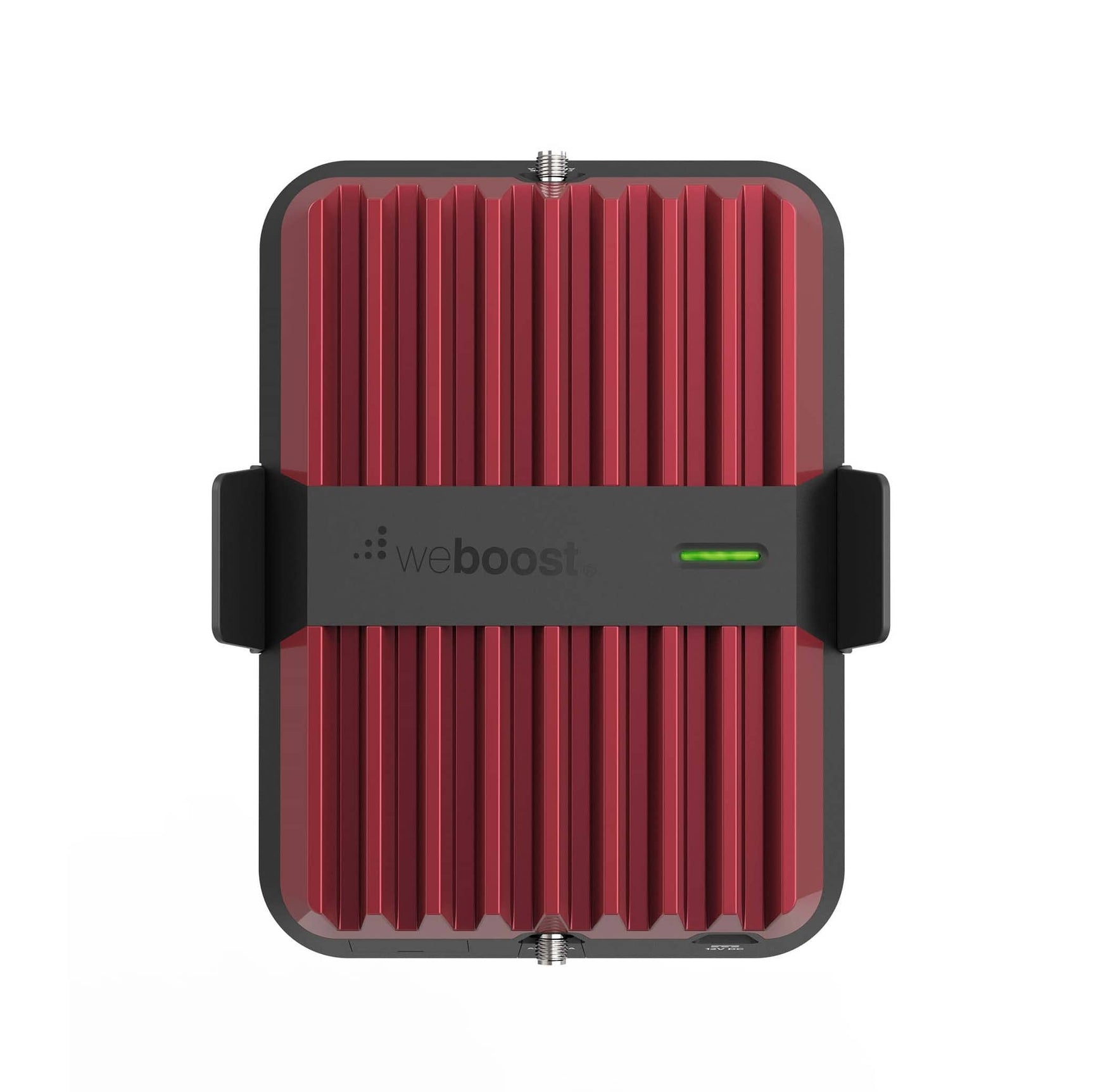

- Drive Reach Booster
- OTR Antenna (311229)

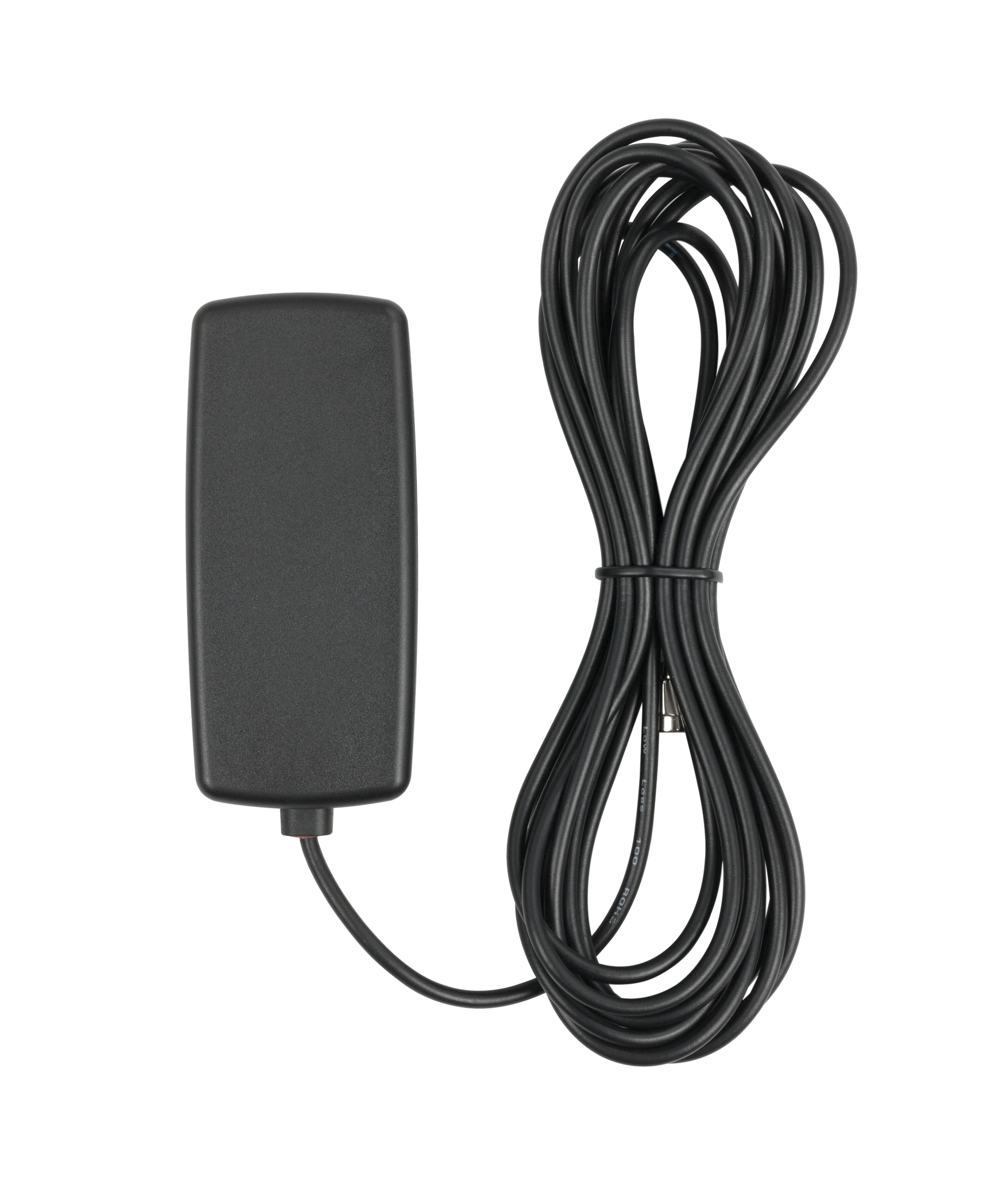

- Slim Low-Profile Antenna (314401)

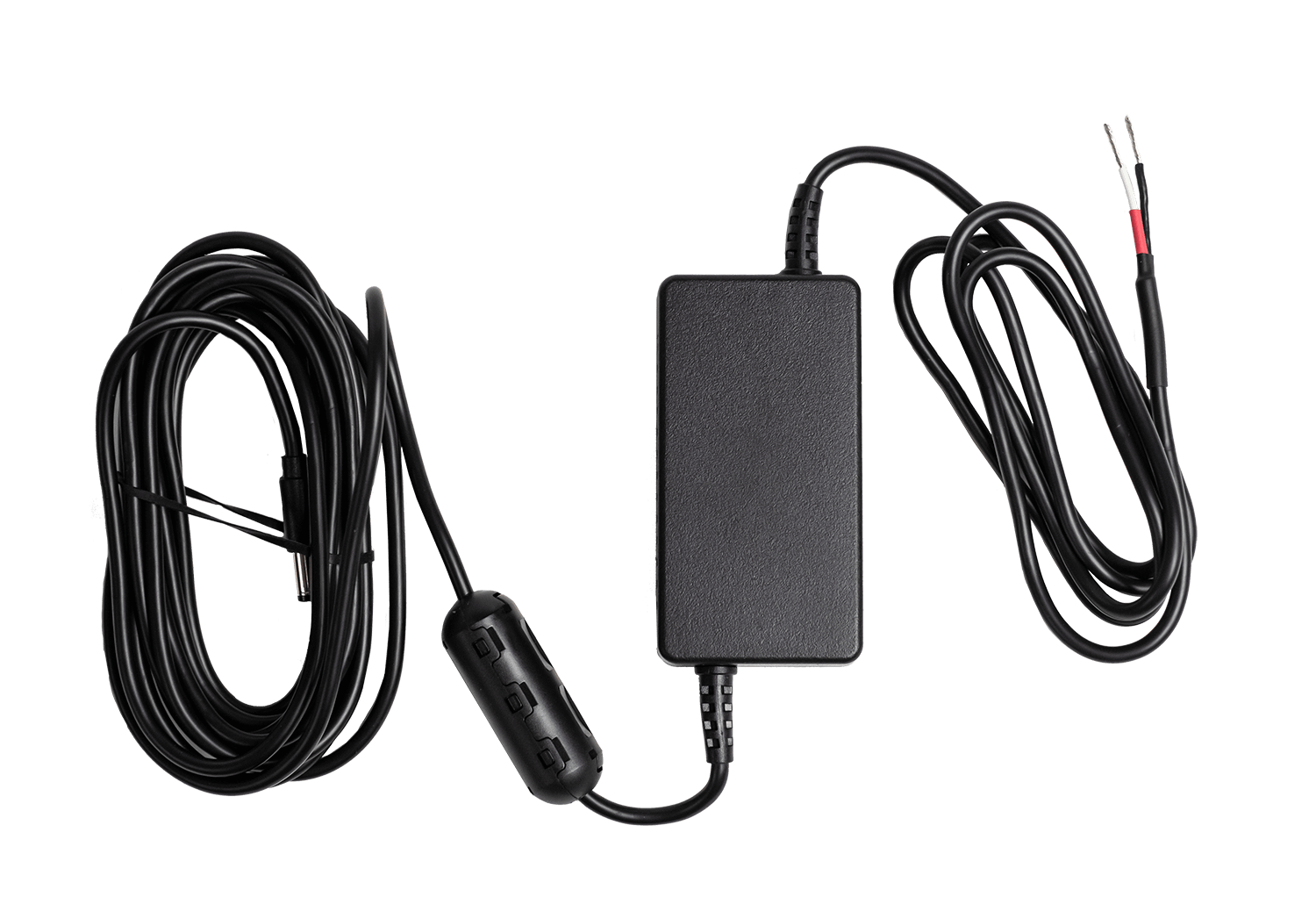

- Power Supply (950079)
- Mounting Bracket (901104)
- Coax Cable Side-Exit Adapter
- Mast Extensions (x2)
- Antenna Spring
- Cable Adapter
- Thread Lock Packets
