Outside Antennas
The right outside antenna comes down to three things: how strong your signal is outside the building, the terrain around you, and which direction your cell towers are in. The stronger the antenna, the more signal your amplifier has to work with, and the more coverage you get inside.
- Omni Antenna: Receives signal from every direction with 4 dB of gain, and there's nothing to aim. Choose it when your outside signal is strong enough that you don't need extra gain, or when you're in a valley or hilly area where the signal bounces around a lot. Its wider, lower-gain pattern handles bouncing signal better than any other option here.
- High Gain Omni Antenna: Receives from every direction like the standard Omni, with up to 9 dB of gain instead of 4. This is the right choice for most buildings. You get close to the Yagi's power without having to aim anything, and it works when your carriers' towers sit in different directions.
- Yagi Antenna: A directional antenna with 10 dB of gain. Choose it when your signal is weak and comes mostly from one direction. You aim it at the tower, and its 75 degree view of the horizon means the aim doesn't have to be perfect.
- High Gain LPDA Antenna: The strongest of the four at 11 to 13 dB. Choose it when your outside signal is very weak. It needs a clear line of sight to the tower and careful aiming, so it takes the most work to set up, and it delivers the most coverage once it's aimed correctly.
Inside Antennas
The right inside antennas depend on your space. A typical floor with standard-height or drop ceilings usually calls for a dome antenna. Higher ceilings, multiple floors, or a spot you want to aim signal at call for a panel.
- Ultra-Thin Dome Antenna: This is what we usually recommend. It mounts to the ceiling and broadcasts in a circle around it, delivers more gain than the standard Dome at 4 to 6 dBi, and sits nearly flush so it blends into the ceiling.
- Dome Antenna: The standard version of the ceiling dome at 2 to 5 dBi. It costs a little less than the Ultra-Thin, covers a little less, and sticks out from the ceiling more.
- Panel Antenna: The most versatile of the three at 7 to 10 dBi. It's directional, so it sends signal where you point it instead of in a circle. Choose it for high ceilings, for covering two floors at once in a home (it broadcasts through the floor when aimed that way), for long narrow spaces like hallways, or when you're targeting one area and don't want signal going the other direction.
How Many Inside Antennas Do You Need?
Start with the square footage you need covered. In spaces with walls, one inside antenna covers 750 to 1,500 square feet. In open layouts, one covers 1,500 to 2,500. Divide your space by those numbers and you have your antenna count. Most offices end up needing more than one antenna per floor, and that's normal.
If you have questions, call us at 1-888-974-8237, Mon-Fri 9am-5pm ET.
Product Overview
Product Overview
The weBoost Drive X RV (471410) signal booster kit is a great solution for anyone who needs better cell signal in their RV or large vehicle while it's moving or stopped. It includes a powerful, spring mount outside antenna, mobile signal amplifier, and a desktop inside antenna to broadcast the boosted signal to the part of the RV that needs it most. It will simultaneously boost all of the networks from all major carriers in the United States and Canada, so you'll get great voice calls, fast data, and uninterrupted text messages.
The weBoost Drive X RV is a great and affordable solution for RVers with weak to moderate outside signal, but if you plan to travel to areas that are very remote and need the most powerful solution on the market, then you'll want to look at the Drive Reach Extreme RV Kit, which has the industry-leading boosting both from and to the distant cell towers.
Inside Coverage Area
The inside coverage area that you receive from the weBoost Drive X RV will depend on the existing outside signal strength in the location where you're traveling or parked. In areas where you get a moderate existing outside signal, the 4G Extreme will provide a boosted signal up to 6 ft from the inside antenna. As the outside signal gets weaker, the coverage area will shrink, until the point where you may have to keep your phone within about 18 inches from the inside antenna to take advantage of the boosted signal.
The ideal way to talk on the phone while moving around the vehicle would be to keep your phone near the inside antenna and use a Bluetooth headset for mobility. Hotspots can also be left near the inside antenna, giving you the fastest internet speeds possible.
Supported Carriers
The weBoost Drive X RV Kit supports virtually all of the networks and carriers in North America. It does not support any WiMAX or iDEN networks.
- AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
- Verizon 2G, 3G, 4G LTE & 5G
- Sprint 2G, 3G & 4G LTE
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

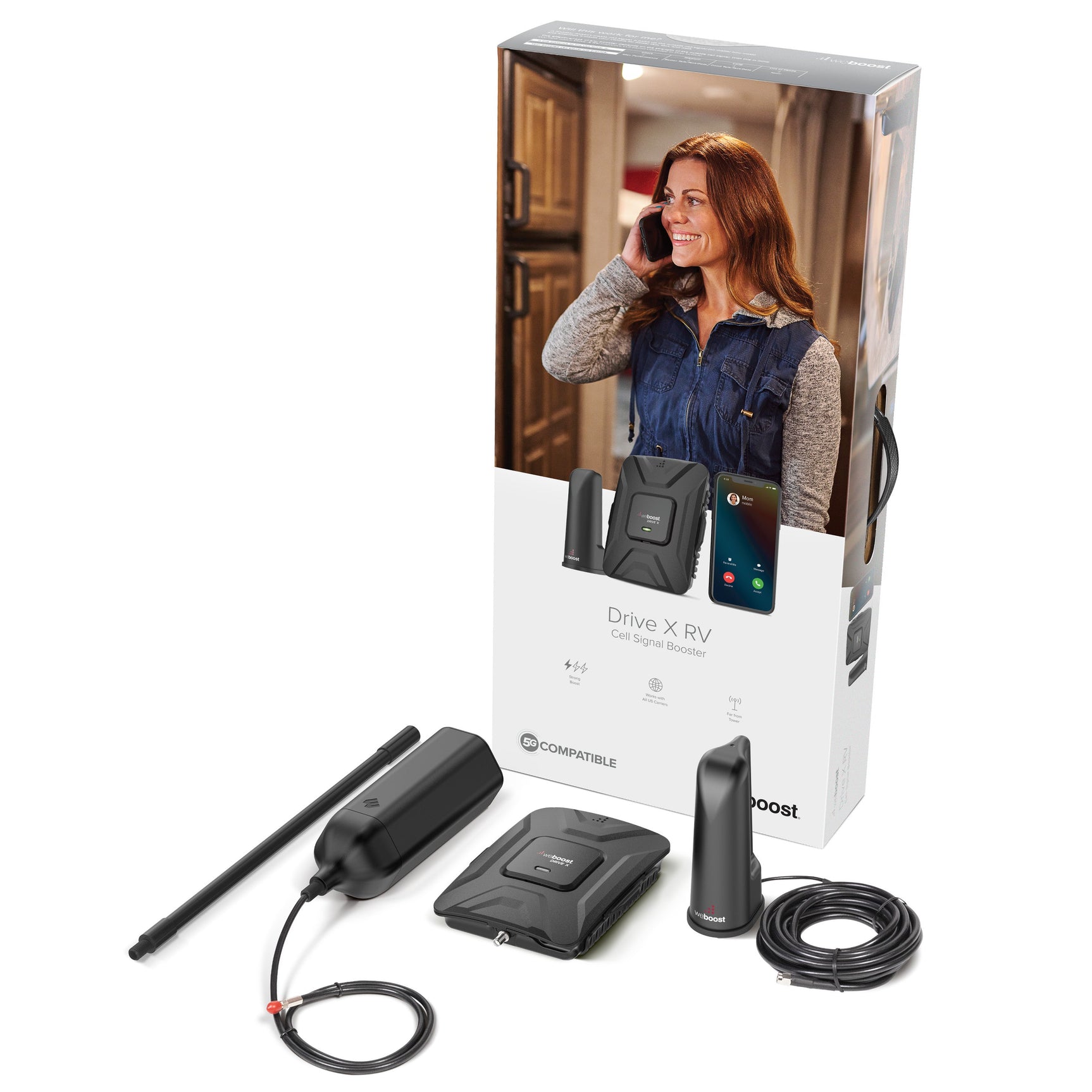

In the Box

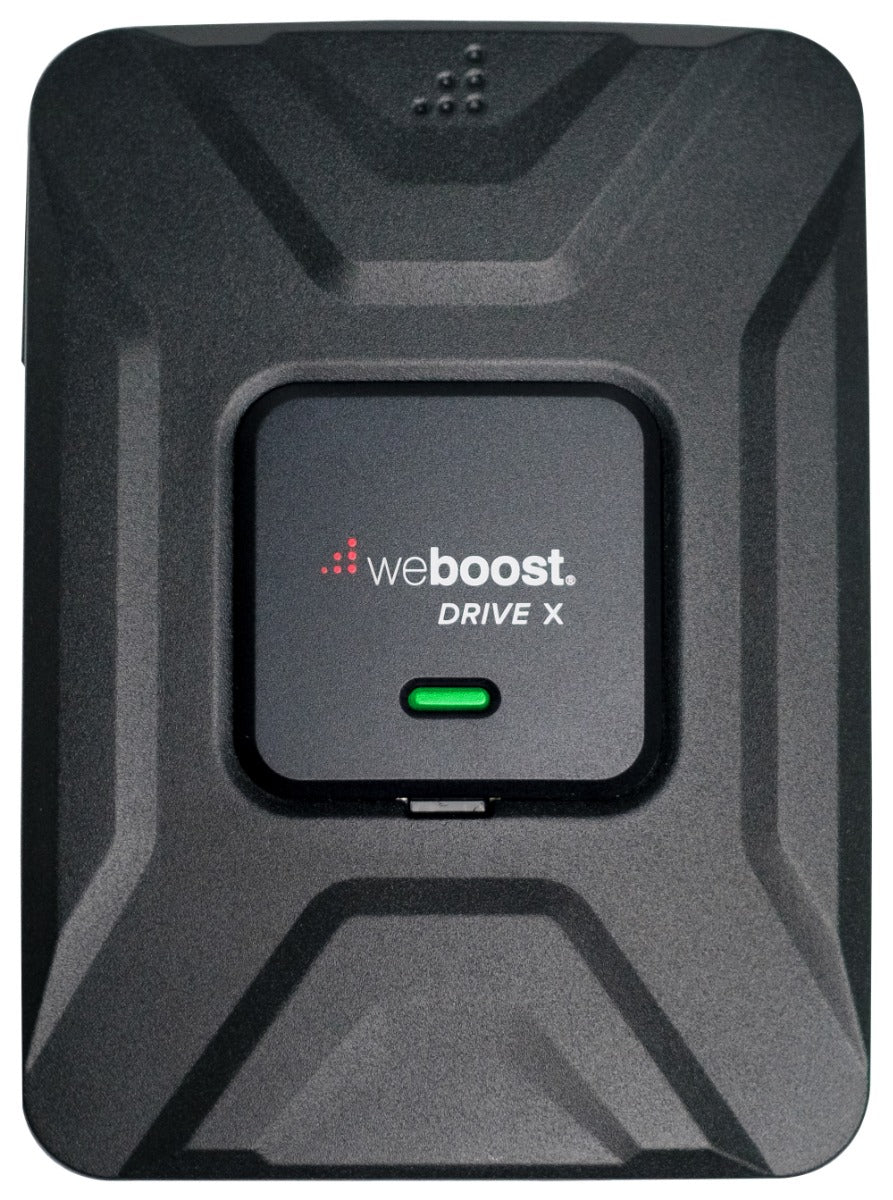

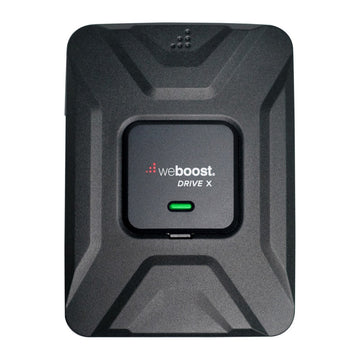

- weBoost Drive X Signal Amplifier
- 851111 - 12V DC Fused Hardwire Power Supply

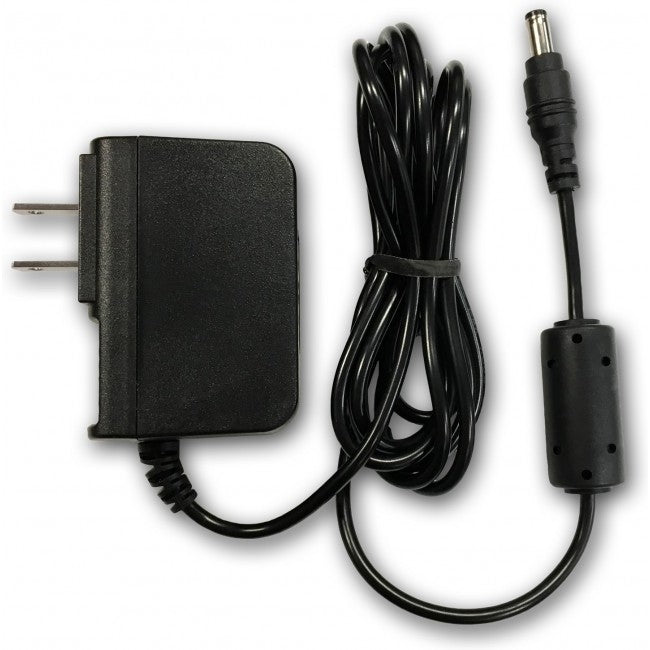

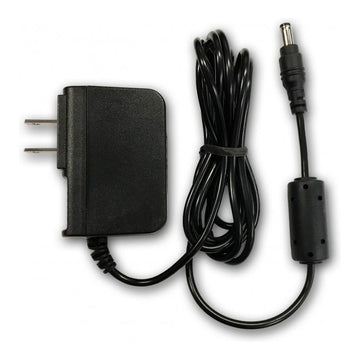

- 850011 - AC/DC Building Power Supply
- 311224 - RV Antenna

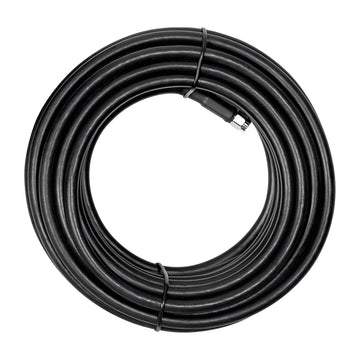

- 950625 - 25 ft Black RG6 Cable with SMA Male to SMA Male Connector

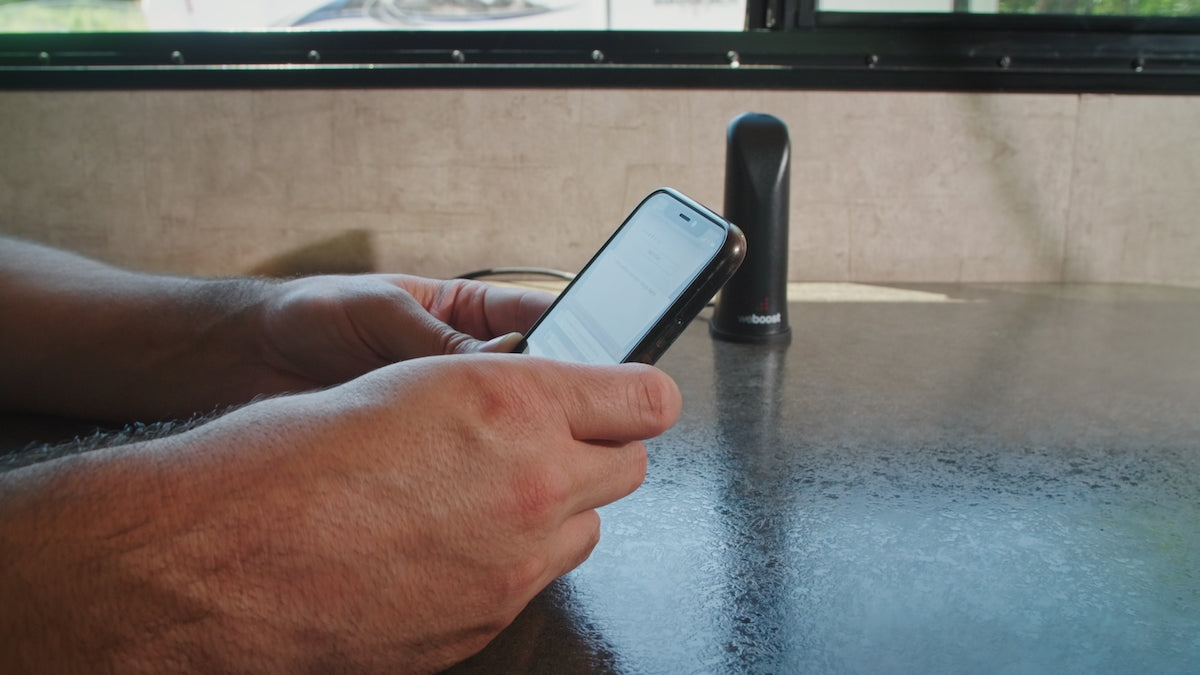

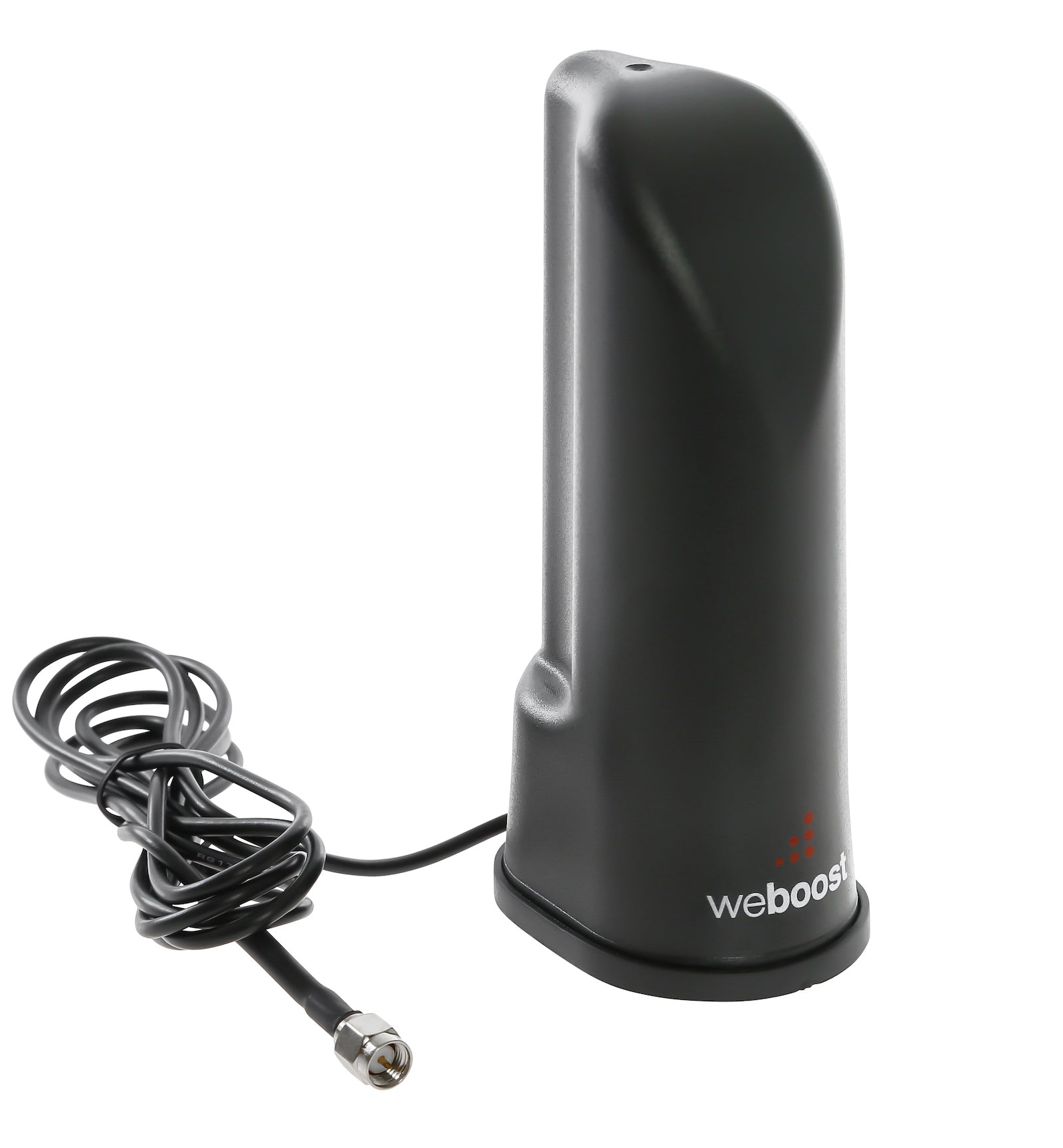

- 301211 - Desktop Antenna with 13 ft of Cable

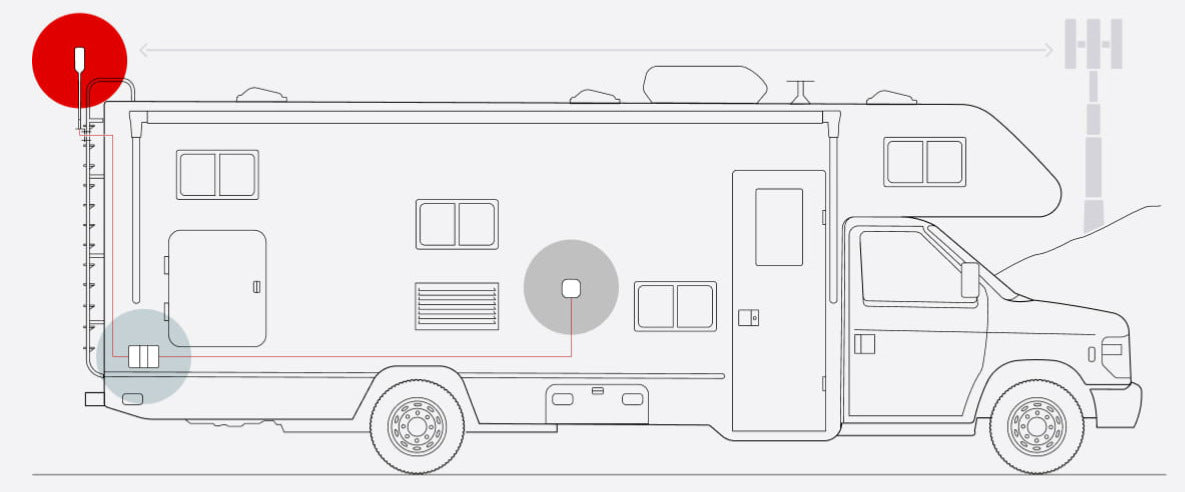

Installation Overview
Installing the weBoost Drive X RV kit is very easy and can usually be done in just a few minutes.

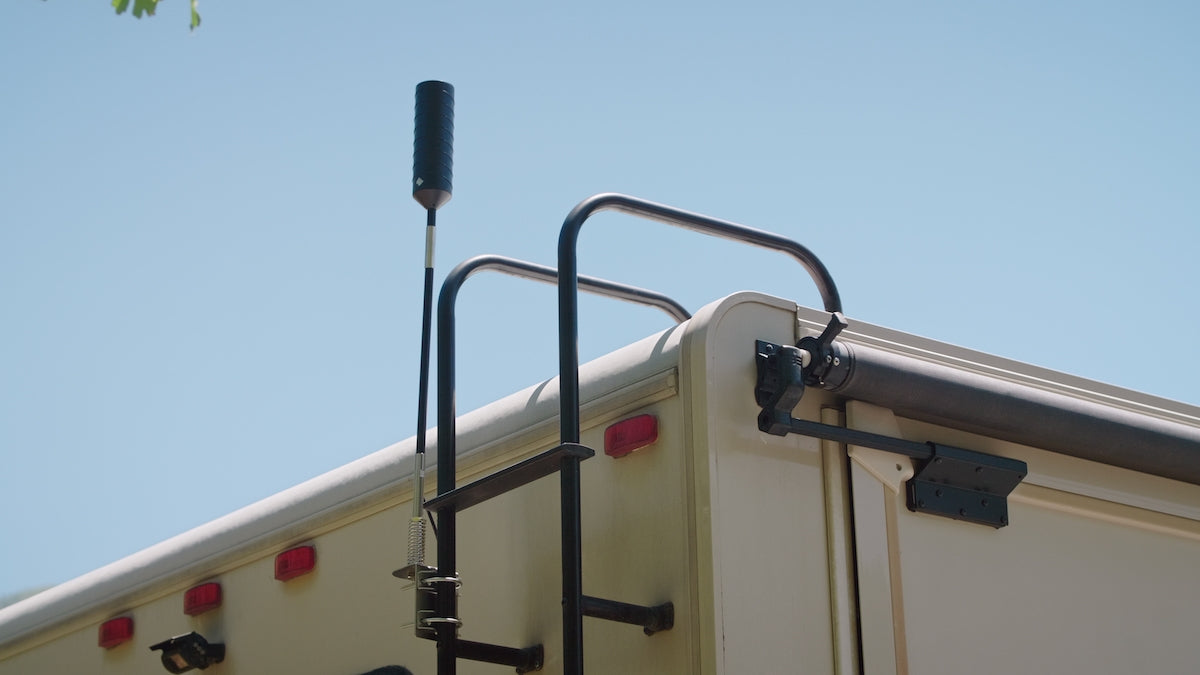

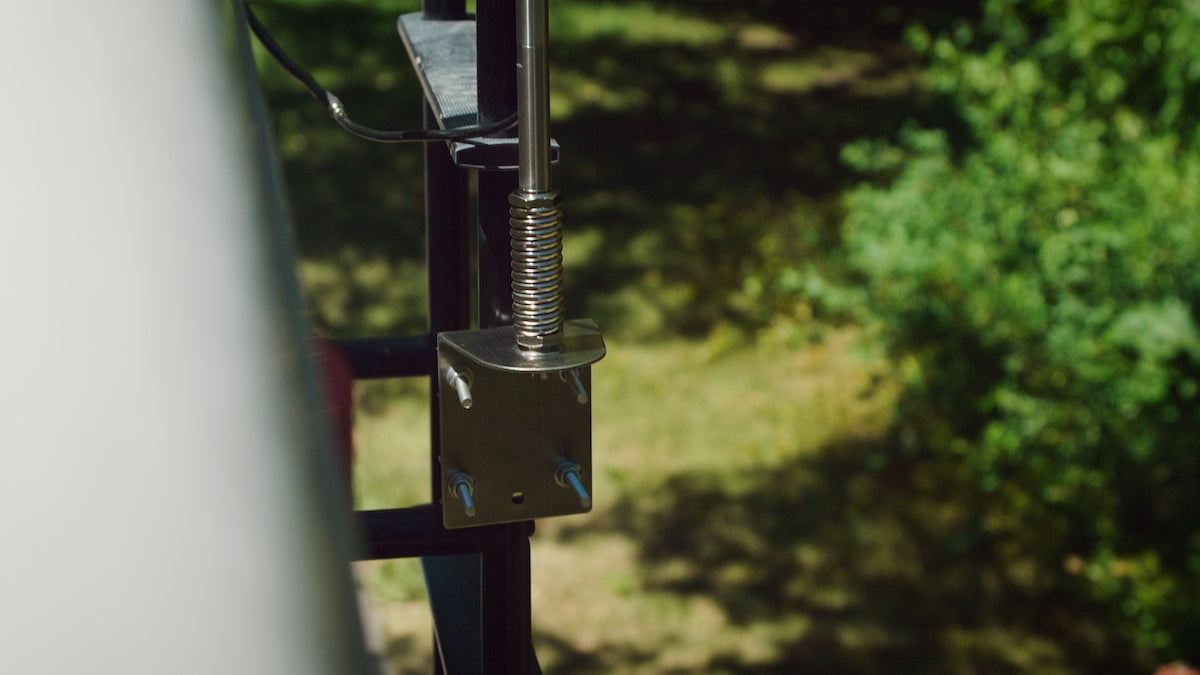

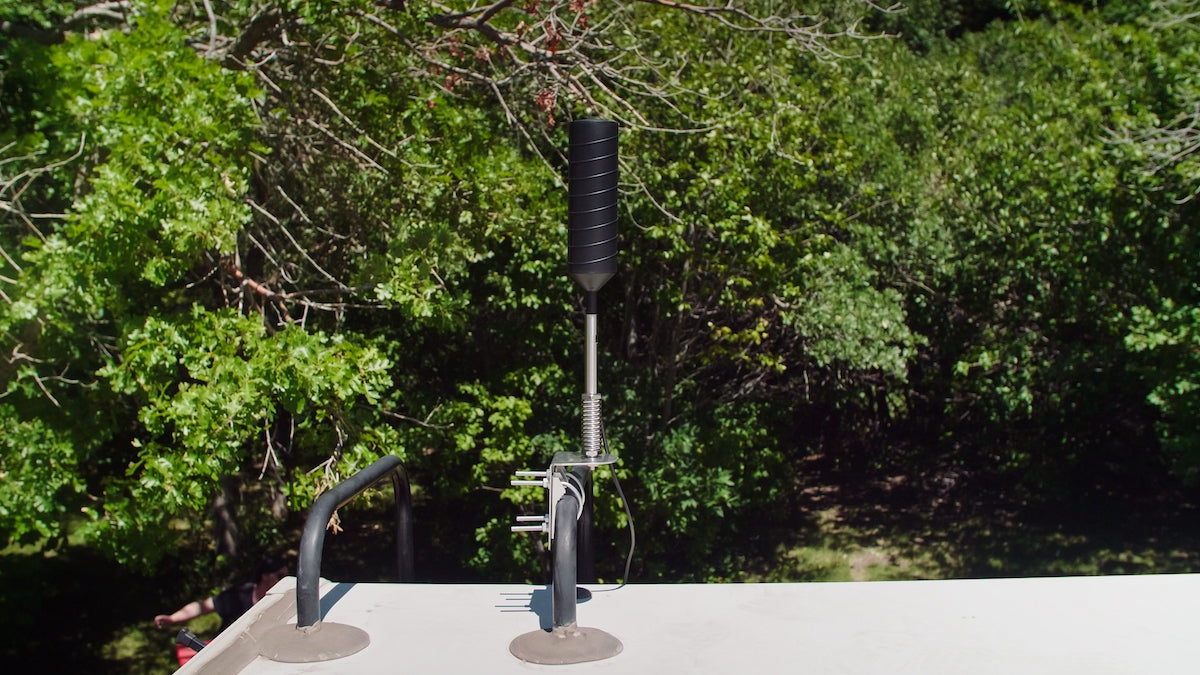

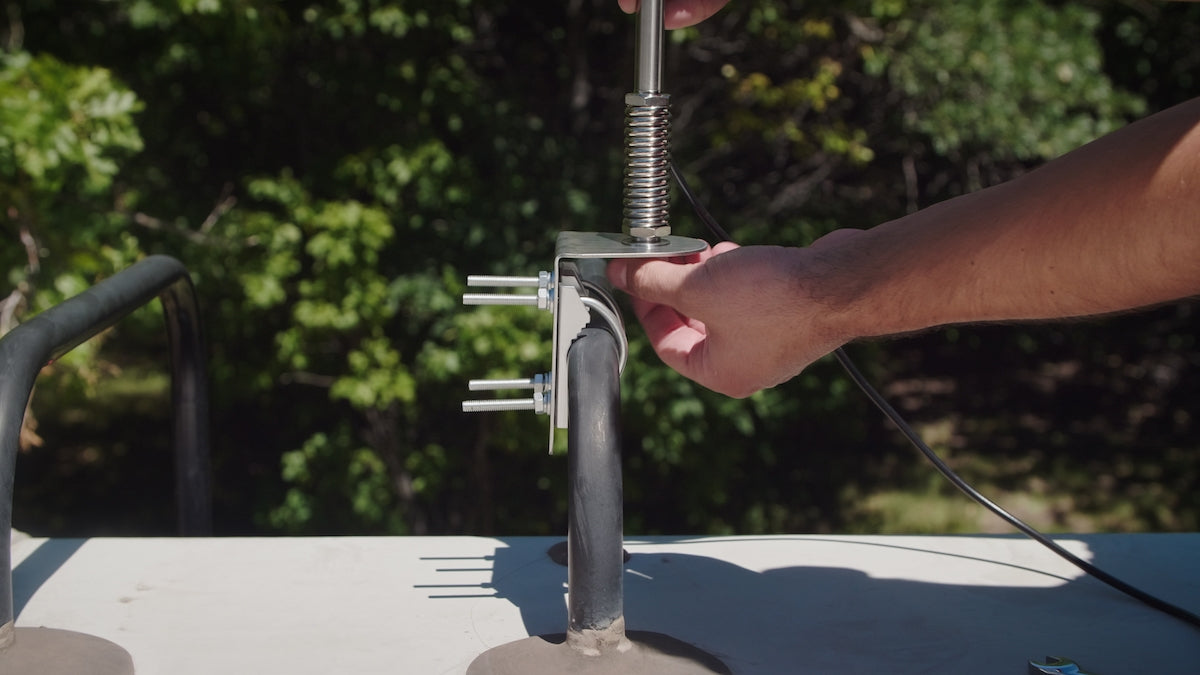

- To start, mount the RV Antenna on the exterior of the vehicle using the included mount, and ensure that the antenna extends above the vehicle for a clear, 360-degree view.

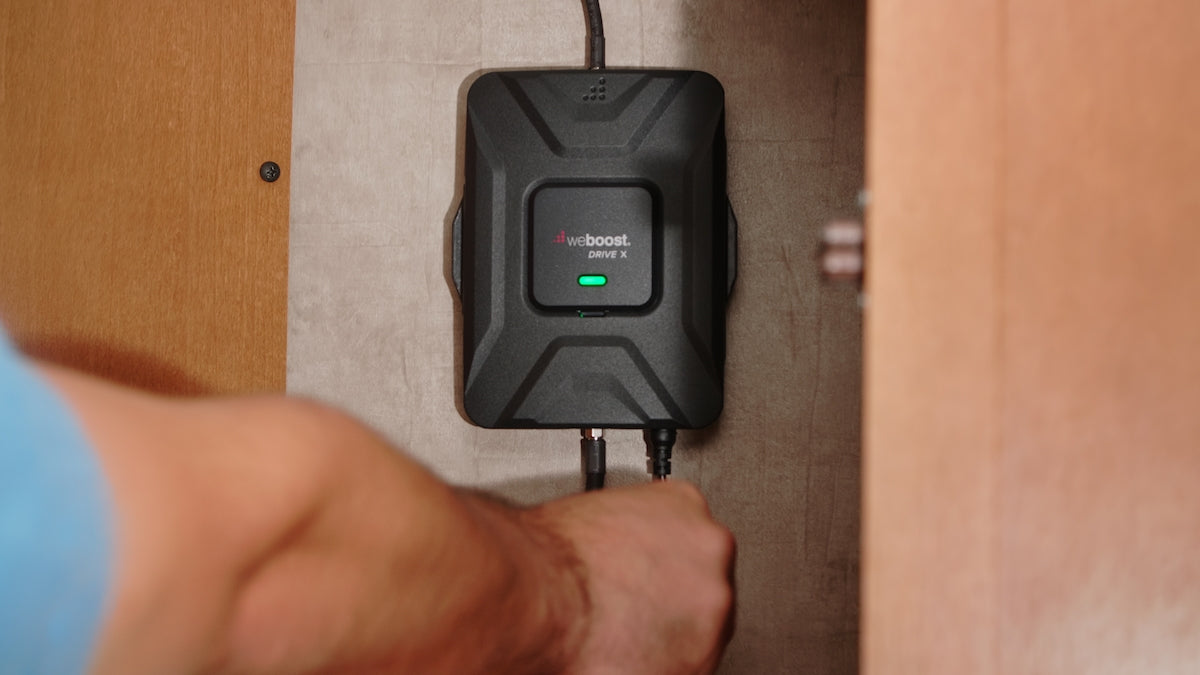

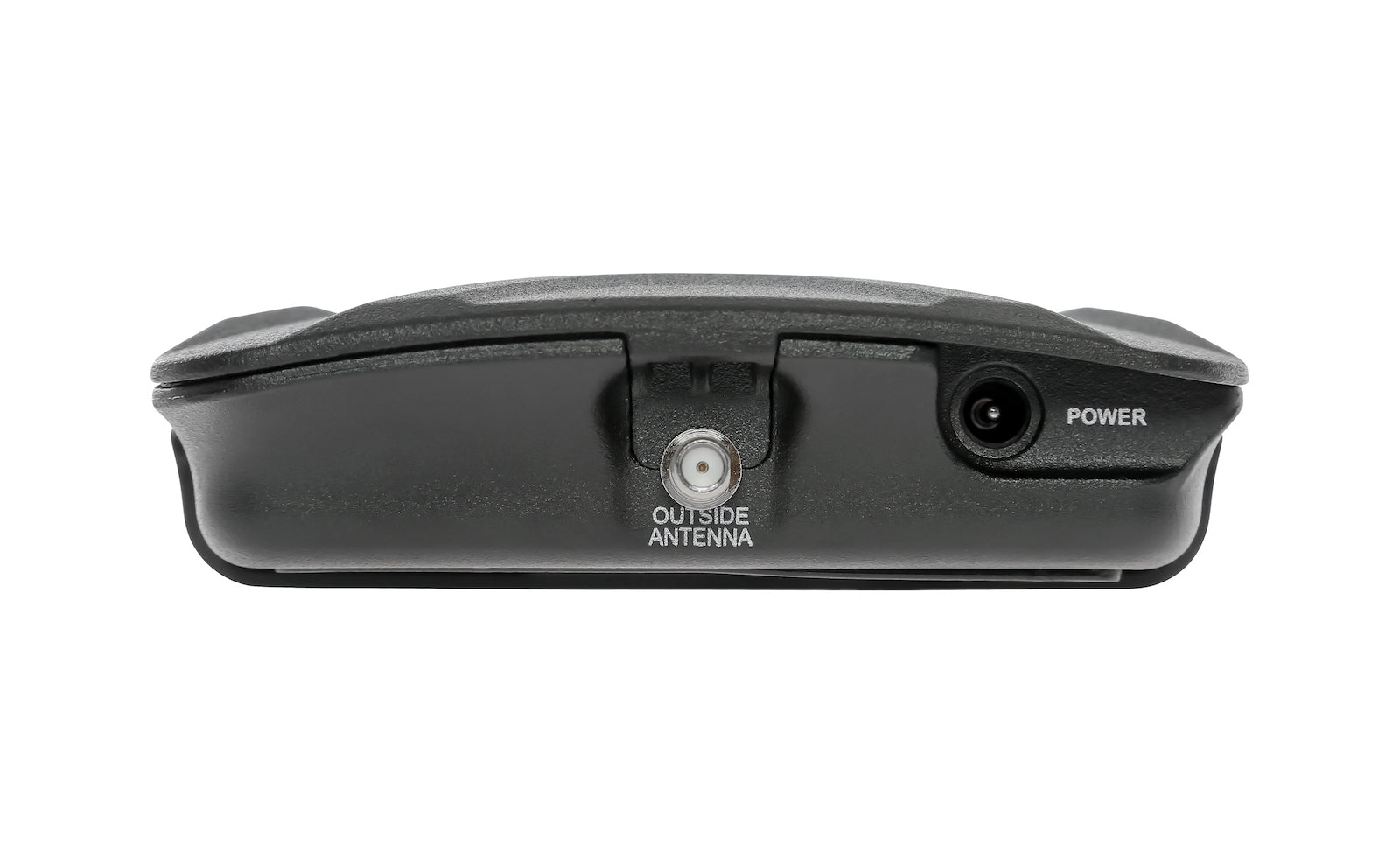

- Run the 25 ft cable into the vehicle and connect the cable to the amplifier's Outside Antenna port.

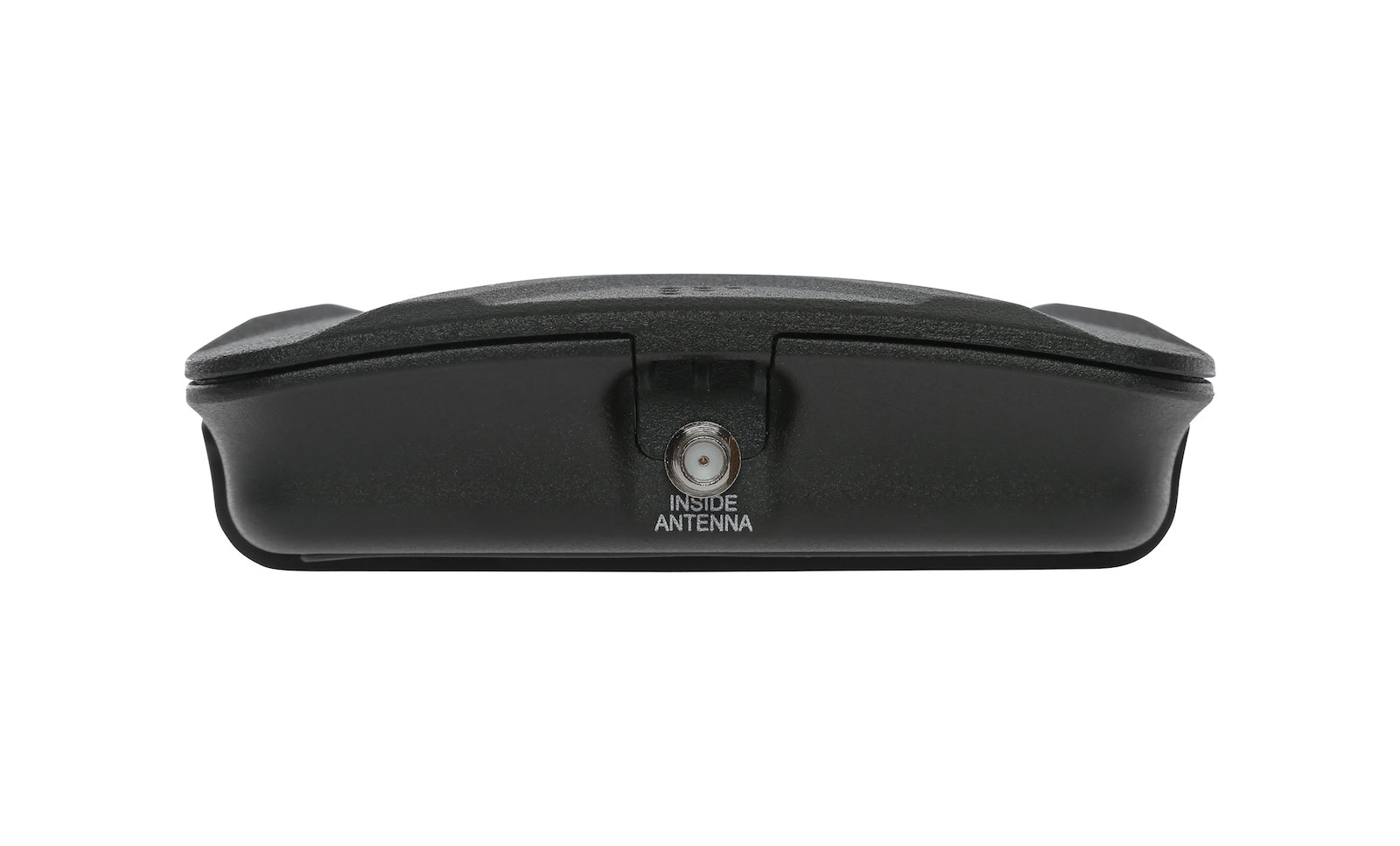

- To the Inside Antenna port, connect the inside antenna cable that is connected to the desktop antenna, and locate the desktop antenna in the location where you'll be using your mobile devices the most.
- Power on the amplifier and you should immediately start receiving boosted signal.
Specifications
Specifications
-
SKU471410
-
UPC810005960892
-
ConditionNew
-
Warranty2 Years
-
Installation TypeDIY Installation
-
Outside Antenna TypeOmnidirectional
-
Inside Antenna TypeOmnidirectional
Regulatory Advisories
Regulatory Advisories
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the three largest carriers (AT&T, T-Mobile, and Verizon) and more than 90 regional carriers have given blanket consent for use of all boosters certified to the current FCC standards.
