WilsonPro Enterprise 3300 Signal Booster

Product Highlights

• Three outdoor antenna ports with Multi-Tower Targeting. Common mode is the default and uses one donor antenna, while split mode uses up to three donor antennas aimed at different carrier towers, so carriers coming from opposite directions each get a strong source to work from.
• Three independently controlled indoor antenna ports, so one amplifier covers three separate zones instead of one broadcast point trying to reach the whole building.
• 70 dB max gain, up to 26 dBm uplink power, and 17 dBm downlink power per band per port. The uplink number is what pushes your phone's signal back out to a distant tower, and the downlink number is the strength each zone broadcasts at.
• Wideband architecture amplifies every supported band and channel simultaneously, with support for carrier aggregation, so no one sets it up one carrier at a time and compatible phones can use the combined channels their network offers.
• XDR, or Extended Dynamic Range, automatically adjusts gain when the outside signal is strong, so the system keeps working instead of shutting itself down near a tower.

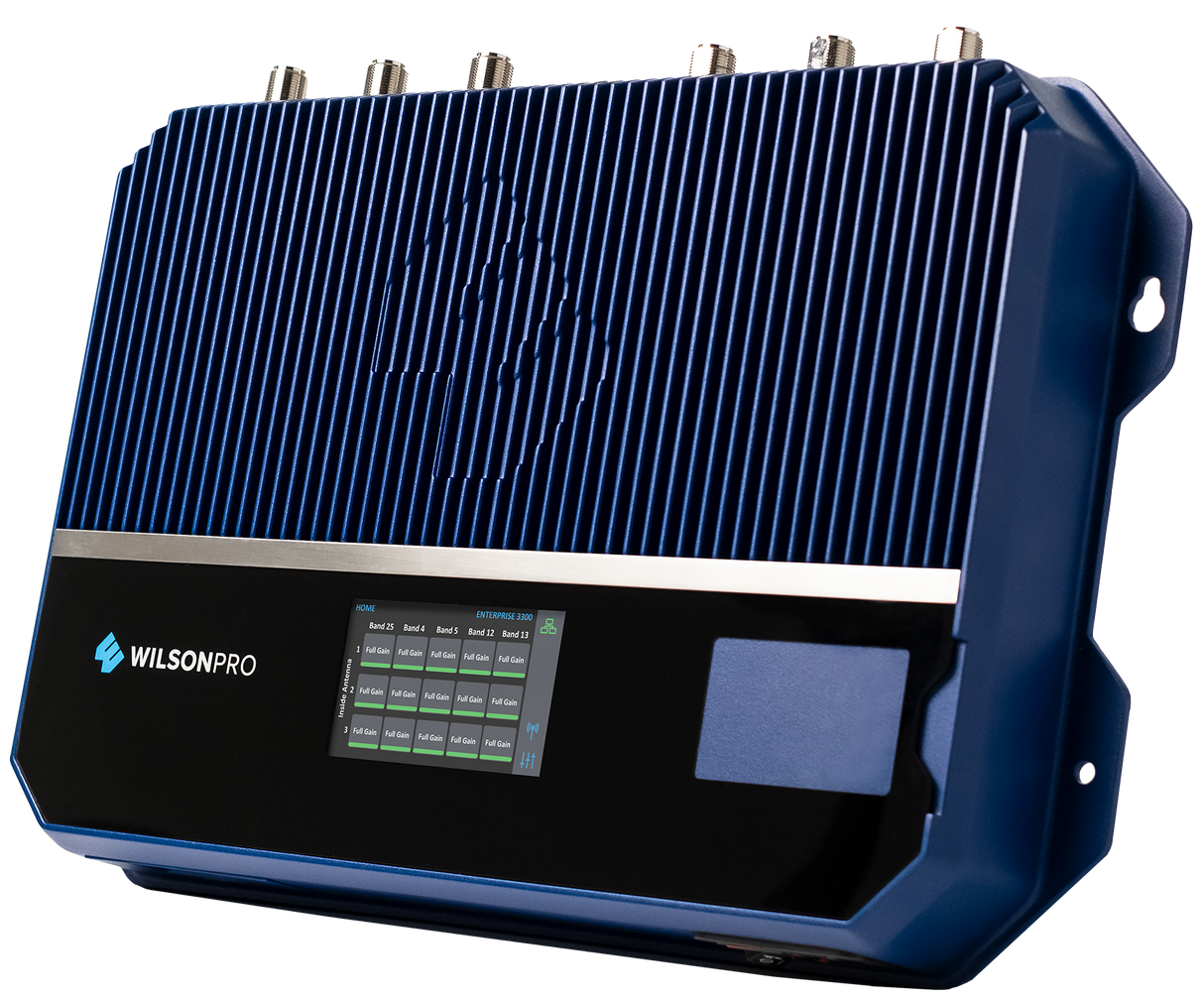

• Cellular Network Scanning with a 4.3 inch color LCD touchscreen, giving real time signal strength and signal quality readings for major US and Canada carriers measured at the indoor antenna ports and displayed right on the unit.

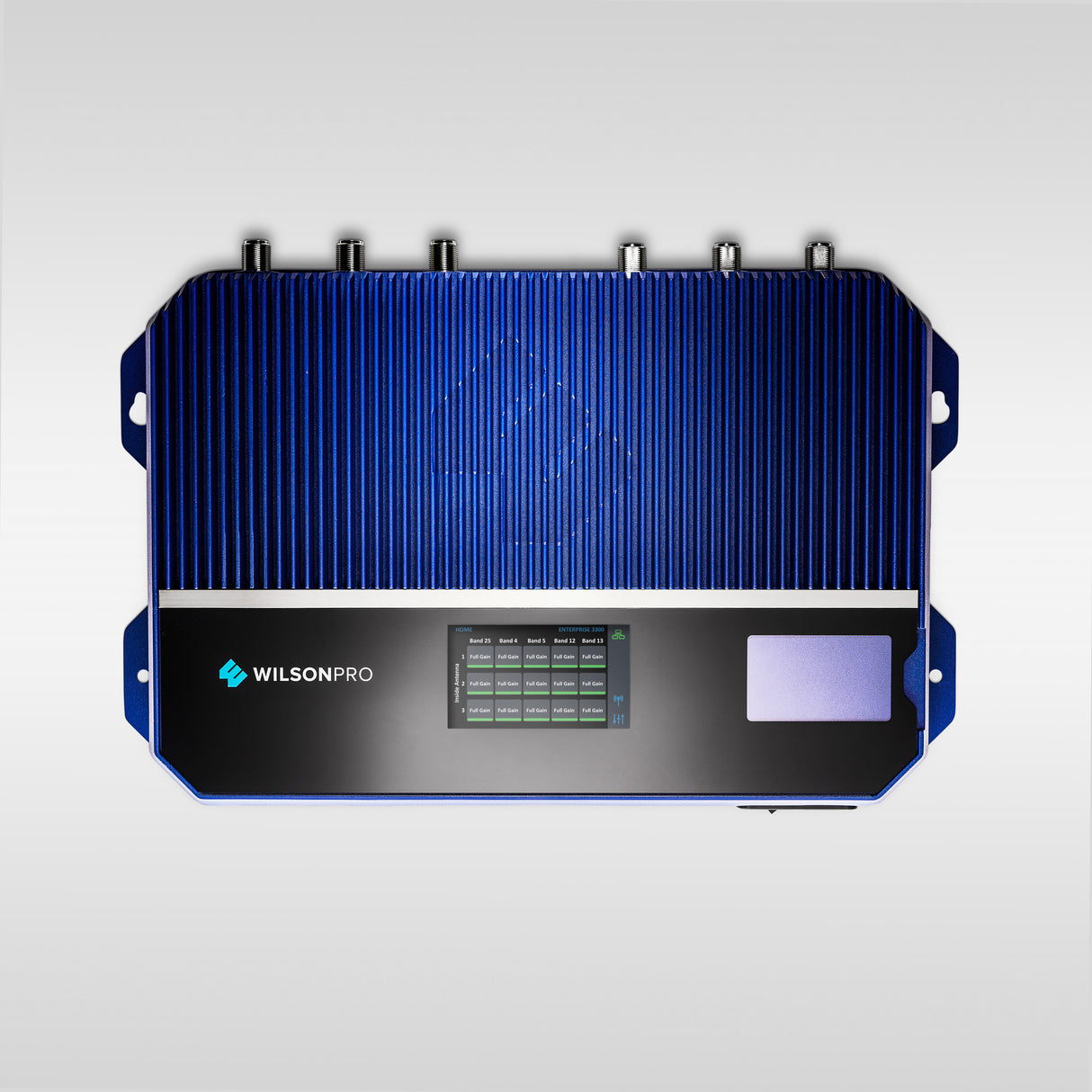

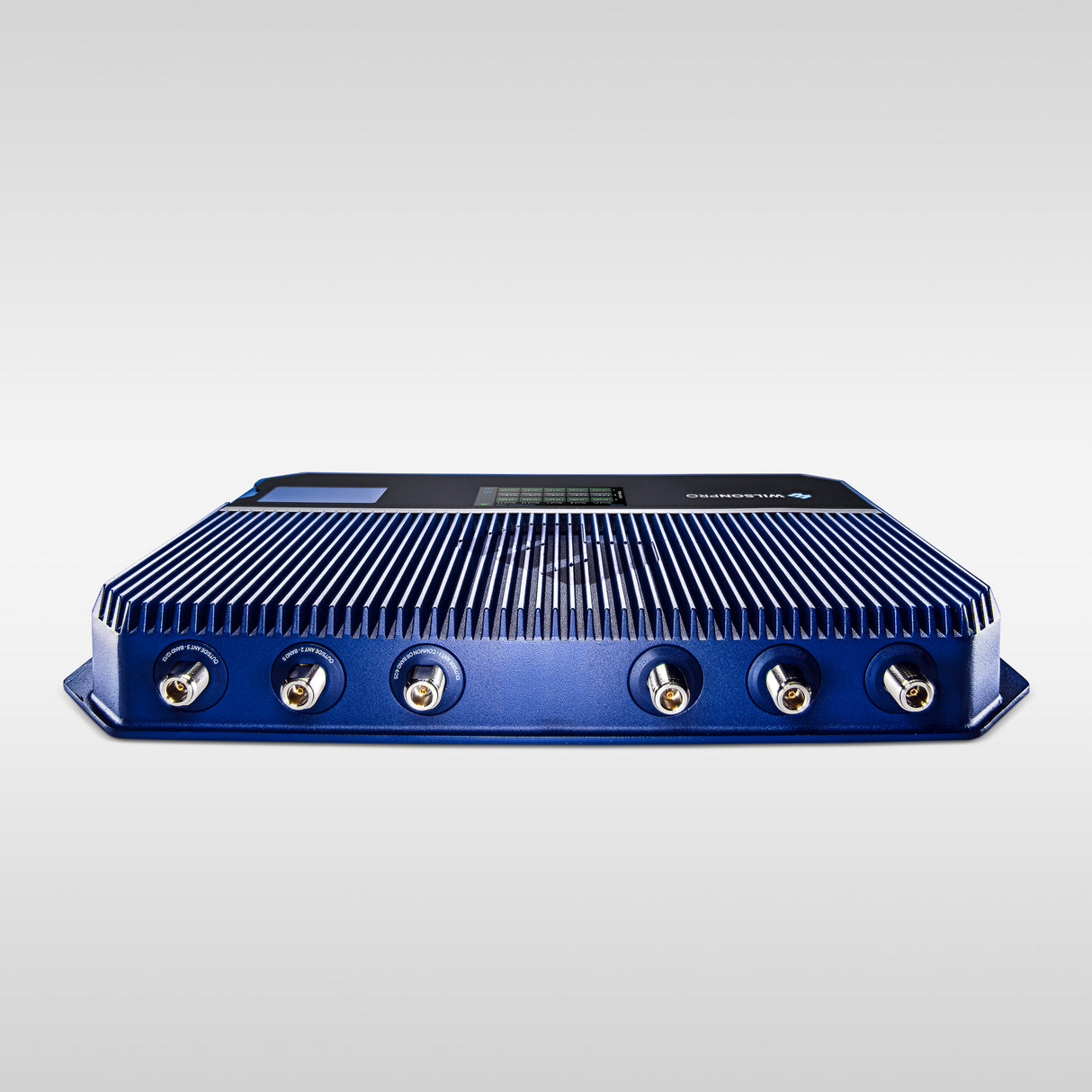

• WilsonPro Cloud remote monitoring over wired Ethernet, on a wall mount unit with every port on top, which keeps the install tidy in a back room or an equipment closet.

Top Benefits

• Give the front office, the shop floor, and the far end of the building their own coverage without buying three separate systems.
• Show your board or your finance team real numbers, because the scanning readings and the touchscreen report signal strength and quality measured at the indoor antenna ports.
• Skip carrier programming completely, since one wideband system serves every device your staff and visitors carry, on any US or Canada network.
• See how the system is performing over the wired Ethernet connection without leaving your office.
• Start with this and grow into a designed system, because more inside antennas and different antenna types run off the same amplifier.

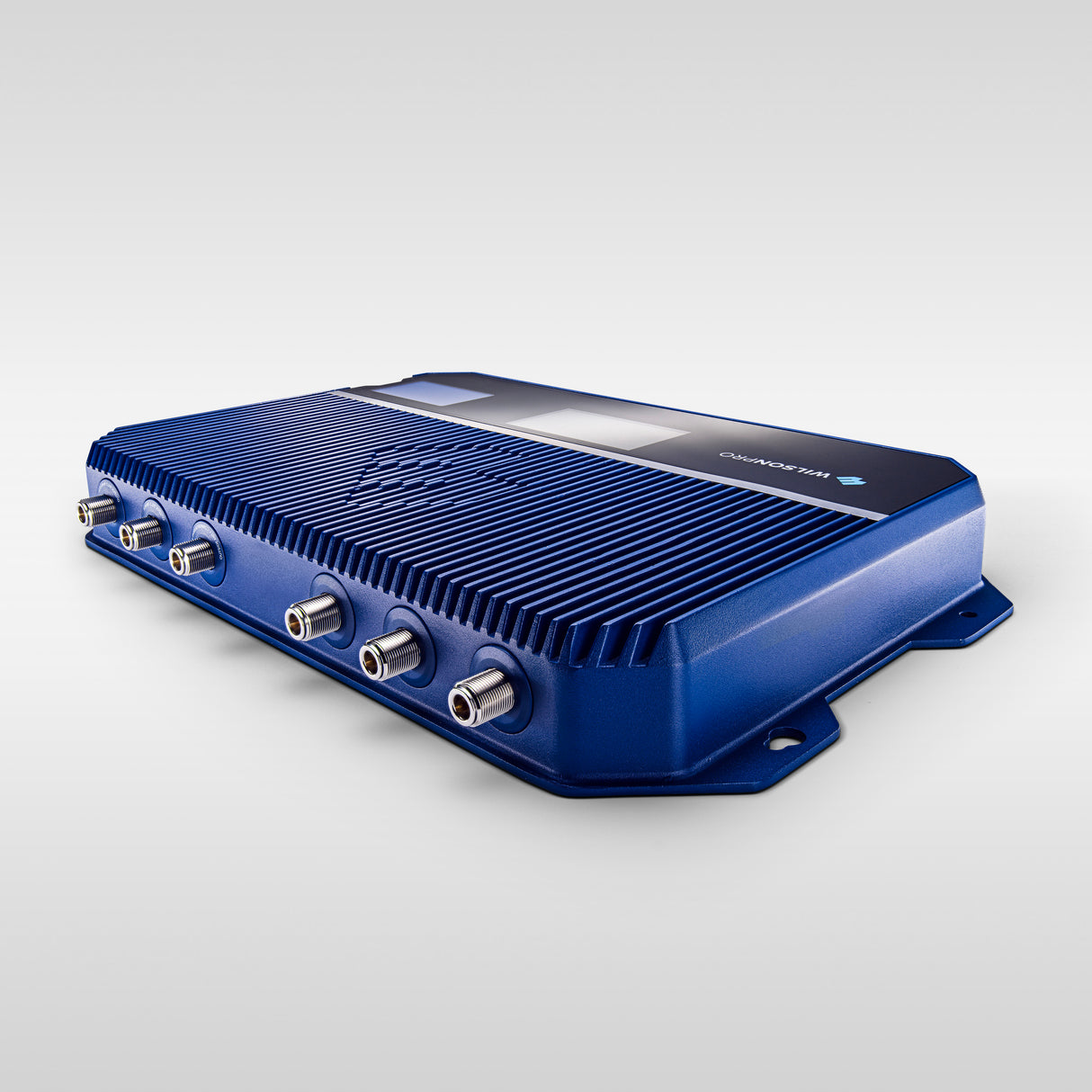

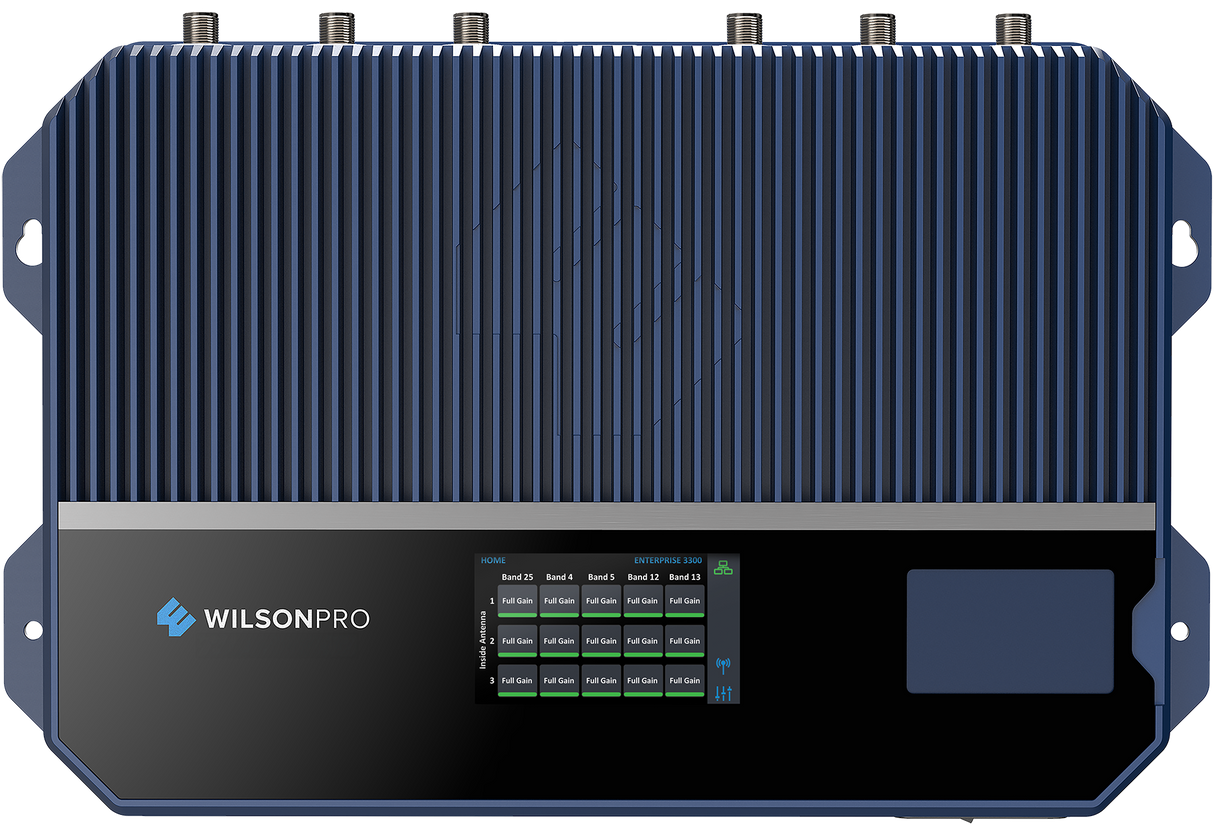

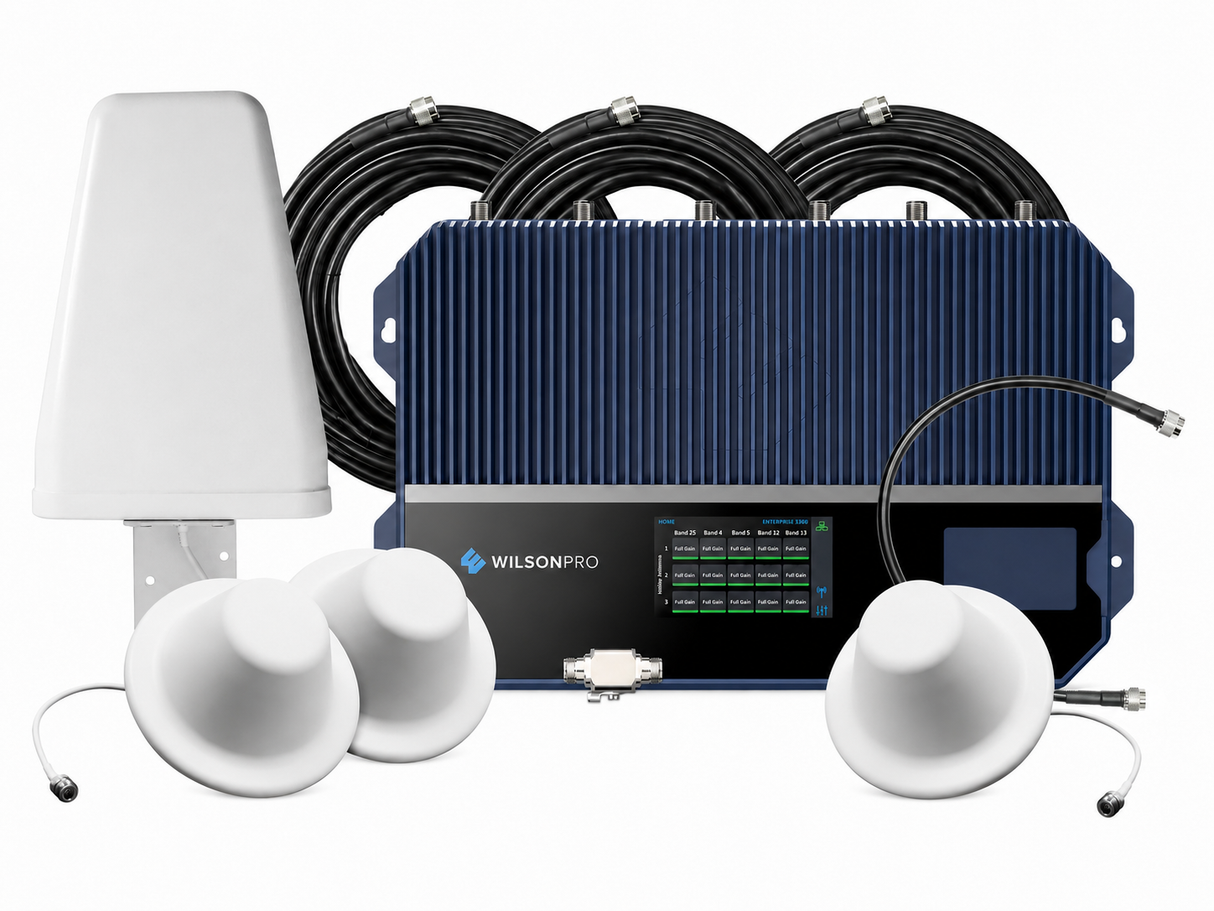

• 1 × Enterprise 3300 Amplifier (463052)

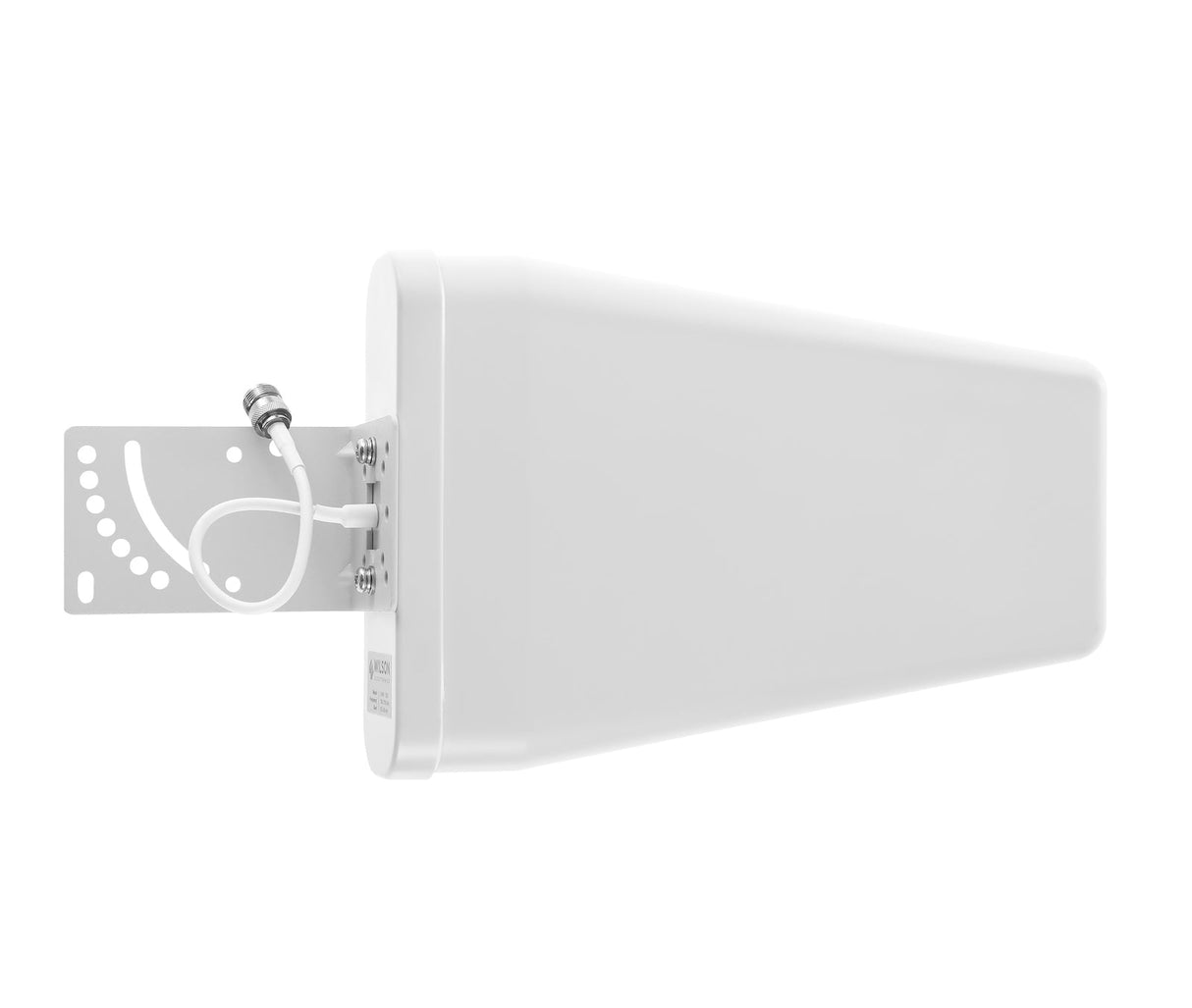

• 1 × Wide Band Directional Outside Antenna (314411)

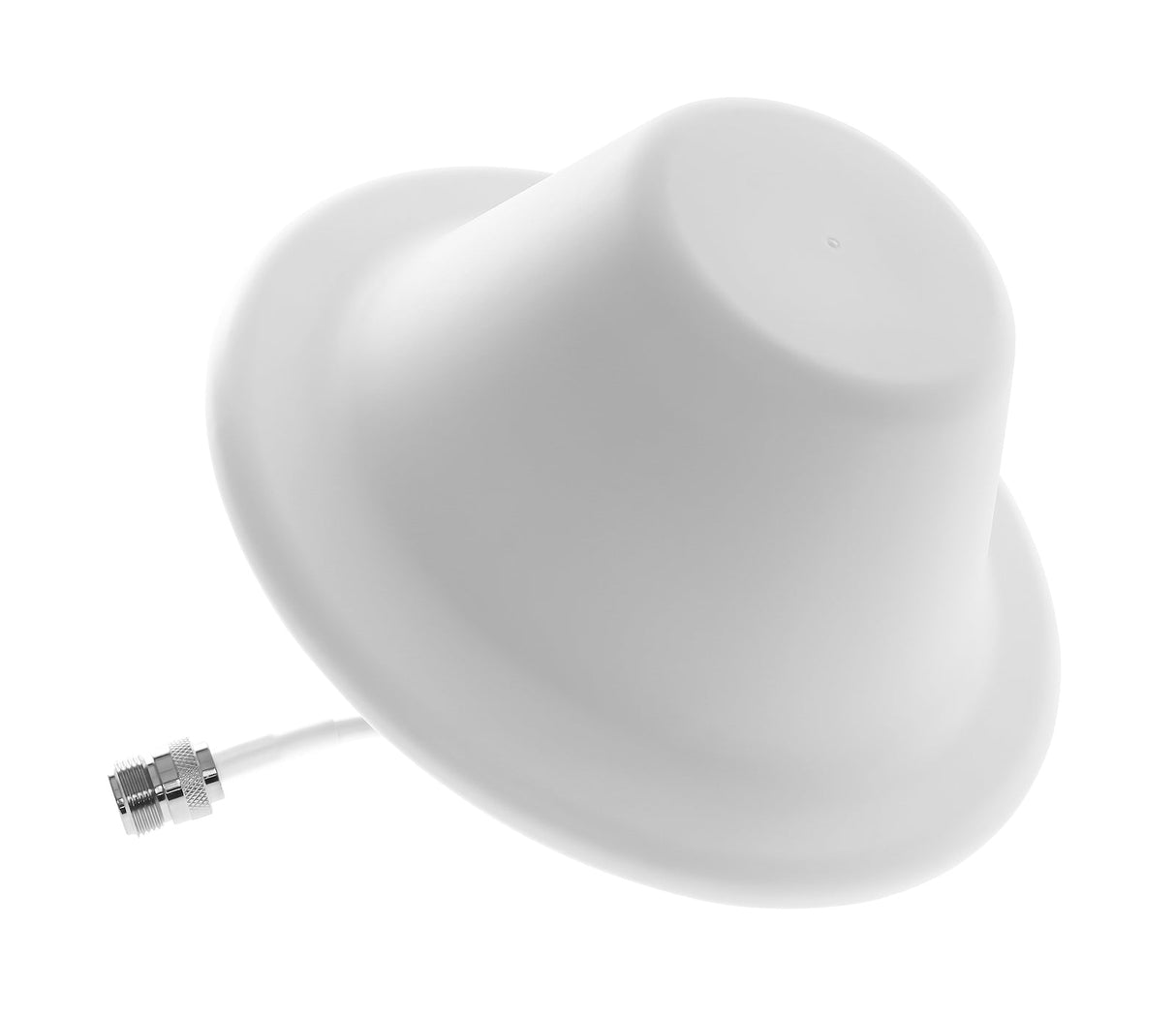

• 3 × Dome Inside Antennas (304412)

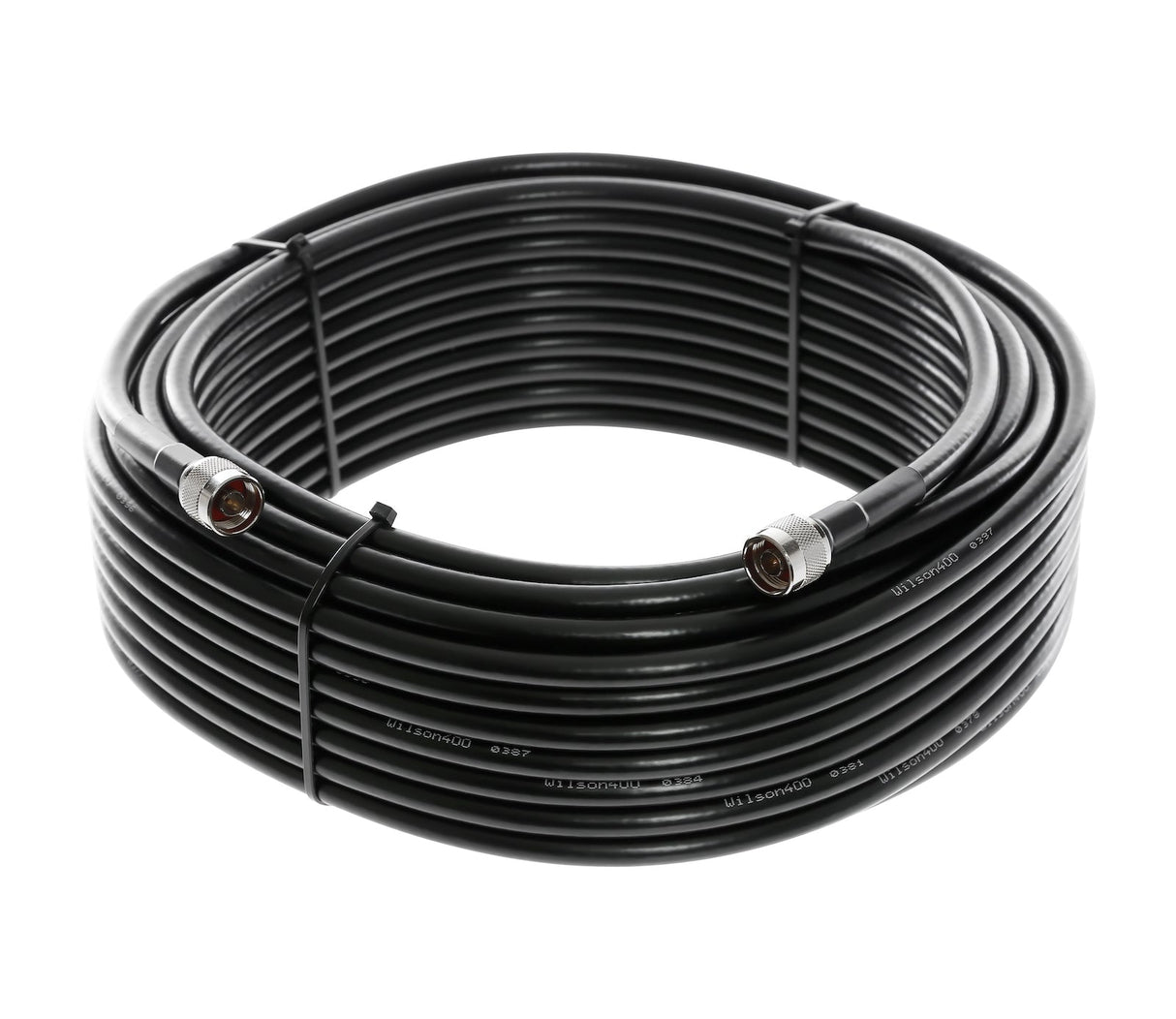

• 4 × 100 ft Wilson400 Low-Loss Coax Cable (952300)
• 1 × 2 ft Wilson400 Coax Cable (952302)

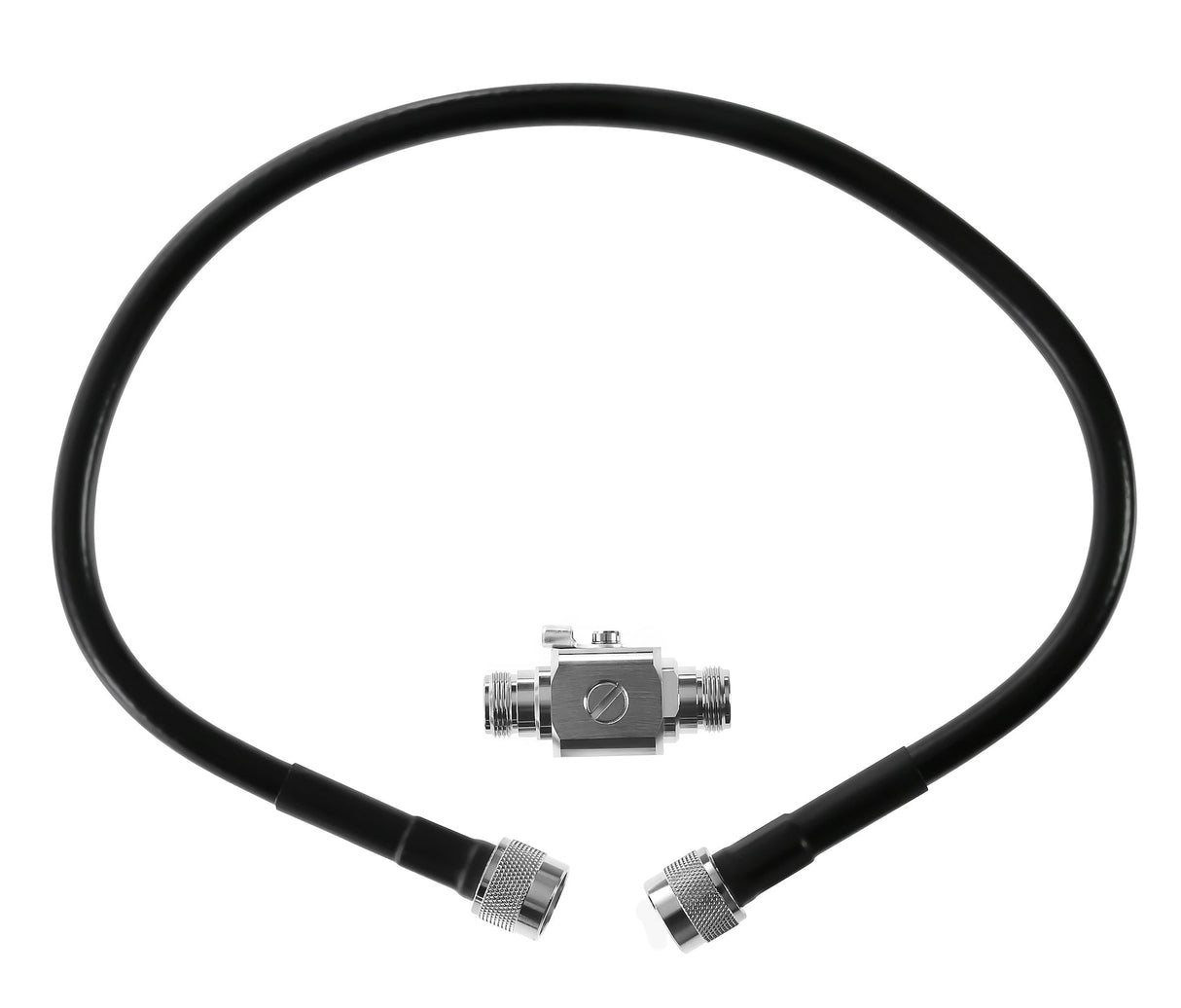

• 1 × 50 Ohm Lightning Surge Protector (850050)

These components cover three zones out of the box, and a designed system for your building often adds to them with more inside antennas and sometimes different antenna types.

How much area you cover inside depends on the outside signal strength at the spot where the outside antenna gets mounted. A stronger signal at the antenna gives the amplifier more to work with, so the same equipment covers considerably more area on a strong signal than it does on a weak one.

Coverage Estimates

Wilson rates the Enterprise 3300 for spaces up to 100,000 sq ft under ideal conditions. The estimates below reflect what we typically see in real buildings.

Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.

• If you have an existing strong 5 bar outside signal, you may get up to 75,000 sq ft of coverage inside*
• If you have an existing 3 to 4 bar outside signal, you may get up to 24,000 sq ft of coverage inside*
• If you have an existing 1 to 2 bar outside signal, you may get up to 7,500 sq ft of coverage inside*

* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors.

The weak signal estimate assumes a high gain directional outside antenna aimed as part of a designed system. With only a single bar of outside signal, we usually recommend a design conversation before you buy anything.

Supported Devices

• All phones, tablets, hotspots, and cellular connected devices
• No physical connection to the system is required

Supported Networks

• 4G LTE and 5G on supported frequency bands

Frequencies Boosted

• 700 MHz (Bands 12/13/17)
• 850 MHz (Band 5)
• 1900 MHz (Band 25/2)
• 1700/2100 MHz (Band 4)

Compatible Carriers

• Works with all major US and Canada carriers, including Verizon, AT&T, T-Mobile, and UScellular
• Works with MVNOs and regional carriers that run on those networks

This system will not work in most European, Asian, or African countries, because those regions use different cellular bands.
