How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Product Information
Product Information
The weBoost 470145 Home Complete Signal Booster is our best-selling solution for your whole home. It features a completely redesigned aesthetic for better integration into your home decor and uses RG11 cables with standard F connectors for easier installation. With increased uplink and downlink powers, it offers enhanced performance even further from cell towers, making it great for rural areas, and will provide even more coverage with a strong outside signal.
If you need to cover your whole home with a boosted signal and are looking for a great-looking product at the right price, then the weBoost Home Complete is a great option for you.
Coverage Area
Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.
- If you have an existing strong 5-bar outside signal, you may get up to 7,500 sq ft of coverage inside*
- If you have an existing 3 to 4-bar (-90 dB) outside signal, you may get up to 4,000 sq ft of coverage inside*
- If you have an existing 1 to 2-bar (-100 dB) outside signal, you may get up to 2,000 sq ft of coverage inside*
* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
Supported Carriers
The weBoost Home Complete (470145) supports virtually all of the networks and carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.
- AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
- Verizon 2G, 3G, 4G LTE & 5G
- Sprint 2G, 3G & 4G LTE
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

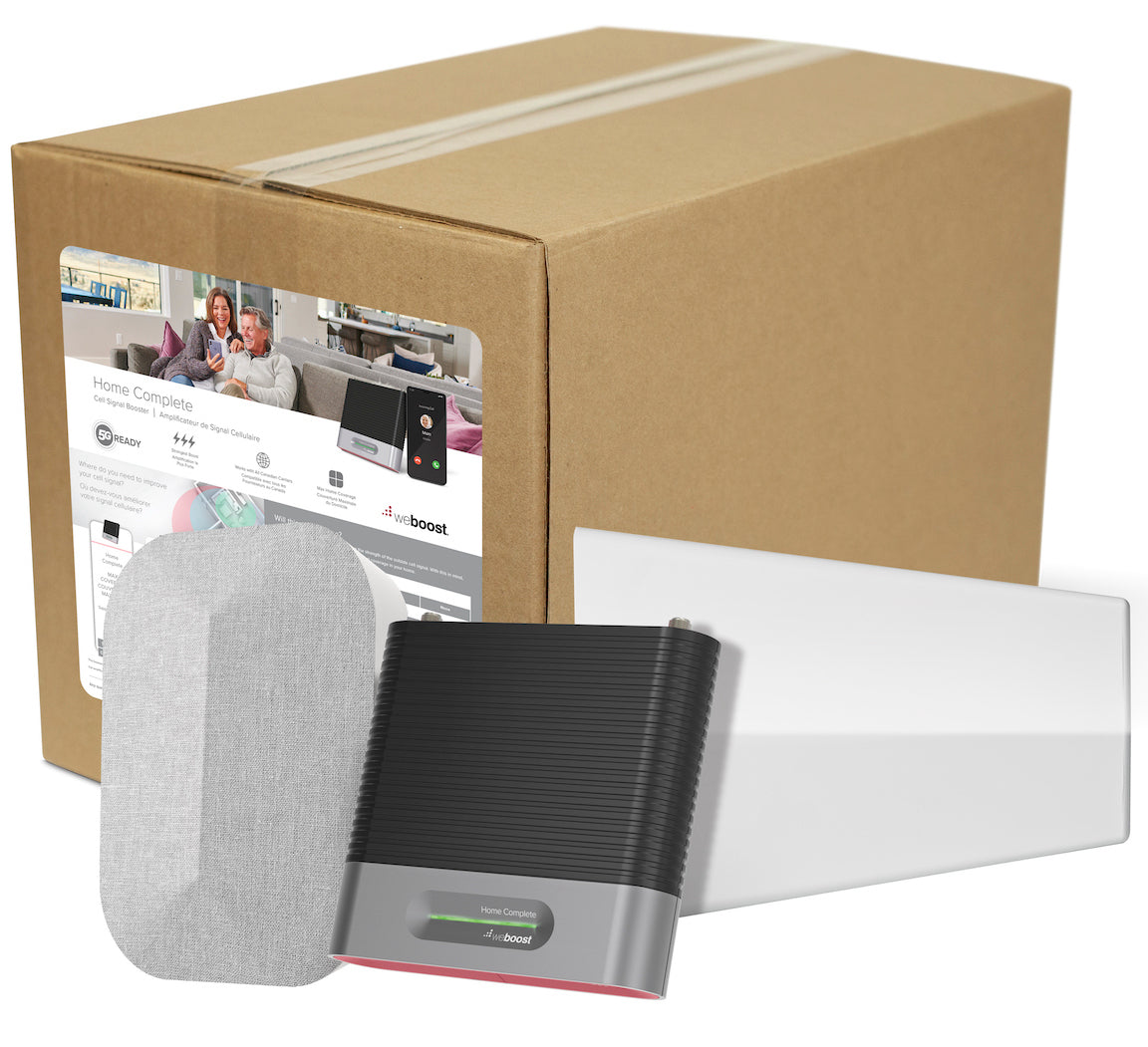

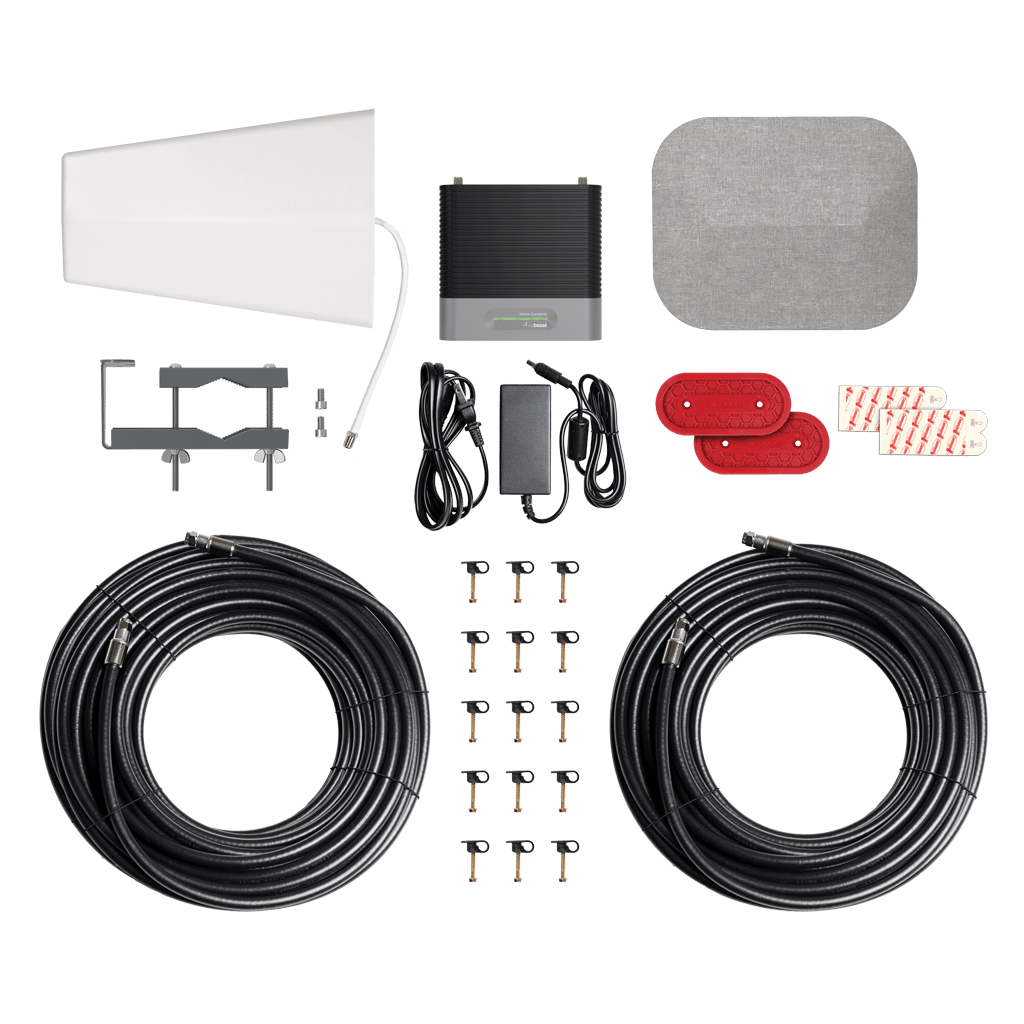

In the Box

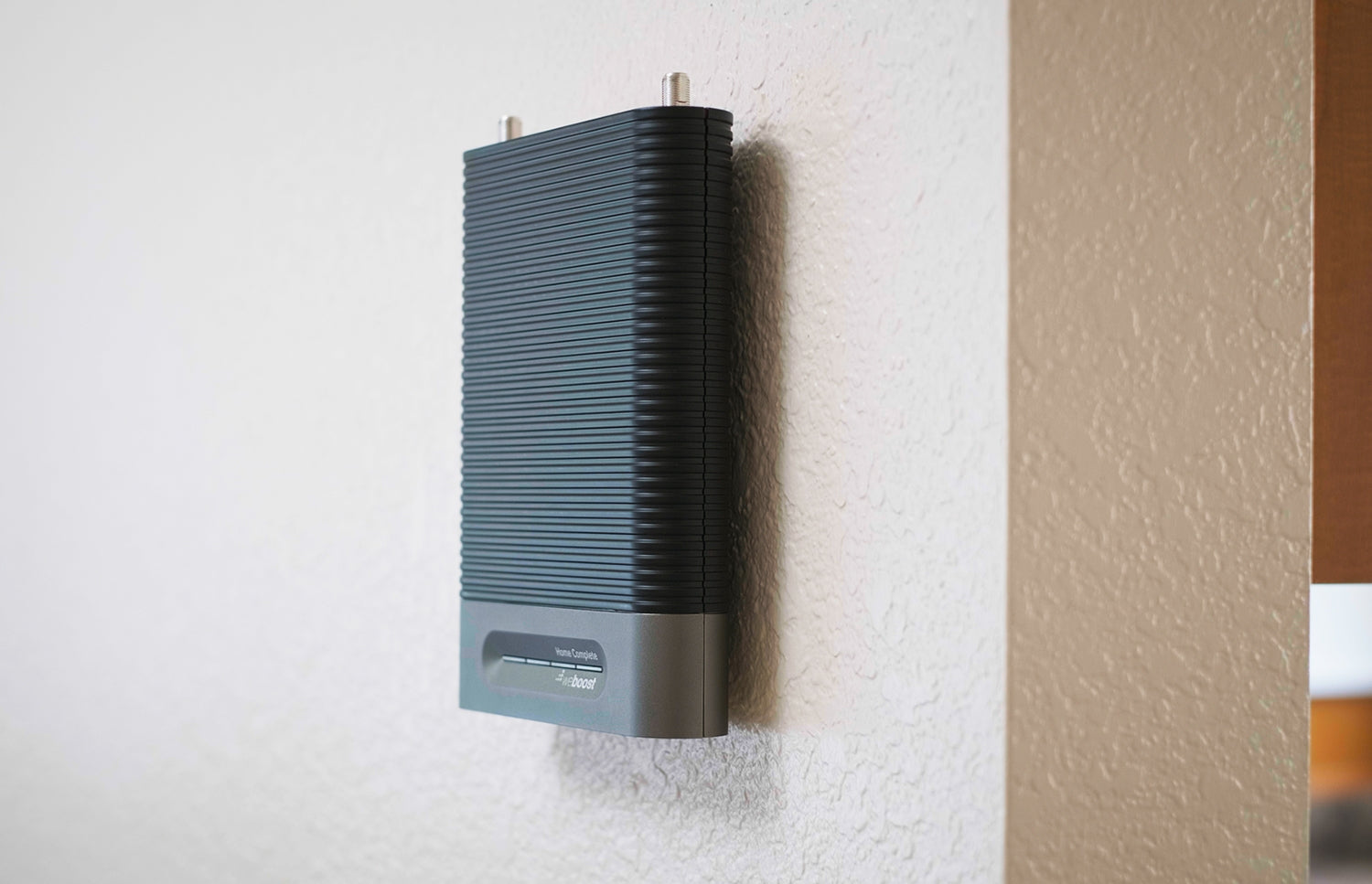

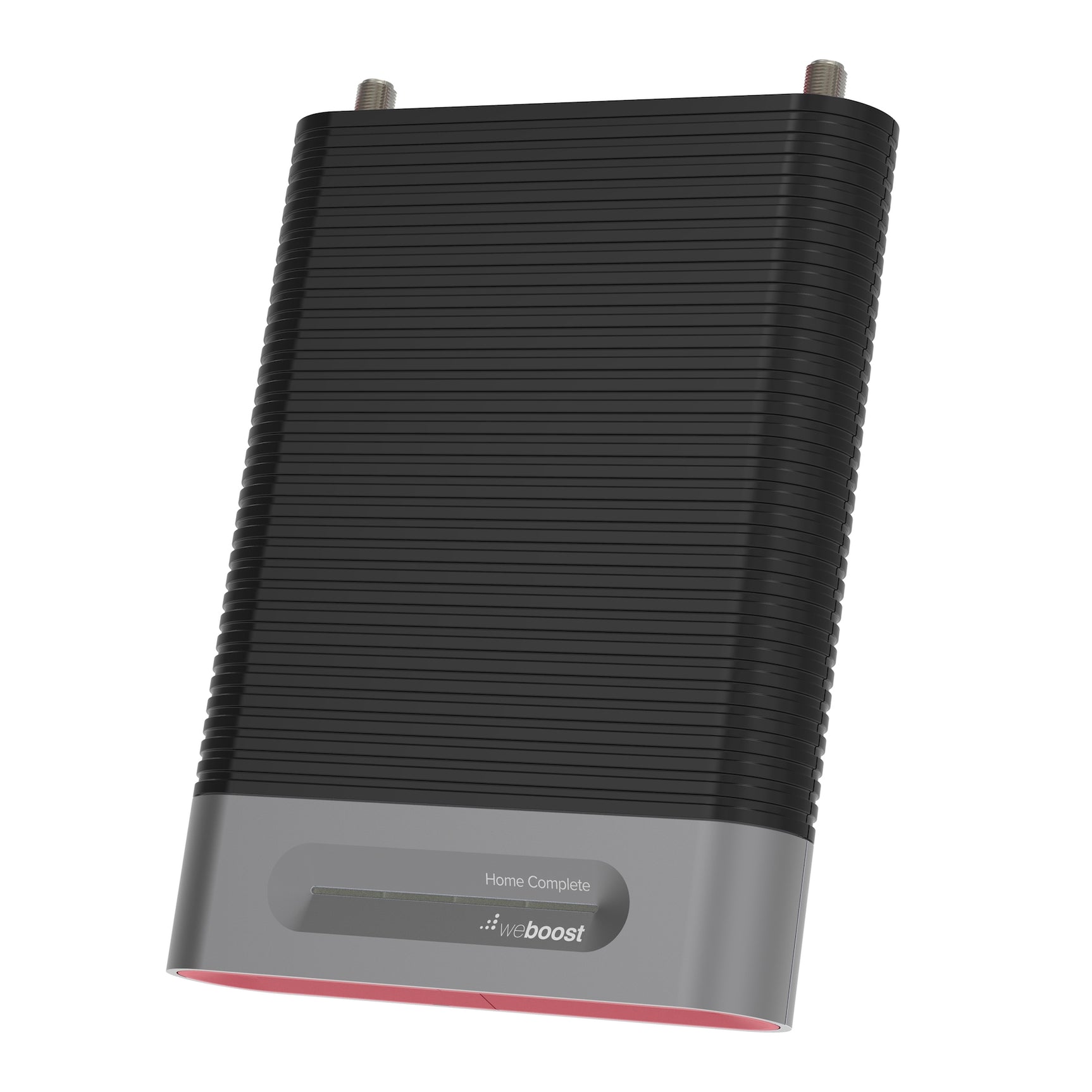

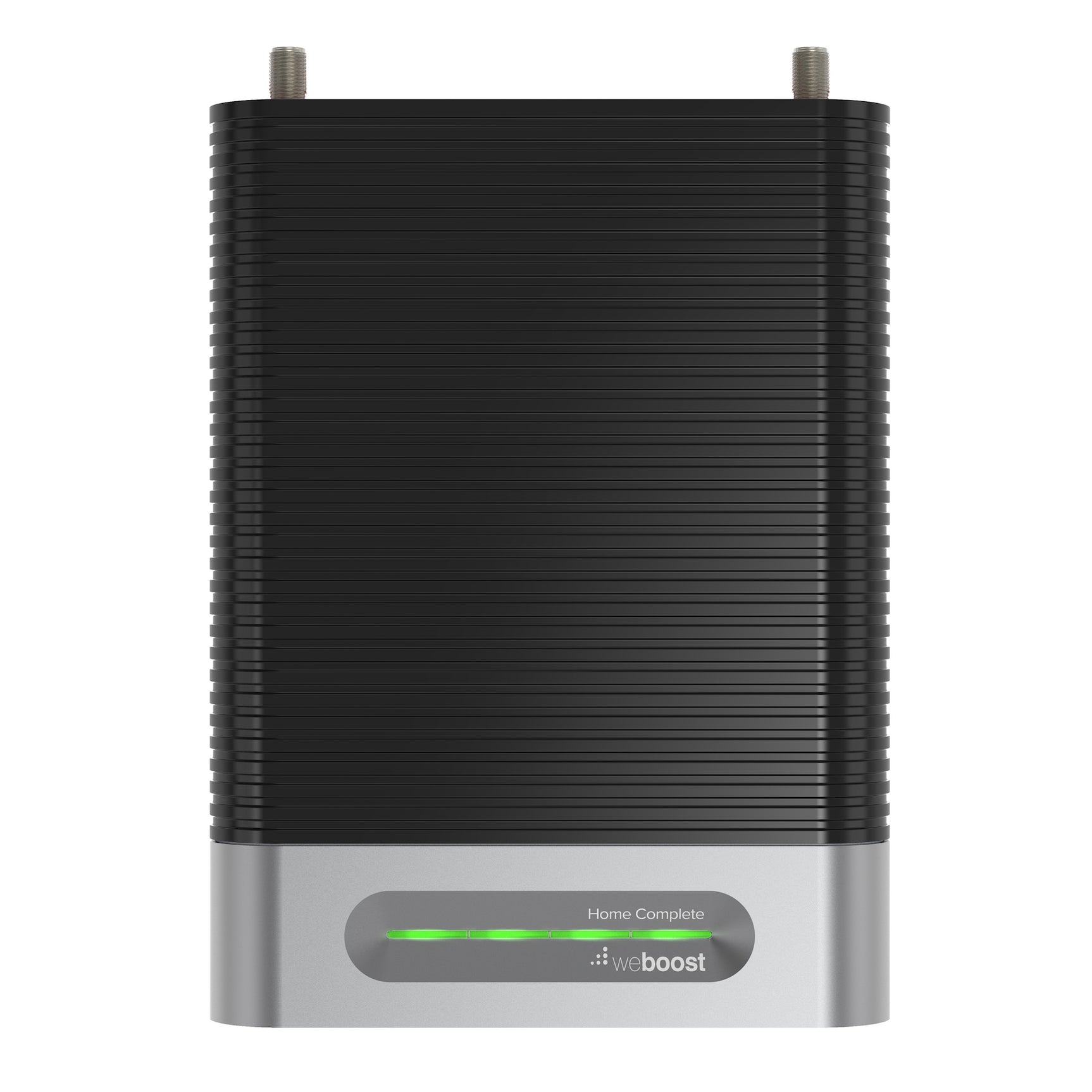

- weBoost Home Complete 5-Band 70 dB Amplifier

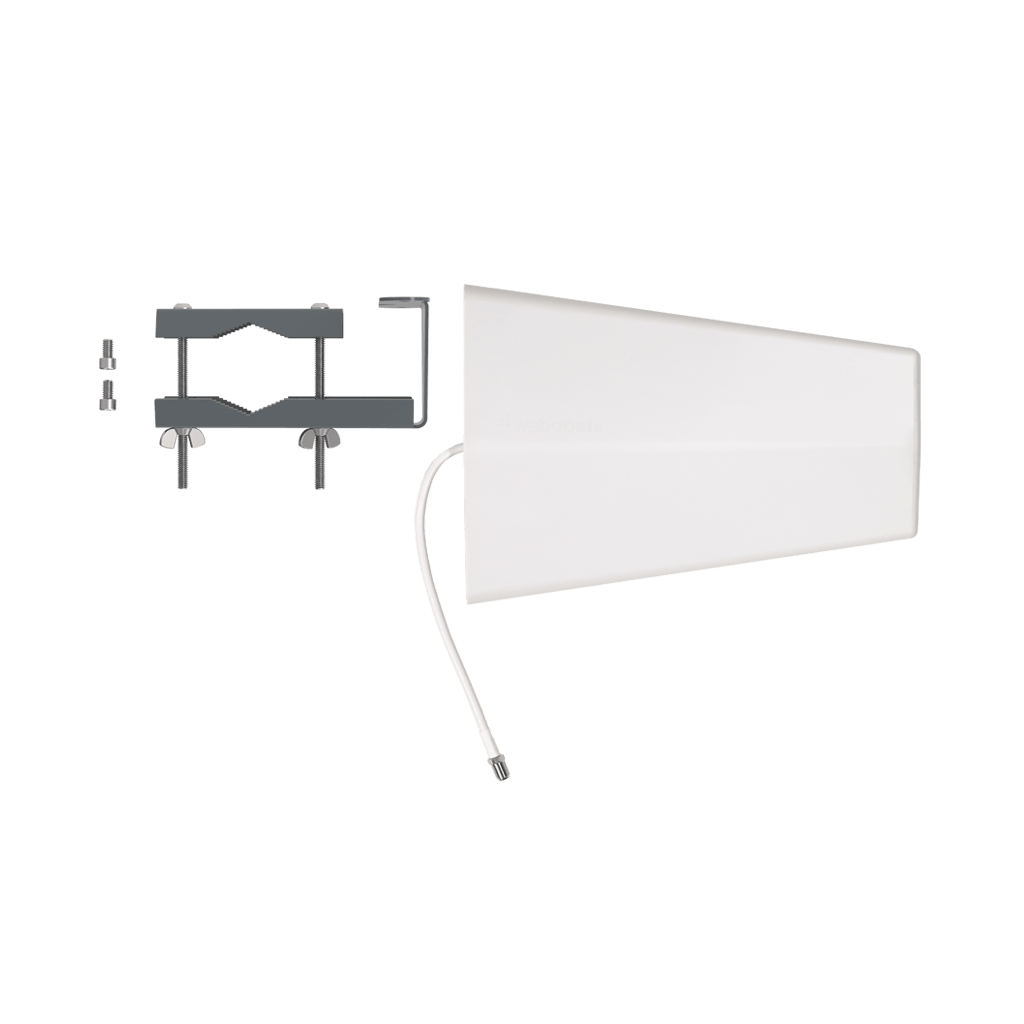

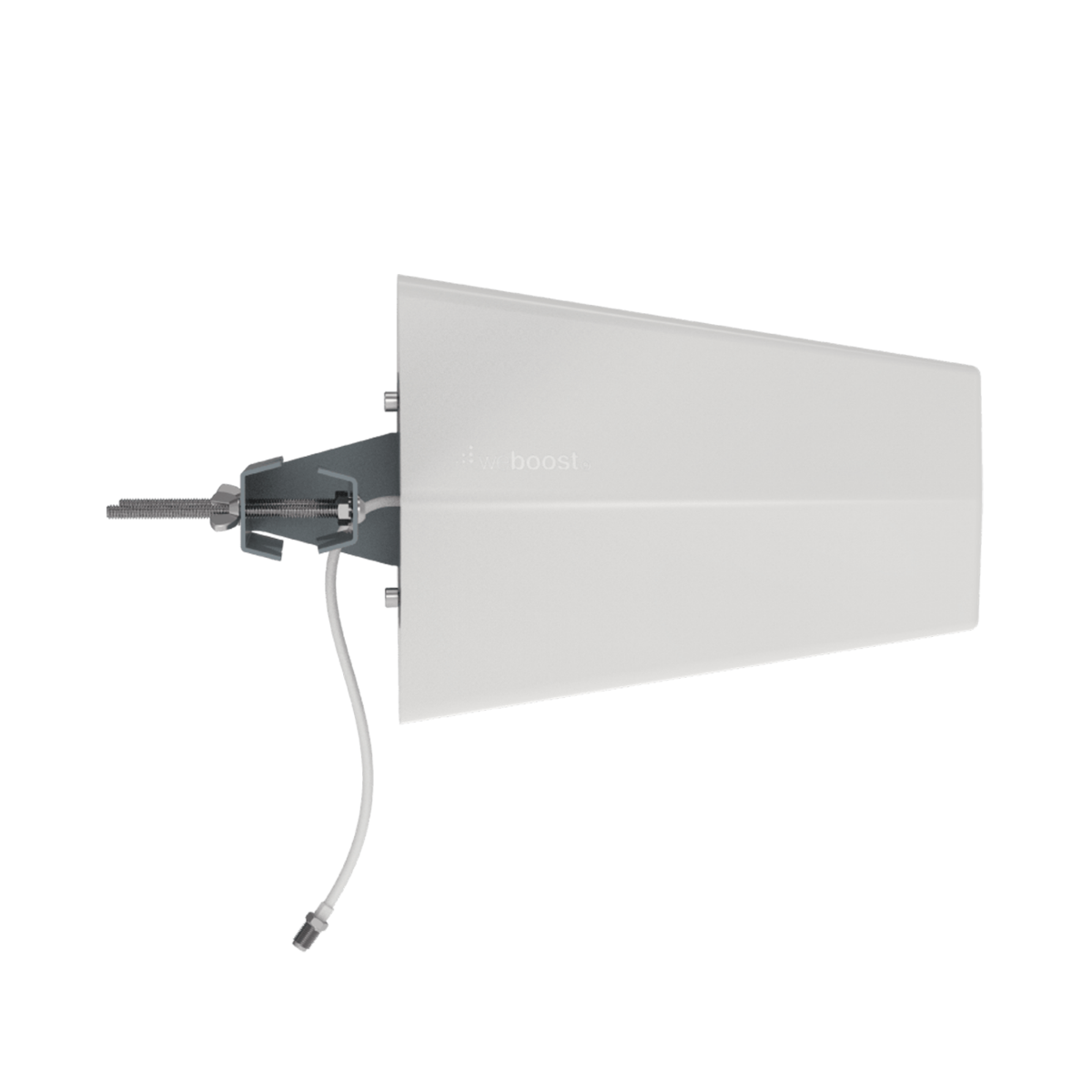

- weBoost Yagi Directional Outside Antenna

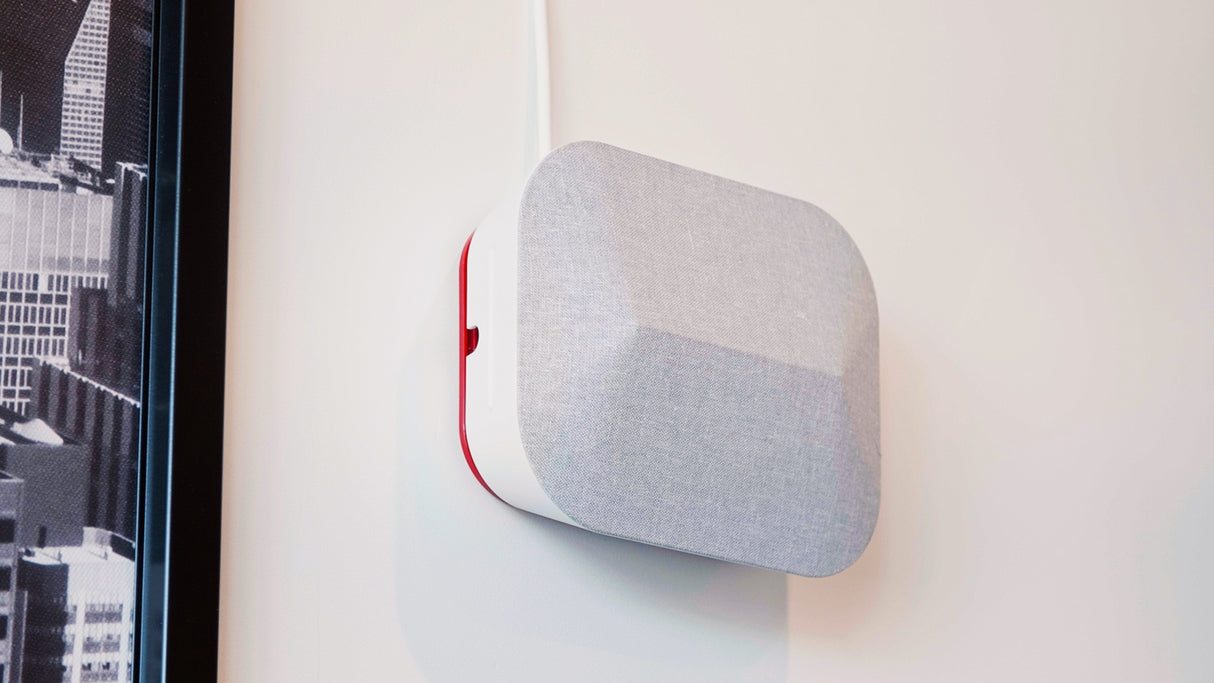

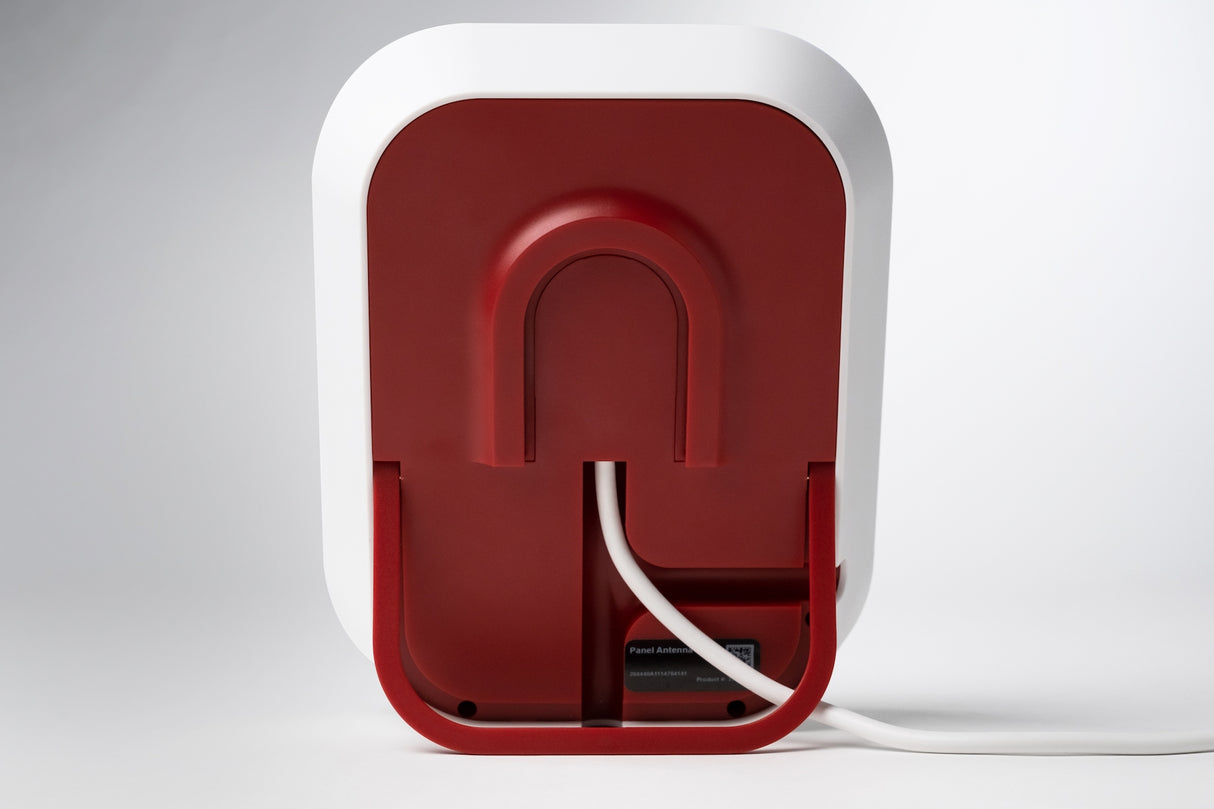

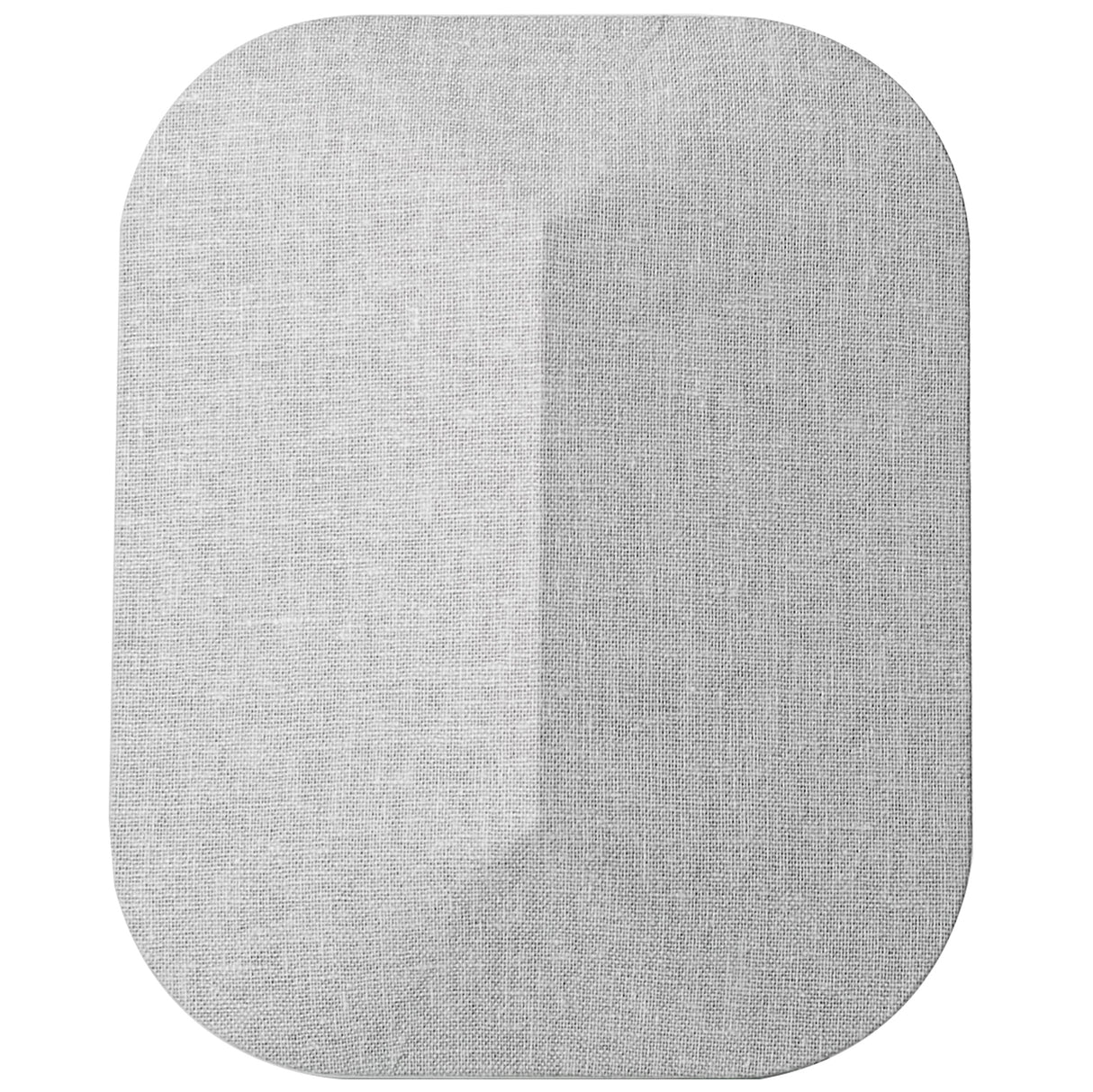

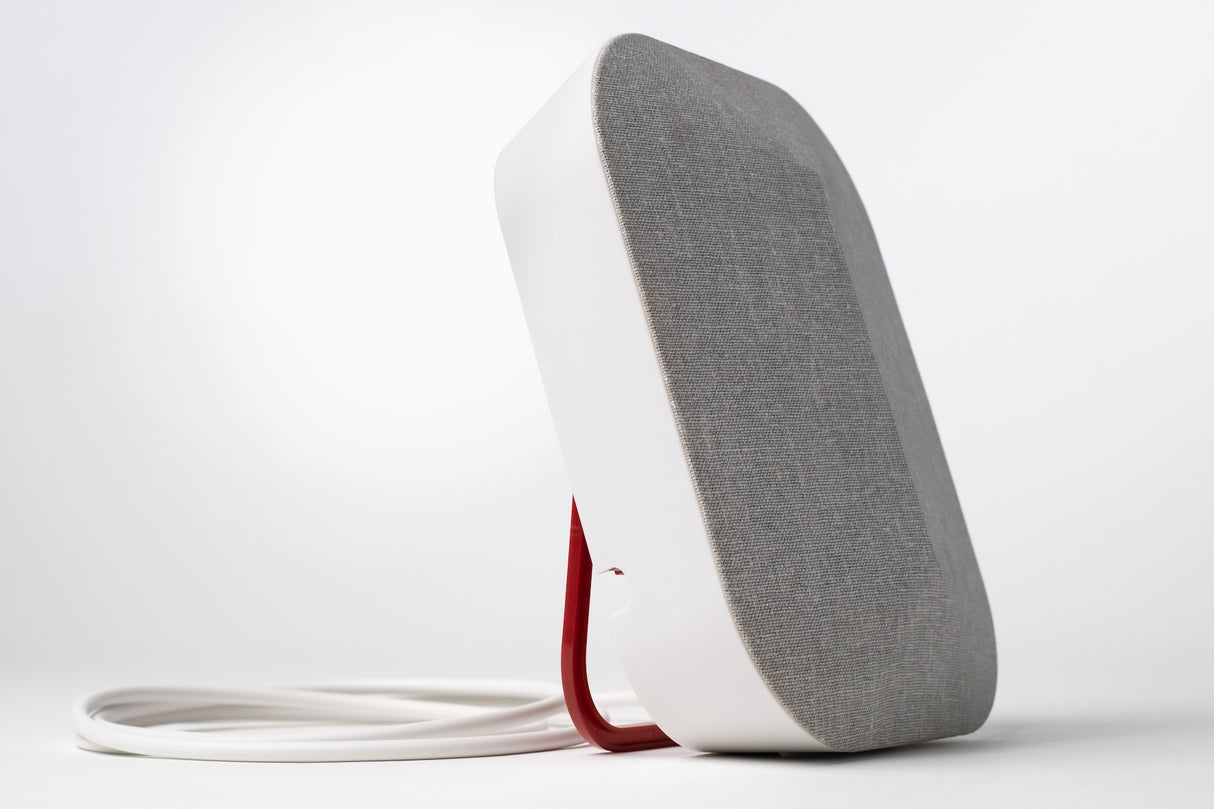

- weBoost Panel Inside Antenna

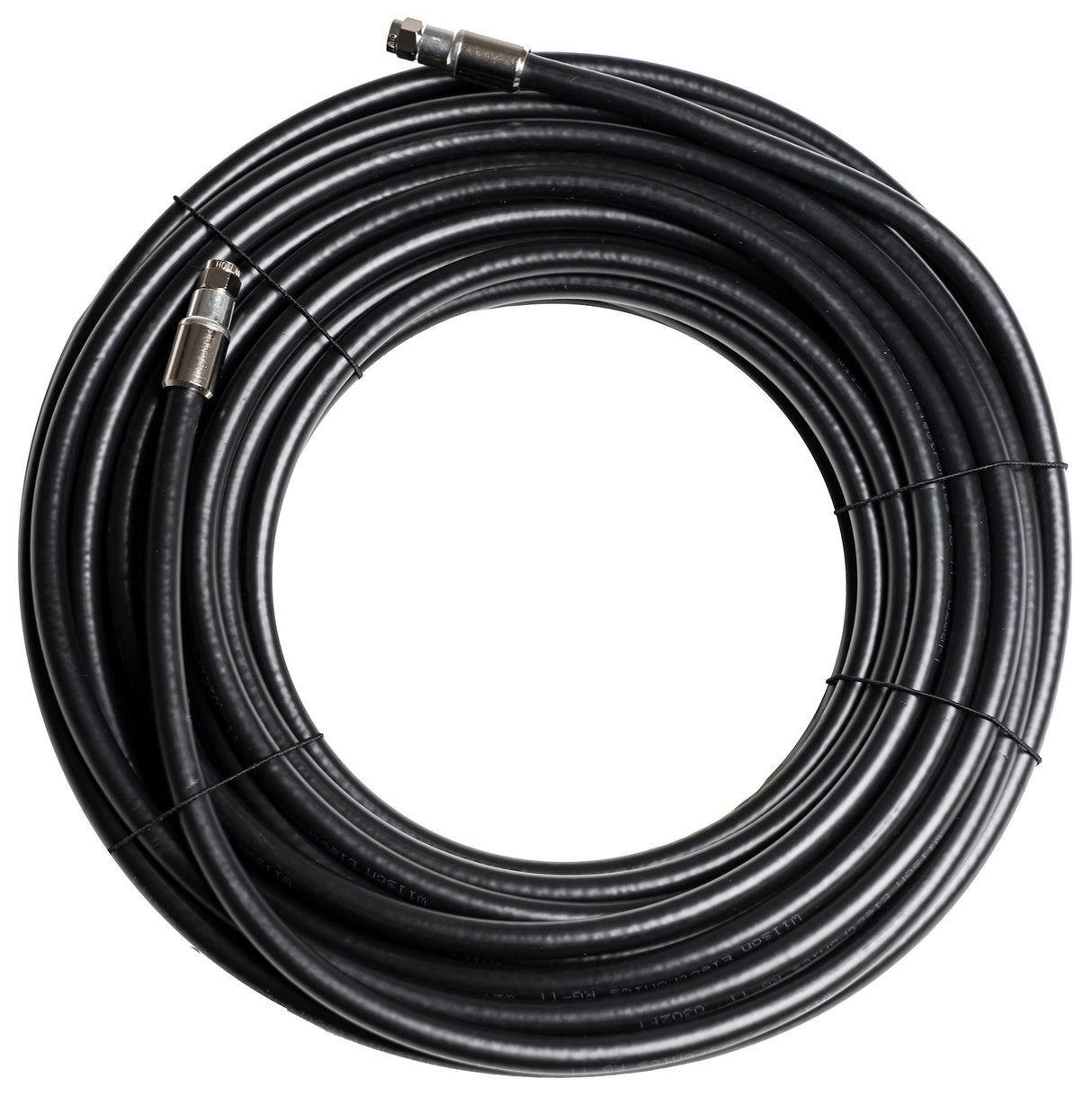

- 60' RG11 Coax Cable
- 75' RG11 Coax Cable
Accessories
We recommend a lightning protector kit for all installations in areas that have lightning or thunderstorms. The lightning protector has a gas discharge element that severs the connection to the amplifier if there is a surge from the outside antenna.
The included directional outside antenna comes with mounting hardware for a pole. If you don't have an existing pole to mount the antenna to, you should also include 901117 Pole Mounting Assembly.
Installation Overview
The weBoost Home Complete is designed for easy installation for those who are a bit handy. If you're not comfortable with rooftop installations, consider finding an AV installer or a handy friend. We recommend a soft install initially to ensure the system works for you before permanently mounting anything or drilling holes. Follow these 4 steps for installation:
- Find a suitable place on your roof to mount the outside antenna, connect the coax cable, and run it into your house.
- Inside, connect the cable to a lightning protector (if used), then to the amplifier, and finally connect the inside antenna.

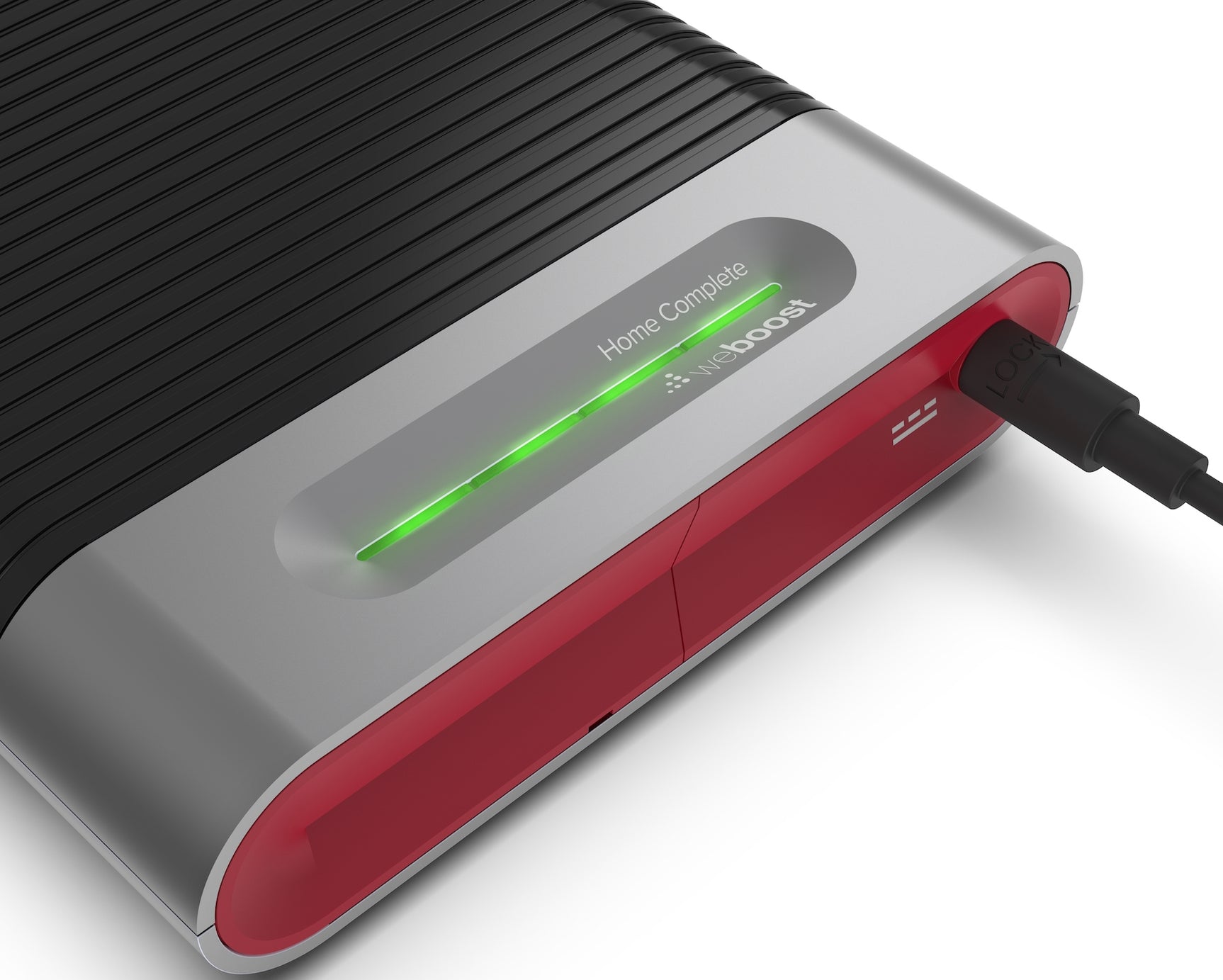

- Plug in the amplifier and check for any error lights. Consult the manual or contact us for help with errors.
- Aim the directional outside antenna for the best signal, with assistance from an indoor partner for signal readings.
The included manual is very helpful, and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.
Benefits
- Everything you need is in the box, just set it up and go.
- Reduces dropped calls and increases data speeds.
- Works wirelessly so you can use your cell phone like you always do.
- Supports multiple phones and data devices simultaneously.
- Adjustable per-frequency gain control makes installation easier.
- Contains carrier protection technologies to guard against overload and oscillation.
- Amplifies the signal both to and from the cell carrier.
- Boosts 800 (850) MHz Cellular, 1900 MHz PCS, 1700/2100 MHz AWS, and both Verizon 700 MHz LTE and AT&T 700 MHz LTE.
- Extends the battery life of your phone.
- Made in the USA.
- FCC and IC type accepted.
Specifications
Specifications
-
Warranty Length
Coverage Area
Coverage Area
Supported Carriers
Supported Carriers
Regulatory Advisories
Regulatory Advisories
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
