How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

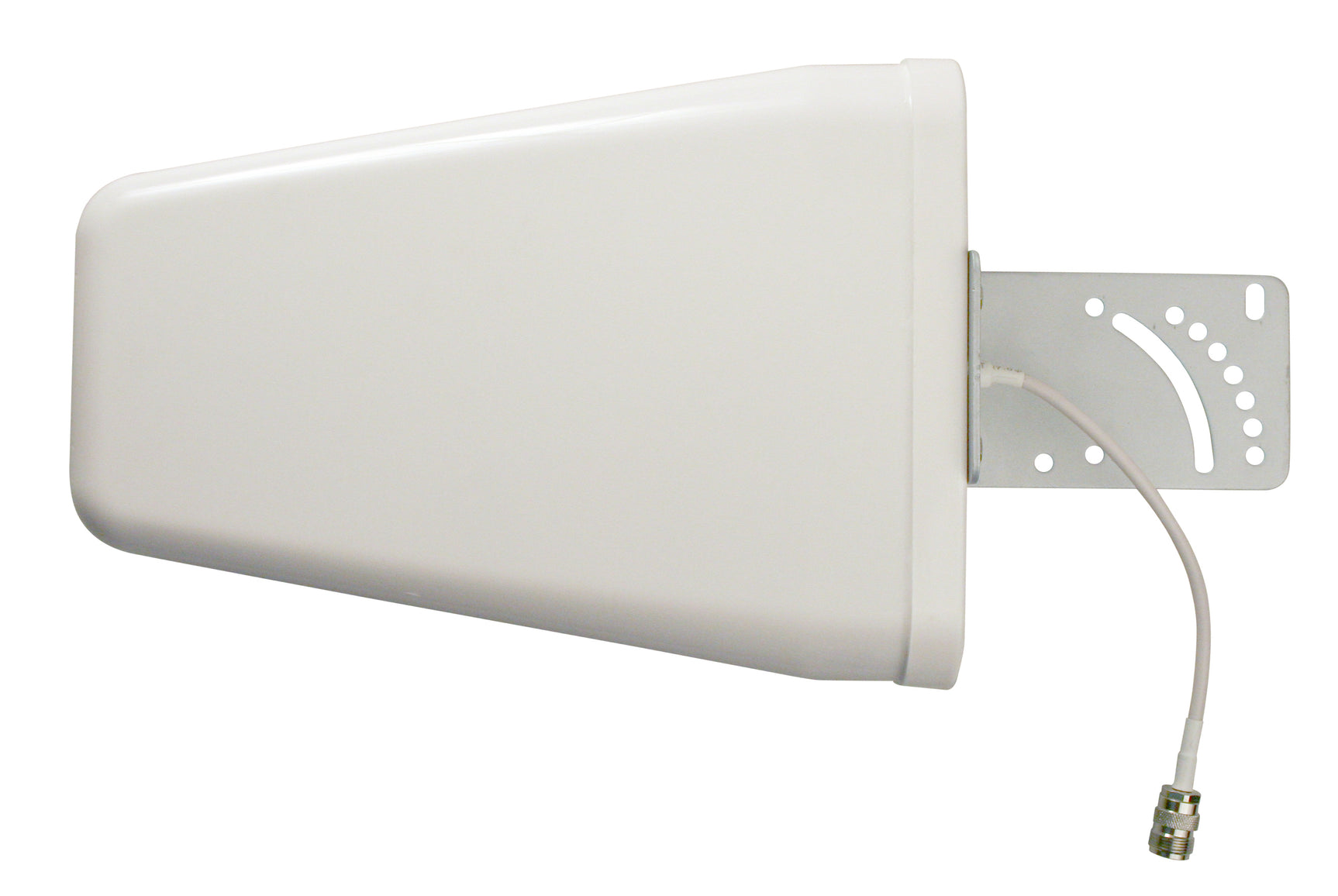

Wilson Wide-Band Directional Antenna (314411/314475)
Product Information
Product Information
The Wilson Wide-Band Directional Antenna models 314411 and 314475 offer enhanced cellular connectivity across all worldwide cellular bands for voice and 4G data. These high-performance antennas are designed for building exterior installation, directing at cell towers to maximize signal reception. Featuring a compact and UV stable white sealed radome, these antennas are rugged, weatherproof, and ideal for all weather conditions. They are the successors to the older 304411 and 304475 models, offering upgraded technology and improved performance.
- Models: 314411 (50 ohm) and 314475 (75 ohm)
- Replaces: Model 314411 replaces 304411; Model 314475 replaces 304475
- Frequency Bands: 698-814, 814-960, 1695-2180, 2180-2700 MHz
- Maximum Gain: Up to 8.83 dBi
- Impedance: 50 ohm (314411) and 75 ohm (314475)
- Connectors: N-female (314411), F-Female (314475)
- Dimensions: 11.75 x 8.5 x 2.50 inches (300 x 210 x 65 mm)
- Weight: 1.8 lbs (0.8 kg) with bracket
- Includes: Mounting kit with tilt/swivel mast bracket for 1.25” to 2” diameter pipe/mast
These directional antennas are simple to install and come with a two-year warranty, ensuring reliability and satisfaction. Their high efficiency and robust design make them perfect for enhancing cellular signals in challenging environments, improving both voice and data transmission for weBoost cellular repeaters/boosters.
