How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

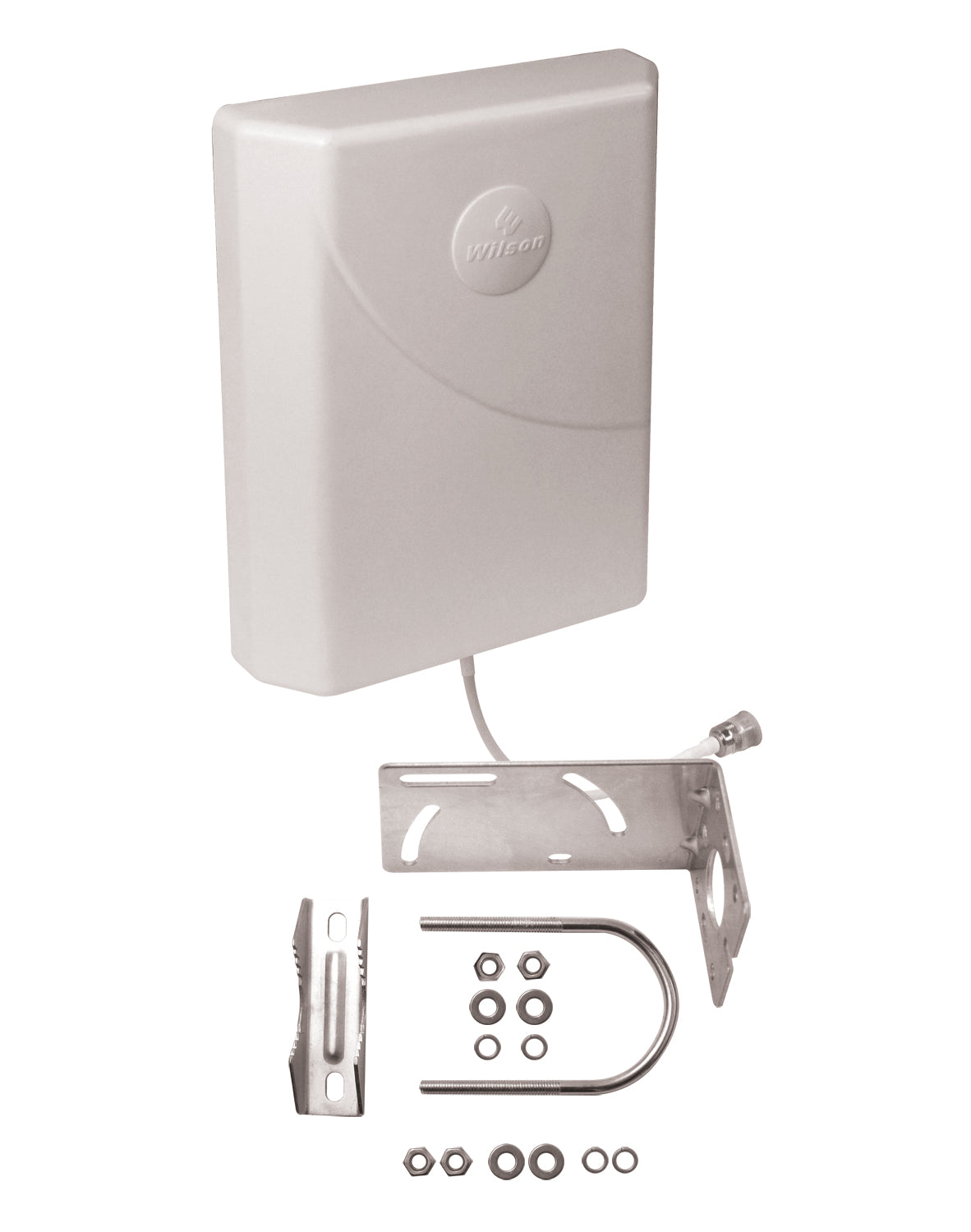

Wilson Pole Mount Outside Panel Antenna (314453/314473)
Product Information
Product Information
The Wilson Pole Mount Outside Panel Antenna series, comprising models 314453 and 314473, is expertly crafted for enhancing 4G cellular reception in outdoor environments. These antennas are designed to mount on poles, providing a robust solution for areas where indoor signals are weak or obstructed.
- Dimensions: 8.27 x 7.09 x 1.73 inches, designed to be compact yet effective for outdoor use.
- Antenna Type: Directional panel antenna, ideal for focusing the signal in specific areas, maximizing coverage and reception.
- Model 314453: Comes with a 9-inch low-loss coax cable with an N-Female connector, suitable for 50 Ohm systems.
- Model 314473: Features a 9-inch low-loss RG6 cable with an F-Female connector, designed for 75 Ohm systems.
- Mounting: Includes mounting hardware for easy installation on poles, allowing for optimal placement and signal directionality.
With the Wilson Pole Mount Outside Panel Antenna models, you can significantly improve your cellular connectivity outdoors, ensuring strong and reliable signals even in areas prone to poor reception.
