How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

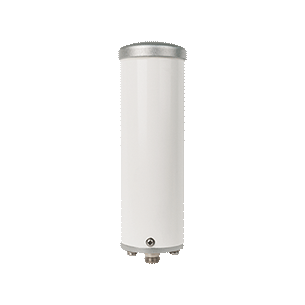

Wilson Omni Plus Building Antenna 50 Ohm | 314422
Product Information
Product Information
The Wilson Omni Plus Building Antenna, model 314422, is designed to significantly improve cellular reception for both voice and data across multiple frequency bands. This 50 Ohm antenna boosts signals in the 698-960 MHz and 1710-2700 MHz ranges, ensuring comprehensive coverage and enhanced connectivity. With its compact and weather-resistant design, this antenna is perfect for either home or office installation, offering a low visual impact while being highly effective.
- Frequency Range: 698-960 MHz, 1710-2700 MHz
- Gain: Up to 5 dBi
- Impedance: 50 Ohm
- Connector: N-female
- Dimensions: 2.5 x 9.8 inches (63 x 250 mm)
- Weight: 1.9 lbs (0.85 kg)
- Rated Wind Velocity: 130 mph (210 kph)
- Mounting Options: Pole or wall mount

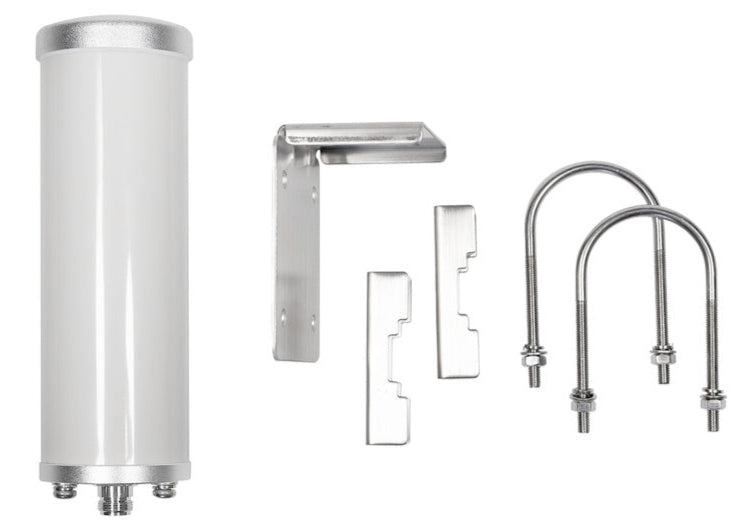

- Includes: Multi-mount bracket
This antenna not only simplifies installation with its easy-mount system but also integrates seamlessly into your building's aesthetics. Its vertical polarization and 360° horizontal beamwidth guarantee that signal distribution is both broad and effective, optimizing cellular connectivity regardless of environmental conditions. Designed to connect to building cell phone signal boosters and modems, the Wilson Omni Plus is a robust solution for enhancing cellular performance where it is most needed.
