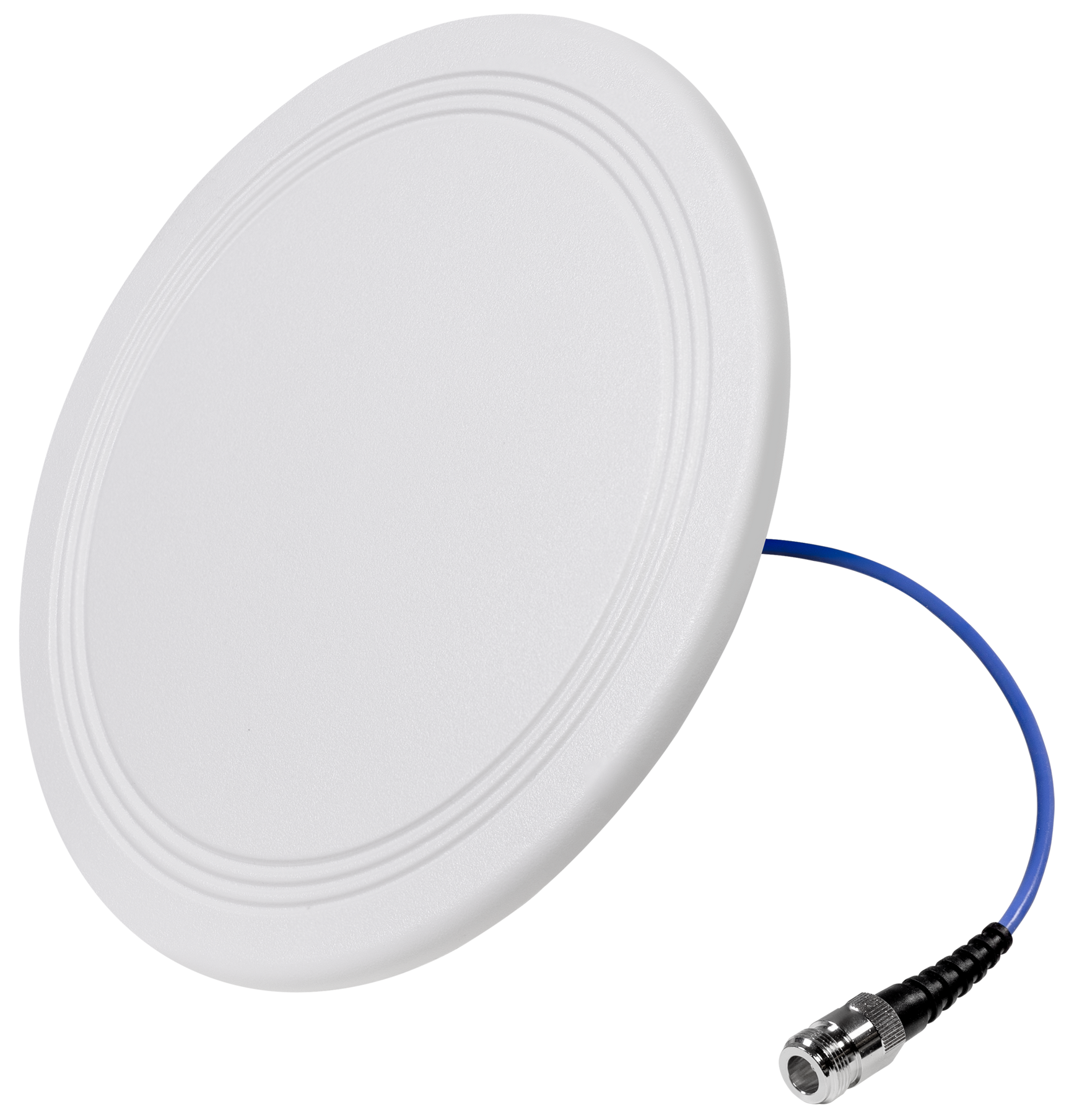

Wilson Electronics Ultra Low Profile Dome Antenna | 310005

$109.99

Your Order Includes:
Do you have questions? Contact us for help!
Email or call us at (888) 974-8237.

Product Overview

The Wilson Ultra Low Profile Dome Antenna | 310005 is designed for clean indoor installs where appearance and performance both matter. It mounts directly to a ceiling and delivers broad, reliable signal coverage across a wide range of wireless bands.

Covering everything from 617 MHz to 6 GHz, this antenna supports all major cellular networks, plus WiFi, CBRS, and 5G. It’s built for commercial booster systems and distributed antenna setups, but it's also a strong fit for advanced residential installs where ceiling-mounted gear is preferred.

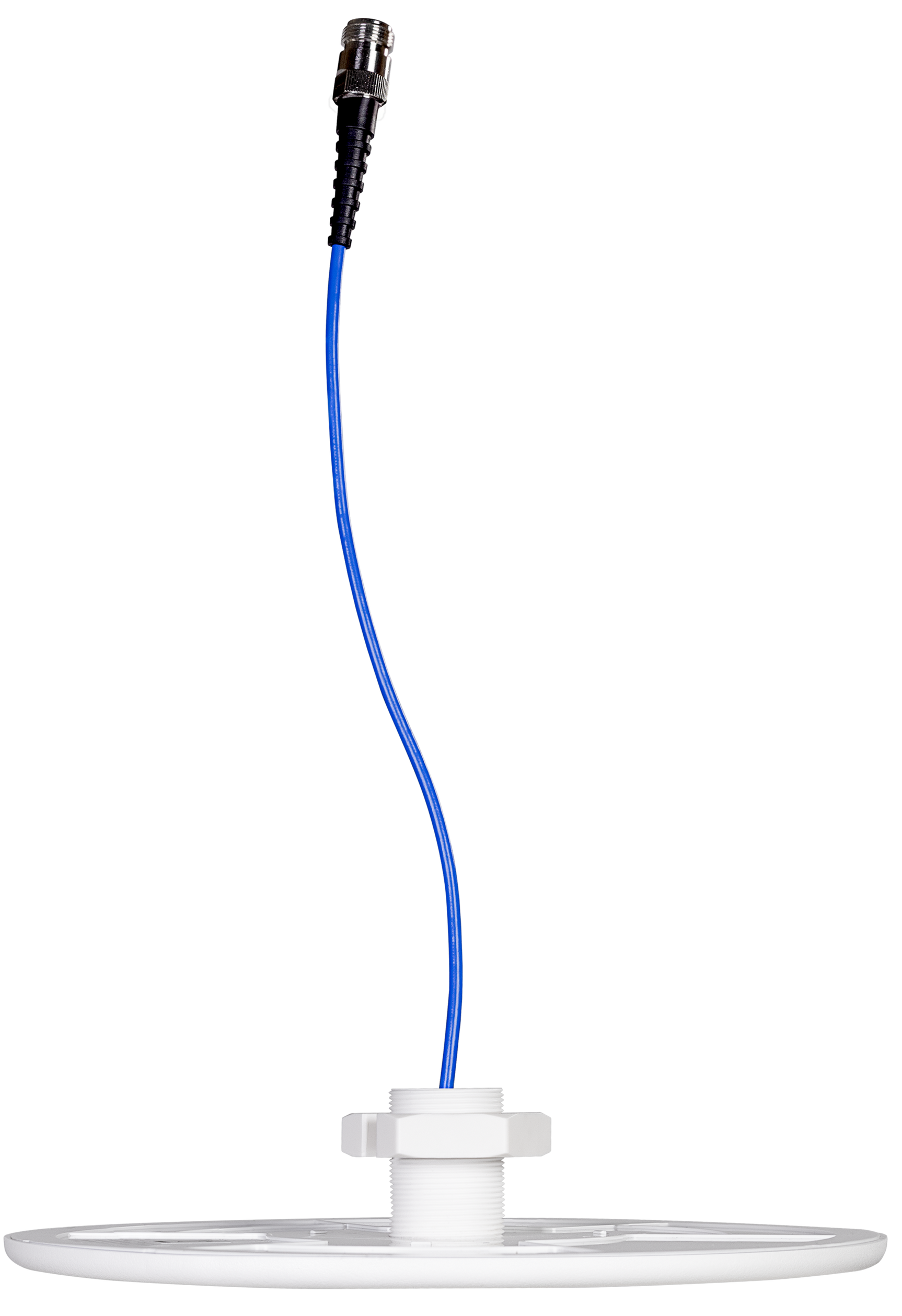

With its slim profile and white ABS housing, the antenna blends into most ceilings without drawing attention. It includes a plenum-rated pigtail and locking nut for secure, code-friendly installation in drywall or ceiling tile. The N-Female connector makes it easy to integrate with standard 50-ohm systems.

This antenna is a practical choice for installers working in offices, schools, warehouses, or any space where wide coverage and subtle design are key. It handles high-band and low-band signals alike, with solid performance across the board.

Product Highlights & Benefits

Product Highlights

  • Covers wide frequency range from 617 MHz to 6000 MHz
  • Compatible with cellular, 5G, WiFi, and CBRS systems
  • Compact, ultra-low profile design for ceiling installation
  • Omni-directional radiation pattern for broad indoor coverage
  • Typical gain of 4 to 7 dBi depending on frequency band
  • N-Female connector with 12-inch plenum-rated pigtail
  • Includes mounting nut for simple ceiling tile or drywall install
  • RoHS compliant with white ABS radome

Top Benefits

  • Blends cleanly into finished ceilings without visible hardware
  • Works with almost any 50-ohm signal booster or DAS system
  • One antenna covers multiple bands and technologies — no need for separate antennas
  • Easy to install with just a single ceiling hole and locking nut
  • Reliable performance across low and high frequencies, including 5G and WiFi 6E

In the Box

What’s in the Box

  • Wilson Electronics Ultra Low Profile Ceiling Antenna (SKU 310005)
  • Pre-attached 12-inch plenum-rated pigtail cable with N-Female connector
  • Mounting nut for securing to ceiling panels or drywall

Product Documents

Specifications
  • SKU
    310005
  • UPC
    810005965323
  • Condition
    New
  • Warranty
    2 Years
  • Impedance
    50 ohm
  • Gain (Up/Down)
    6 dB
  • Antenna Connector
    N-Female
  • Antenna Polarization
    Linear
  • Antenna Beamwidth - Horizontal
    360 Degrees
  • Antenna Beamwidth - Vertical
    50 Degrees
  • Antenna VSWR
    ≤2.0
  • Dimensions
    9.8 Inches
  • Specific Frequencies Supported
    617-698 MHz, 698-960 MHz, 1695-2700 MHz, 3300-4200 MHz, 4800-6000 MHz
