How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Wilson Electronics 4G Marine Antenna | 304420
Product Information
Product Information

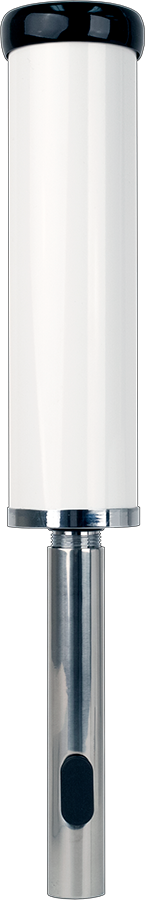

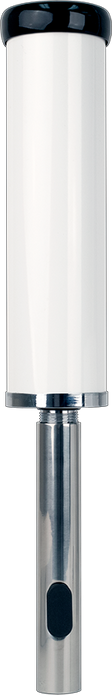

The Wilson 4G Marine Antenna (304420) is specifically tailored for marine applications, designed to integrate seamlessly into a standard marine mount (not included) on boats, ships, or other marine vehicles. It is an ideal solution for enhancing cellular connectivity across all network types utilized by major North American carriers.
- Comprehensive Network Support: Compatible with 2G, 3G, and 4G LTE networks, ensuring reliable communication on all major cellular carriers in North America.
- Installation Requirements: Intended for use with a standard marine mount, which is not included with the antenna. For those requiring a mount, the Wilson 901119 Marine Antenna Mount is compatible and available separately.
- Included Cable: Comes with a 20 ft white RG-58 cable, facilitating connection to a cellular amplifier and allowing flexible placement on various marine vessels.
- Dedicated Marine Design: Engineered to withstand the demanding conditions of marine environments, offering durable and effective communication enhancements at sea.
For detailed specifications and installation instructions, refer to the Wilson 4G Marine Antenna Spec Sheet.
Product Documents
