How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

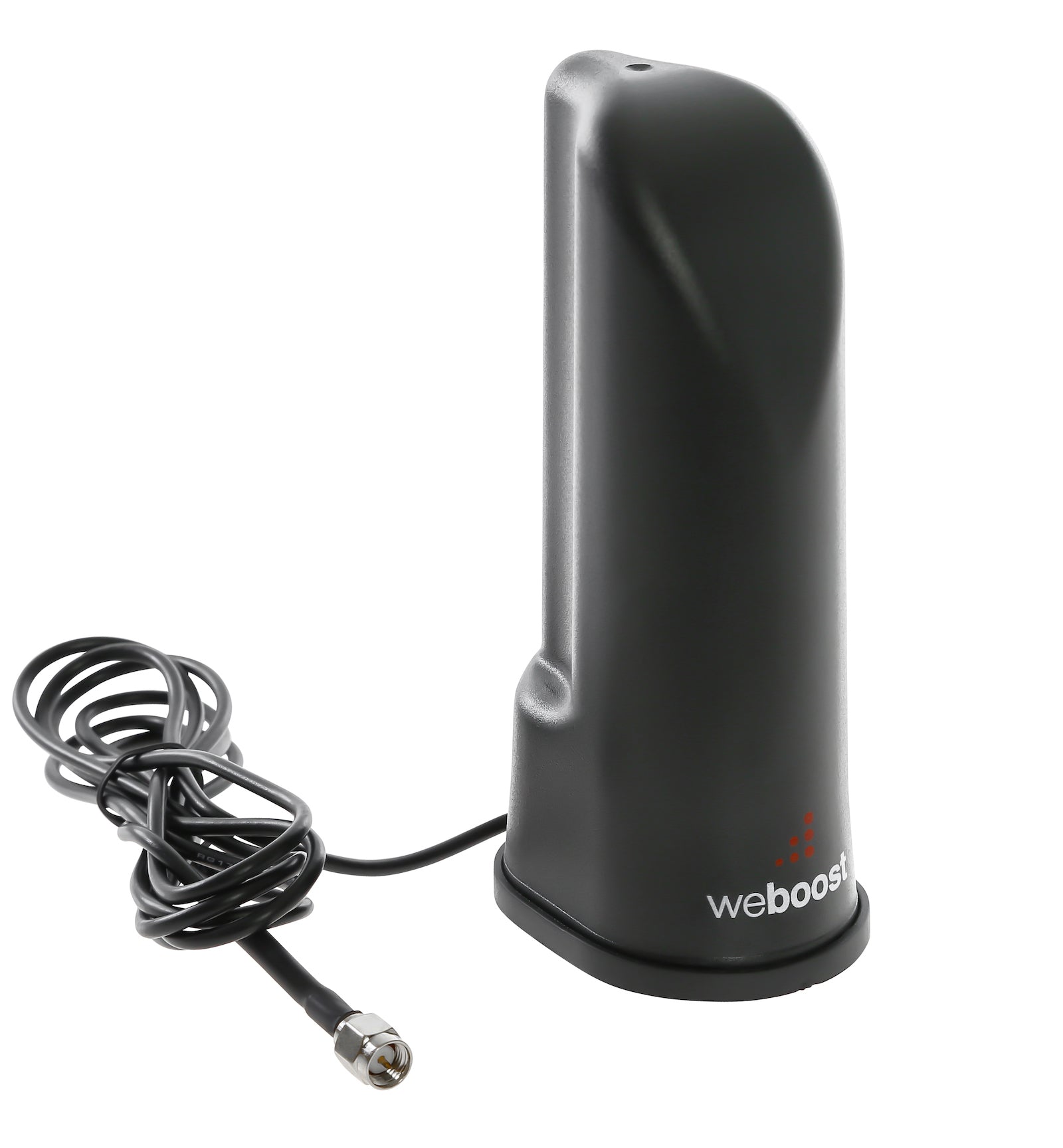

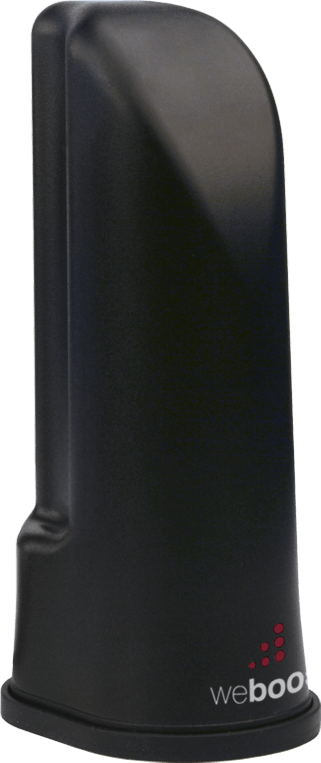

Wilson Desktop Antenna with SMA-Male Connector
Product Information
Product Information
The Wilson Desktop Antenna offers a practical solution for improving cellular signals in indoor environments. This low-profile tabletop antenna is specifically designed to integrate seamlessly into a booster system, enhancing connectivity within confined spaces like small offices, condos, dorm rooms, or RVs. Key features include:
- Directional Design: Optimizes signal capture and broadcast in specific directions, making it highly effective in targeted areas.
- No Metal Surface Required: Unlike many antennas that need a metal surface to function properly, this one includes a built-in ground plane which allows for placement on any desktop or shelf.
- Compact and Easy to Use: Its small size and lack of mounting requirements make it ideal for locations where space is at a premium and permanent installations are not feasible.
- Portability: Perfect for portable applications, providing a flexible option for enhancing cellular reception without the complexities of fixed mount antennas.
This antenna is a superb choice for anyone needing a simple, effective solution to boost cellular signals in smaller, enclosed spaces.
The Wilson Desktop Antenna is available with the following RG58 cable lengths:
- 5 ft
- 13 ft
