Wilson WSB842772 Tri-Band 4G-C 70 dB Omni Booster Kit for AWS & Dual-Band [Discontinued]

SKU: WSB842772

Description

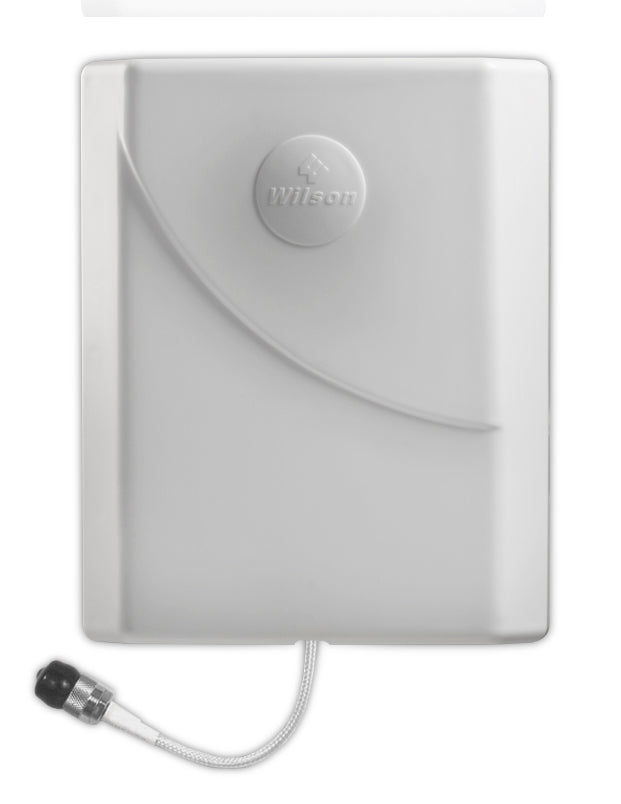

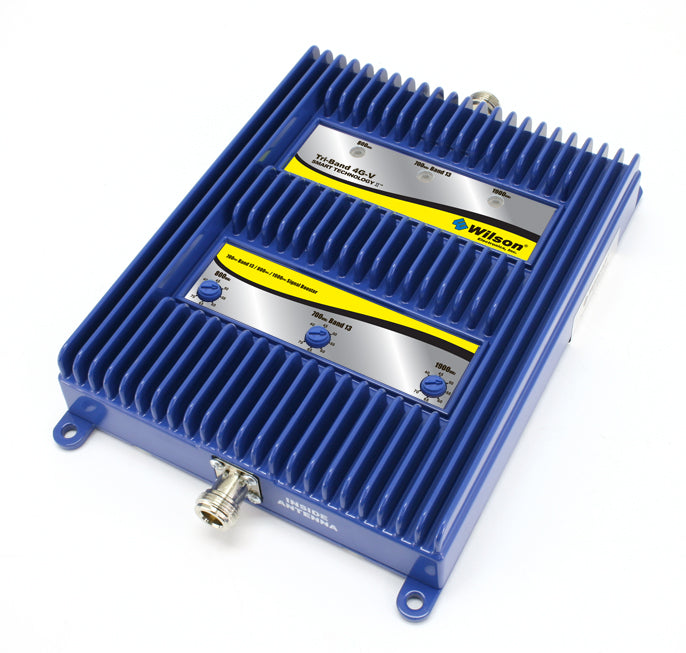

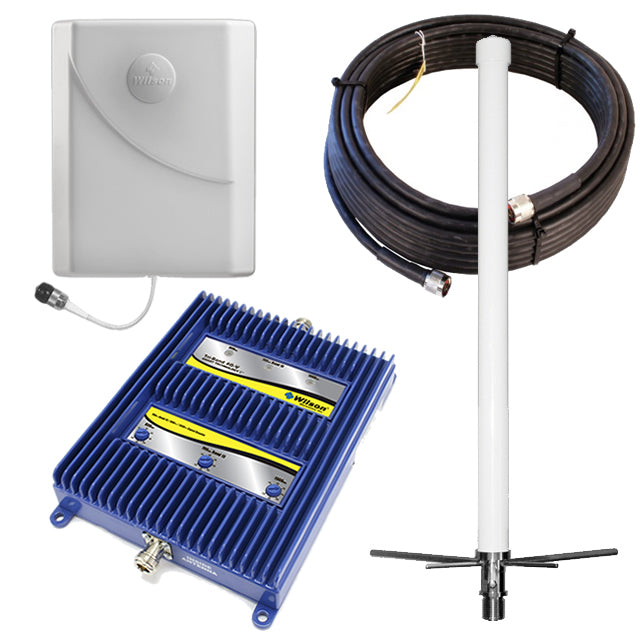

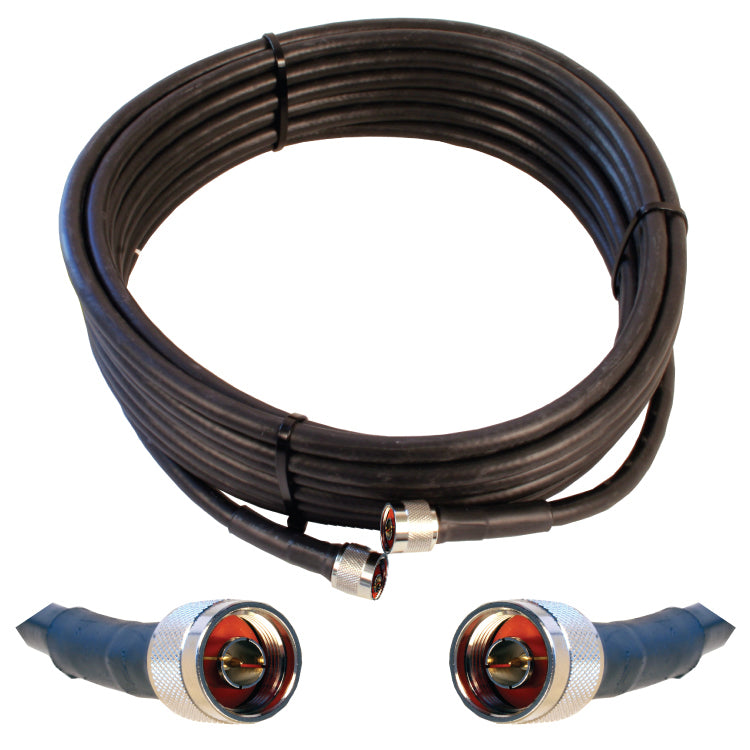

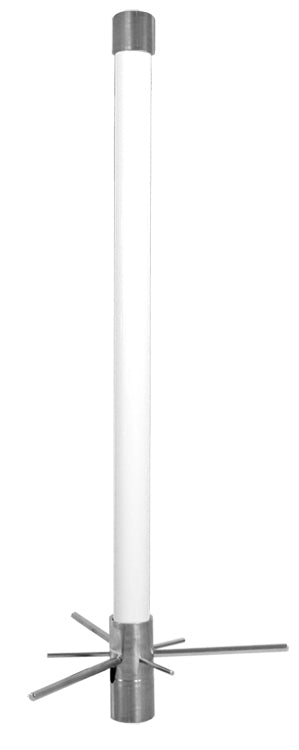

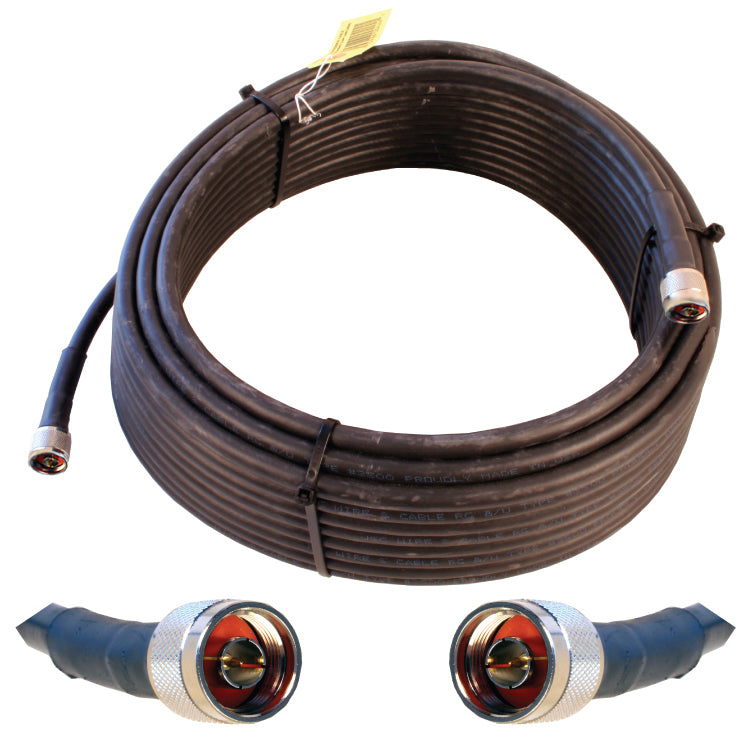

This product has been discontinued and is no longer available.Please contact us to learn about available replacement products.You Should Choose This Kit If You need an all in one solution to provide boosted voice, 3G, and 4G LTE data (AWS) for most major Canadian Carriers and require coverage for an area up to 15,000 sq ft.* over one or multiple floors. If you have a weak existing outside signal or only need to cover a single carrier, check out our Tri-Band 4G-C Yagi Kit. Coverage Area If you have an existing strong 5-bar outside signal, you may get up to 15,000 sq ft of coverage inside* If you have an existing 3 to 4-bar (-90 dB) outside signal, you may get up to 10,000 sq ft of coverage inside* If you have an existing 1 to 2-bar (-100 dB) outside signal, you may get up to 1,000 sq ft of coverage inside* Supported Carriers All carriers that use the standard dual band frequencies (800 MHz & 1900 MHz) for voice and 3G data, including: Rogers 2G, 3G & 4G LTE Bell 3G & 4G LTE Telus 2G, 3G & 4G LTE MTS 2G, 3G & 4G LTE Mobilicity 3G Sasktel 3G & 4G LTE All other carriers using 800 MHz, 1900 MHz, or 1700/2100 MHz (AWS) Kit Includes 802770 - Tri-Band 4G-C 70 dB Amplifier for Canadian Carriers Full Band Omnidirectional Antenna Kit 301135 - Wide-Band Panel Antenna with N-Female Connector 952330 - 30' WILSON400 Ultra Low Loss Coax Cable with N-Male Connectors  952375 - 75' WILSON400 Ultra Low Loss Coax Cable with N-Male Connectors Instruction Manual Installation Overview The Tri-Band 4G-C is easy to install for anyone that's a bit handy. But if you're not comfortable getting up on your roof to mount an antenna, it may be best to find an electronics installer or a handy friend. We always recommend doing a soft install where you don't permanently mount anything or drill any holes until you know the system will work for you and you've identified the best locations for the antennas.  To install, just follow these 3 steps: To start, you'll need to find a place on the roof of your home or office to mount the outside omnidirectional antenna. Generally, the higher you can mount it, the better. Otherwise, look for the place on the roof that receives the best existing signal. Connect one of the WILSON400 coax cables to the antenna and run it into the house. You may be able to enter through a vent or a soffit; otherwise, you may have to drill a hole.  With the cable inside, connect it to an in-line lighting protector if you purchased one, and then to the amplifier. To the inside antenna port on amplifier, connect the remaining WILSON400 cable and then connect the inside antenna. If you have an attic, the easiest installation method is typically to have the amplifier and inside antenna in the attic with the panel antenna face down on the floor in the middle of the house. If you don't have an attic, you can mount the panel antenna on the ceiling in the middle of the house, or on a wall. Once all of the components are connected, plug in the amplifier and see if you get any error codes. A red light indicates that the inside and outside antennas are too close together. Unplug the amplifier and then increase the separation between the antennas and try again. If you can't increase the separation, you can turn down the gain on the amplifier which will also decrease the total coverage area. For any other errors, consult the manual or contact us for help. The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.  Benefits Everything you need is in the box, just set it up and go Reduces dropped calls and increases data speeds Works wirelessly so you can use your cell phone like you always do Supports multiple phones and data devices simultaneously Adjustable per-frequency gain control makes installation easier Contains carrier protection technologies to guard against overload and oscillation Amplifies the signal both to and from the cell carrier More than 20 times as powerful as a standard cell phone Boosts 800 (850) MHz Cellular, 1900 MHz PCS, & AWS 1700/2100 MHz Extends the battery life of your phone Made in the USA IC type accepted * The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.

Wilson WSB842772 Tri-Band 4G-C 70 dB Omni Booster Kit for AWS & Dual-Band [Discontinued]

$1,099.95

What You Should Know

N/A

Uplink Frequency Ranges (MHz)

N/A

Downlink Frequency Ranges (MHz)

N/A

Max Gain

N/A

Max Uplink Power

N/A

Impedance

N/A

Cable Type

N/A

Color

N/A

Plenum Rating

N/A

RF Connectors

N/A

Antenna Type

N/A

Power Supply

N/A

Frequency Range

N/A

Includes Connectors

N/A

Output Ports

N/A

Output Voltage

N/A

Outside Antenna Options

N/A

Inside Antenna Options

N/A

Number of Inside Antennas

N/A
