How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

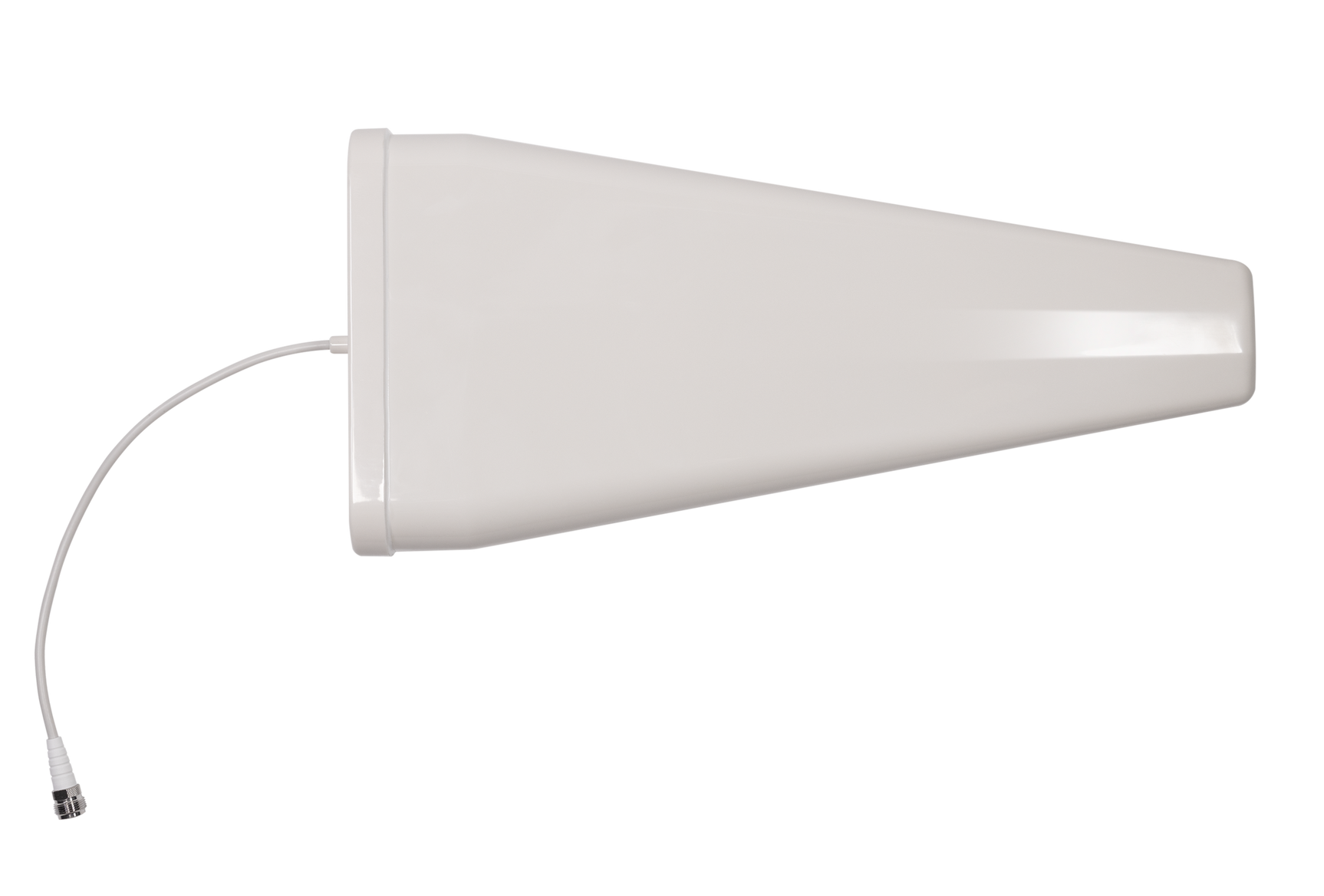

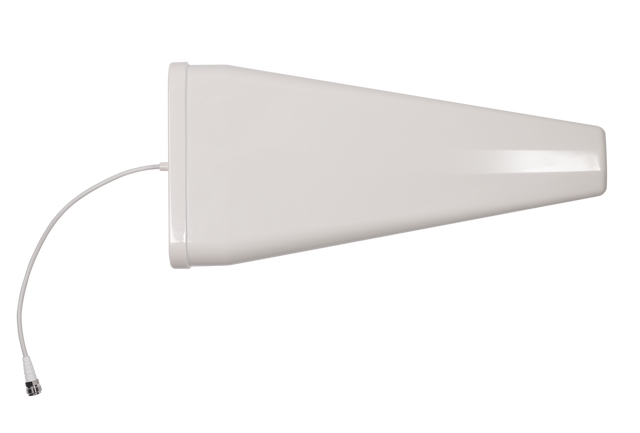

Wilson 50 Ohm Wide Band Directional Antenna | 600-4000MHz | 311245
Product Information
Product Information

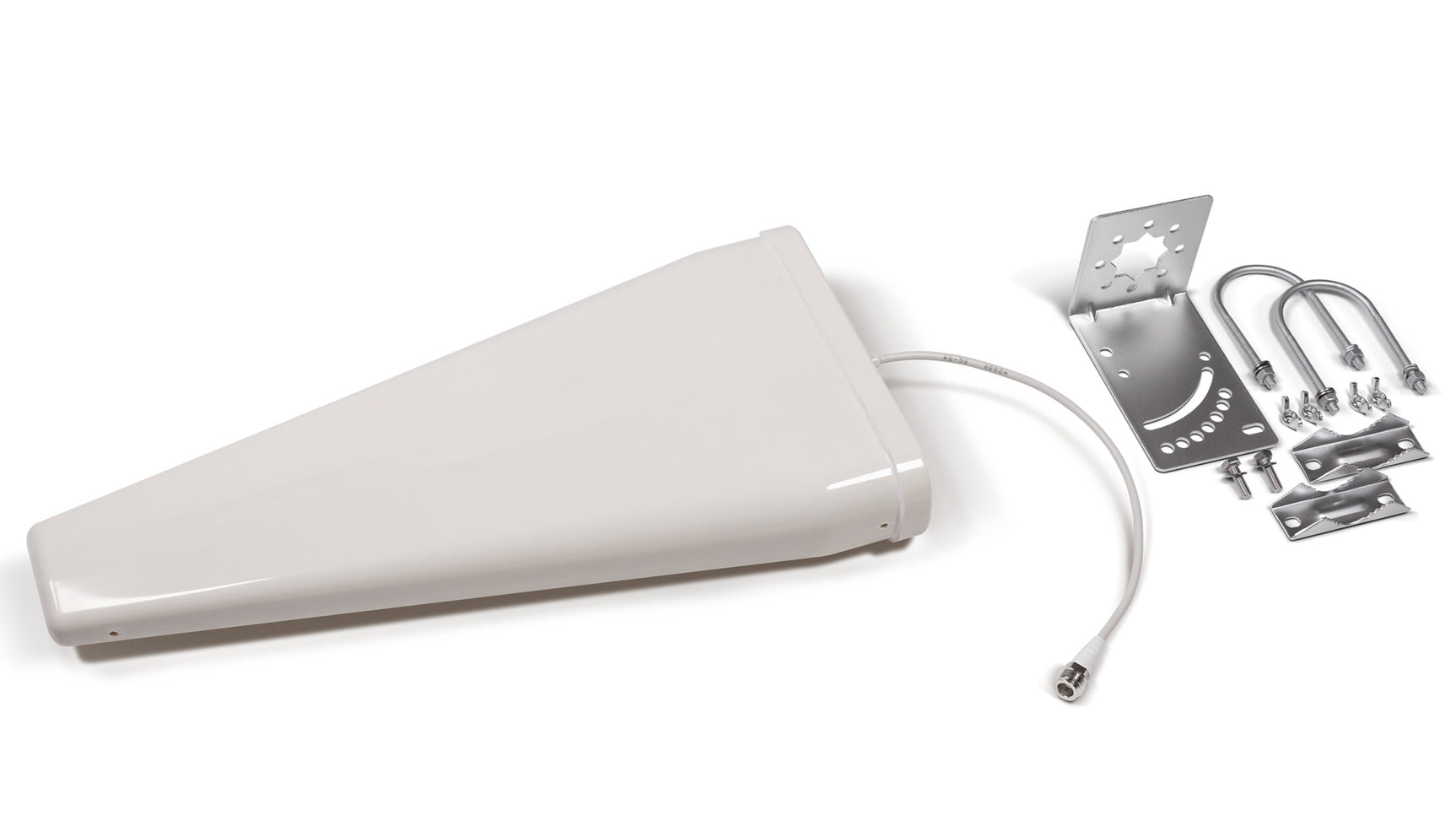

Boost your connectivity effortlessly with the Wilson 50 Ohm Wide Band Directional Antenna, designed to support a broad frequency range from 600 MHz to 4000 MHz. It comes with a mounting kit for poles ranging from 1.5 to 2.0 inches in diameter, simplifying the installation process. The N-female connector ensures compatibility with a wide range of devices, enhancing its versatility.
Key features include a remarkable peak gain of up to 11.5 dBi for selected frequency ranges, ensuring your signal remains strong and reliable. Additionally, its vertical polarization and impressive front-to-back ratio contribute to its high performance and efficiency.
Specifications at a Glance:
- Frequency Band: 600-617 MHz to 3300-4400 MHz with peak gains up to 11.5 dBi
- Impedance: 50 Ω
- Connector Type: N-Female
- Dimensions: 17.3x8.1x2.5 inches, providing a sleek yet powerful design
- Weight: 2.4 lbs, offering a sturdy yet manageable build for installation
- Maximum Power: 50 W, ensuring it can handle high-powered signals
This antenna is your go-to solution for reliable, high-quality signal enhancement, perfectly suited for a wide array of cellular boosting needs.
