How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

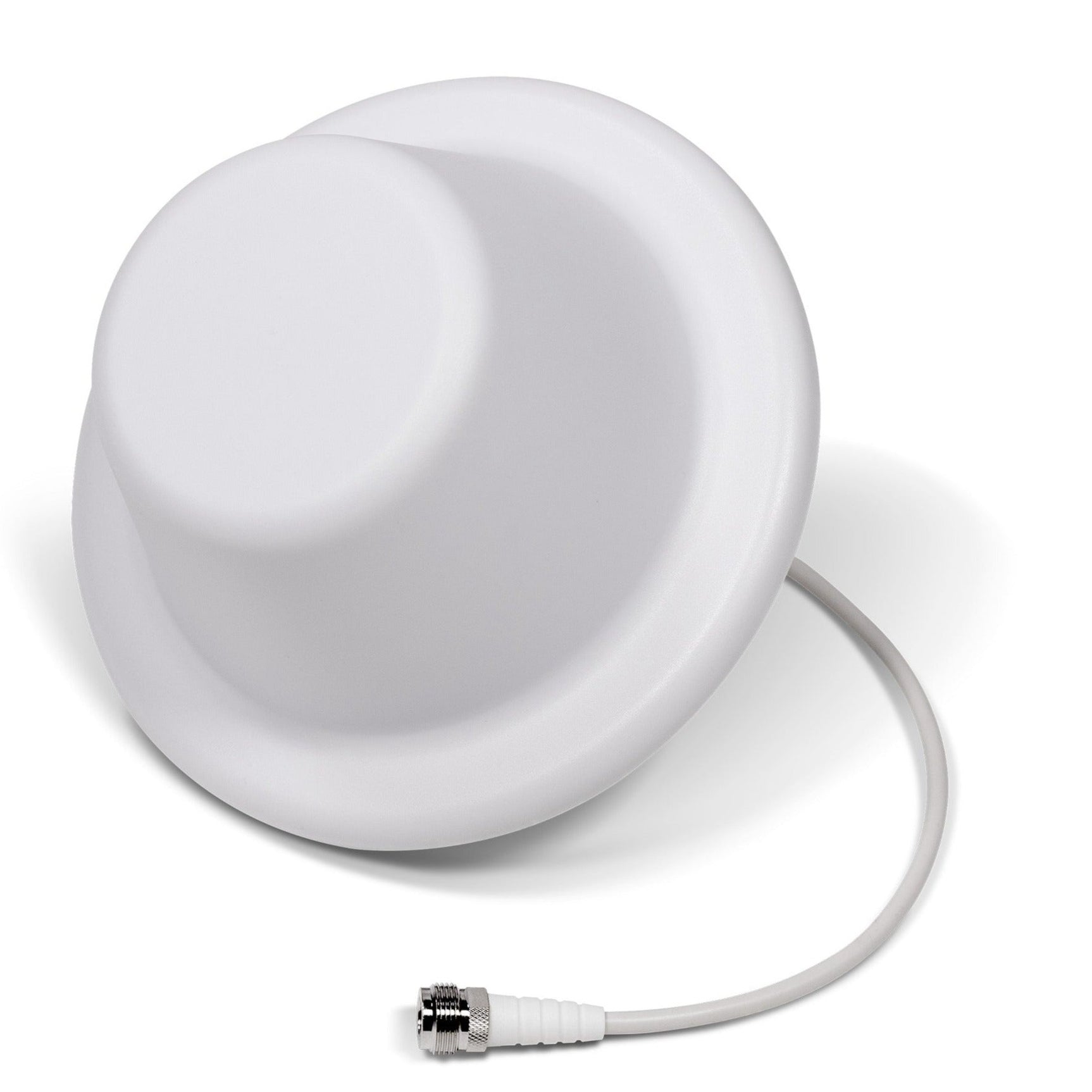

Wilson 50 Ohm Ceiling Mount Dome Antenna | 311242
Product Information
Product Information
The Wilson Ceiling Mount Dome Antenna 50 Ohm (311242) is designed to enhance cellular connectivity in indoor environments.
This high-gain antenna is ideal for improving cellular signal in commercial buildings, offices, and large indoor spaces. Its design facilitates installation on ceilings, particularly suited for drop ceilings, making it an unobtrusive addition to any indoor environment.
Key features of the antenna include:
- Support for frequencies between 600-960 MHz and 1425-4000 MHz.
- High gain, ensuring improved signal strength for enhanced voice and data communication.
- An N-female connector for easy integration with existing systems.
- A comprehensive 2-year warranty, guaranteeing reliability and satisfaction.
For those looking to enhance cellular connectivity in large indoor spaces, the Wilson Ceiling Mount Dome Antenna offers a blend of performance, ease of installation, and coverage, making it an excellent choice for businesses and property owners aiming to improve their cellular signal quality.
