How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

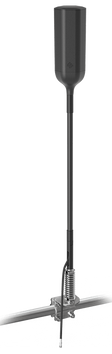

weBoost Drive OTR Antenna Kit with Mount | 311229
Product Information
Product Information
The weBoost 311229 is an ideal external antenna for enhancing cellular connectivity in trucks or large vehicles. It supports all 2G, 3G, and 4G LTE frequencies, including AWS, making it highly versatile for modern telecommunications needs. The antenna is adjustable, with configurable heights ranging from 7.5" to 40", allowing for tailored installation to meet specific vehicle requirements. It also includes a convenient 3-way mount for easy attachment to your vehicle.
- Wide Frequency Support: Compatible with all 2G, 3G, and 4G LTE frequencies, including AWS, to cover a broad spectrum of cellular signals.
- Adjustable Height: Can be set at various heights between 7.5" and 40", offering flexibility in mounting and positioning for optimal signal reception.
- Easy Installation: Comes with a 3-way mount that facilitates straightforward mounting on trucks or large vehicles.
- Extended Reach: Features a 14 ft attached cable with an SMA-Male connector, plus an SMB adapter, providing ample length to connect to your signal boosting amplifier inside the vehicle.

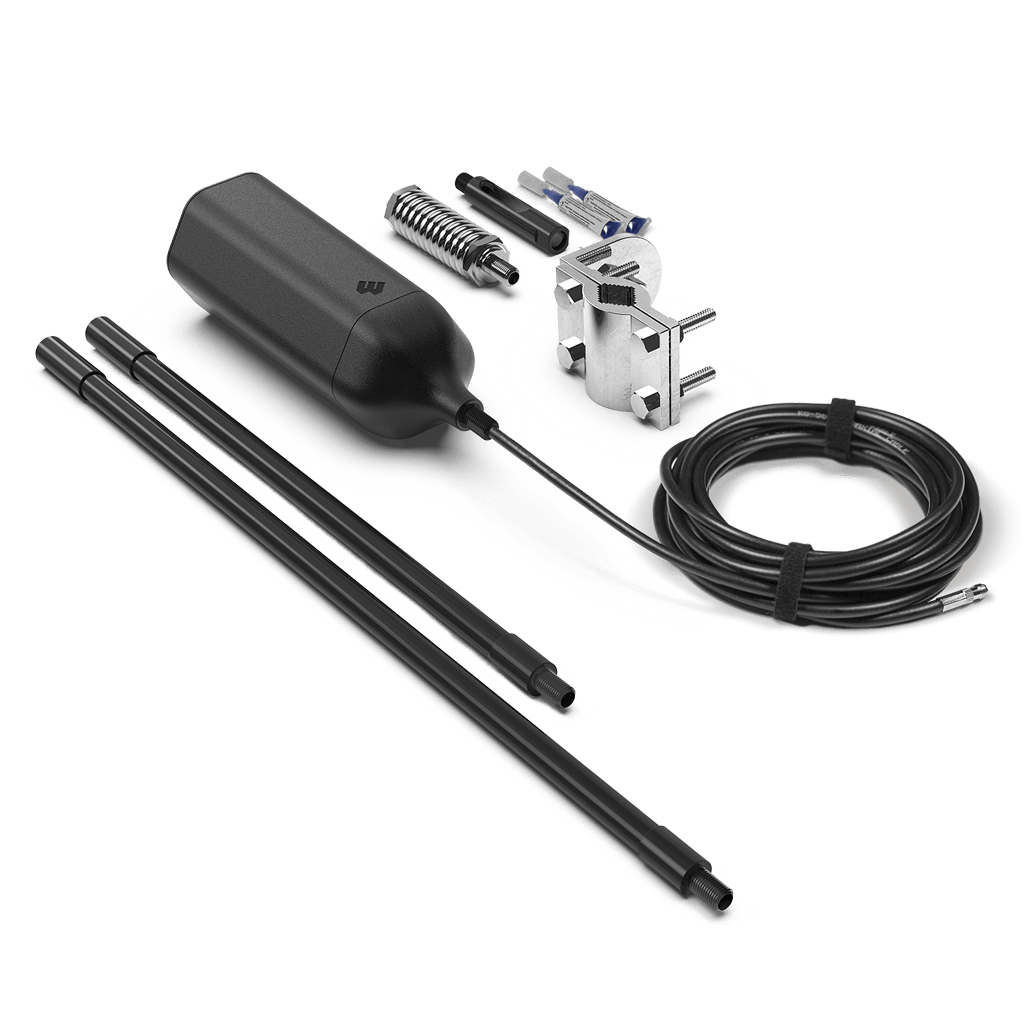

In the Box
In the Box
- Outside Antenna

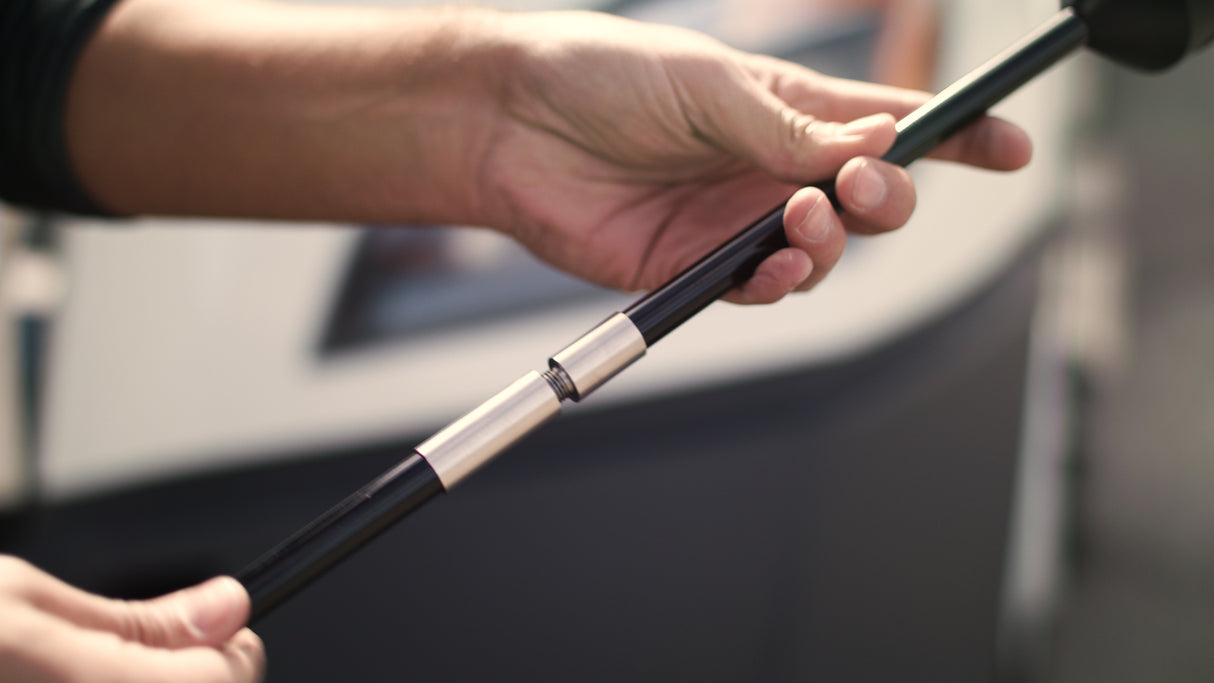

- 13 in. Mast Extension
- 18 in. Mast Extension

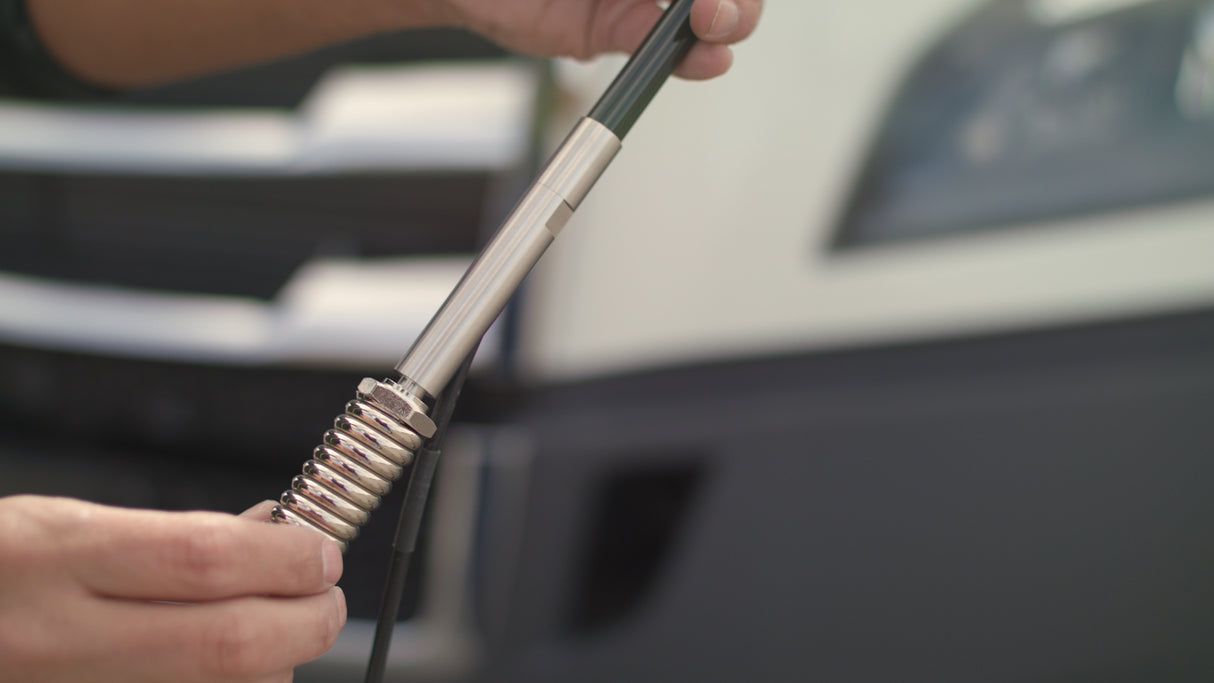

- Spring
- Side Exit Adapter
- Thread Lock

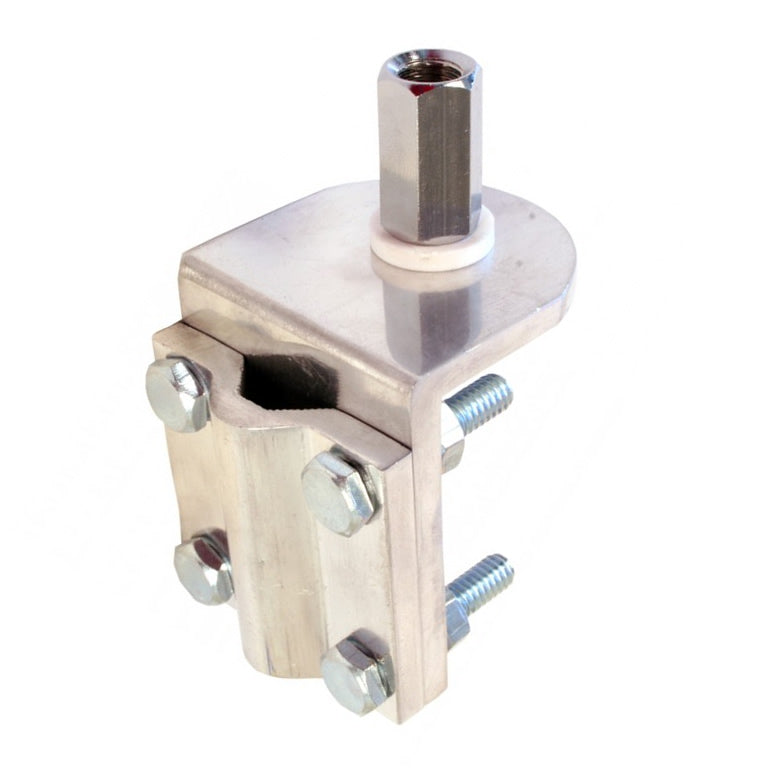

- 3-Way Antenna Mount
Product Documents
