How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Wilson 50 Ohm Wideband Directional | 617-2700 MHz | 311233
Product Information
Product Information

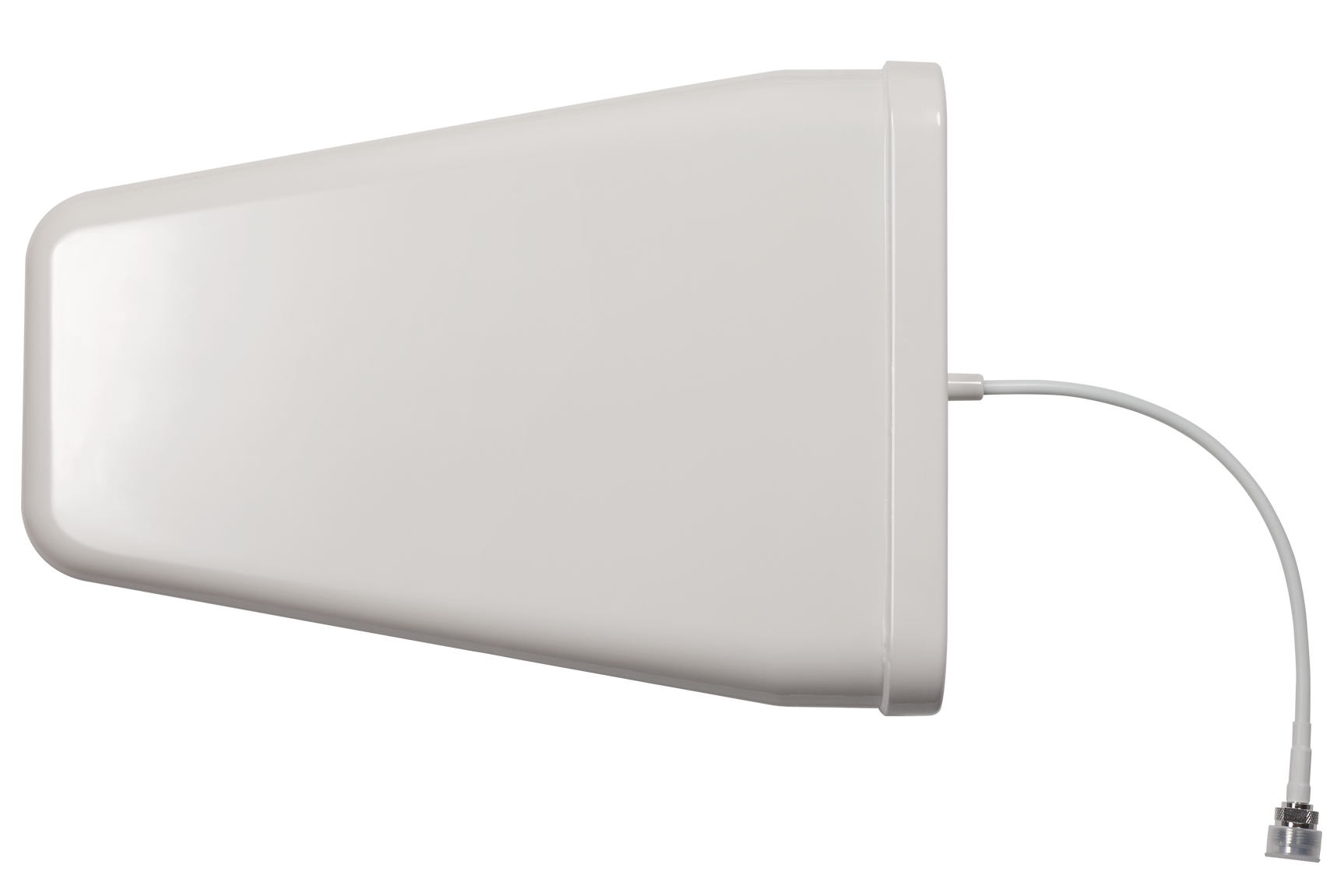

Enhance your connectivity with the weBoost 50 Ohm Wideband Directional Antenna. It's an ideal companion for weBoost cellular boosters, offering support for cellular frequencies between 617-960 & 1710-2700 MHz, including Band 71.
Its high-performance capabilities are encased in a UV-stable white sealed radome, making it rugged and waterproof for all weather conditions. This antenna is tailored for building exterior installation, directing itself toward cell towers to ensure the best possible signal. Its compact design does not compromise on efficiency, boasting impressive peak gains across various frequency bands.

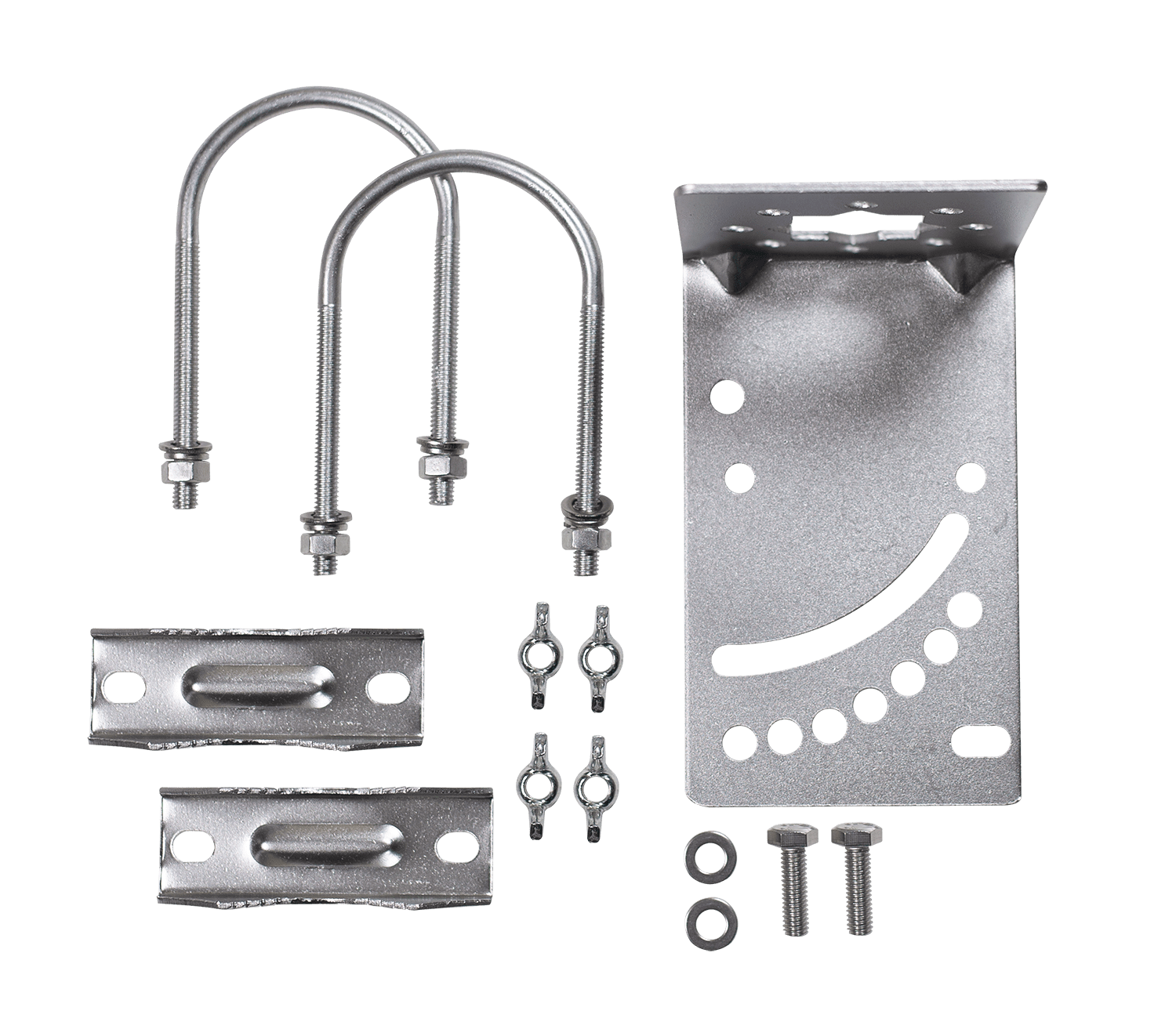

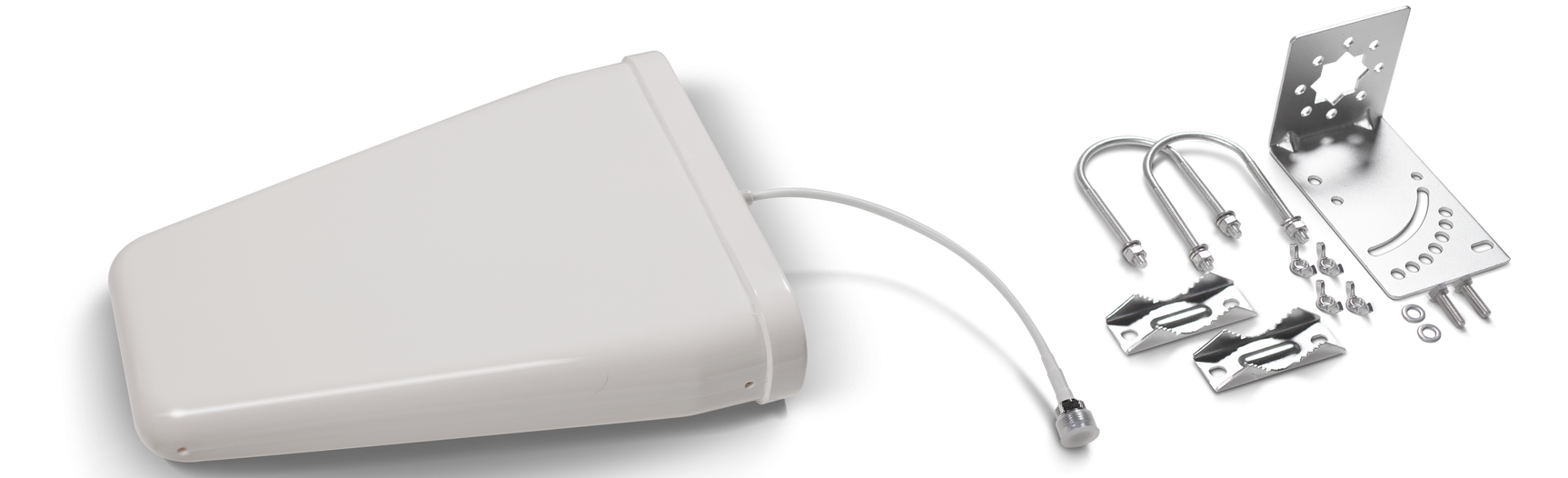

Installation is simplified with a kit that includes a tilt/swivel mast bracket, accommodating pipes or masts with a diameter of 1.25” to 2”.
Key Specifications:
- Frequency Band: 617-698 MHz to 2300-2700 MHz with varying peak gains
- Efficiency: >68% for lower bands and >75% for higher bands
- Impedance: 50 Ω
- Connector Type: N-Female
- Dimensions: 11.5x8.2x2.5 inches
- Includes antenna pole mount and hardware for easy installation
With its high efficiency and compact design, the weBoost 50 Ohm Wideband Directional Antenna is your solution to boosting cellular signals, ensuring uninterrupted connectivity regardless of the weather conditions.
