How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

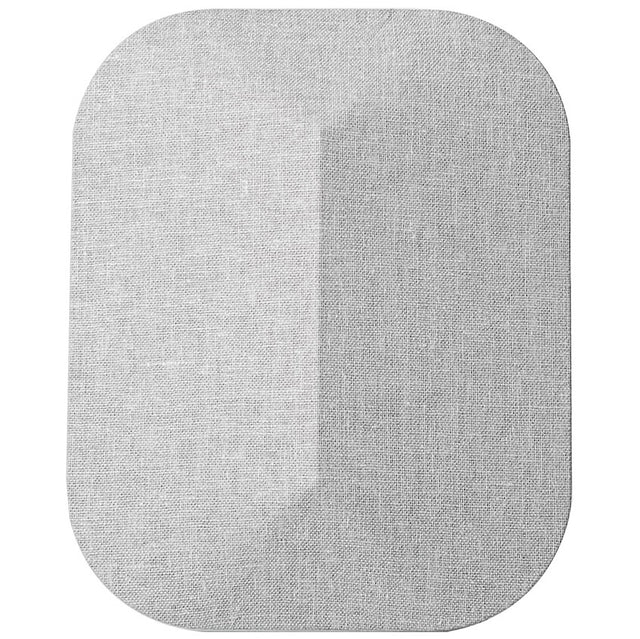

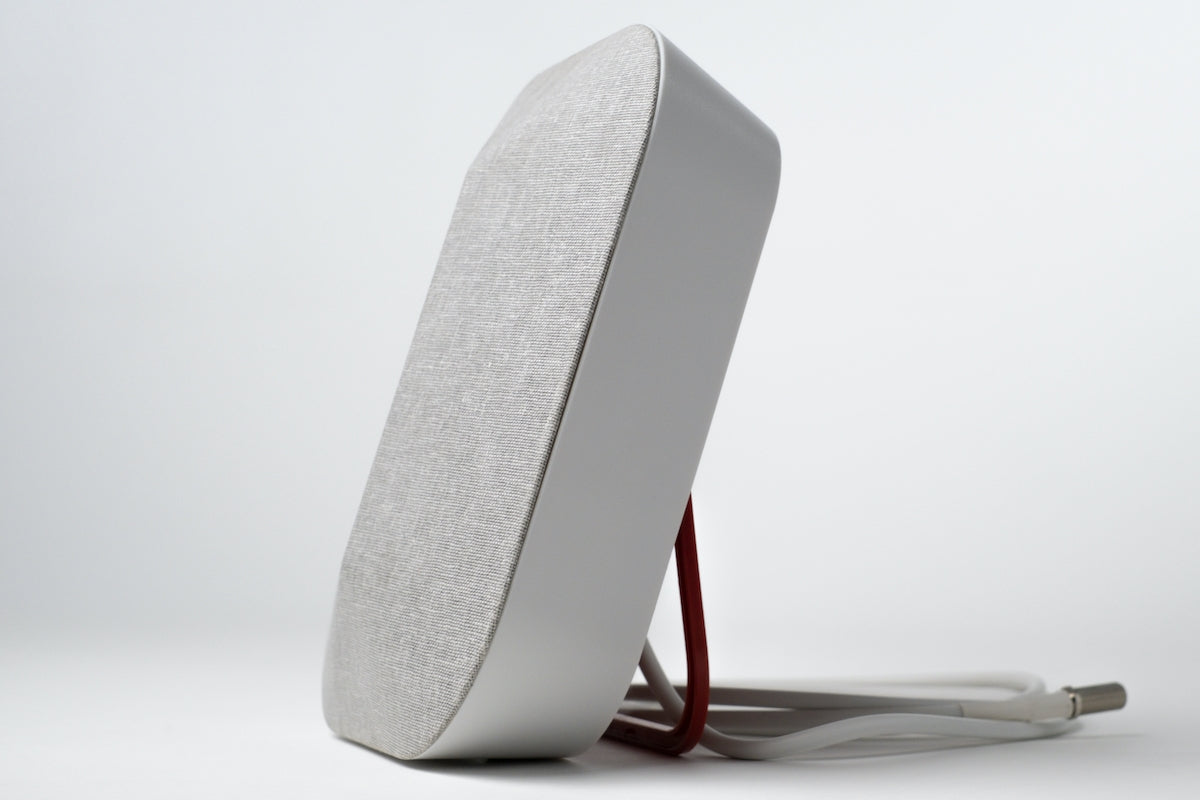

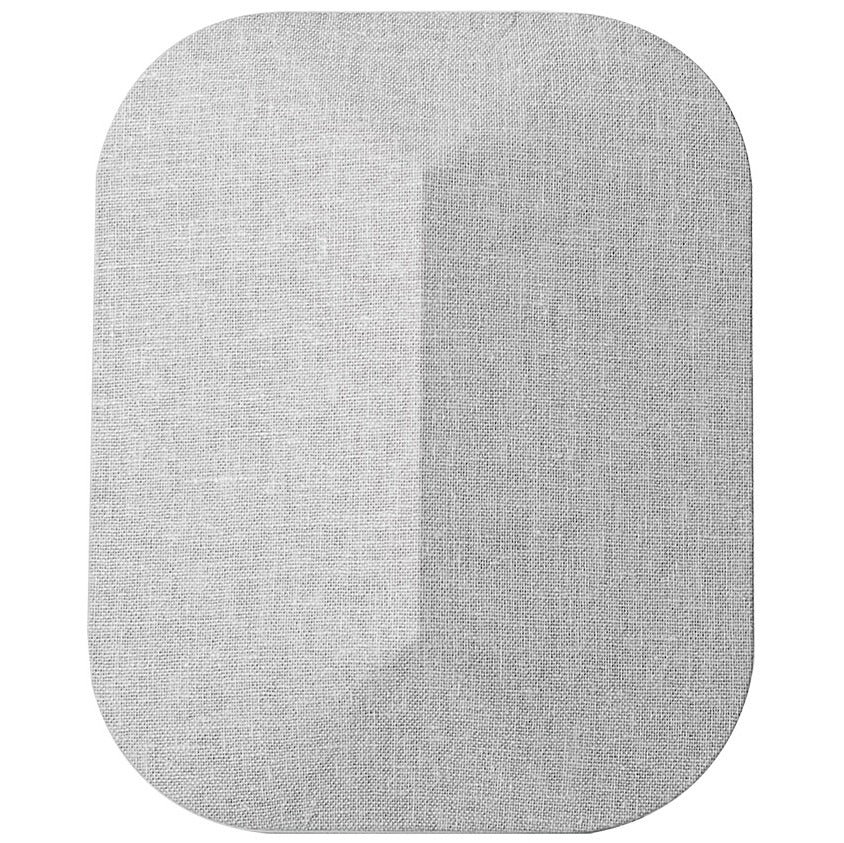

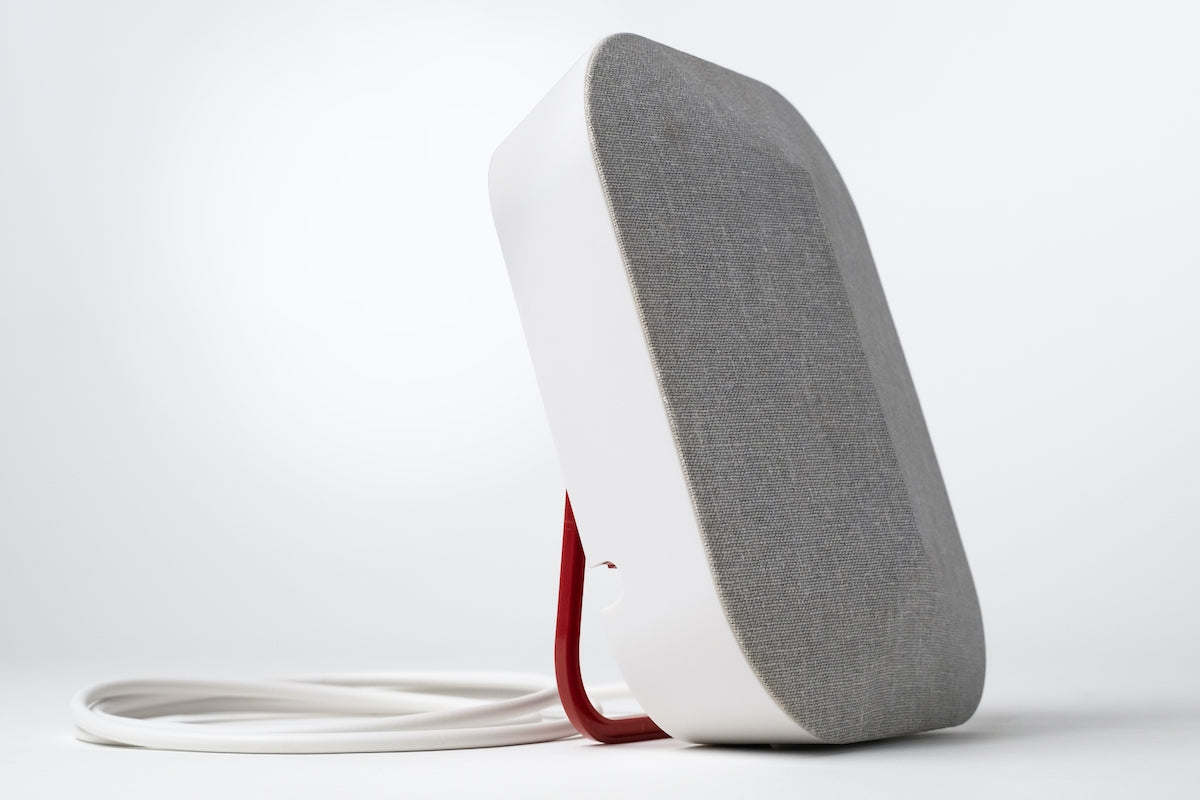

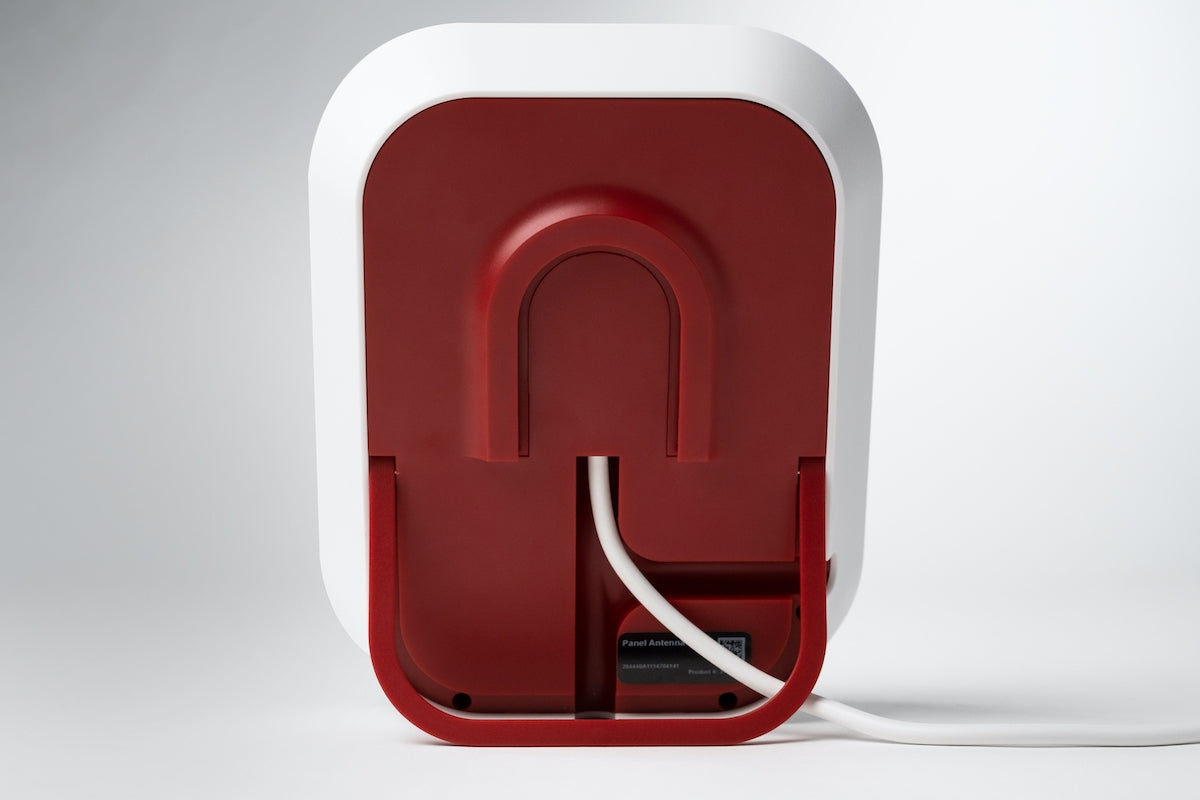

weBoost 50 ohm Home Inside Panel Antenna | 314441
Product Information
Product Information
Enhance your indoor signal strength with the weBoost 50 ohm Home Inside Panel Antenna (314441). Designed for versatility and high performance, this antenna works on all worldwide cellular bands for voice and data, including LTE/CDMA/GSM/UMTS/AWS, ensuring wide-ranging compatibility and efficiency.
Key features include:
- High gain signal output across 698-960 & 1710-2700 MHz cellular frequencies, boosting both voice and data.
- Designed for building interior installation, it offers a high efficiency and compact design.

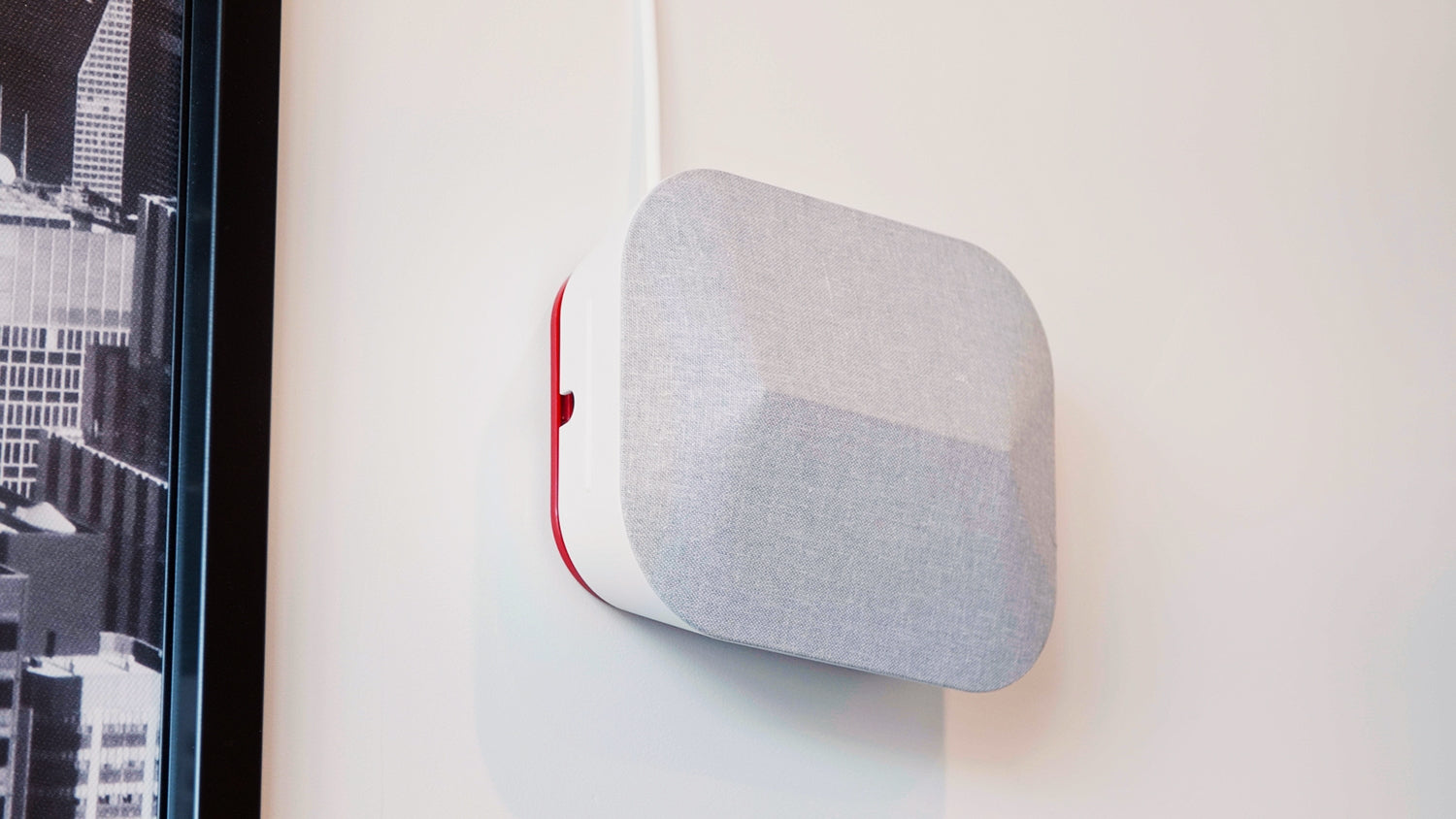

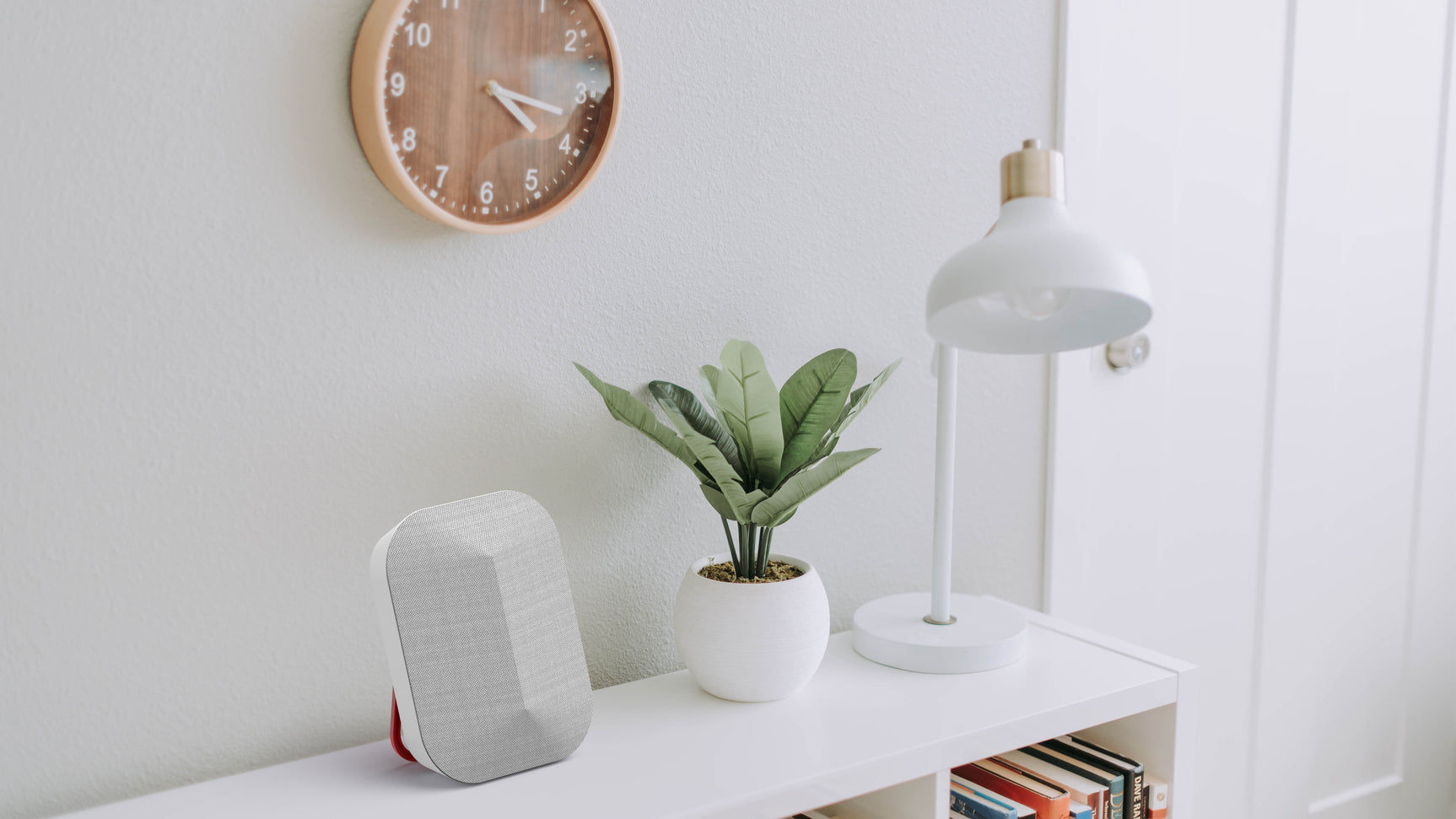

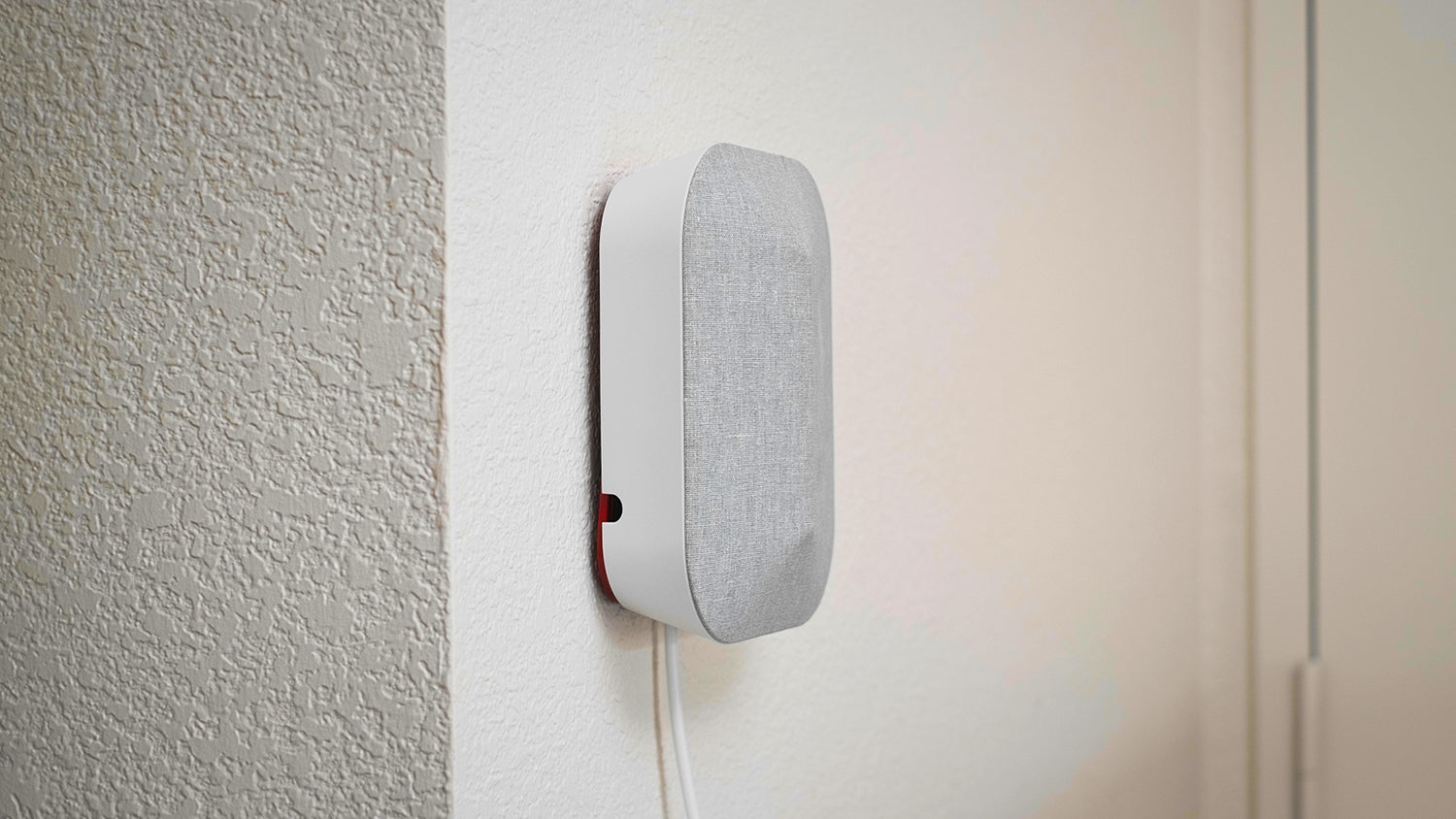

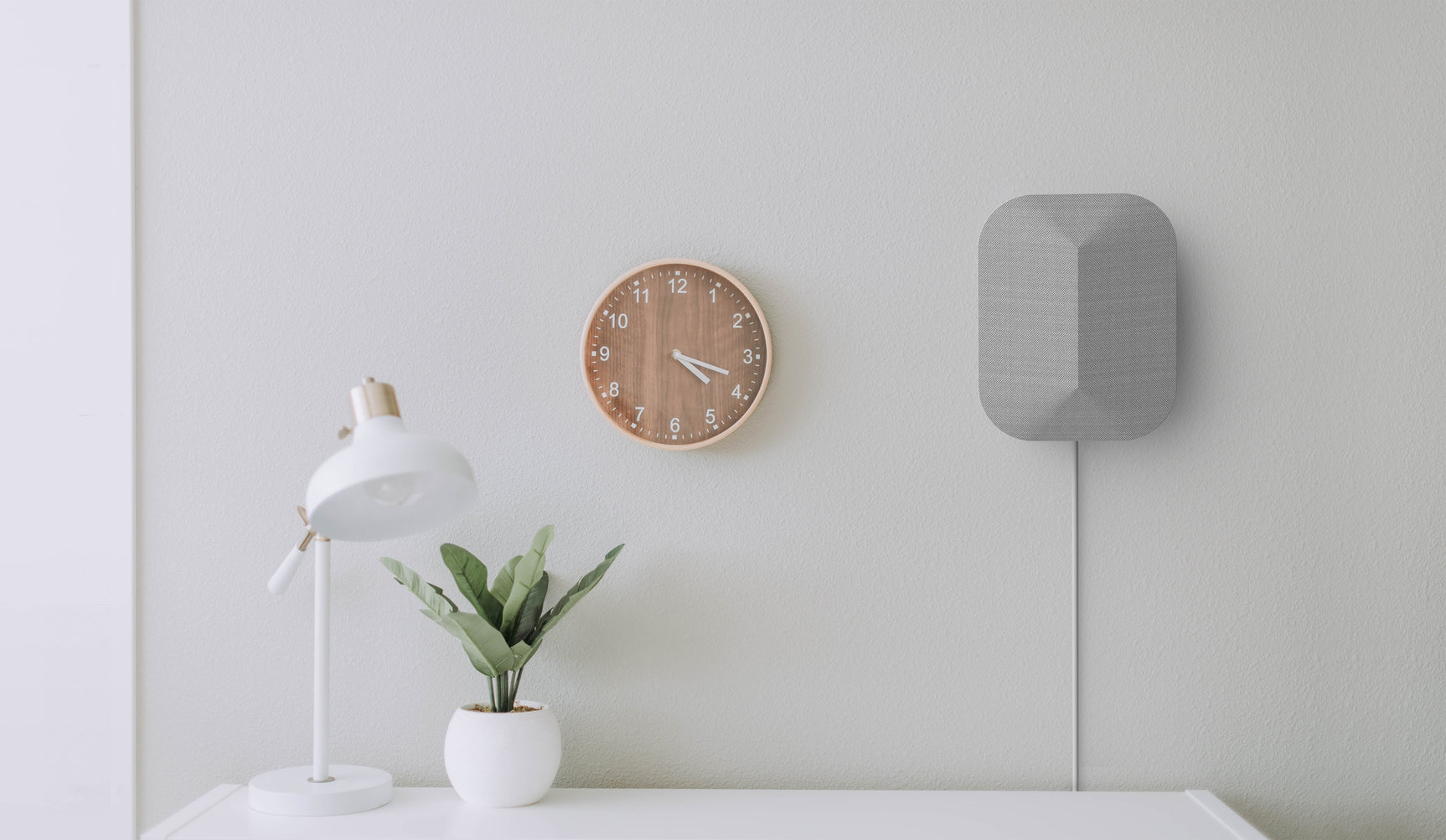

- Includes a simple install kit with wall mount bracket and desk stand for easy setup.
Technical specifications highlight its robust performance capabilities:
- Peak Gain: Ranges from 5.75 dBi to 7.62 dBi, depending on the frequency band.
- Efficiency: Maintains high efficiency percentages across various bands, ensuring optimal performance.
- Polarization: Horizontal, catering to the standard layout of cellular signals.
- Impedance: 50 ohm, making it suitable for standard signal booster applications.
- Maximum Power: Capable of handling up to 50 watts, allowing for significant signal enhancement.
Its durable design includes a PCB & Aluminum radiator and a Plastic-ChiMei PC385 radome material, ensuring longevity and reliability. With dimensions of 8.875x7.125x2.625 inches, it's compact yet powerful, suitable for various indoor environments. This antenna comes with a 3M wall mount, hardware for installation, and features both vertical and horizontal mounting options.
