How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
weBoost 4G Slim Low-Profile Antenna with SMA-Male Connector & 1...
$29.99
Unit price
/
Unavailable
Product Information
Product Information

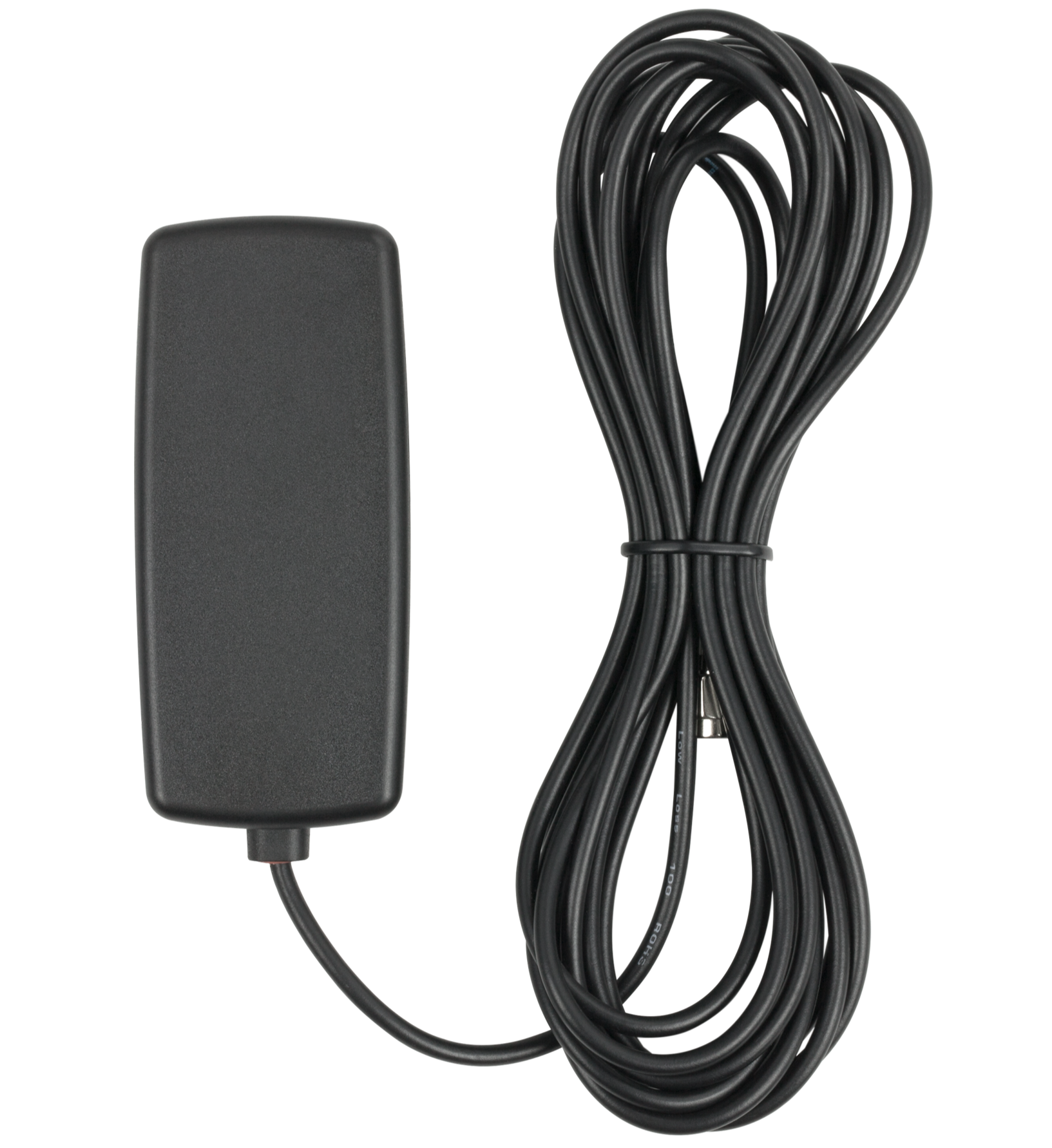

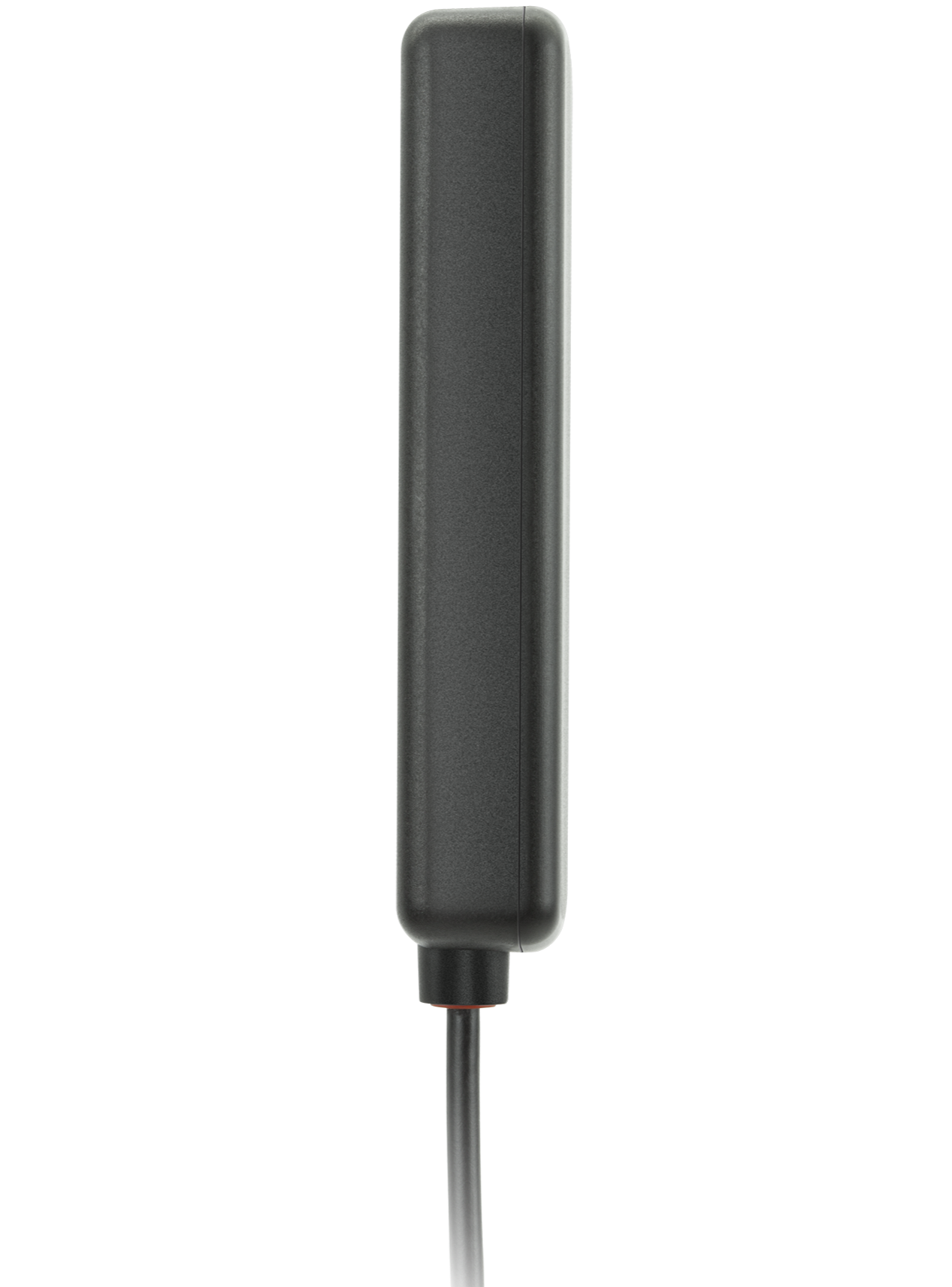

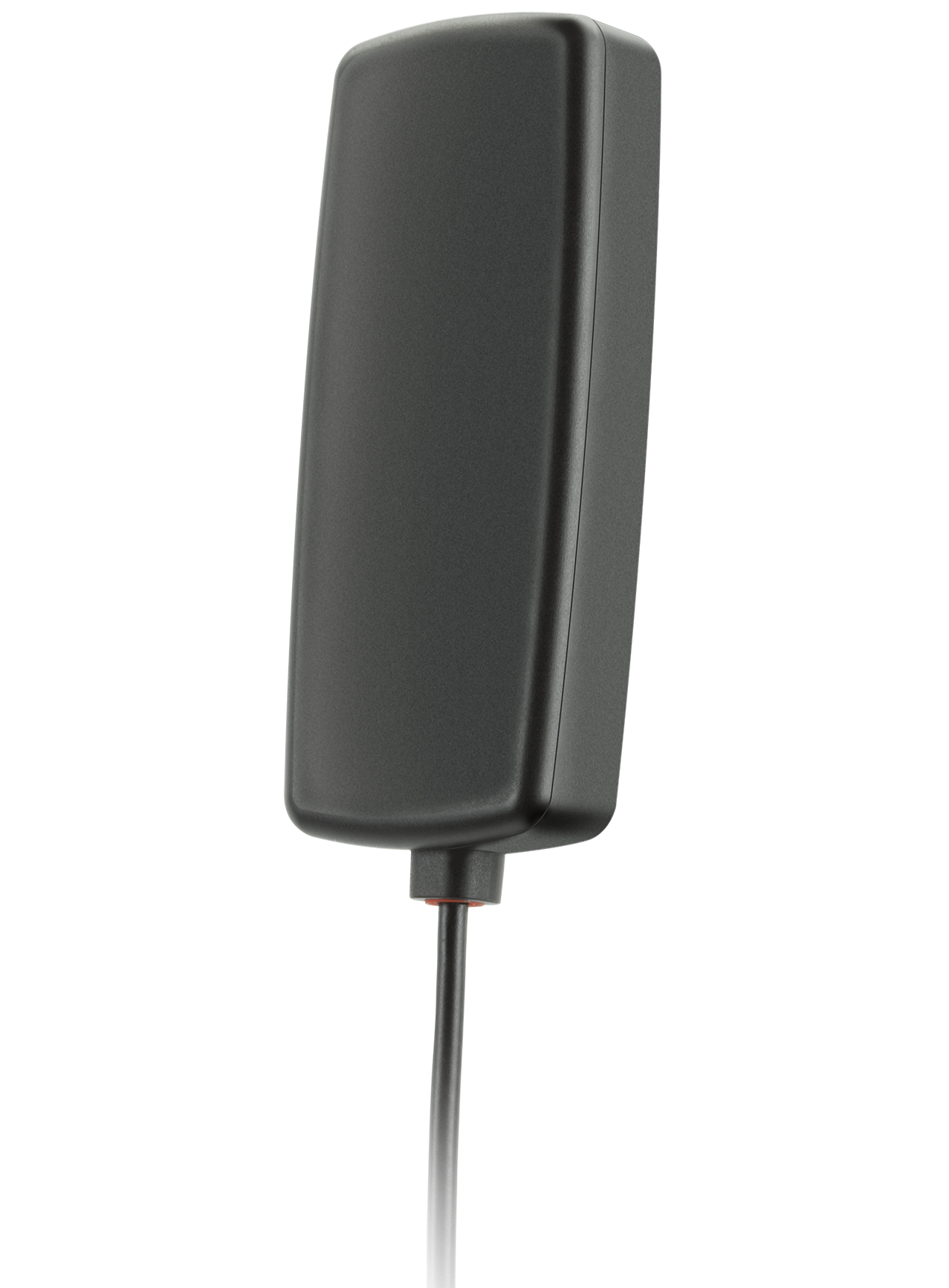

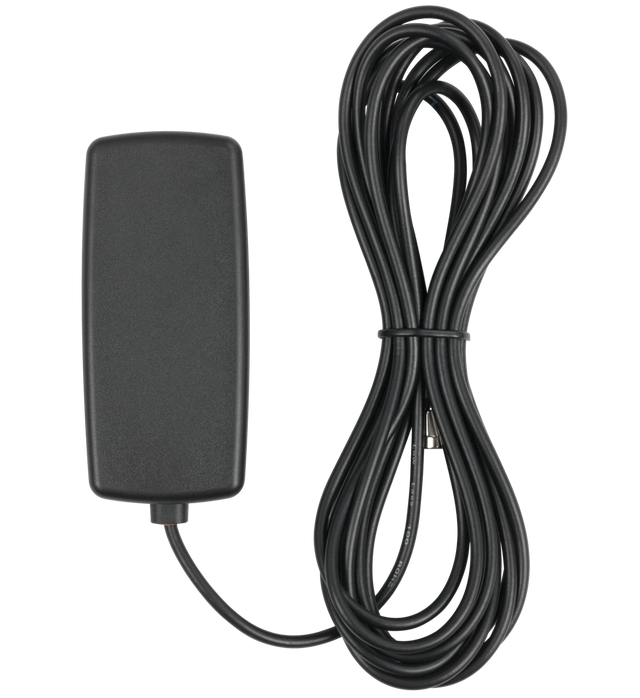

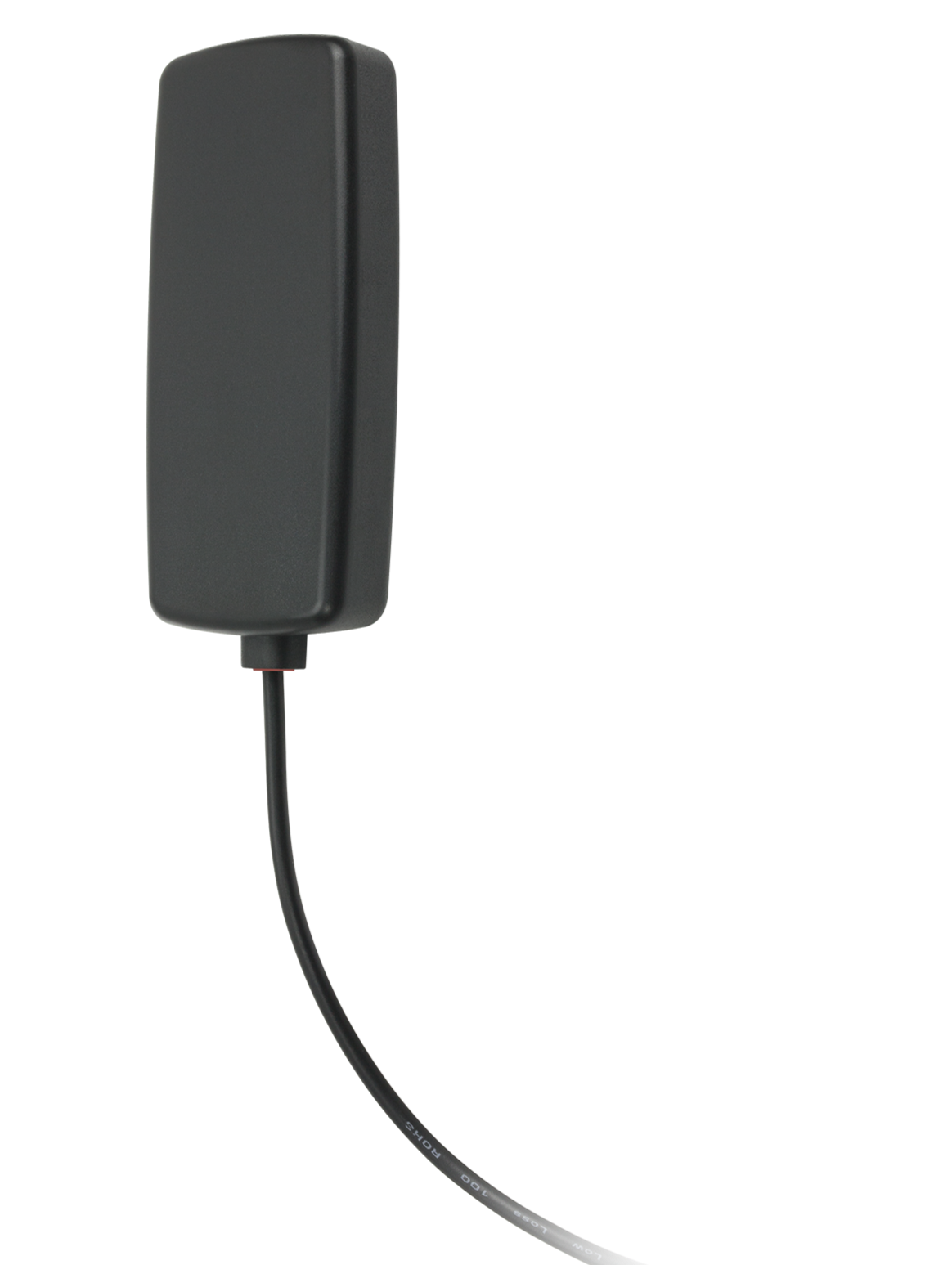

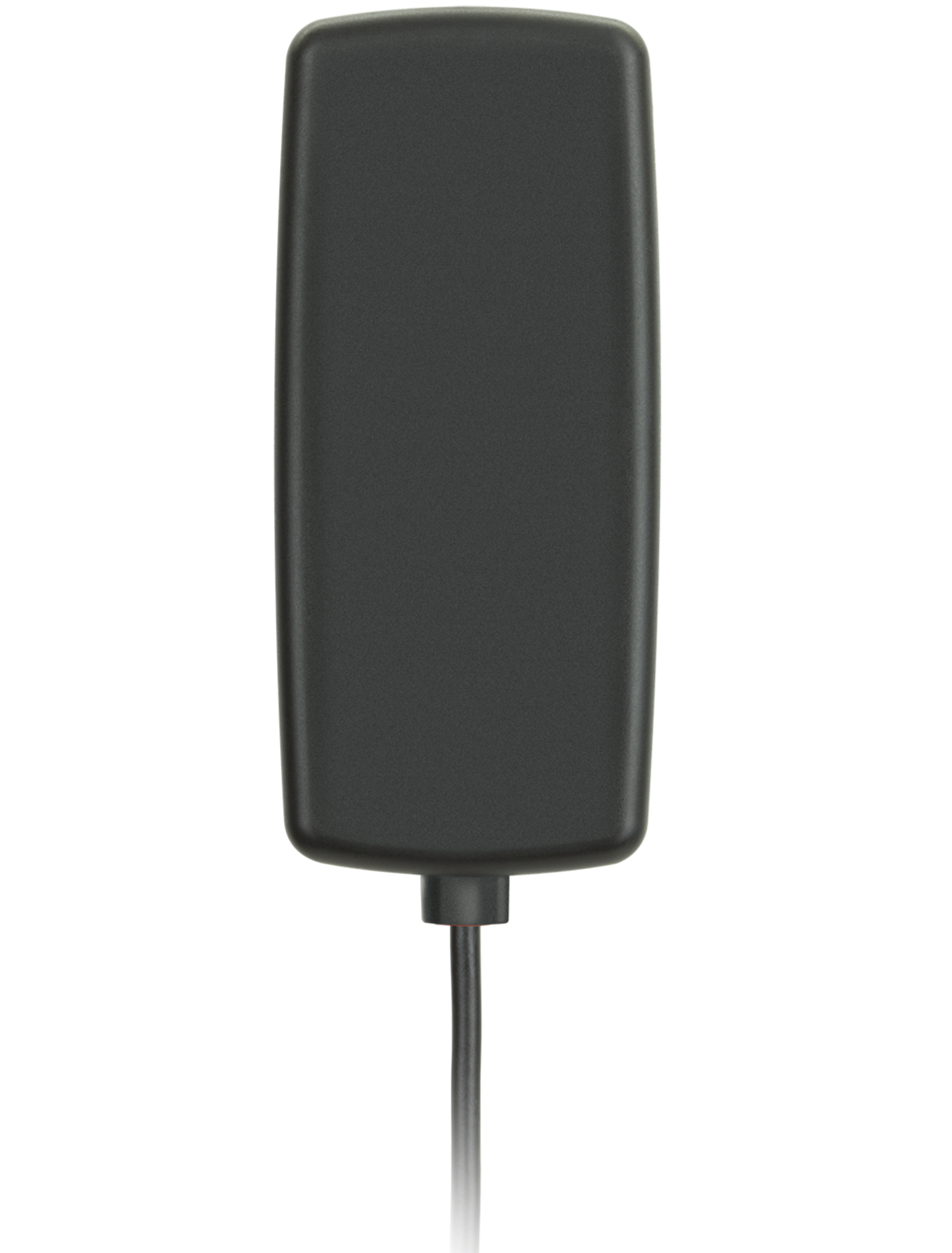

The Wilson weBoost 314401 4G Slim Low-Profile Antenna offers a discreet installation option, enhancing its appeal for use in vehicles where a less noticeable antenna is preferred. Despite its compact design, it provides improved performance across various applications.
- Discreet Design: Slim, low-profile build allows for unobtrusive placement in your car, either vertically or horizontally, without sacrificing signal quality.
- Universal Compatibility: Compatible with all weBoost multi-user vehicle boosters, such as the Drive 4G-X, Drive 4G-X OTR, Drive 4G-M, Drive 3G-X, and Drive 3G-M.
- Wide Band Support: Supports all worldwide cellular bands for voice and 4G data including LTE, CDMA, GSM, UMTS, and AWS, ensuring broad device compatibility.
- Durable and Weatherproof: Rugged construction makes it waterproof and suitable for all-weather operations; it is also IP69K rated for high-pressure wash resistance.
- Versatile Installation: Can be mounted inside a vehicle for use as an external antenna, or used indoors with a vehicle or building amplifier.
- Ground Plane Independent: This feature allows for flexibility in installation and positioning, enhancing usability.
For further details on installation and technical specifications, please refer to the weBoost 4G Slim Antenna data sheet.
