How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
- High Gain Omni Antenna: Similar to the standard omni, this antenna receives signal from all directions but delivers significantly higher gain across all supported bands. It’s a much stronger option when you want more inside coverage than a standard omni will provide, especially in areas with weaker outside signal.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to be mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
Product Overview
Product Overview

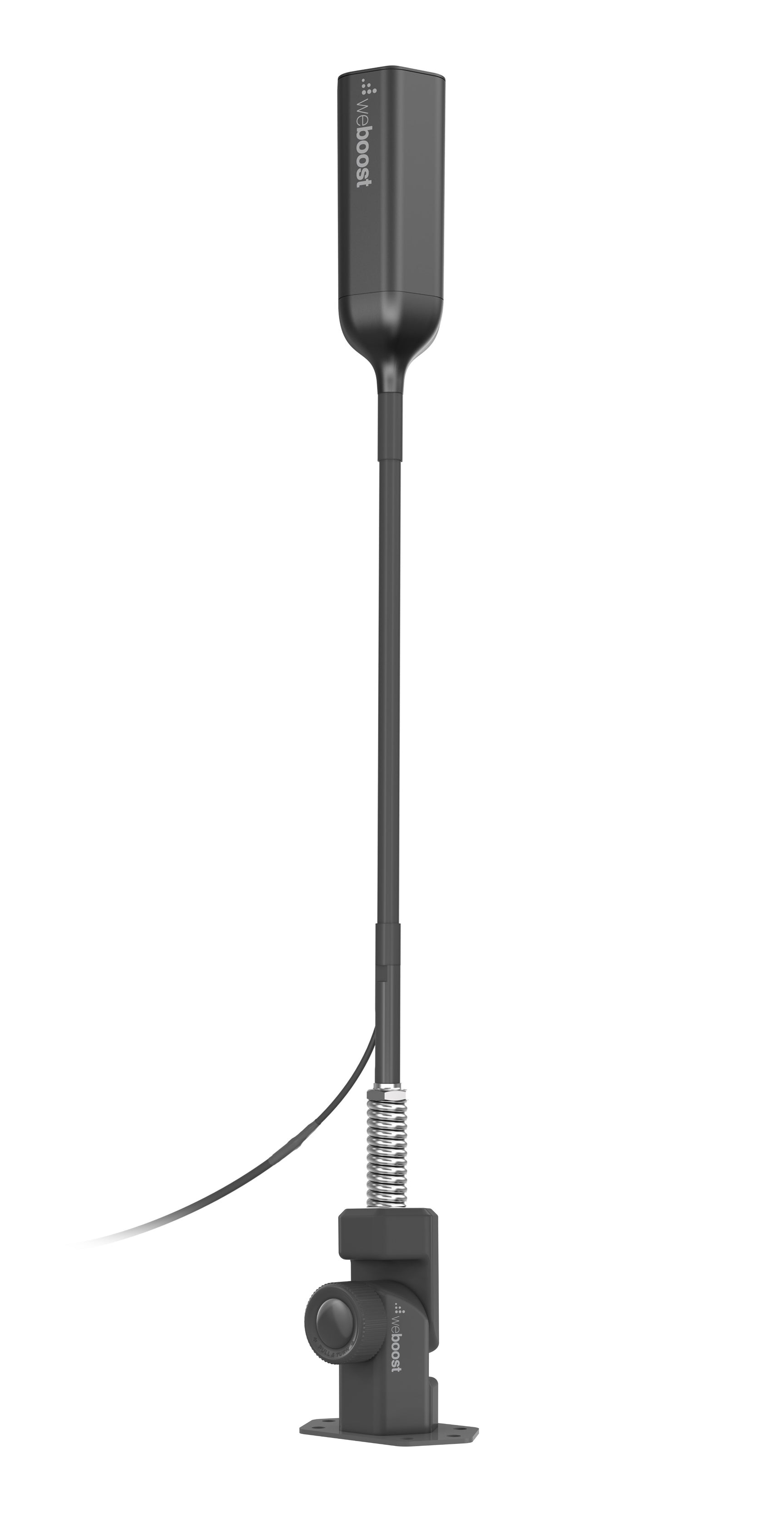

The Overland Antenna with Mounting Bracket is a rugged and reliable solution for adventurers, overlanders, and off-road enthusiasts who demand consistent cellular connectivity in remote locations. This product combines high-performance signal boosting capabilities with a versatile mounting solution designed to attach securely to trucks, SUVs, and vans.
Key Features
- Supports 700, 800, 1700, 1900, and 2200 MHz cellular bands for voice and data connectivity.
- Seamlessly integrates with weBoost mobile signal boosters for improved performance.
- Delivers strong signal input, enhancing communication reliability in remote or rugged areas.
- Durable construction meets MIL-STD 810H standards for shock and vibration.
- IP66-rated for outdoor use, ensuring protection against dust and water exposure.
- Includes an articulating mounting bracket for flexible installation options on t-tracks, poles, or flat surfaces.
Technical Specifications
- Frequency Range: 698-2700 MHz across six cellular bands.
- Peak Gain: Up to 4.3 dBi depending on frequency.
- Cable: 14 ft. LMR-195 with minimal loss for optimal signal transfer.
- Polarization: Vertical with 360° azimuth beamwidth for full coverage.
- Rated Wind Velocity: Withstands up to 311 mph (500 km/h).
- Materials: Aluminum radiator with a durable ASA plastic radome for longevity.
Installation Options
The Overland Antenna’s folding mounting bracket allows for easy and versatile installation. It supports multiple mounting styles, including:
- T-Track Mounting: Securely attach to roof rack systems.
- Pole Mounting: Fits 1.0-1.5 inch diameter roof rails or ladders.
- Fixed Mounting: Attach directly to flat surfaces.
This antenna and bracket combination is perfect for those seeking a reliable, easy-to-install solution to ensure optimal cellular connectivity on their adventures.

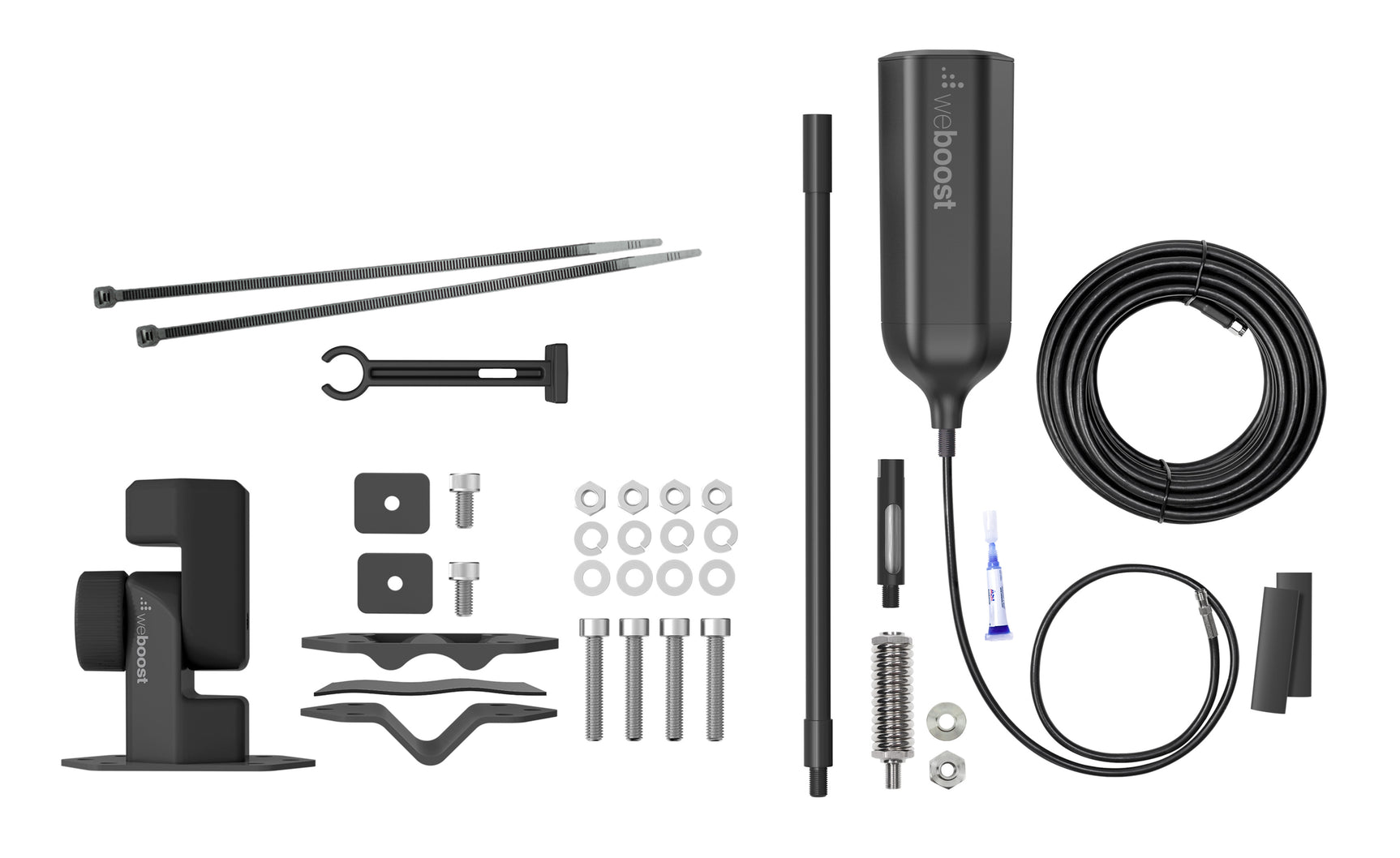

In the Box
In the Box
Specifications
Specifications
-
SKU311249
-
UPC810005964708
-
ConditionNew
-
Warranty2 Years
-
Impedance
-
Gain (Up/Down)
-
Antenna ConnectorSMA-Male
-
Antenna PolarizationVertical
-
ConnectorSMA-Male
-
Antenna Beamwidth - Horizontal
-
Antenna Beamwidth - Vertical
-
Antenna signal Pattern
-
Antenna VSWR
-
Dimensions
-
Material
-
Specific Frequencies Supported698-806 MHz, 806-960 MHz, 1710 - 1880 MHz, 1850-1990 MHz, 1910-2170 MHz, 2300-2700 MHz
