How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.

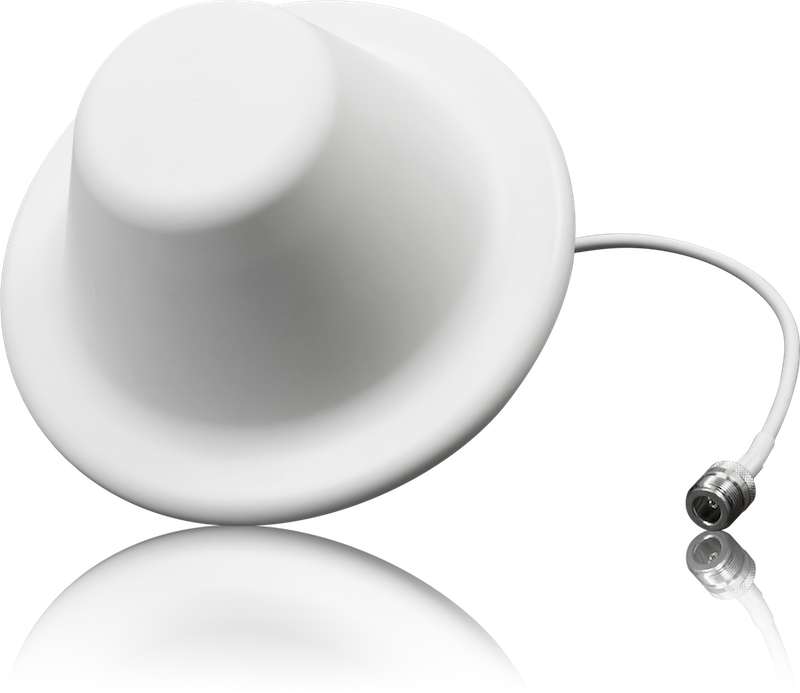

- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

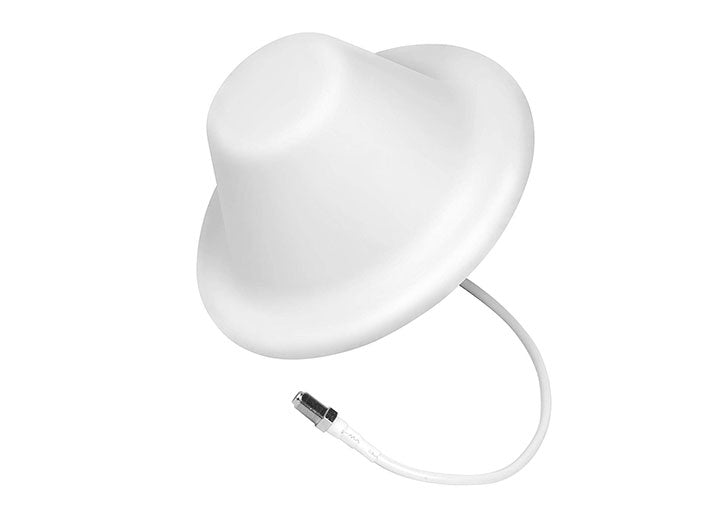

4G Dome Antenna (304419) 75 ohm with 12 in. Pigtail F-Female
$69.99
Unit price
/
Unavailable
Product Information
Product Information
The 4G LTE/3G High Performance Building Wide-Band Dome Ceiling Antenna is an excellent solution for enhancing cellular connectivity across large indoor spaces. This 75 Ohm omni-directional antenna is designed for ceiling mounting, ensuring a broad and even distribution of signal throughout the building. It includes all necessary mounting hardware for a straightforward installation process.
- Omni-directional Coverage: Provides 360-degree coverage, ensuring that signal is evenly distributed in all directions from the ceiling mount position.
- Wide-Band Compatibility: Supports 4G LTE and 3G frequencies, making it versatile for a variety of cellular networks.
- Easy Installation: Comes complete with all required mounting hardware and a 12-inch pigtail RG6 cable with an F-Female connector for quick and easy setup.
- Designed for Indoor Use: Ideal for office buildings, shopping centers, and other large indoor areas where enhanced cell signal is needed.
