weBoost 472120 Home Room Signal Booster Kit [Discontinued]

The weBoost 472120 Home Room Signal Booster Kit is designed to improve poor cell reception, increase Internet speeds, and eliminate dropped calls and dead spots in your home or office. The Home Room is an economical, entry-level signal booster, ideal for covering a small space or a single room, rather than an entire house with boosted signal. It's also great for small cabins, construction trailers, shipping containers, cubicles, and more.

You Should Choose This Kit If

The weBoost Home Room Signal Booster Kit is ideal for the following situations:

You are looking for an inexpensive signal booster for one or multiple carriers
The Home Room is the most affordable entry-level signal booster that can boost the 4G LTE & 5G networks from multiple carriers at the same time, in addition to the 2G and 3G networks from each major carrier.

You only need to cover a small area inside with boosted signal
The weBoost Home Room is designed to cover a small area inside of a home or office. Depending on where you mount the outside antenna, and how strong the existing signal is at that point, it may be possible to get up to 1,500 sq ft of coverage from the Home Room. However, most installations will only cover one or two small rooms with a boosted signal.

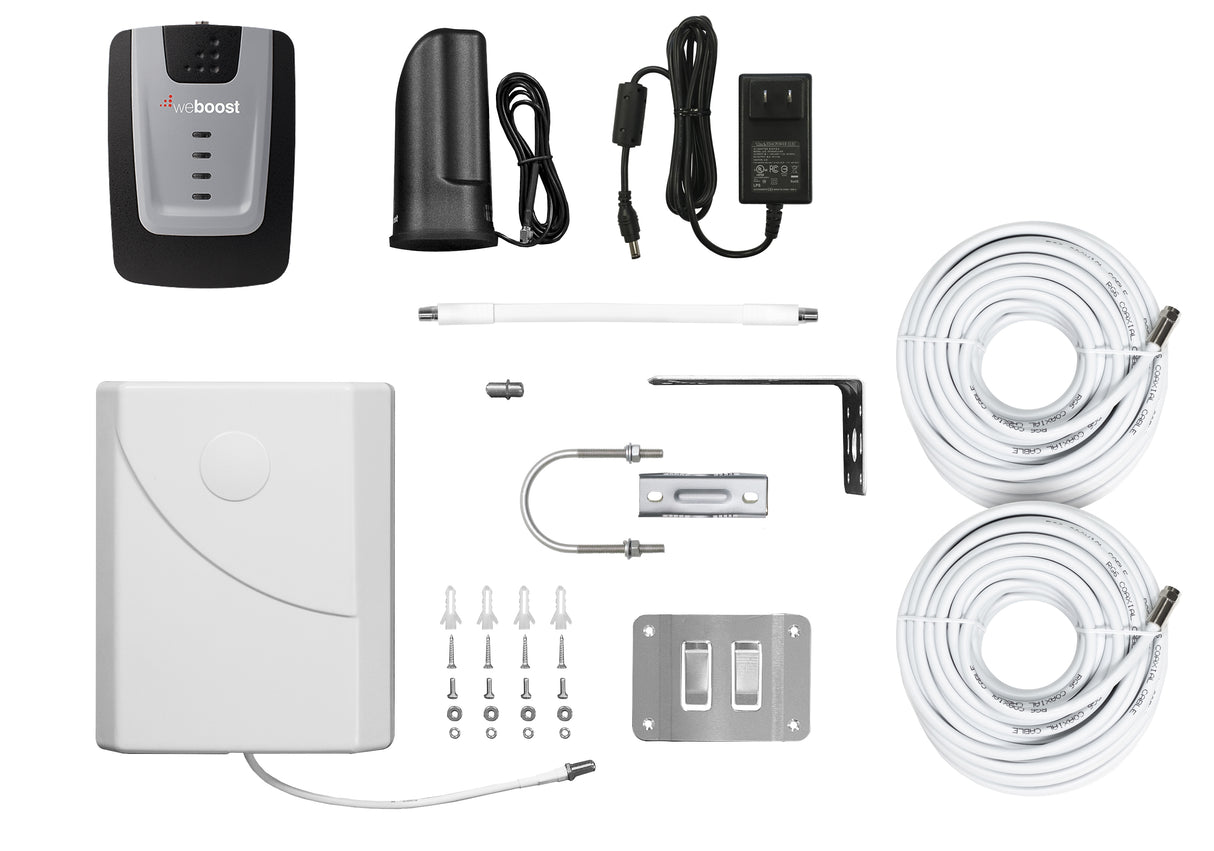

The following items are included with the weBoost Home Room:

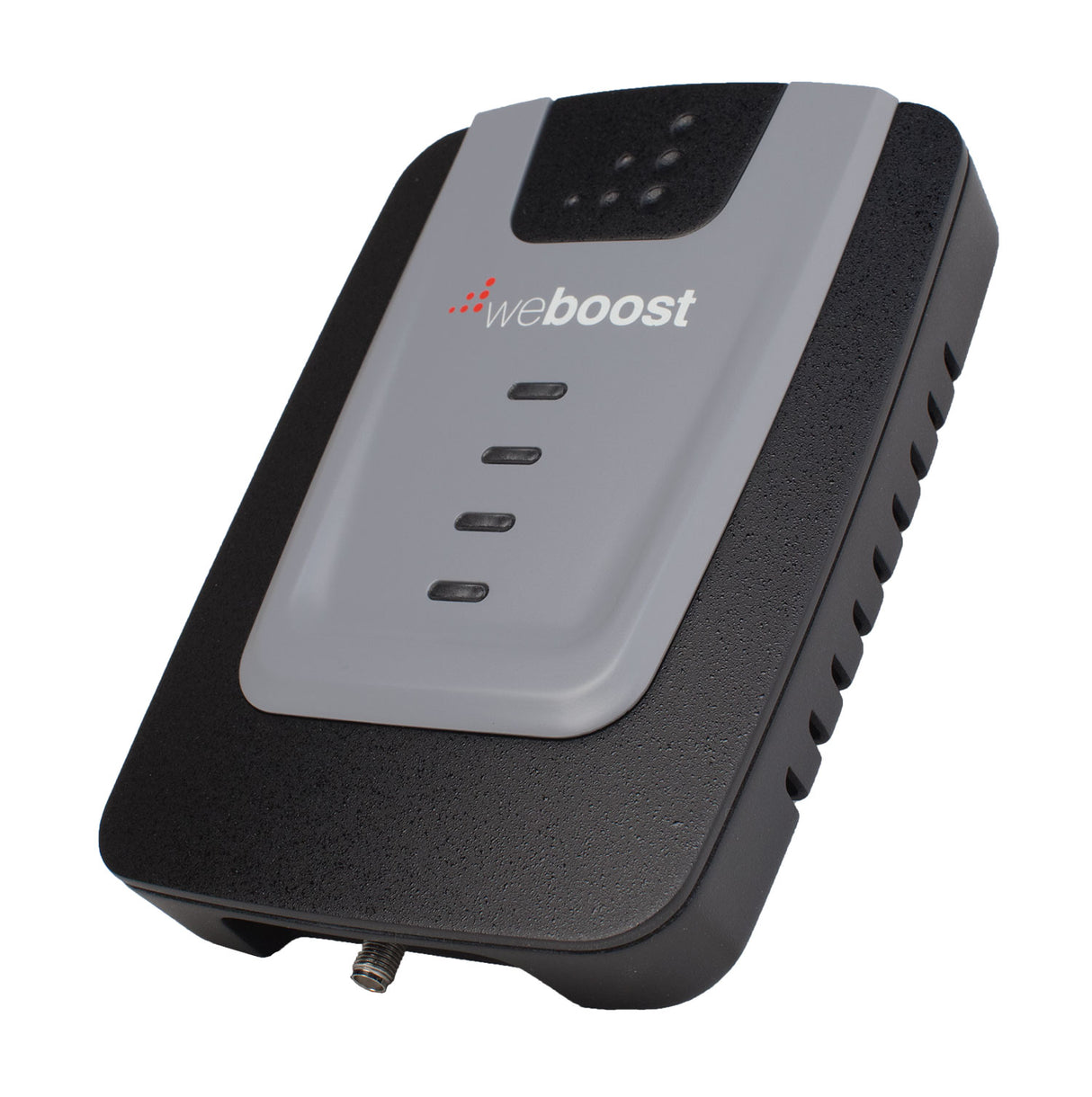

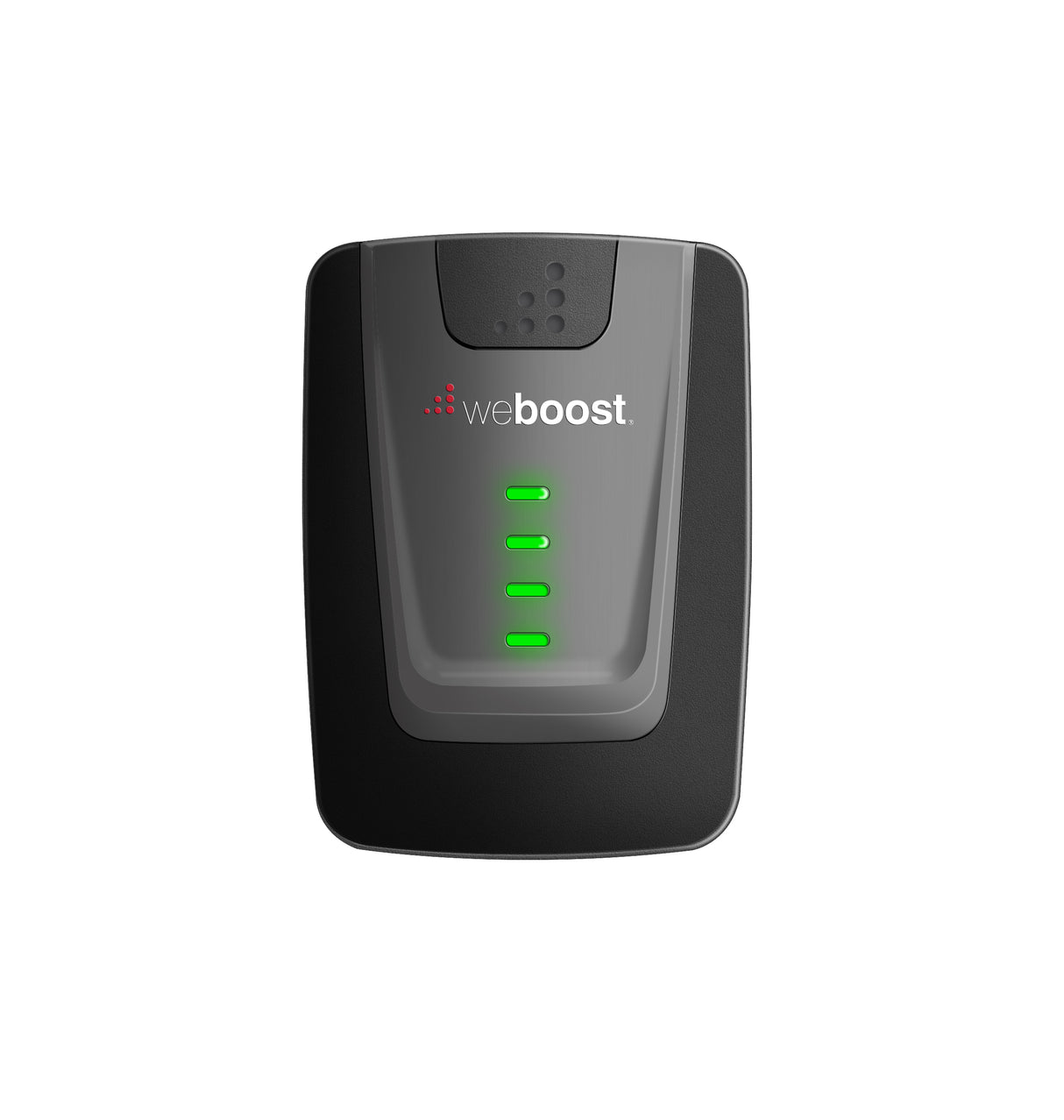

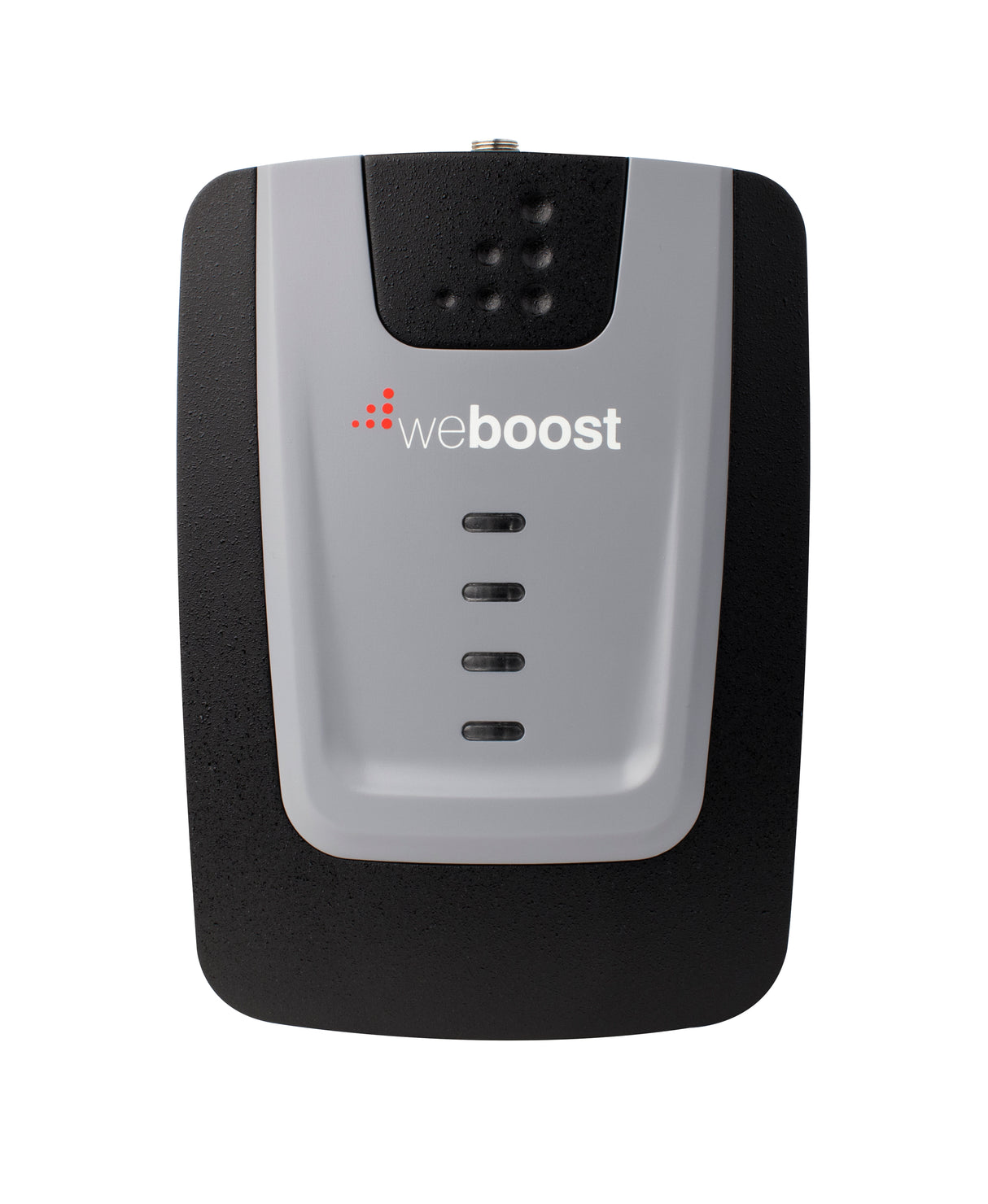

• weBoost Home Room 60 dB Amplifier

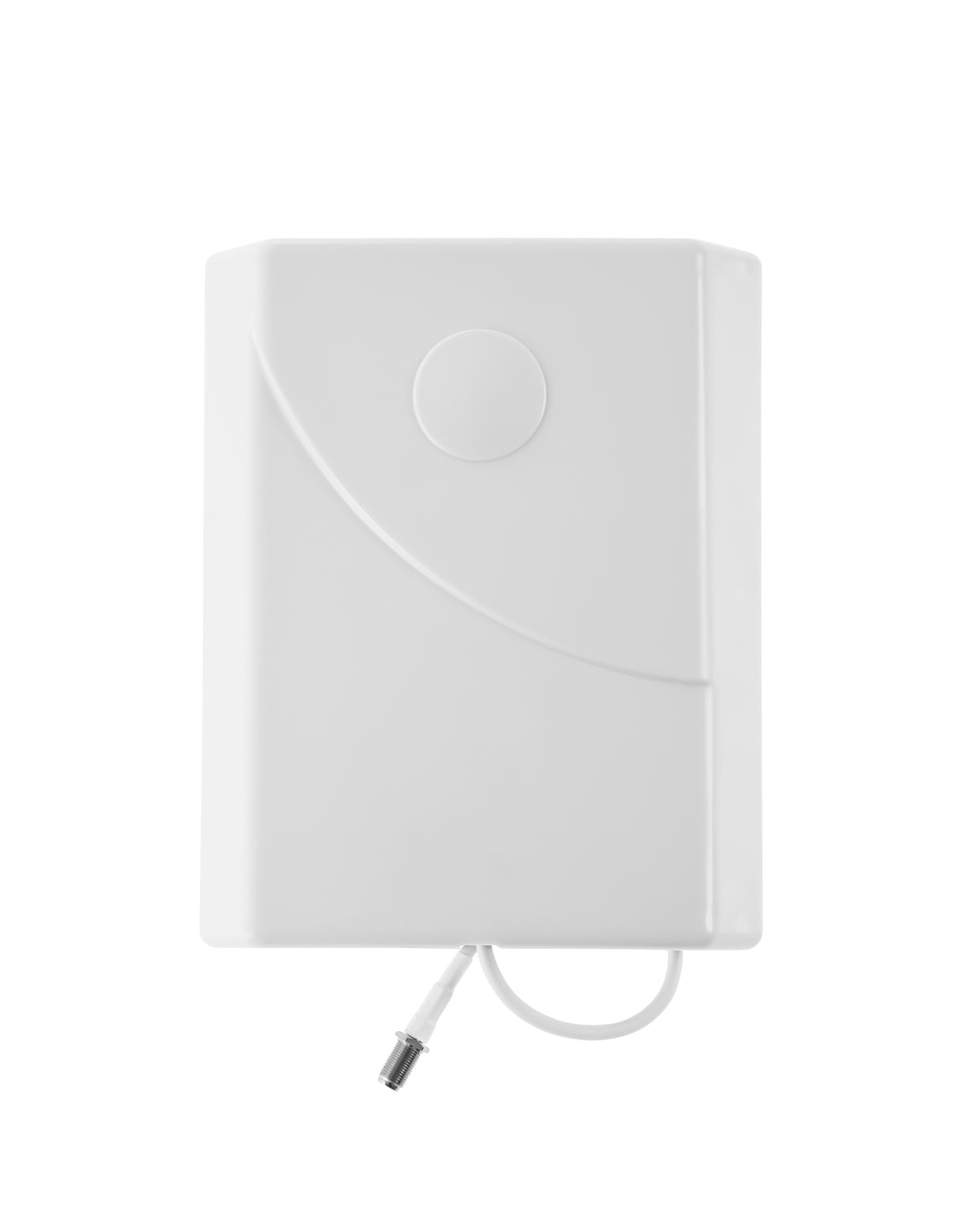

• Panel Antenna with F-Female Connector and wall/pole mount hardware

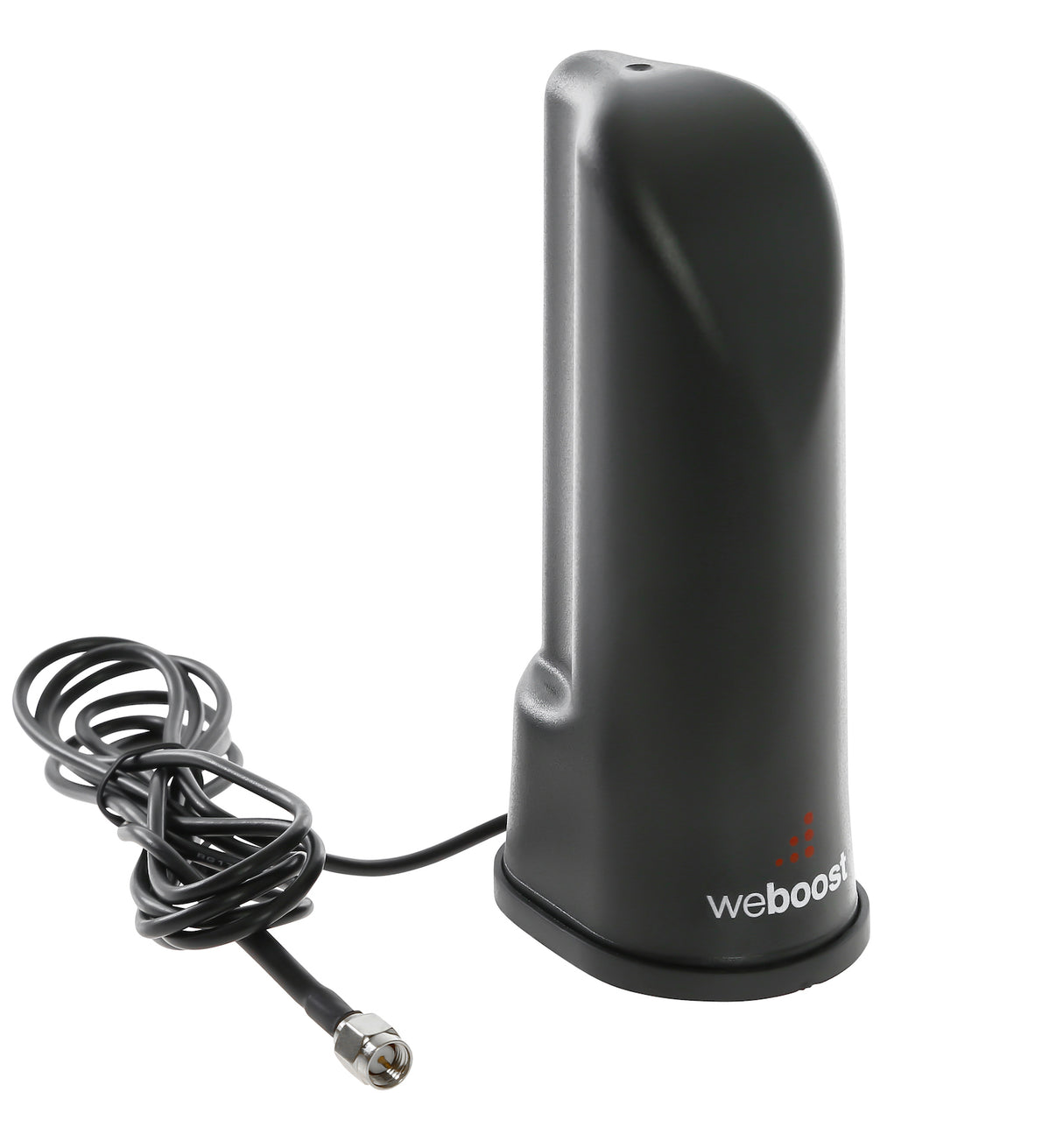

• Desktop Antenna with SMA-Male Connector

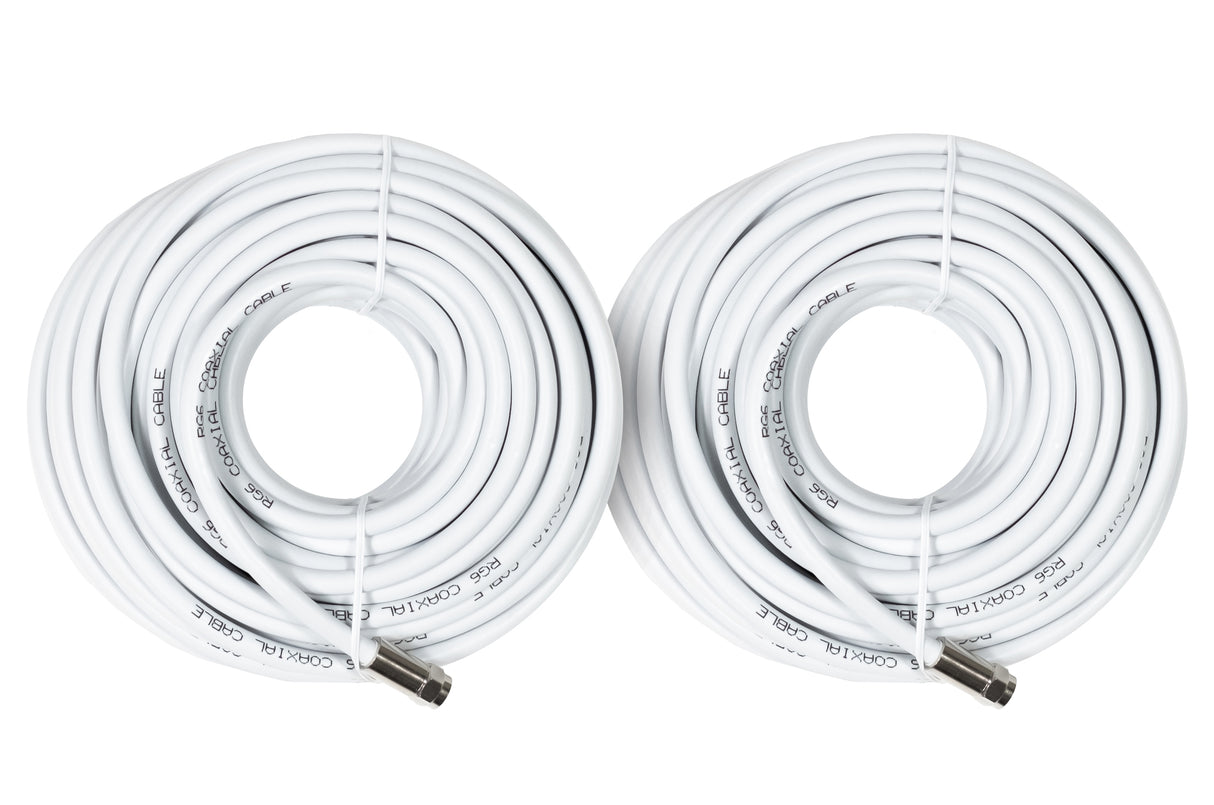

• 30' White RG6 Low Loss Coax Cable (950630)
• 20' White RG6 Low Loss Coax Cable (950620)

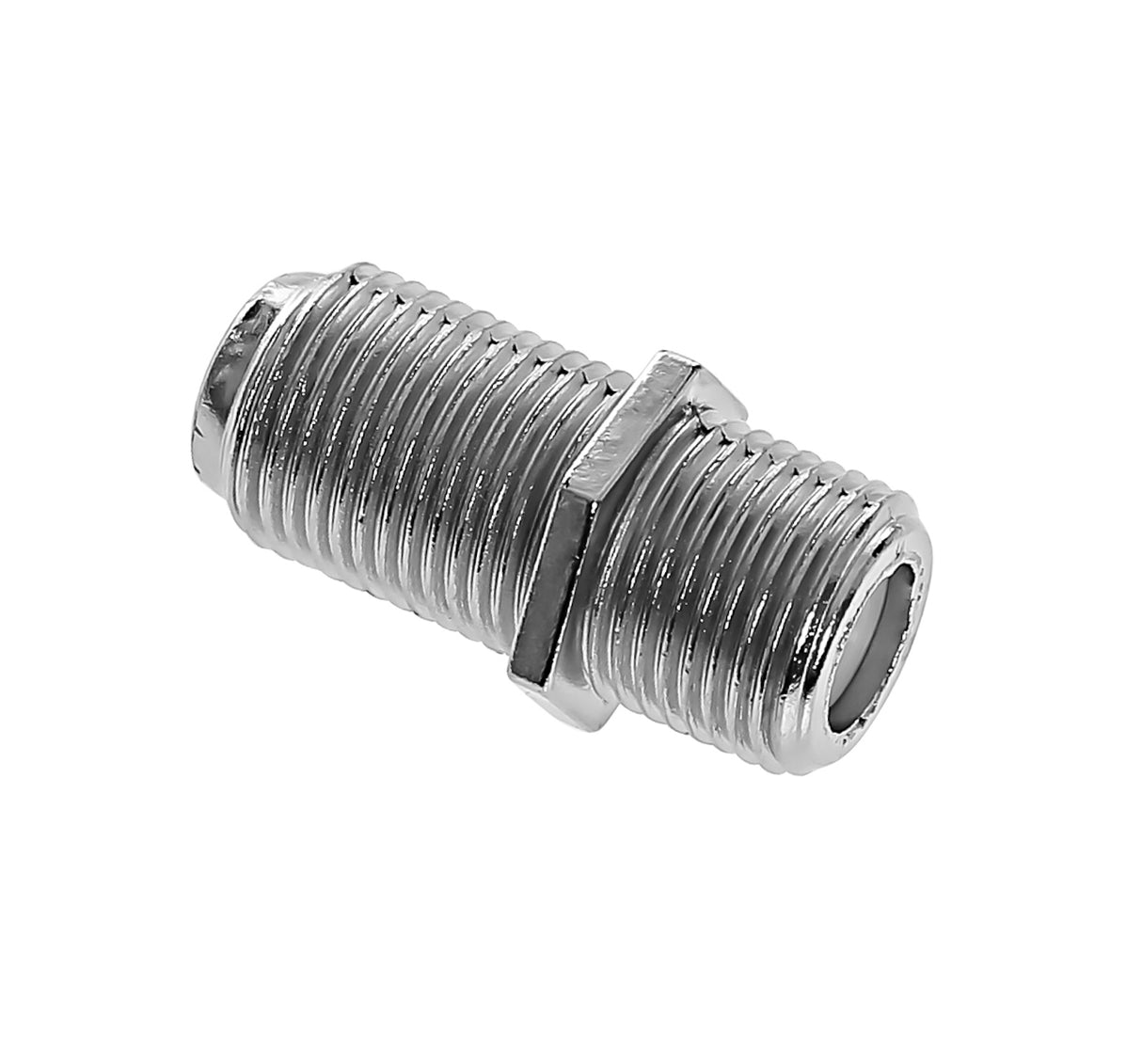

• F-Female Barrel Connector for RG6 Cable (971129)

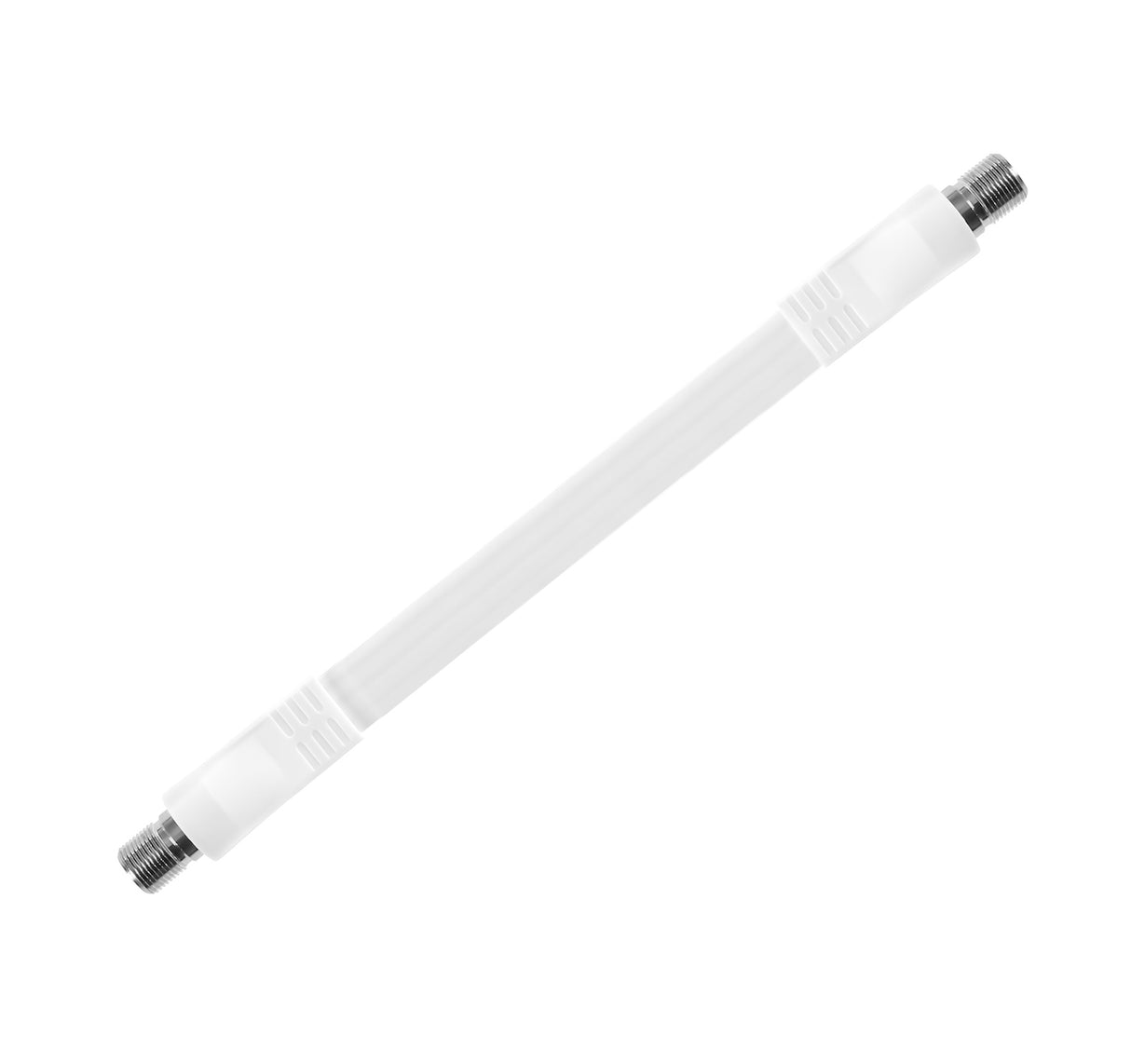

• 8" Flat Coax Cable (to run external cable through a closed window)

Installation Overview

The weBoost Home Room has two slightly different installation options for mounting the outside panel antenna. The first option is to mount the panel antenna on a wall outside of the home or office. The second option is to install the panel antenna on a pole on the roof of the building. Before you begin, we recommend performing a soft installation where you don't permanently mount components, drill holes or finalize cable runs until you're sure that the system is performing to the level that you would like. Once you've tested out antenna and component locations and are satisfied with the results, then you can go ahead and permanently install everything.

Choose the installation location for the external panel antenna based on where the best signal is received. Connect the included RG6 cable and run it into the building.

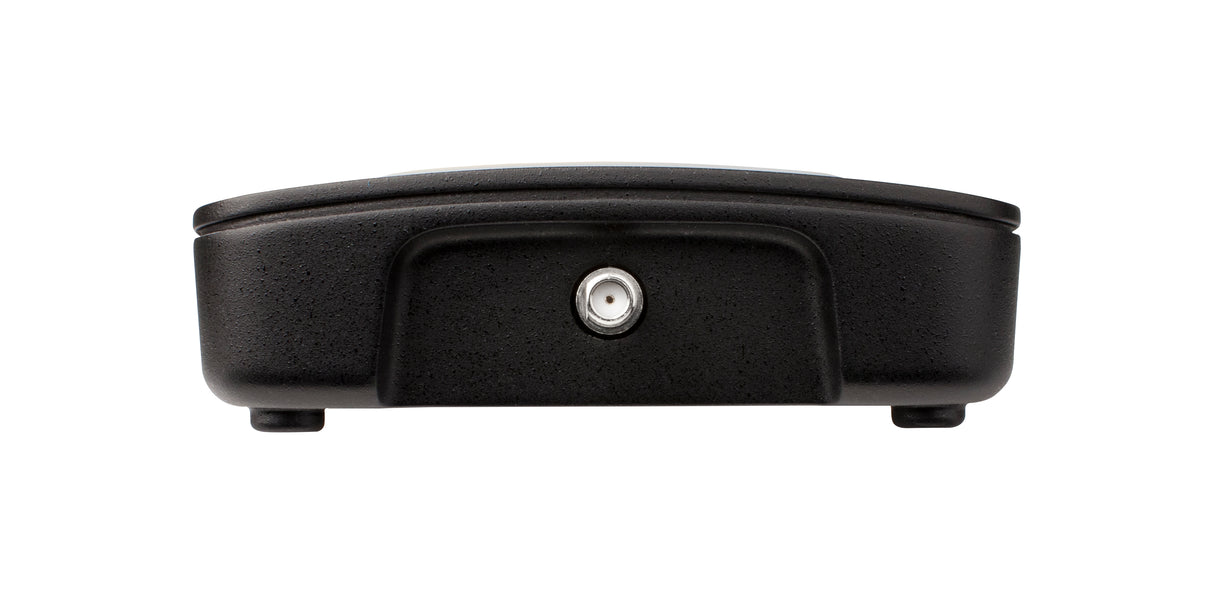

If you've purchased a lighting surge protector, connect it now to the RG6 cable, then attach the cable to the "Outside Antenna" port of the amplifier. Otherwise, directly connect the outside cable to the port. Attach the inside tower antenna and locate it facing towards the area that needs boosted signal. Power on the amplifier and check for solid green lights for proper operation.

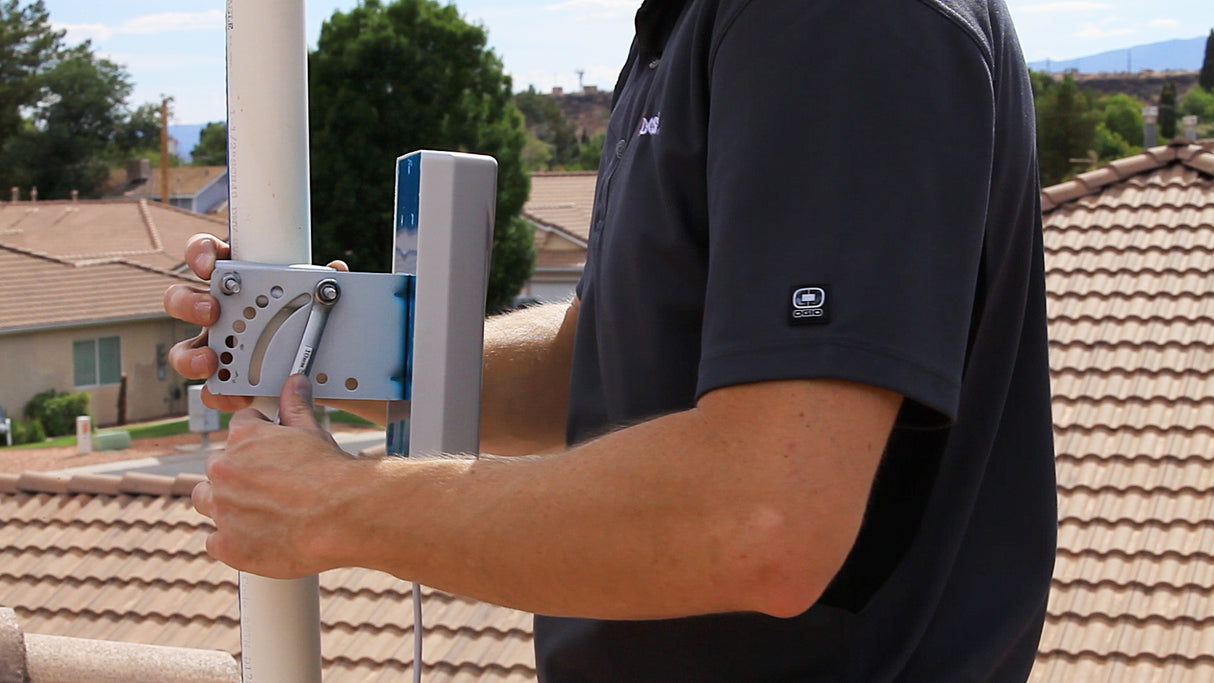

If you mounted the outside antenna on a pole, aim it for best results by rotating it and checking the signal strength inside. Mount the antenna facing in the direction with the strongest signal.

The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.
