weBoost 471104 Connect 4G-X Extreme Signal Booster Kit [Discontinued]

The weBoost 471104 Connect 4G-X Extreme Signal Booster Kit is the newest verion of the best selling Wilson 461104 AG Pro 4G.  The Connect 4G-X features a powerful 70 dB 5-Band amplifier making it the most powerful signal booster system available from weBoost (formerly Wilson Electronics).  With a strong outside signal, the Connect 4G-X can cover up to 10,000 sq ft inside and multiple systems can be used to cover even larger areas making it perfect for large homes and offices.

Coverage Area

Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.

• If you have an existing strong 5-bar outside signal, you may get up to 7,500 sq ft of coverage inside*
• If you have an existing 3 to 4-bar (-90 dB) outside signal, you may get up to 4,000 sq ft of coverage inside*
• If you have an existing 1 to 2-bar (-100 dB) outside signal, you may get up to 2,000 sq ft of coverage inside*

Supported Carriers

The weBoost 470103 Connect 4G supports the 2G, 3G, and 4G LTE networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.

Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:

• AT&T 2G/3G/4G HSPA+ plus 4G LTE
• Verizon 2G/3G plus 4G LTE
• Sprint 2G/3G plus 4G LTE
• US Cellular 2G/3G plus 4G LTE
• Alltel 2G/3G
• T-Mobile 2G plus 3G, 4G HSPA+ & 4G LTE
• All other carriers using 800 MHz, 1900 MHz, and AWS 1700/2100 MHz

Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

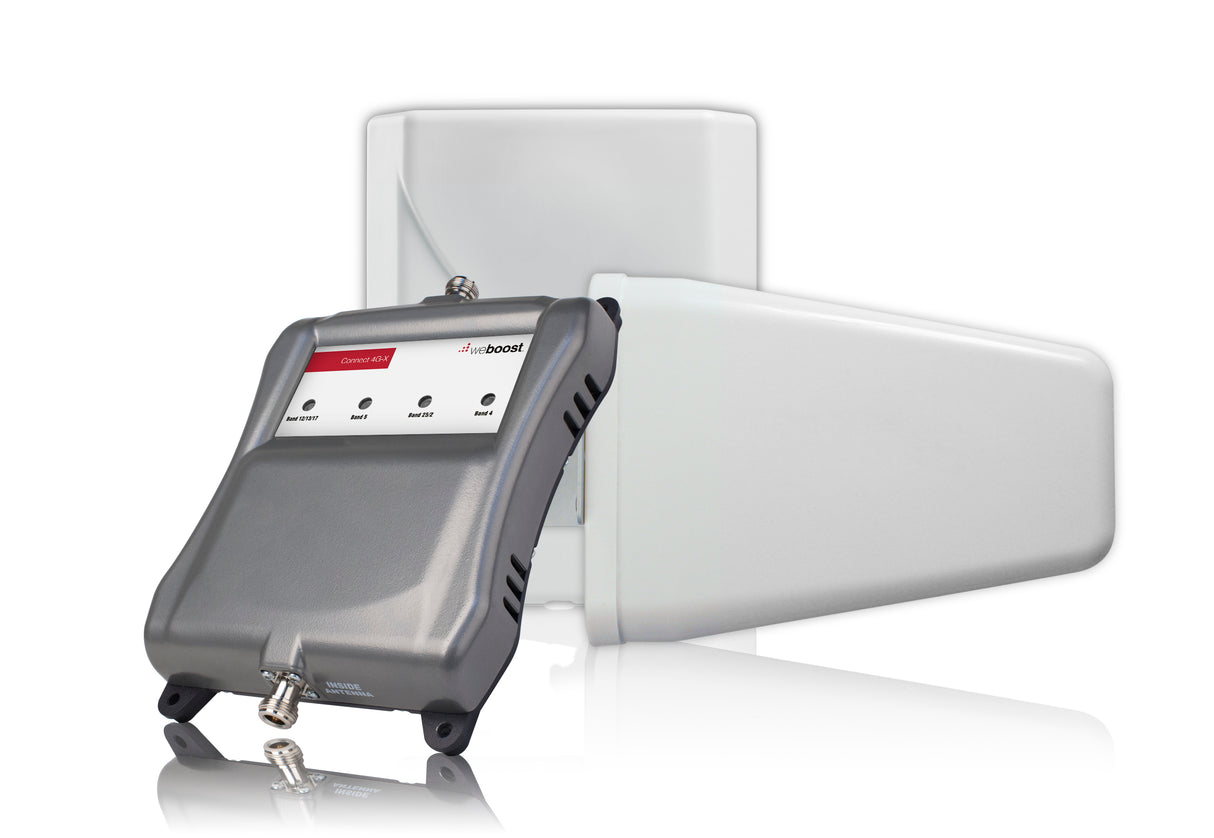

Included in the Kit

The weBoost Connect 4G-X is a complete kit with everything needed in one box. Some installations may require additional parts so see the Accessories section below.

Included in this kit:

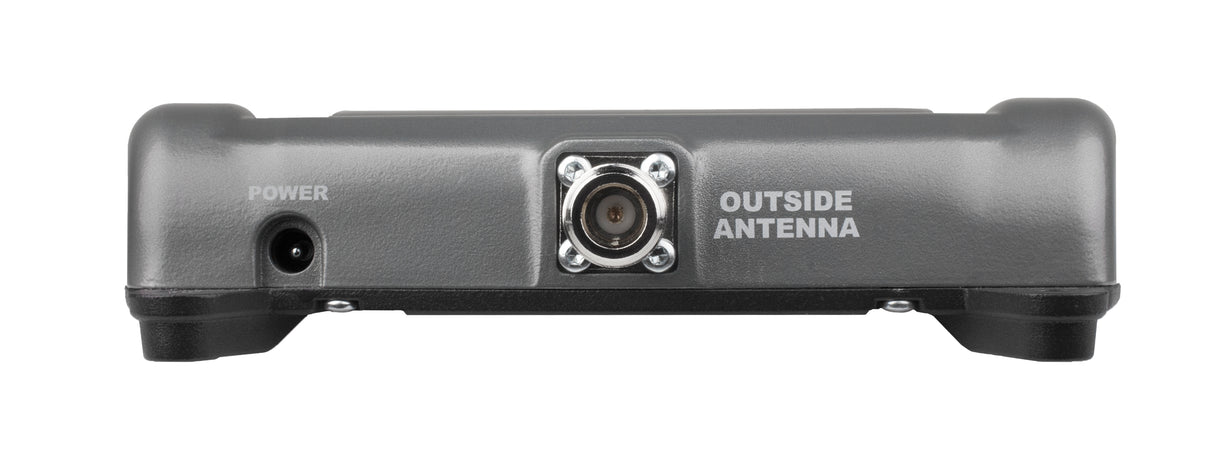

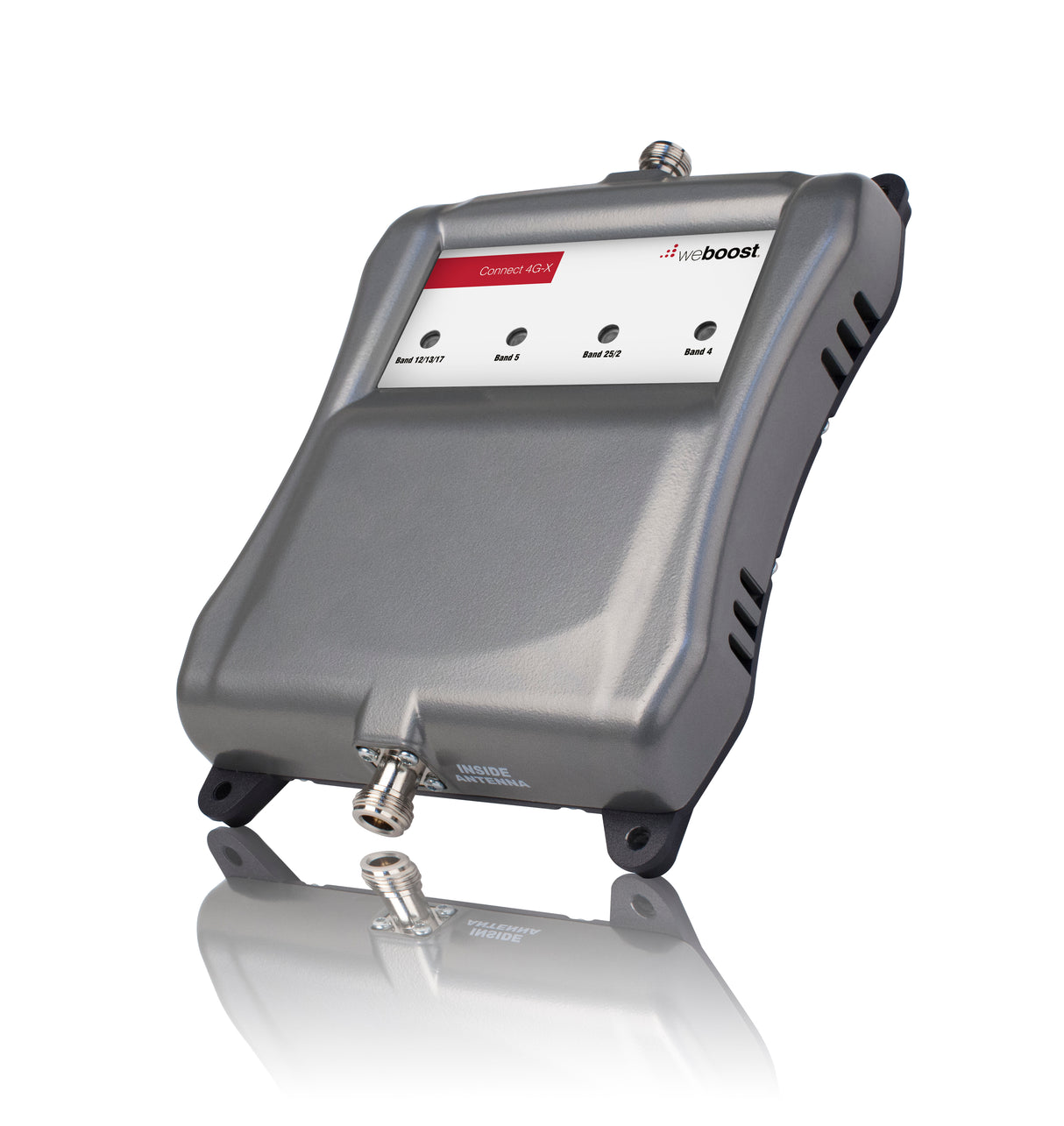

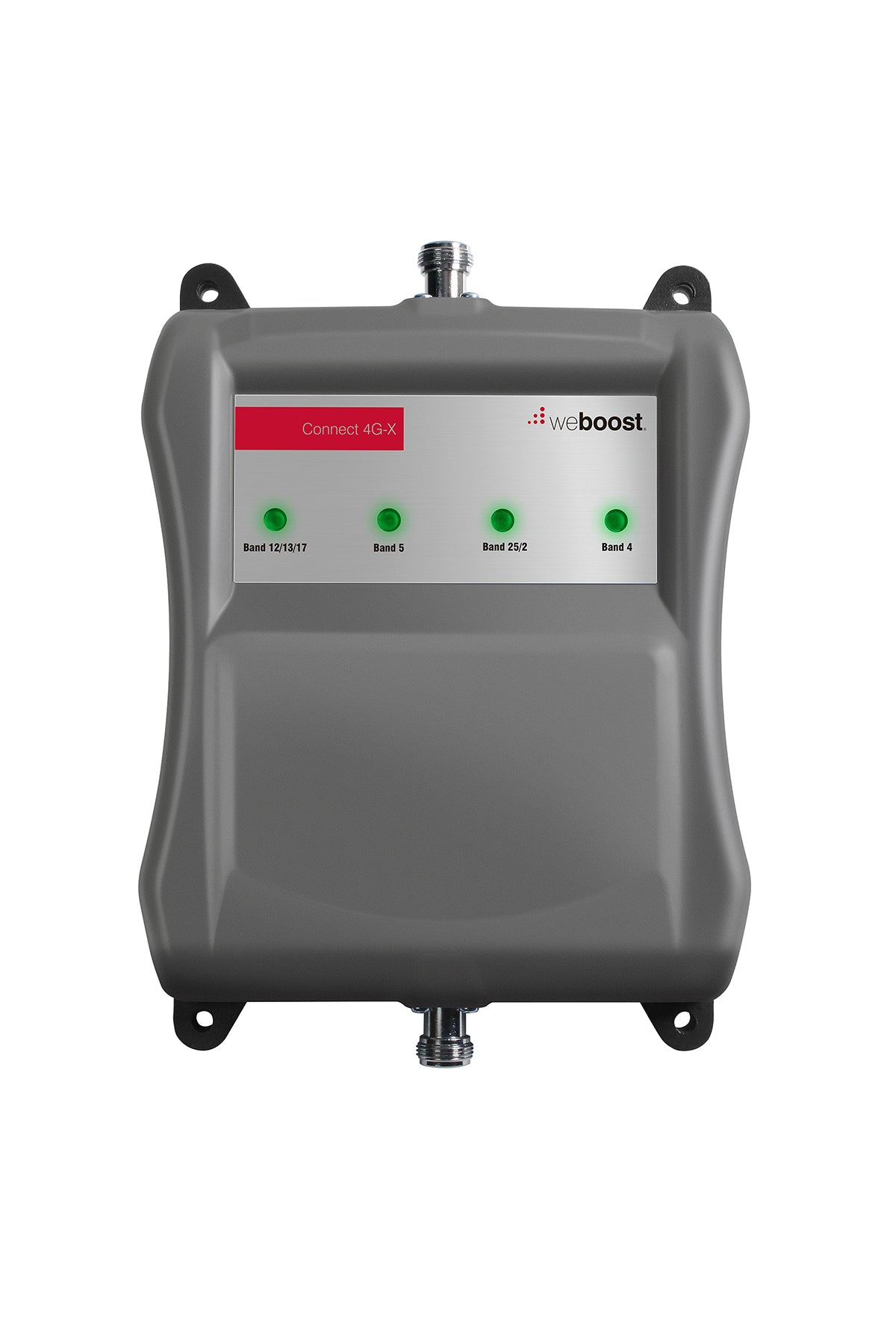

• weBoost Connect 4G-X 5-Band 70 dB Amplifier

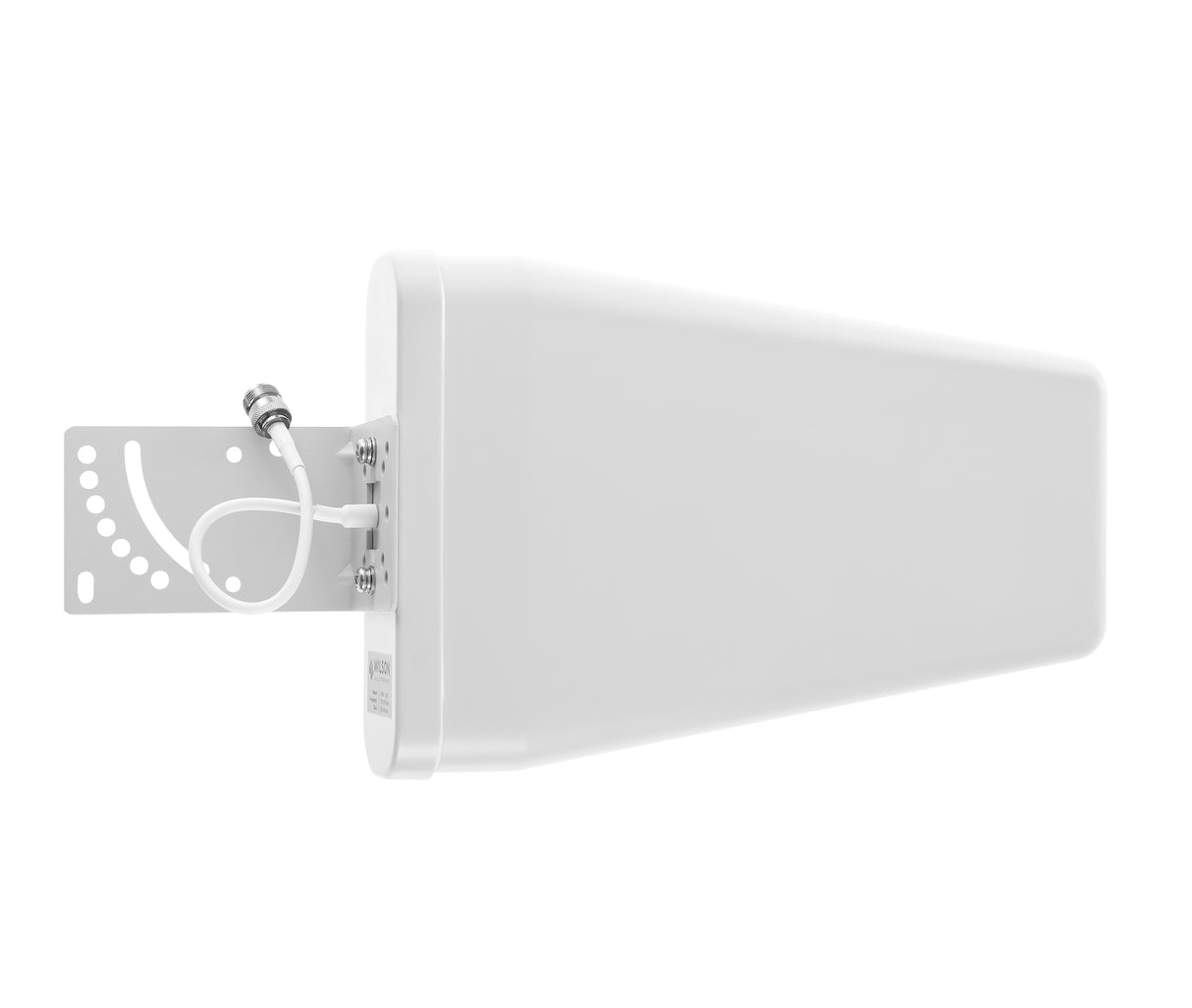

• 314411 - Wide-Band Directional Antenna with N-Female Connector

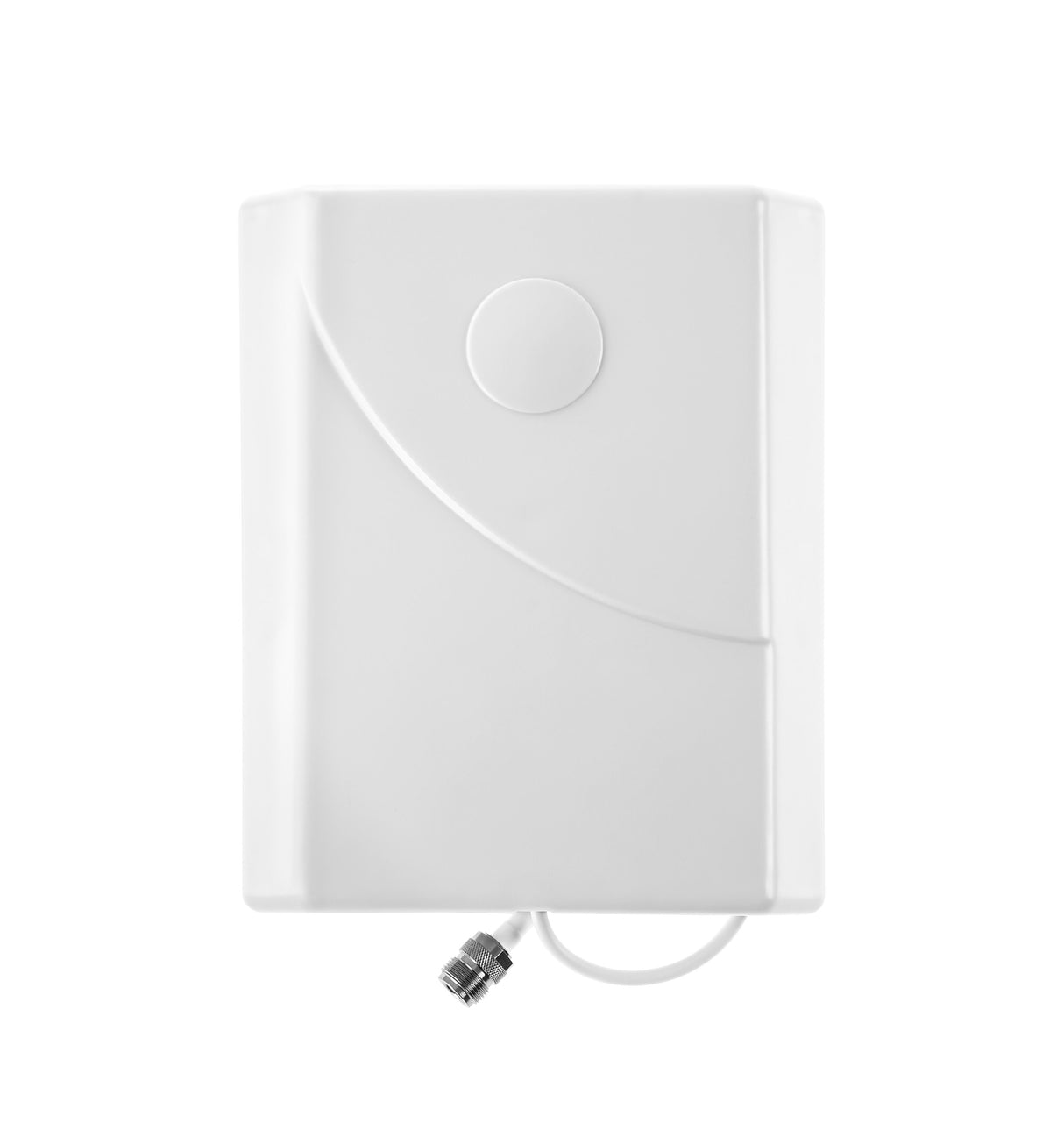

• 311135 - Wide-Band Panel Antenna with N-Female Connector

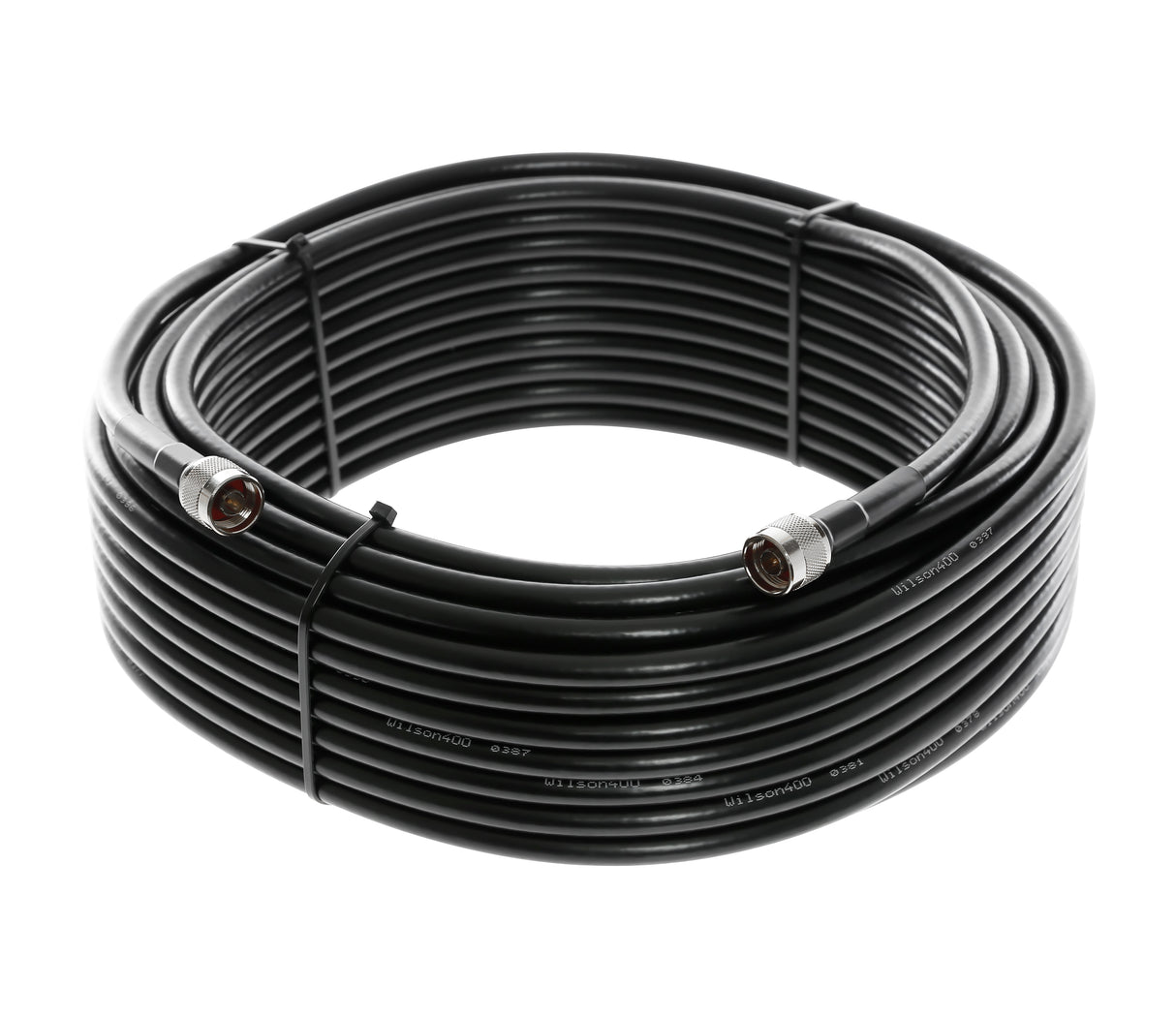

• 952375 - 75' Ultra Low Loss Wilson400 Coax Cable (for use between Outside Antenna and Amplifier)
• 952360 - 60' Ultra Low Loss Wilson400 Coax Cable (for use between Inside Antenna and Amplifier)
• Instruction Manual

Accessories

We recommend a lightning protector kit for all installations in areas that have lightning or thunderstorms. The lightning protector has a gas discharge element that severs the connection to the amplifier if there is a surge from the outside antenna.

The included directional outside antenna comes with mounting hardware for a pole. If you don't have an existing pole to mount the antenna to, you should also include 901117 Pole Mounting Assembly.

In some instances, you may need to add additional antennas to your installation, to account for irregular building shapes or internal walls that are obstructing the flow of signal. In that case, you can purchase the Add-On 1 Inside Panel Antenna Kit, Add-On 2 Inside Panel Sntenna Kit, or Add-On 3 Inside Panel Antenna Kit, which include everything you need to add additional panel antennas to your installation.

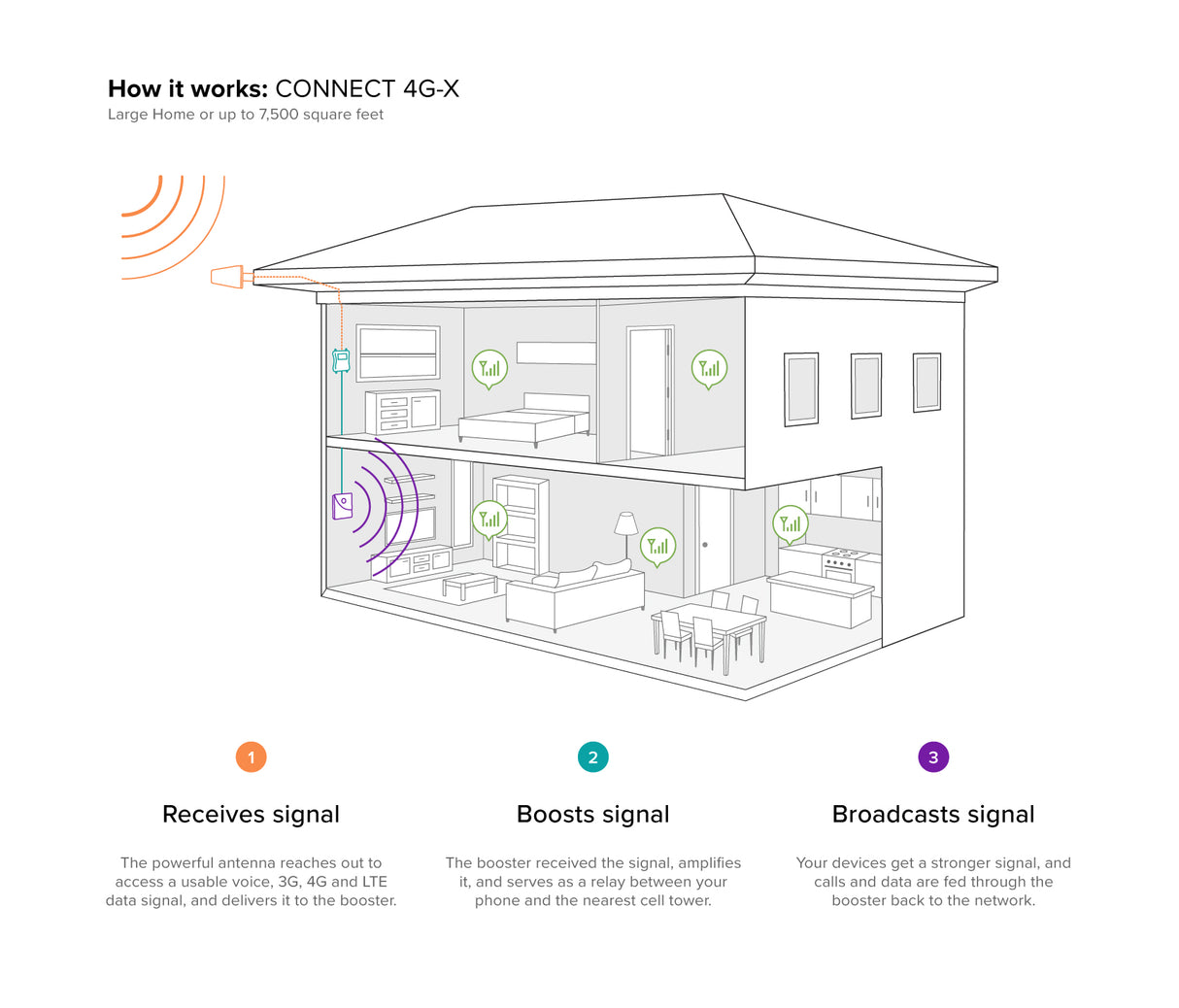

Installation Overview

The weBoost Connect 4G-X is fairly easy to install for anyone who's a bit handy, but if you're not comfortable getting up on your roof to mount an antenna, it may be best to find an electronics installer or a handy friend. We always recommend doing a soft install where you don't permanently mount anything or drill any holes until you know the system will work for you and you've identified the best locations for the antennas. To install, just follow these 4 steps:

1. To start, you'll need to find a place on the roof of your home or office to mount the outside antenna. With a directional outside antenna, it's best to figure out which direction it will need to be pointed before permanently mounting the antenna which we'll cover at the end. Connect the 75 ft. 400 Series coax cable to the antenna and run it into the building. You may be able to enter through a vent or a soffit; otherwise, you may have to drill a hole.

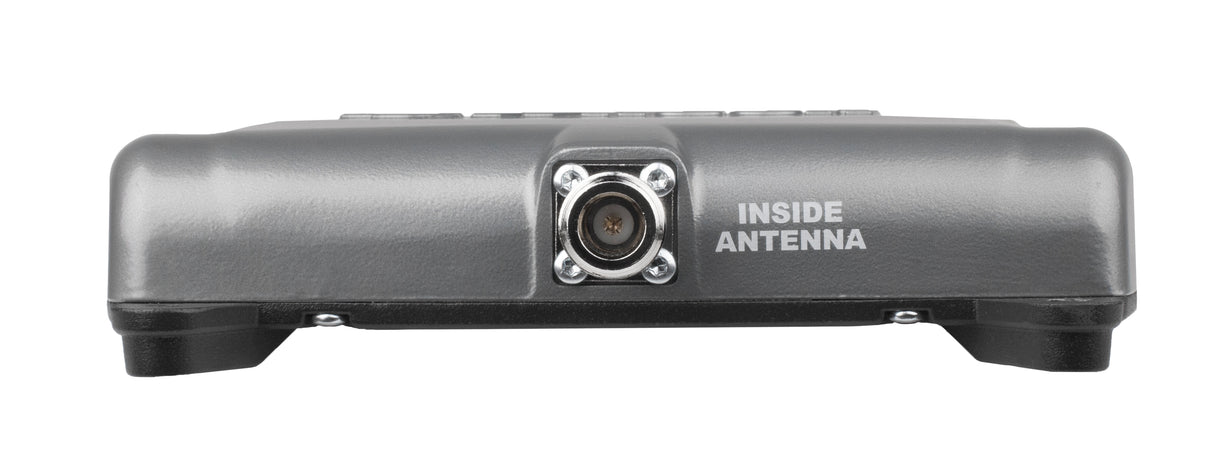

2. With the cable inside, connect it to an in-line lighting protector if you purchased one, and then to the amplifier. To the inside antenna port on amplifier, connect the 60 ft. 400 Series coax cable and then connect the inside antenna. If you have an attic, the easiest installation method is typically to have the amplifier and inside antenna in the attic with the panel antenna face down on the floor in the middle of the house. If you don't have an attic, you can mount the panel antenna on the ceiling in the middle of the house, or on a wall.
3. Once all of the components are connected, plug in the amplifier and see if you get any error lights. For any errors, consult the manual or contact us for help.
4. For best results, you'll need to aim the directional outside antenna. Start with the antenna high on the roof pointed in one direction. Turn on the system and have an inside helper inside stand about 10 ft. from the inside antenna and take a signal reading with their phone, ideally with it in field test mode. Rotate the directional antenna 45 degrees. After the waiting 60 seconds, the person inside should take another signal reading, and then you can repeat the process. After you've tried in all directions (8 total), mount the antenna facing in the direction with the strongest signal. If possible, also mount the antenna on that side of the home or office so that it's pointing away from the building and not over the building.

The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.

Benefits

• Everything you need is in the box, just set it up and go
• Reduces dropped calls and increases data speeds
• Works wirelessly so you can use your cell phone like you always do
• Supports multiple phones and data devices simultaneously
• Adjustable per-frequency gain control makes installation easier
• Contains carrier protection technologies to guard against overload and oscillation
• Amplifies the signal both to and from the cell carrier
• Boosts 800 (850) MHz Cellular, 1900 MHz PCS, 1700/2100 MHz AWS, and both Verizon 700 MHz LTE and AT&T 700 MHz LTE
• Extends the battery life of your phone
• Made in the USA
• FCC and IC type accepted

* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
