weBoost Drive Reach OTR Mobile Signal Booster Kit | 477154
We put together quotes for fleet orders. Tell us about your vehicles.
Included with your order:
- 90-Day Returns
- Lifetime Tech Support
- 2-Year Warranty
- Lowest Price Guarantee
We answer questions for free, before and after you buy.
Signal SpecialistMon to Fri, 9 to 5 ET
Boosts 5G and 4G LTE on Every US Carrier, Including:
MVNOs like Mint, Cricket, and Visible run on these networks too, along with more than 90 regional carriers.
Introducing the Drive Reach OTR
At a glance

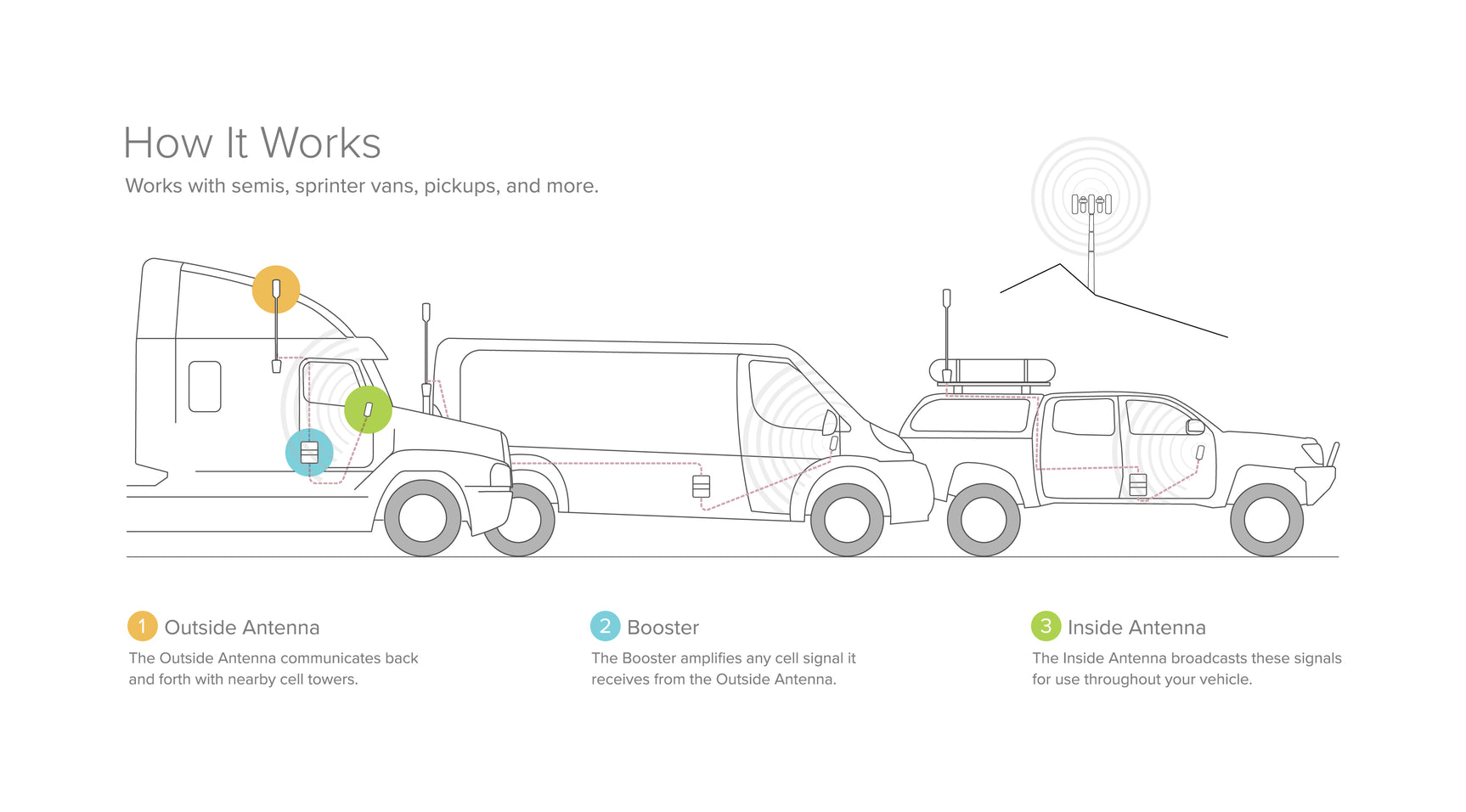

How It Works
Each of the three pieces below does a different job, and where you put it decides how well the next one works.
The Outside AntennaReceives signal from distant cell towers and passes it over a cable to the amplifier.
The AmplifierReceives the signal from the outside antenna, boosts it significantly, then passes it to the inside antenna.
The Inside AntennaBroadcasts the boosted signal throughout the space for clear calls, reliable texts, and fast data.
The booster also works in reverse. The inside antenna receives signal from the devices in the vehicle, the amp boosts it up, and then the outside antenna broadcasts the strong signal back to the distant cell towers. This gives you a strong, reliable two-way connection to the cell tower.
How Much Coverage Should You Expect?
How much coverage you get depends on the signal you already have outside. The stronger it is out there, the farther the boosted signal carries inside.
How the Installation Process Works
The steps below are the whole job, and the order matters, because the antenna is assembled before it goes on the truck.
Build the Antenna to the Height You Need
The two mast extensions are 13 inches and 18 inches, so the antenna can stand anywhere from 7.5 to 40 inches. Run the coax up through the extensions and out through the side exit adapter first, then put thread locker on the metal thread points only and never on the plastic body. The spring is optional and cannot be used with both extensions at once.

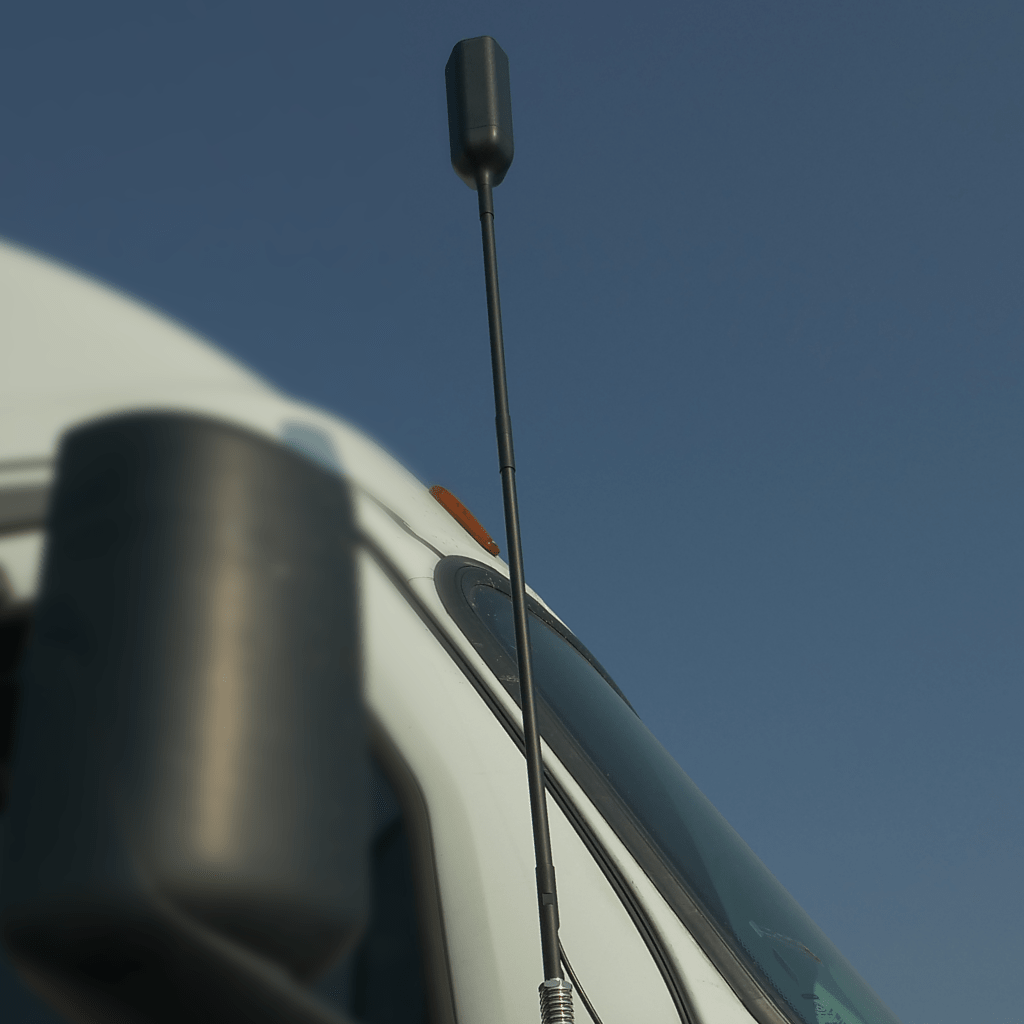

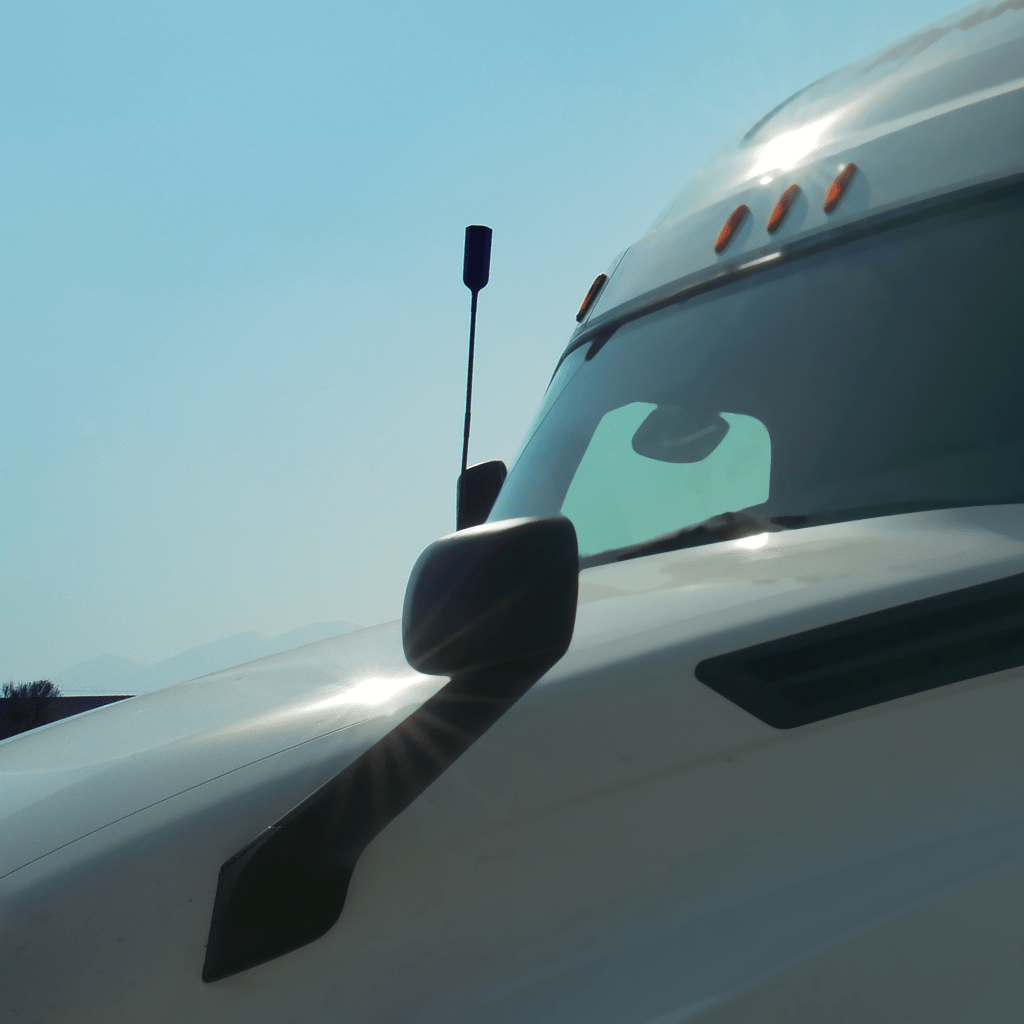

Mount It Above Everything Else on the Truck
Some trucks have built in antenna mounting points. If yours does not, the included 3-way mount works on vehicles with mirror rails, and the antenna also works with third party CB antenna mounts. It belongs above the roofline and clear of any gear riding on top. The coax is strong enough to be shut in most vehicle doors, so getting it into the cab usually needs no other route.

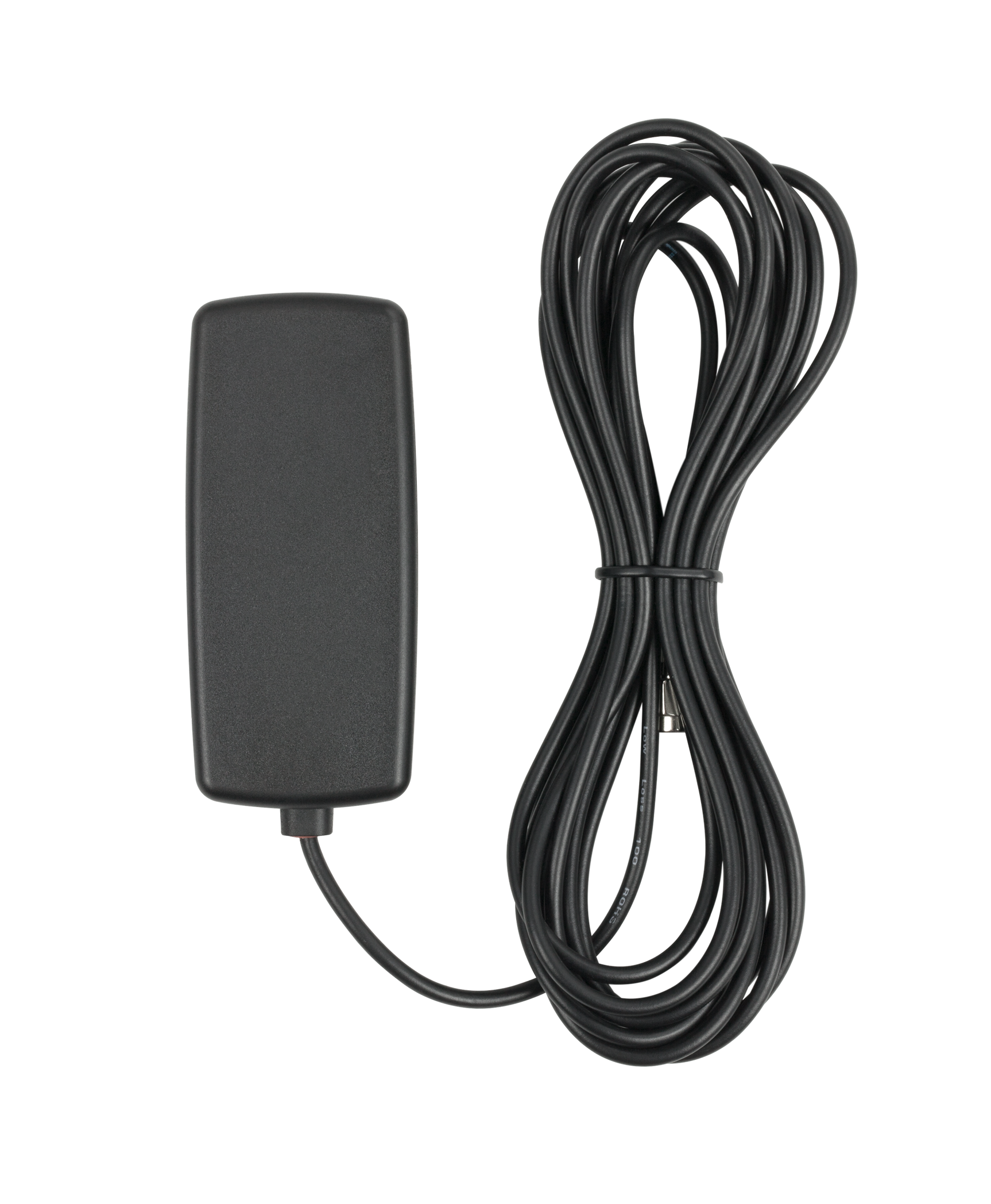

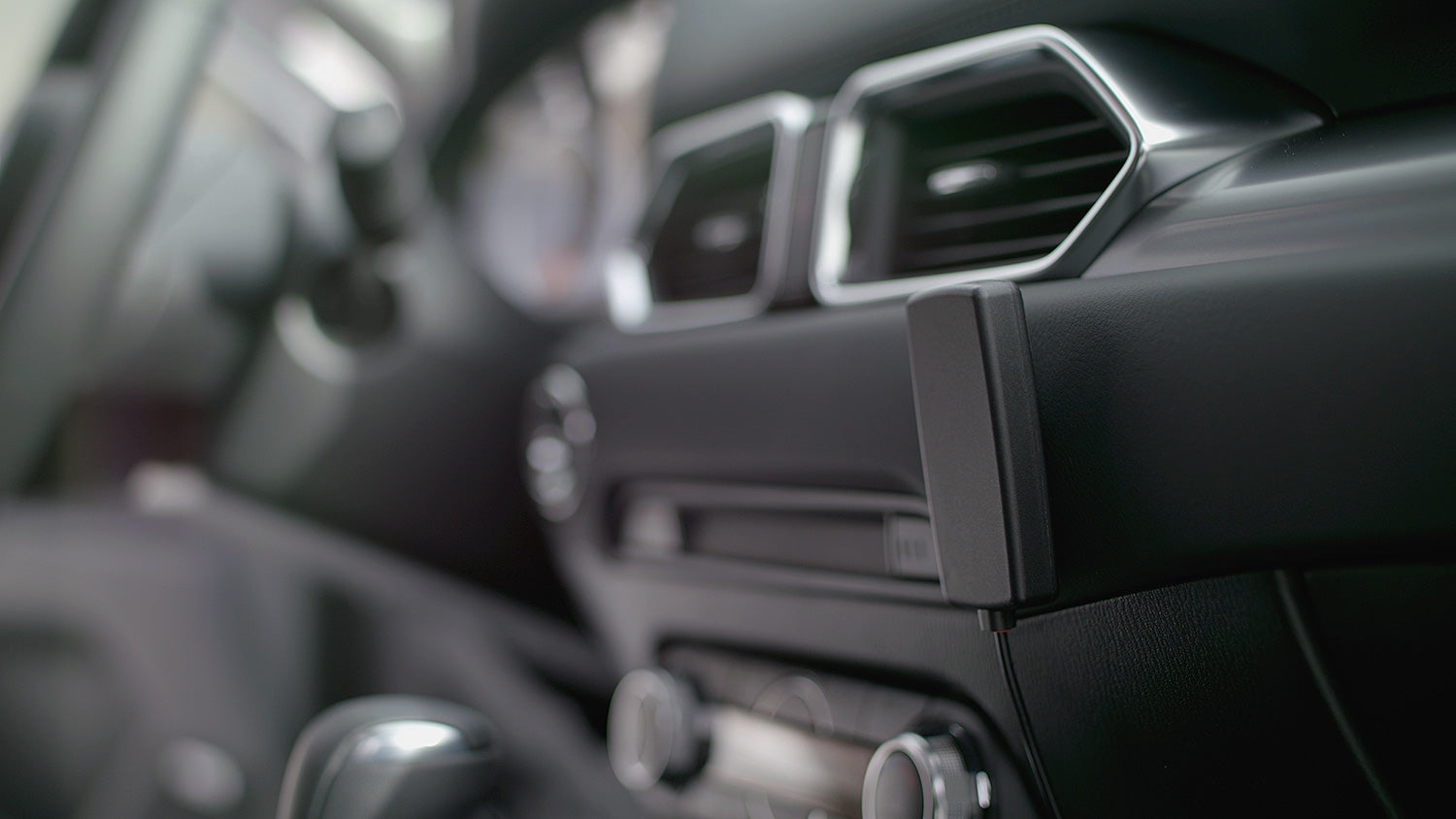

Set the Inside Antenna Where You Use Your Phone
It goes on the dash or the side of the seat, held by the Velcro strips in the box. Put it near where your phone actually rides, close enough that the phone sits in the boosted signal and not so close that it is stacked on top of it. It also has to stay at least 8 inches from any person.

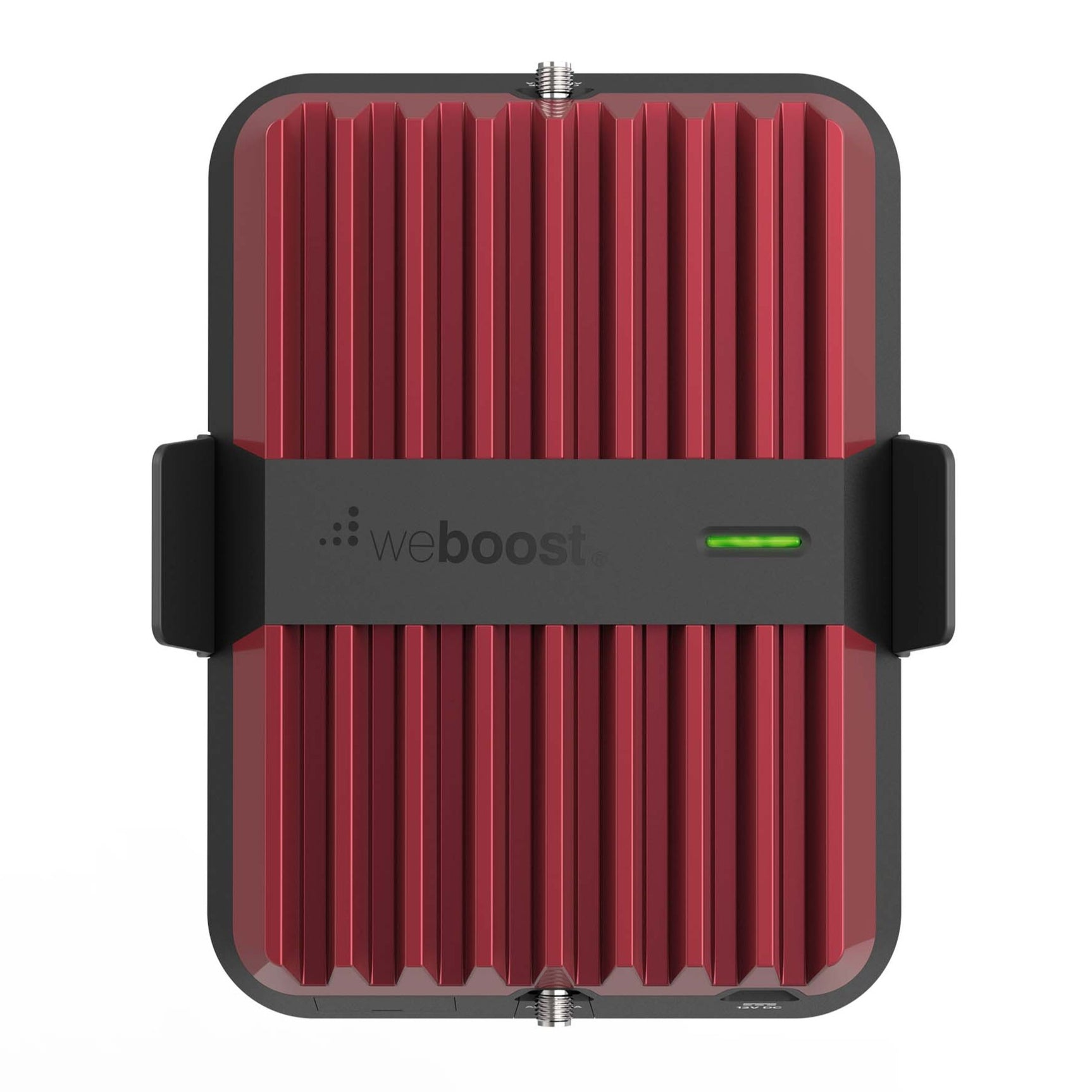

Put the Amplifier Somewhere With Air Around It
It goes behind or under a seat, and the included bracket holds with Velcro strips, screws, or zip ties. Run both cables so nothing gets pinched when the seats move, then connect the outside antenna cable to the port marked Outside Antenna and the inside one to the port marked Inside Antenna.

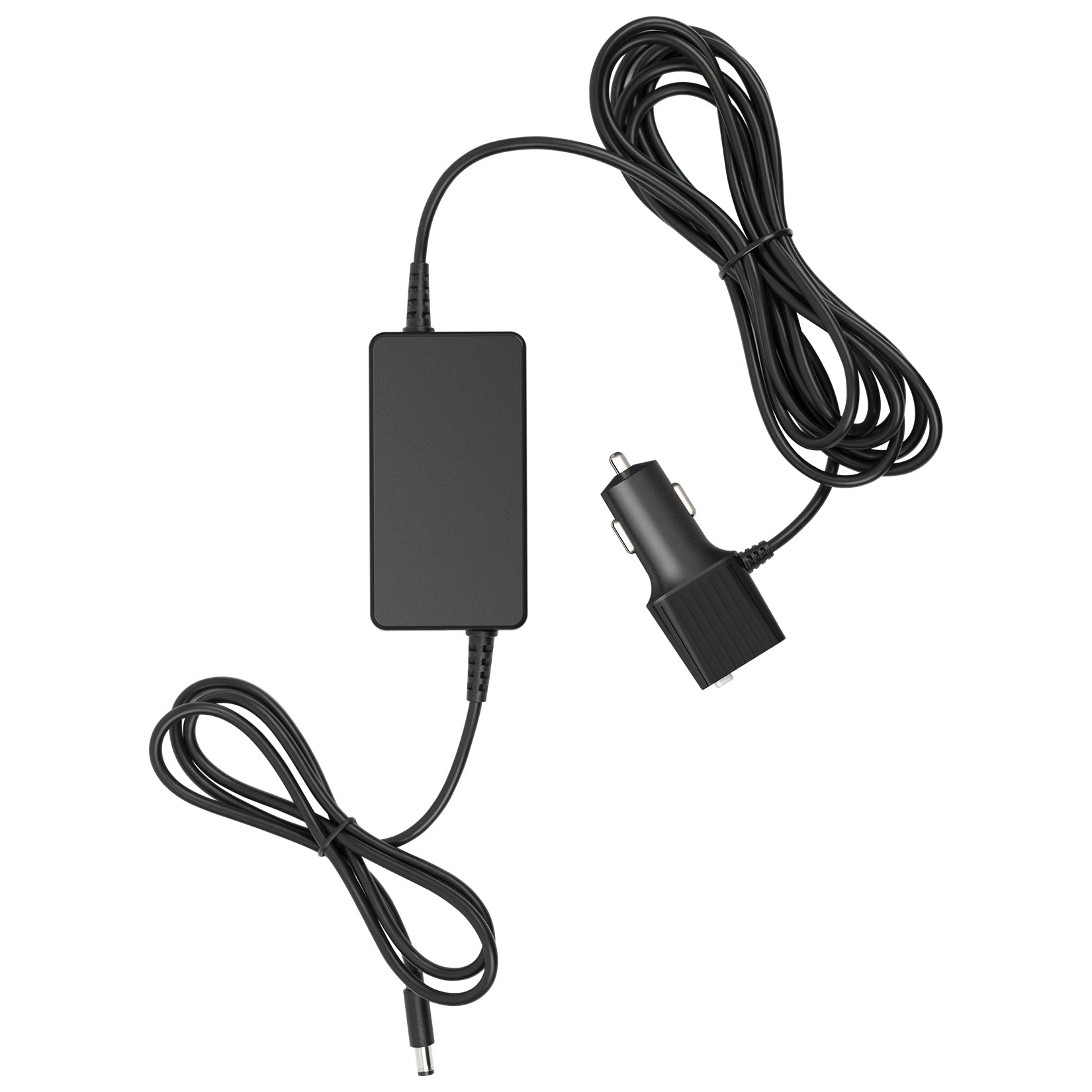

Plug the Amplifier Into the 12 Volt Outlet
The included power supply goes into the same outlet you charge a phone from. If that outlet stays live with the truck shut off, switch the amplifier off when you park for more than a day, so it does not pull on the battery.
Not sure it will fit your vehicle? Send us a message before you order and we will work out where the outside antenna goes on yours.
Which Booster Fits Your Truck?
What changes from one booster to the next is the vehicle it is built for, how the outside antenna mounts, and which one you get.

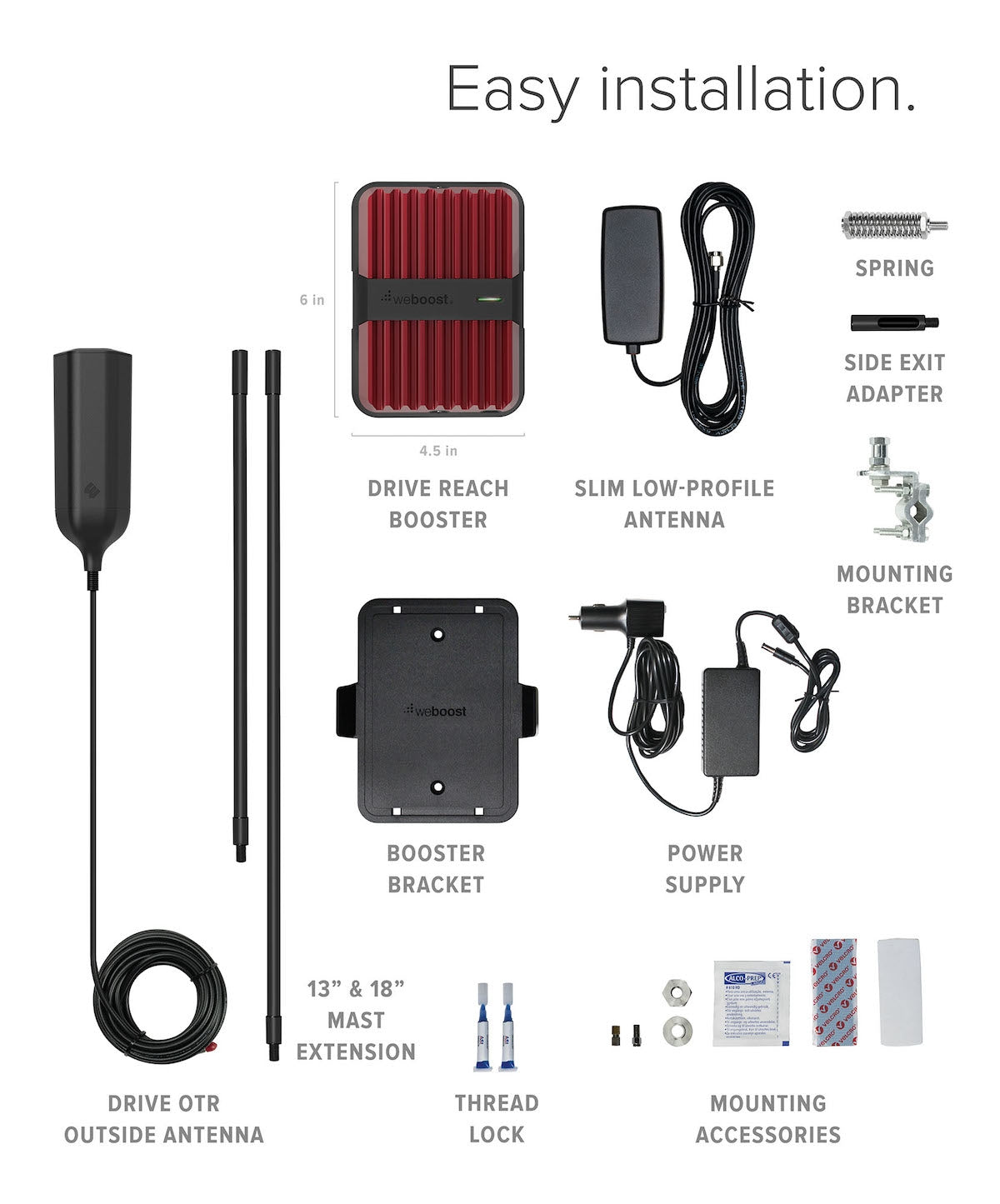

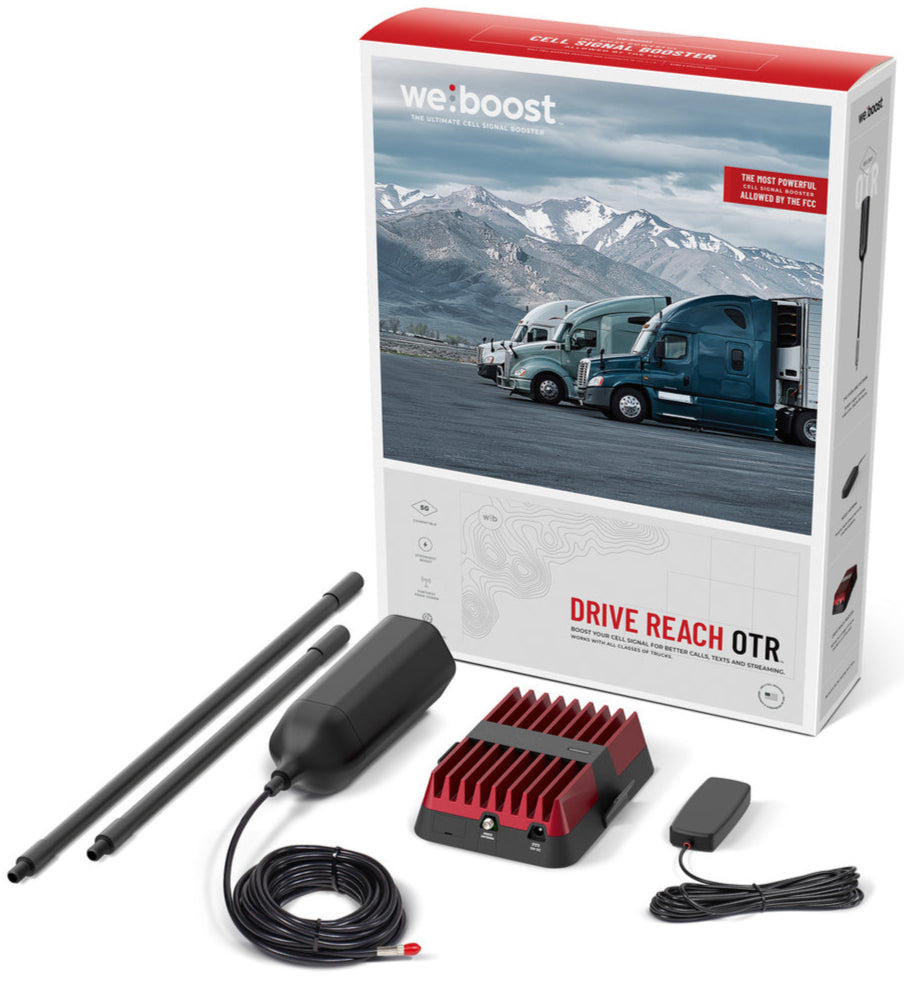

What's Included
Everything below ships together.
-

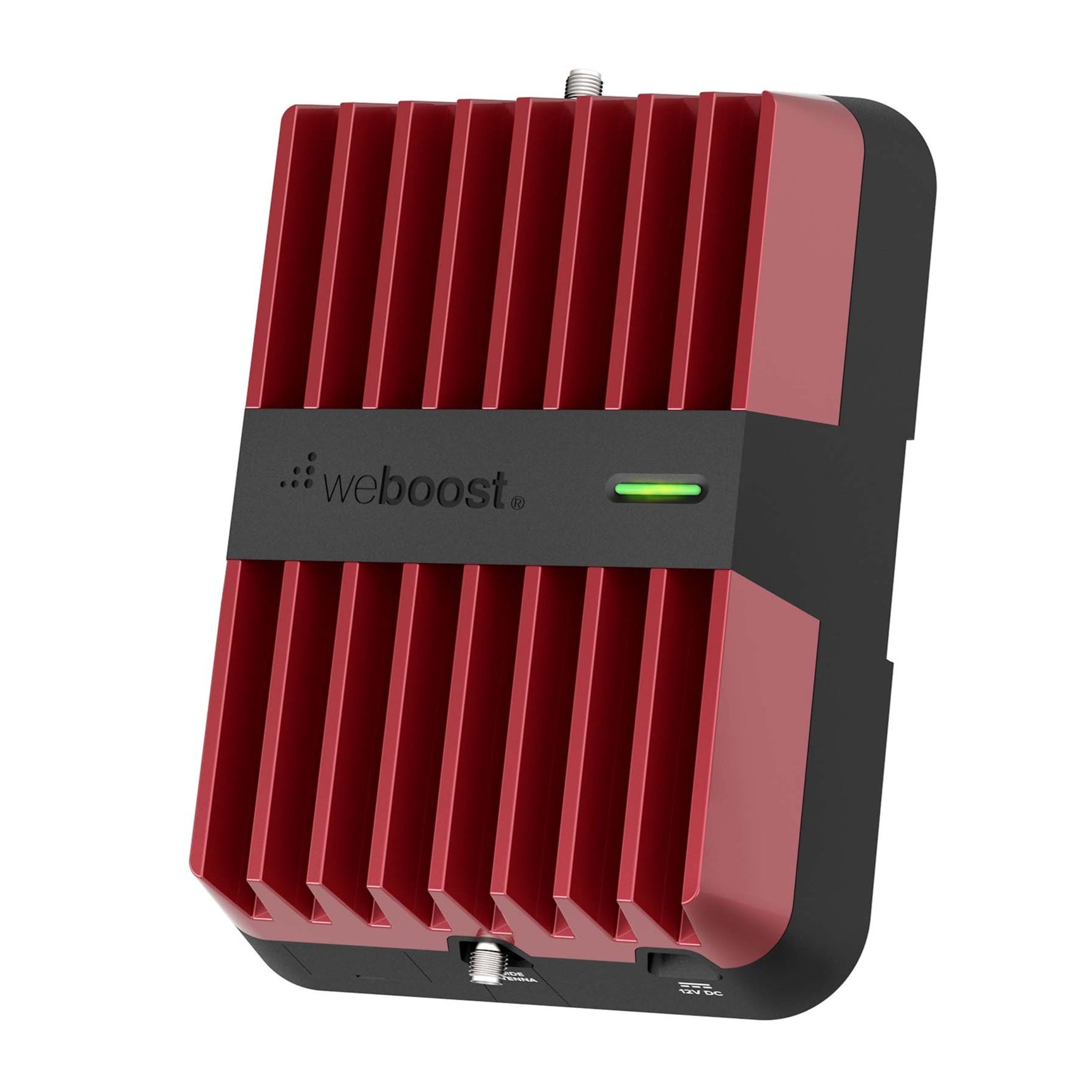

Drive Reach Amplifier
-
Amplifier Mounting Bracket
-

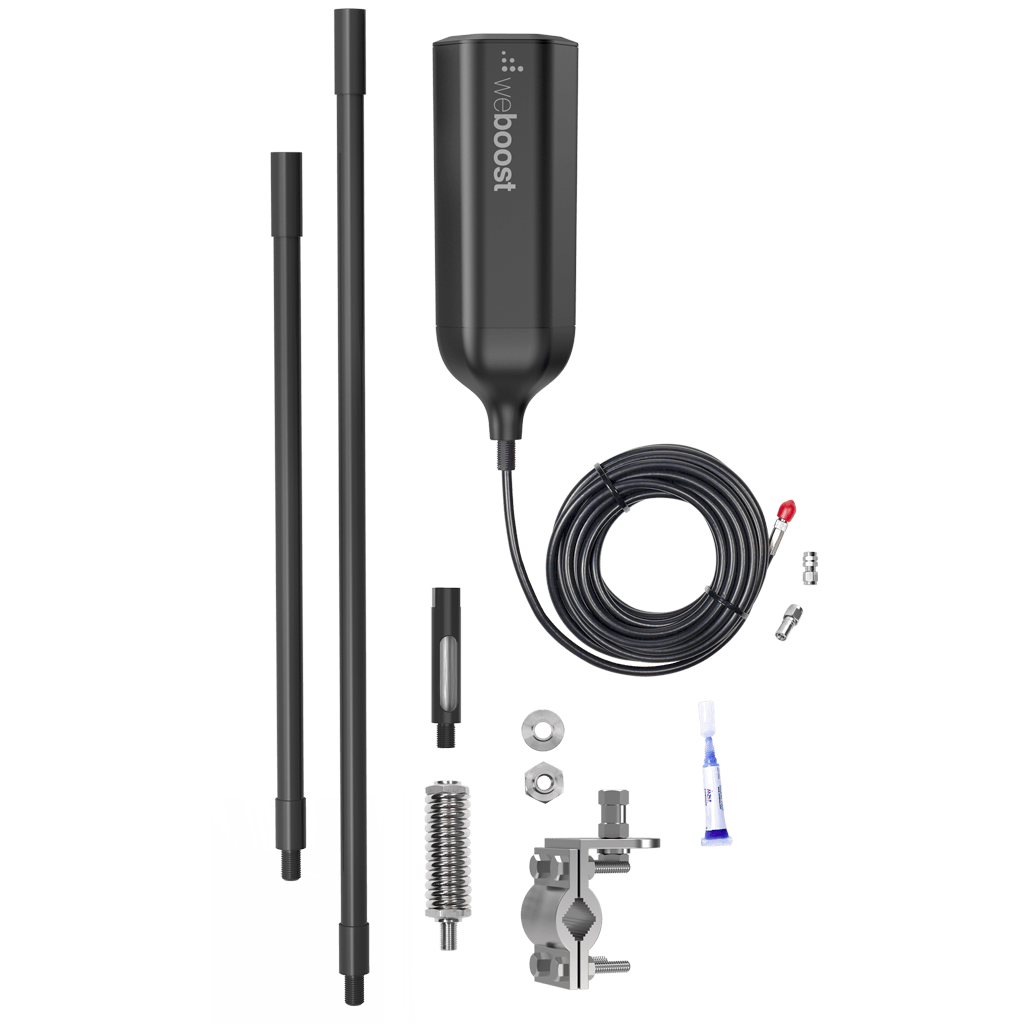

OTR Outside Antenna with Coax Cable
-
13 Inch Mast Extension
-
18 Inch Mast Extension
-
Side Exit Adapter
-
Antenna Spring
-
3-Way Antenna Mount
-
Cable Adapter
-
Slim Low-Profile Inside Antenna
-
Velcro Strips
-
12 Volt Power Supply
The Support That Comes With It
Installation Support
Our team has guided thousands of vehicle installs.
Placement Help
If the boost is smaller than you expected, send us a message and we will work through where the antennas are sitting. That is one of the first things to check.
Lifetime Support
The help does not run out when the warranty does. We are still here for a different vehicle, a new phone, or a setup that stopped working the way it used to.
Recommended Accessory
The included power supply uses the 12 volt outlet. This one hardwires in, powering the amplifier only while the truck runs and handing the outlet back.
Specifications
These are the specifications we have on file for this booster.
| SKU | 477154 |
| UPC | 810005963015 |
| Warranty | 2 Years |
| Condition | New |
| Gain (Up/Down) | |
| Outside Antenna Type | Omnidirectional |
| Inside Antenna Type | Omnidirectional |
| Impedance | |
| Power Requirements | |
| Dimensions |
Product Documents
Open any of them before you order or after your booster arrives.
weBoost Drive Reach OTR Installation Guide weBoost Drive Reach OTR Spec Sheet weBoost Drive Reach OTR One PagerRegulatory Advisories
The FCC requires the advisory below on every consumer signal booster, including this one.
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the three largest carriers (AT&T, T-Mobile, and Verizon) and more than 90 regional carriers have given blanket consent for use of all boosters certified to the current FCC standards.
Why Buy from Us
You're not just buying a booster. You're getting the team behind it.
These are the people who answer when you send us a message.
Frequently Asked Questions
Will it fit my truck?
How tall does the antenna have to be?
Can I lower the antenna for low clearance or for trees?
Will it work where I have no signal at all?
How close does my phone have to be to the inside antenna?
Does it work with my carrier?
Will it boost my hotspot and my laptop?
Will it drain my truck battery?
Do I need my carrier's permission?
How do I know it's working?
