How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.
weBoost Drive Reach Fleet Signal Booster Kit | 470254
Description
Description

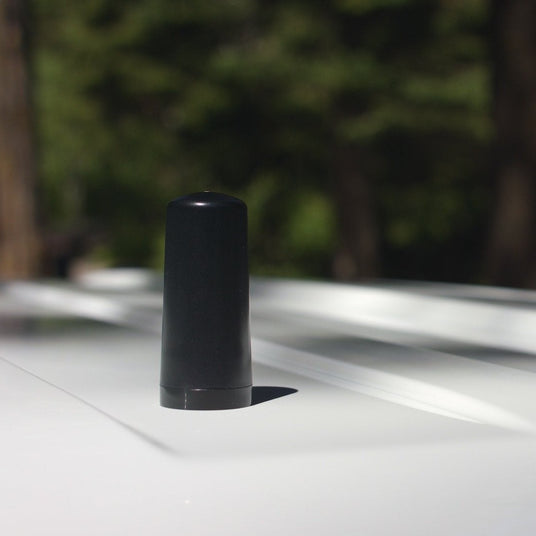

The weBoost 470254 Drive Reach Fleet Signal Booster Kit is designed specifically for fleet & commercial vehicles requiring a permanent signal booster installation. It incorporates a permanent mount 4G NMO antenna and hardwire power supply, combined with weBoost's most powerful mobile amplifier, ensuring reliable and fast cellular connections. The Drive Reach Fleet boosts networks from all carriers in North America, enabling drivers and passengers to stay connected while on the road.
The effective coverage area inside the vehicle with the weBoost Drive Reach Fleet will vary based on the existing outside signal strength. In locations with moderate outside signal, the Drive Reach Fleet will provide amplified coverage throughout a standard vehicle. However, as the outside signal weakens, the interior coverage area diminishes, potentially requiring mobile devices to be kept within approximately 18 inches of the inside antenna for optimal signal boost.
Supported Carriers
The weBoost 470254 Drive Reach Fleet Kit enhances voice, 3G, 4G LTE, and 5G network signals from all major carriers in the United States and Canada. If you're located outside of these areas, please review the supported frequencies to determine compatibility:
- AT&T 2G, 3G, 4G HSPA+, 4G LTE & 5G
- Verizon 2G, 3G, 4G LTE & 5G
- Sprint 2G, 3G & 4G LTE
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies
Please Note: This kit may not be compatible with carriers outside North America due to differing frequency bands.
Kit Contents:
- weBoost Drive Reach Fleet Amplifier
- DC Hardwire Power Supply
- 4G NMO Outside Antenna
- 14 ft NMO Cable
- 6 ft NMO Extension Cable
- Inside Slim Low-Profile Antenna
Specifications
Specifications
-
Warranty Length
Regulatory Advisories
Regulatory Advisories
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
Product Documents
