How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

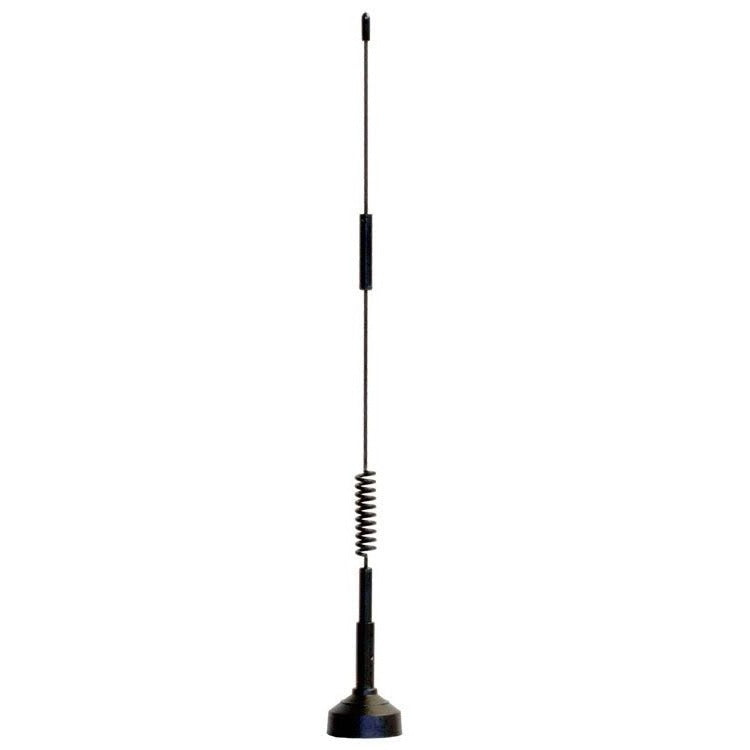

Wilson 311104 Dual Band NMO Mount Antenna
Product Information
Product Information
The Wilson 311104 Dual Band NMO Mount Antenna is a high-quality, vehicle-use antenna designed for permanent installation. It's crafted to enhance signal reception and transmission for cellular mobile communications by connecting to a Wilson Electronics Signal Booster, which is sold separately.
Features:
- Easy installation on vehicles, requiring a permanent mounting solution.
- Requires an antenna adapter (sold separately) for connection to cellular devices or data cards.
- Compatible with Wilson Electronics Signal Boosters, enhancing signal strength and quality.
How it Works:
The NMO Mount Antenna collects signals from cell towers and sends them through the cable to a Signal Booster or directly to the cell phone or cellular data card. When the cellular device transmits, the signal is sent back to the cell tower via the antenna. This process improves communication to and from the cell tower, ensuring better coverage and signal strength.
Installation Highlights:
Installation involves selecting a suitable location on the vehicle, typically centered on the roof for optimal signal reception. A hole is drilled for mounting, and the antenna is securely installed using provided washers and nuts. The antenna requires a metal ground plane for proper operation.
Specifications:
- Frequency Range: 698-716 MHz / 776-787 MHz / 824-849 MHz / 1710-1755 MHz / 1850-1995 MHz
- Impedance: 50 ohms
- Antenna Gain: Varies by frequency, ensuring effective signal amplification and reception.
- Connector: SMA
- Material: Stainless Steel whip for durability and longevity.
- Height: 13.88 inches / 35.3 cm
This antenna is an excellent solution for anyone looking to improve their mobile communication capabilities on the go. With its durable construction and compatibility with Wilson Signal Boosters, the 311104 NMO Mount Antenna ensures reliable performance in a variety of vehicle applications.
