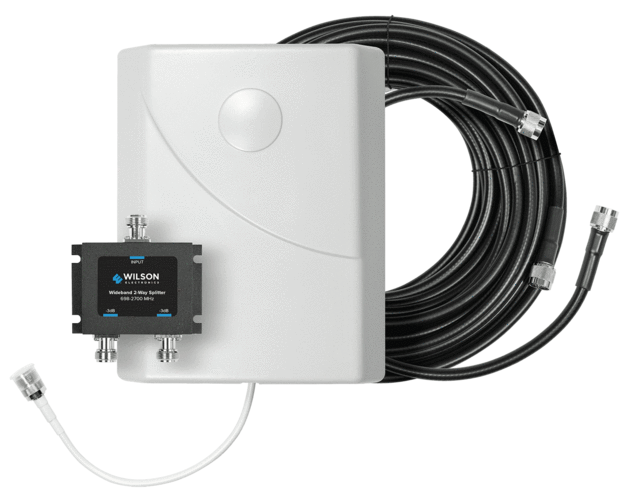

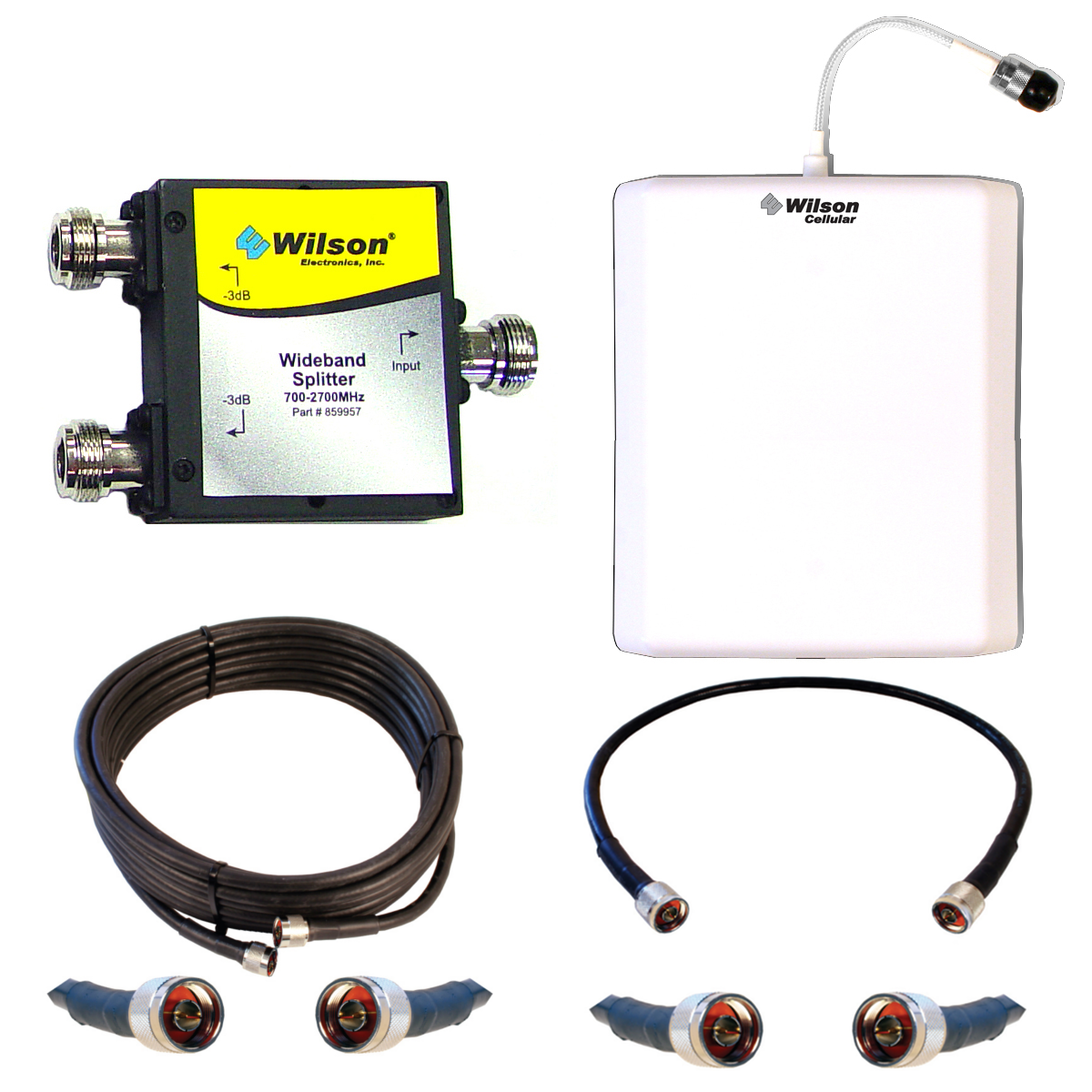

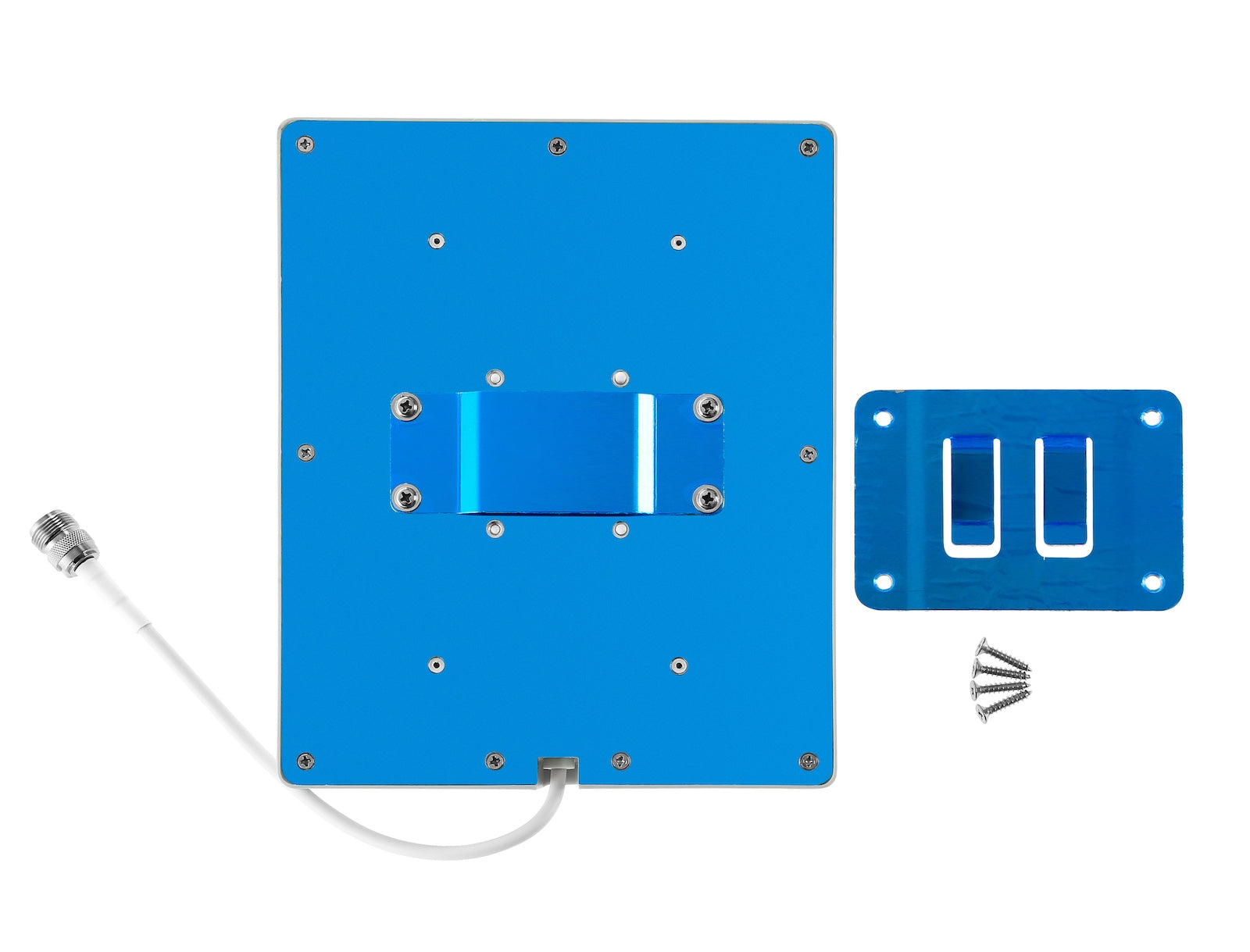

Add-On Inside Panel Antenna Kit for 50 Ohm Signal Boosters | 309906-50N

This kit is crafted to enhance the efficiency and reach of your 50 Ohm signal booster system, making it an excellent solution for expanding coverage in complex building layouts.

Benefits:

• Extended Coverage: Ideal for buildings with challenging layouts like "L" shaped structures, or those with multiple rooms separated by thick walls or multiple floors.
• Enhanced Signal Distribution: Adding a second antenna helps distribute the signal more evenly and effectively across areas that one antenna alone may not adequately cover.

Installation:

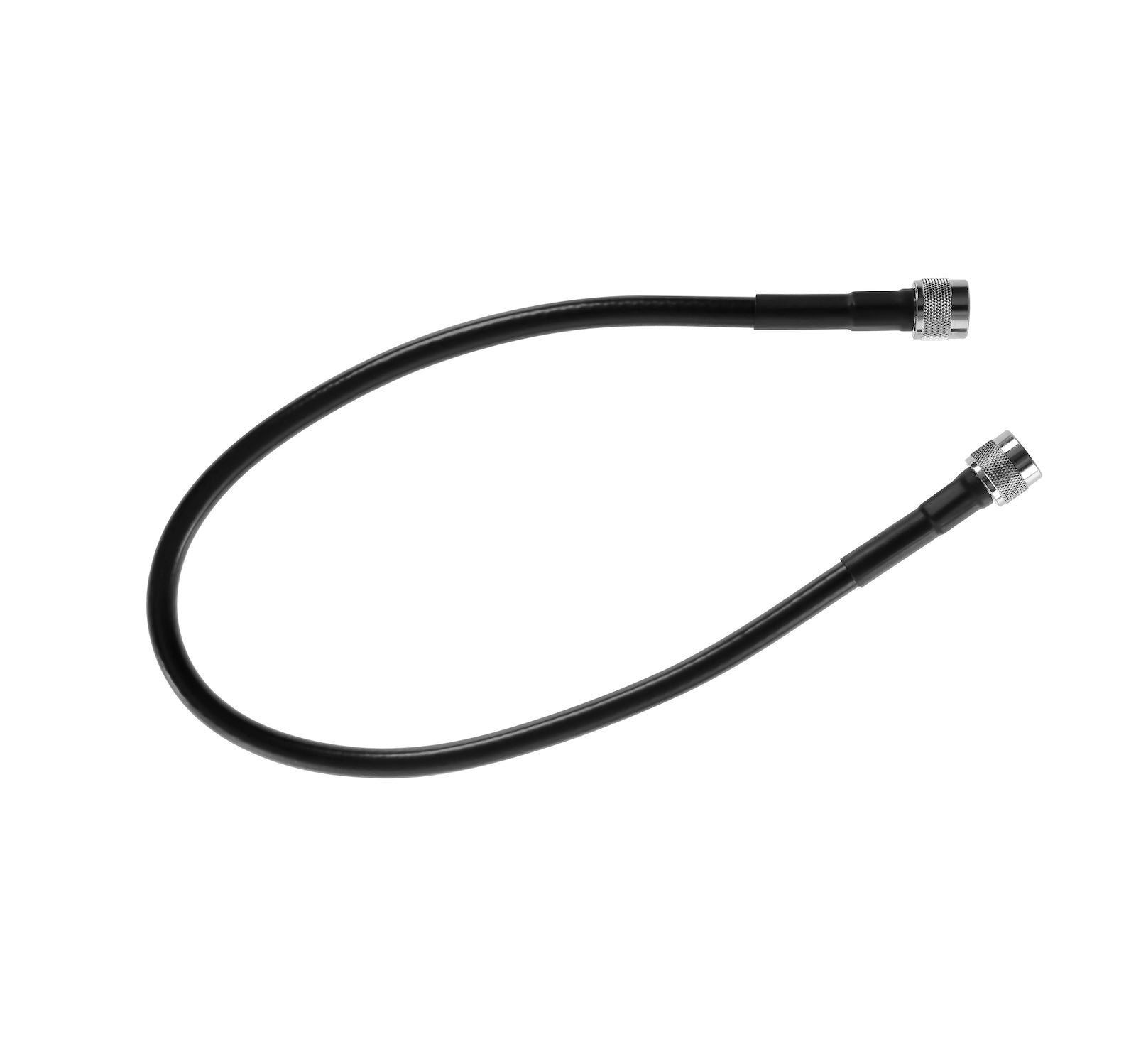

1. Connect the 2' coax cable to the internal antenna port on your amplifier.

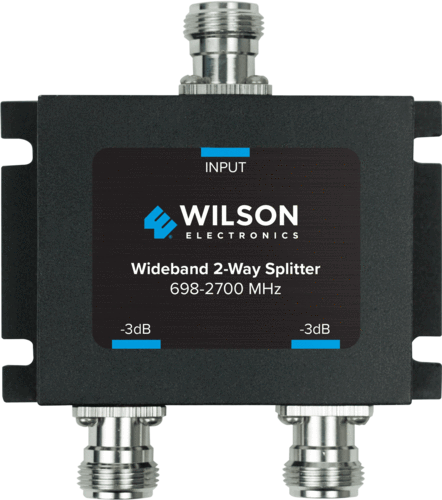

2. Attach the signal splitter to the other end of the 2' coax cable.
3. Utilize one output on the splitter for the antenna and coax cable that came with your original signal booster system.

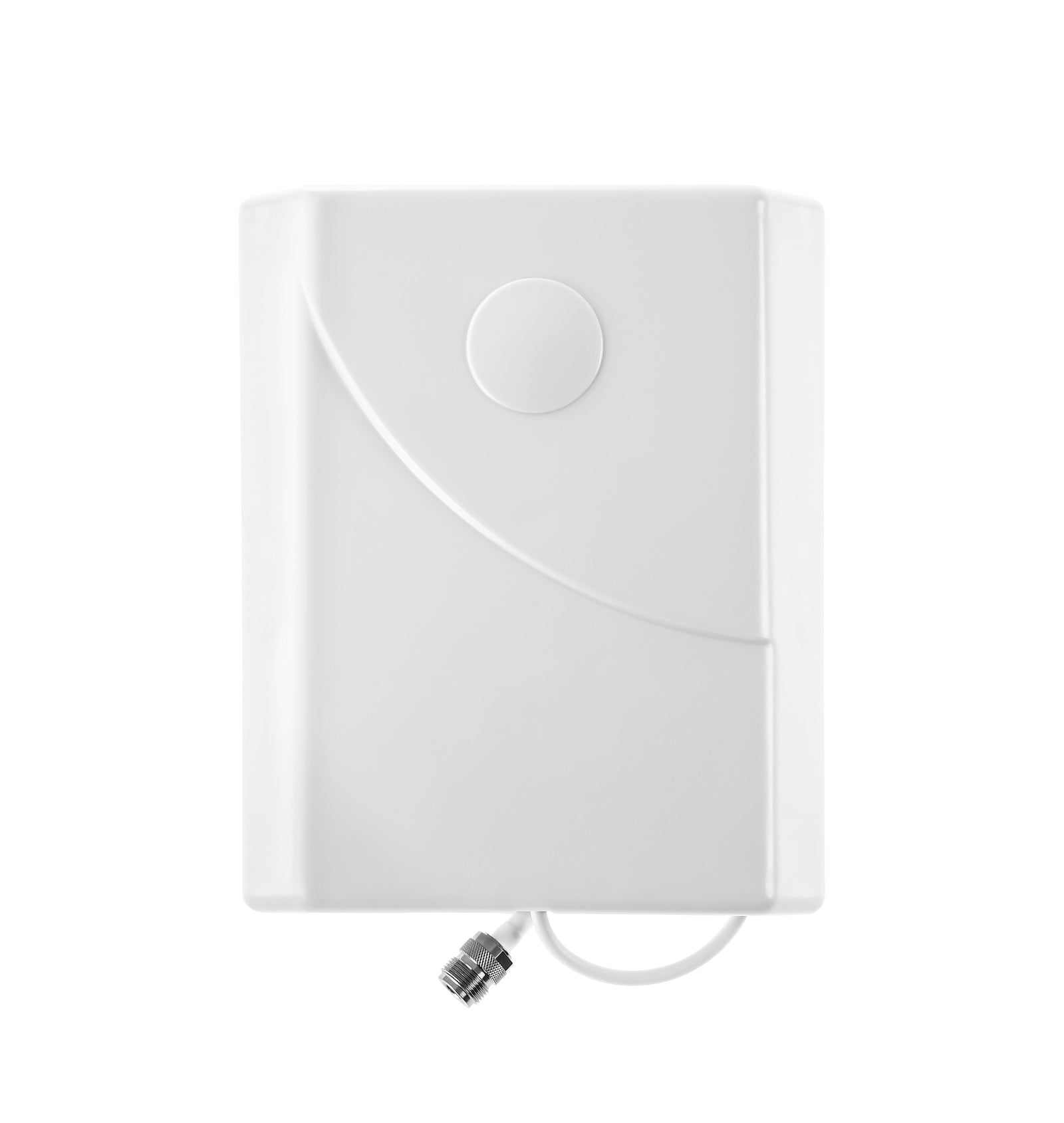

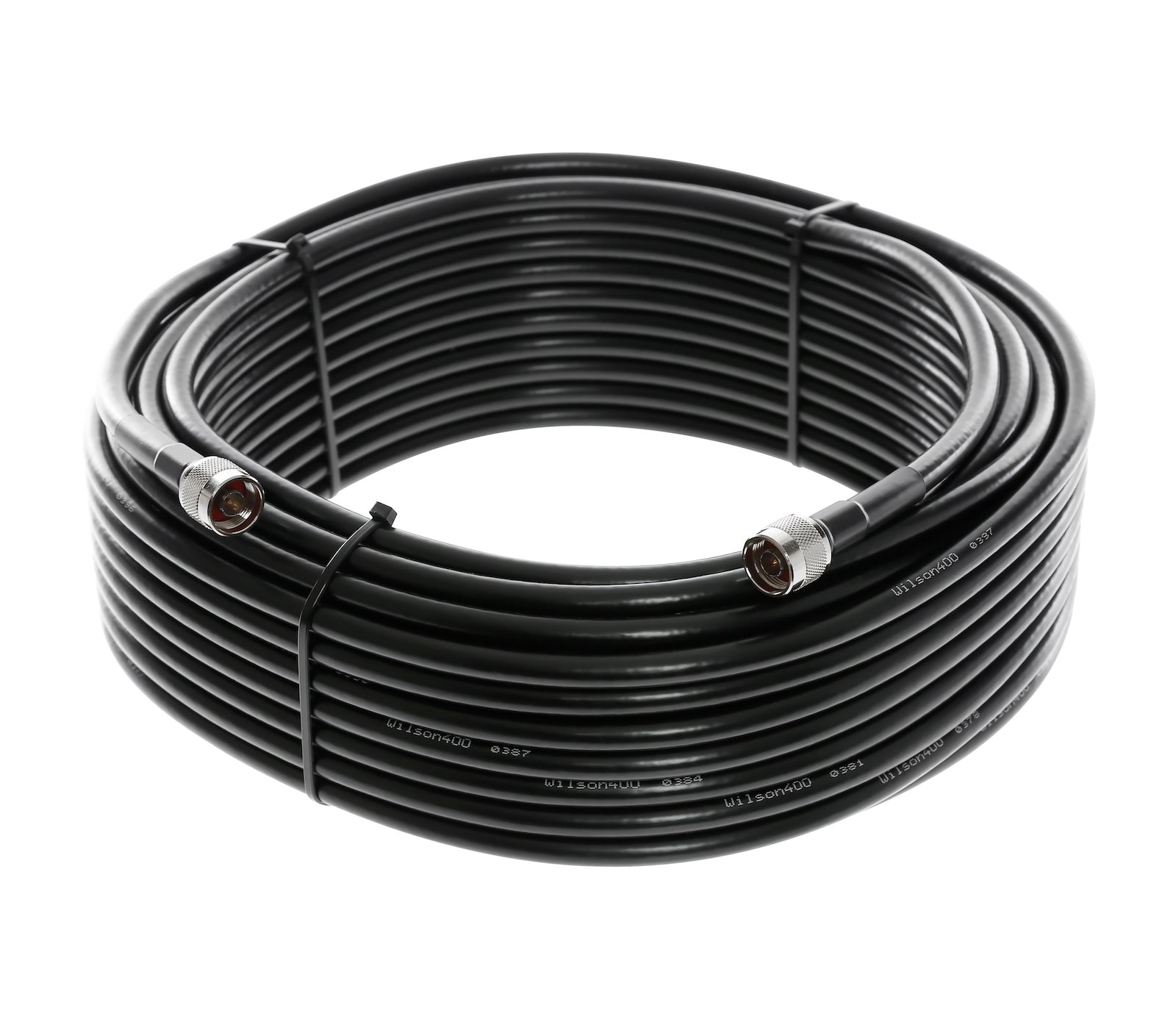

4. Connect the 60' coax cable and panel antenna included in the kit to the other output on the splitter.
5. Test and Adjust: Before permanently mounting the antennas, temporarily place them where you think they should go, power on the system, and test the level of coverage you get in the space you're trying to cover. If you find spots that don't have adequate signal, try adjusting the antennas.

If you encounter any issues or need further assistance, technical support is available to guide you through the setup process.
