How to Choose the Right Antennas for Your Booster
Outside Antennas:
- Yagi Directional Antenna: This antenna is more powerful because it focuses on sending and receiving signals in one direction. It works best when there are no major obstacles blocking its path to the cell tower. It's not ideal for areas with large obstructions like hills or buildings.
- Omni Antenna: This antenna sends and receives in all directions, so it's better for hilly areas or if you need to support multiple carriers with towers in different directions. It doesn’t need to be aimed, but it also isn’t as strong as the Yagi antenna.
- High Gain LPDA Antenna: Perfect for areas with very weak signals, this antenna significantly boosts signal strength. It needs a clear line of sight to the cell tower and requires a sturdy mount because of its size.
Inside Antennas:
- Panel Antenna: Can be placed on walls or ceilings and directs the signal towards a specific area. This antenna is great for homes and tall ceilings in buildings.
- Standard Dome Antenna: Designed to mounted on the ceiling, this antenna spreads the signal evenly throughout the area. It's best suited for drop ceilings or spaces where cables can be run above the ceiling.
- Ultra-Thin Dome Antenna: This slim antenna also mounts to the ceiling, but is much is less noticeable. It's much stronger than a standard dome antenna, making it a great choice for places where both looks and signal strength are important.
Tips for Choosing:
- Choose Omni Antennas for general coverage with no aiming required.
- Choose Directional Antennas (Yagi or LPDA) when you can point directly at a cell tower and need stronger signal and more inside coverage.
- Interior Size Considerations: One antenna per 750-1,500 sq ft in homes, or 1,500-2,500 sq ft in open spaces like offices and warehouses.

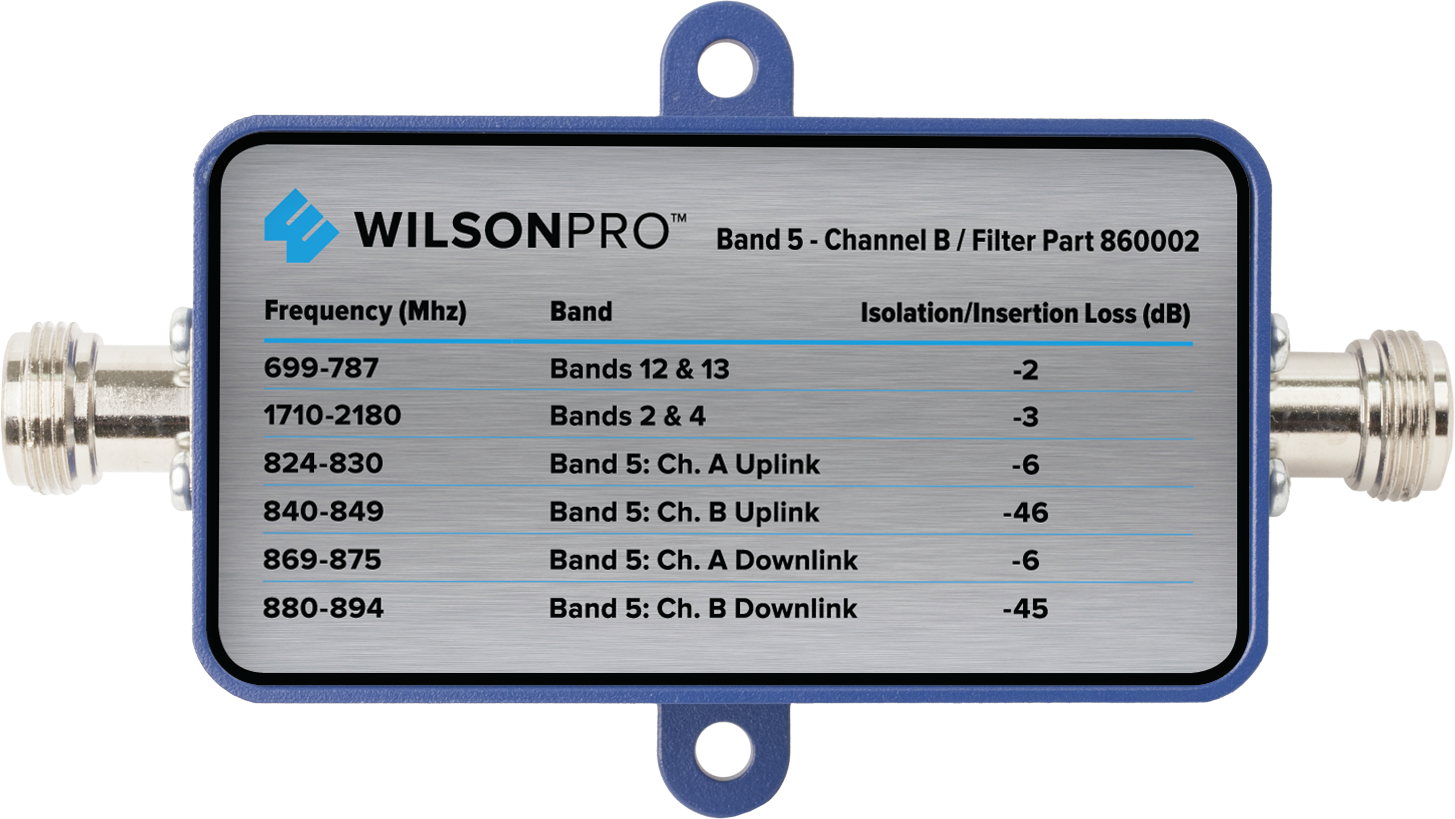

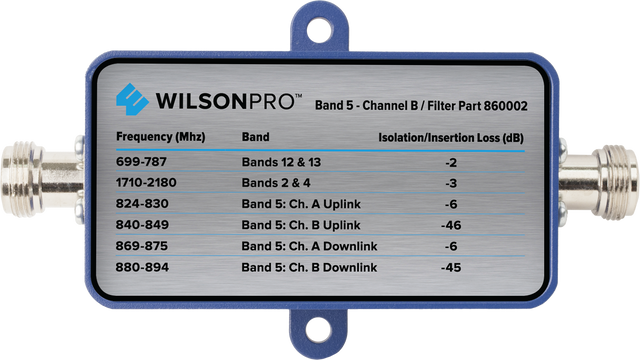

Channelized Filter: Band 5 Channel B Filter (F Connector) | 860002
Product Information
Product Information
The Channelized Filter: Band 5 Channel B Filter (F Connector) | 860002 is expertly engineered to enhance the efficacy of your signal boosting system. It is designed to provide maximum attenuation for Channel B, Band 5, effectively minimizing interference and ensuring cleaner signal transmission within this specific frequency range. This filter allows other channels to transmit with minimal attenuation, preserving both the integrity and strength of desired communications. With a 75 Ohm F Connector, it fits perfectly into setups that require this specification, making it a versatile choice for enhancing system performance. The focus on the Downlink frequency range of 880-894 MHz and the Uplink frequency range of 840-849 MHz makes this filter particularly suitable for those looking to optimize their signal booster by isolating specific frequency bands.
- Maximum Attenuation: Reduces interference in Channel B, Band 5 to ensure a cleaner signal.
- Preservation of Signal Integrity: Facilitates the passage of other channels with minimal attenuation, maintaining robust communication.
- Engineered for Compatibility: Features a 75 Ohm F Connector, ideal for specific system requirements.
- Targeted Frequency Range: Focuses on the Downlink 880-894 MHz and Uplink 840-849 MHz for precise frequency management.
- Optimal Performance: Enhances the overall effectiveness of signal boosters by focusing on critical frequency bands.
