If you have ever wondered why you get four bars in the driveway and nothing in the back bedroom, the answer usually starts at the tower. A cell tower is a structure that holds antennas and radios connecting your phone to your carrier's network over radio waves, and once you understand how that connection works, most of the signal problems people call us about start to make sense.
Your phone is talking to a tower every minute of the day, even when it is sitting in your pocket. The strength and quality of that conversation depend on distance, terrain, what your building is made of, and how busy the network is at that moment. Here is how cell towers actually work, what sits on them, why your signal changes from room to room, and where a signal booster fits into the picture.
What Is a Cell Tower?
A cell tower is a structure that supports antennas and communications equipment used to send and receive wireless signals. It connects your phone to your carrier's network by exchanging radio frequency signals that carry your voice calls, text messages, and mobile data between your device and the rest of the telecommunications system.

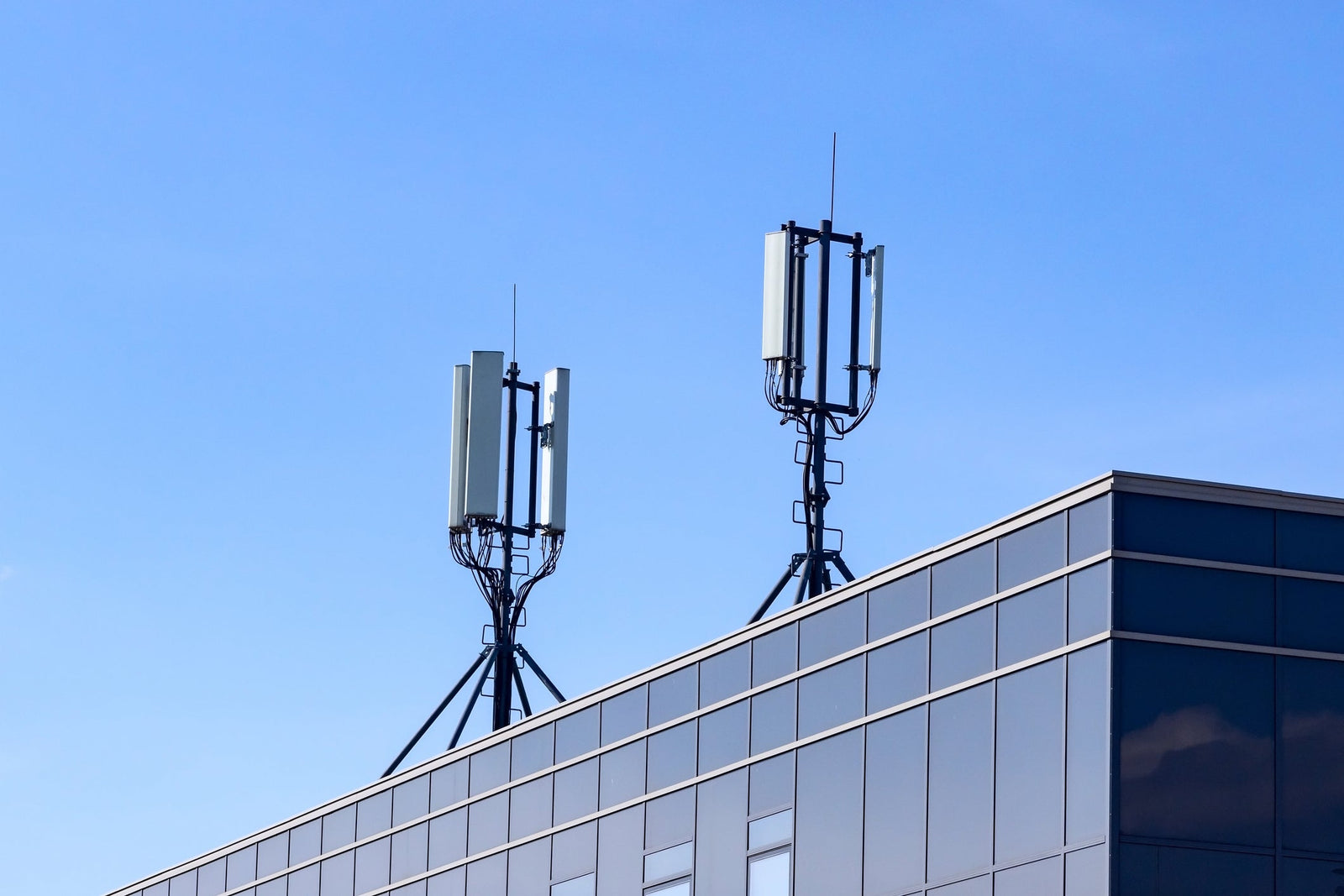

Despite the name, plenty of them do not look like towers at all. You will find cellular gear on freestanding lattice and monopole towers, rooftops, water towers, utility and light poles, and the sides of buildings, and sometimes it is hidden inside fake trees or tucked into architectural features so you never notice it. The shape changes, but the job stays the same, which is putting wireless coverage over a specific geographic area.
Why Are They Called "Cell" Towers?
The name comes from how networks are built. Carriers divide a coverage area into many smaller sections called cells, and each cell is served by a nearby tower running on its own assigned radio frequencies. As you drive across town or down the highway, your phone passes from one cell to the next, and it hands the active connection from tower to tower without dropping your call in a process engineers call a handoff or handover. A modern network is thousands of these overlapping cells stitched together so the coverage feels seamless even though your phone is quietly switching towers the whole time.
How Do Cell Towers Work?
At the simplest level, a cell tower is a two-way relay between your phone and the carrier's network. When you make a call, your phone sends a radio signal to the nearest tower, the tower hands that information off to the carrier's network, and the network routes it to whoever you are calling. The whole exchange happens in a fraction of a second. The same thing plays out every time you send a text, load a website, or stream video, just in both directions at once, and across a busy network it is happening millions of times a second.
What Equipment Is on a Cell Tower?
A modern cell site is a lot more than the antennas you can see from the road. Several pieces work together to move your call from the air onto the carrier's network:
- Antennas send and receive the radio signals that travel between devices and the network. Most sites run several antennas so they can cover different frequency bands and technologies at once.
- Radios convert network traffic into the radio signals that get transmitted over the air, and convert incoming signals back the other way.
- Baseband units process the data and manage the wireless communications. This is the brain of the site, coordinating everything the antennas and radios are doing.
- Backhaul carries the traffic from the tower into the broader carrier network. Most modern sites use high-capacity fiber, while remote locations often rely on point-to-point microwave links instead.
- Power systems keep the site running. Almost every tower includes battery backup and generators so coverage holds up when the grid goes down.
How Far Does a Cell Tower Reach?
There is no single answer, because range depends on frequency, terrain, tower height, antenna setup, and how the network is designed. As a rough guide under good conditions, urban towers often cover under a mile and sometimes only a quarter-mile in dense areas, suburban towers reach a few miles, and rural towers can stretch ten miles or more.
Frequency is the biggest lever. Lower-frequency signals travel farther and punch through obstacles better than higher-frequency ones, so a 600 MHz signal blankets a much larger area than a 3.7 GHz 5G signal does. That is exactly why rural areas lean so heavily on low-band spectrum, and it is a big part of why indoor coverage gets harder as carriers push more traffic onto faster, higher bands. We get into how each band behaves in our guide to cellular frequency bands.
How Do Phones Connect to Cell Towers?
Your phone is in near-constant contact with the towers around it. Even when you are not using it, it periodically checks in with the network to stay registered and ready. When it picks a tower, it weighs several things at once:
- Signal strength
- Signal quality
- Network congestion
- Which frequency bands are available
- Your carrier's network priorities
Here is the part that surprises people. Your phone does not automatically lock onto the closest tower. It connects to whichever one can give it the best overall connection right then, which is why standing next to a tower does not guarantee good service. Signal strength and signal quality are two different things, and a phone will often favor a slightly more distant tower with a cleaner, less crowded signal over a close one that is congested.
Why Does Signal Strength Change?
Your signal shifts as you move because the conditions between you and the tower are always changing. A handful of factors do most of the damage:
- Distance from the tower. Signal weakens the farther you get from it, which is the most common reason rural areas struggle with coverage.
- Building materials. Concrete, brick, metal, and Low-E glass all absorb or reflect cellular signal before it reaches you, and some commercial buildings cut signal by more than 20 dB on their own. We break down which materials are the worst offenders in our guide to building materials that block cell signal.
- Terrain. Mountains, hills, valleys, and heavy vegetation block radio waves and create coverage gaps even when a tower is fairly close.
- Network congestion. When a lot of people use the same tower at once, speeds drop even if your signal bars look full. Coverage and capacity are not the same thing.
- Weather. Modern networks are resilient, but heavy rain and severe storms can occasionally degrade higher-frequency signals and backhaul links.
Cell Tower vs Cell Site, What Is the Difference?
People use these terms interchangeably, but they describe slightly different things. The tower is the physical structure, the steel or pole holding everything up. The cell site is the whole installation, including the antennas, radios, power systems, networking gear, and backhaul. In a lot of cases several carriers share the same tower location, each running their own equipment, which is why one structure can serve AT&T, Verizon, and T-Mobile customers at the same time.
How 4G LTE and 5G Towers Differ
The basic idea is the same for both, but 5G adds more spectrum and some new network architecture on top. LTE towers mostly use low-band and mid-band frequencies to deliver broad, reliable coverage. 5G mixes in three layers instead, using low-band for reach, mid-band such as C-Band around 3.7 GHz for a strong balance of speed and coverage, and high-band millimeter wave for extremely fast speeds over very short distances. That millimeter wave is fast but fragile, since it barely travels and struggles to get through walls, so carriers fill the gaps by adding small cells in busy areas.
What Are Small Cells?
Small cells are miniature cellular base stations built to add capacity and coverage where a full tower would be overkill or impractical. Instead of standing on their own structures, they usually mount on existing infrastructure:
- Utility poles
- Streetlights
- Traffic signals
- Building exteriors
They matter most for 5G in dense, high-traffic places like downtowns and stadiums, where the higher-frequency bands cannot reach far and the network needs more nodes packed closer together. This is not a someday plan, either. More than 160,000 small cells are already deployed across the United States, and carriers keep adding them to expand 5G capacity in the busiest areas.
How Cell Towers Affect Signal Boosters
A cell phone signal booster works off the signal a nearby tower is already putting out. The outside antenna captures whatever signal is reaching your property, the amplifier strengthens it, and the inside antenna rebroadcasts that stronger signal through your space. How well it works comes down to the quality of the outdoor signal it has to work with, and even a fairly weak tower signal can usually be amplified into something genuinely usable indoors. That is why homes, offices, warehouses, schools, and commercial buildings all use boosters to claw back the signal their construction is eating.
Here is what we tell people who call us. A booster does not reach out and pull signal from a far-off tower the way a lot of folks picture it. It amplifies the signal that is already arriving at your building, so the honest limitation is this. If there is truly zero signal outside, not weak, zero, the booster has nothing to amplify and cannot help. As long as there is some signal at the roofline, even a single bar, there is usually something worth amplifying, and we would rather tell you that up front than sell you something that will not do the job.
Can You Find Your Nearest Cell Tower?
Yes, and a few tools make it pretty easy. The FCC's coverage and broadband maps show carrier coverage by area, CellMapper crowdsources tower locations from real devices, and your carrier's own coverage map is worth a look too. Knowing where the towers are can help when you are troubleshooting weak signal, aiming an outside antenna, installing a booster, or comparing carriers before you switch.
One caveat worth remembering. Being close to a tower does not guarantee good service. Terrain, the frequency bands that tower uses, and how congested it is all shape what you actually get, so the nearest tower is not always the one your phone is using or the one giving you the best connection.
The Bottom Line
The cell tower is what your phone is really talking to every minute of the day, and most signal problems come down to what happens in the gap between the tower and your device. Distance, terrain, building materials, and network congestion each chip away at the signal before it reaches you, which is why coverage that is fine on the sidewalk can fall apart two rooms into a building. When the signal makes it to your property but dies inside, that is exactly the gap a booster closes.
If you are not sure whether a booster makes sense for your situation, talk to us before you spend anything. We have spent over a decade matching boosters to homes, vehicles, and buildings, and a quick conversation usually saves people from buying the wrong size. Call 1-888-974-8237, Monday through Friday, 9am to 5pm ET, and we will walk through it with you. You can start with a home booster or a commercial system depending on your space, orders over $99 ship free, and everything is backed by a 90-day return window.
References
- FCC. Cellular Service (overview of cellular network structure and licensing).
- CTIA. Wireless Infrastructure (U.S. macro tower and small-cell counts).
- FCC. National Broadband Map (carrier coverage lookup by location).
- Verizon. 5G Frequency Bands Explained (low-band, mid-band, and mmWave coverage versus speed).
- GSMA Intelligence. Global mobile connection and infrastructure data.
- 3GPP. Technical specifications for LTE and 5G radio access networks.
- Rappaport, T.S. Wireless Communications: Principles and Practice, 2nd Edition, Prentice Hall.
- Molisch, A.F. Wireless Communications, 3rd Edition, Wiley.
- Wilson Electronics. How Does a Cell Phone Signal Booster Work? (booster signal-capture and amplification basics).
