Installing a cell phone signal booster comes down to four stages. Find the strongest available outside signal, mount the outside antenna there, connect it to the amplifier with coax cable, and place the inside antenna where you need better reception. Placement and separation decide how well the whole system performs, so this guide spends its time on both, whether you're installing at home or in a vehicle.
Key Takeaways
- A booster needs existing outside signal to work. It boosts what's there, it can't create carrier coverage.
- Put the outside antenna wherever your measurements say the signal is strongest, not wherever the cable run is easiest.
- Keep the outside and inside antennas well separated to prevent oscillation, the feedback loop that makes a booster power itself down.
- Keep coax runs short and direct, since cable eats a little signal for every foot it travels.
- Test the complete system before you drill, seal, or permanently mount anything.
How Does a Cell Phone Signal Booster Work?
A booster receives an existing outside cellular signal, boosts it, and broadcasts the stronger version inside your home, building, vehicle, or RV.
Most systems have four parts:
- An outside antenna
- An amplifier
- An inside antenna
- Coax cables connecting them
The outside antenna receives your carrier's downlink signal and sends it through the coax to the amplifier, which boosts it. The inside antenna then broadcasts that stronger signal to the phones and hotspots nearby. The chain also runs in reverse, so your phone's uplink gets boosted on its way back to the tower, and that return path matters just as much over long distances.
One boundary is worth stating early. A cellular booster improves cell signal, not Wi-Fi. Boosters and Wi-Fi extenders work on different frequencies and solve unrelated problems.
What to Do Before Installing a Cell Phone Signal Booster
Before anything gets mounted, confirm that usable service exists somewhere outside. The outside antenna has to receive a workable carrier signal before the amplifier has anything to boost.
Walk the outside of the building and check reception on every side. Test at ground level and, where it's safe, higher up. The strongest reading is often on the roof, though plenty of homes get their best signal on one specific wall facing the serving tower.
Don't mount anything permanently during this first survey, and read the install instructions that came with your specific system before you start. Separation requirements, approved components, cable types, and mounting steps vary by model.
How to Measure Cellular Signal Before Installation
Measure in dBm rather than bars whenever your phone gives you access to the number. dBm readings are negative, and closer to zero means stronger, so -80 dBm beats -105 dBm.
The grading below comes from the chart in weBoost's own install guides for LTE signal, which is the sensible scale to install against since it's what the equipment manufacturer uses.
| Outside Reading | weBoost's Grade |
|---|---|
| -90 dBm or better | Excellent |
| -91 to -105 dBm | Good |
| -106 to -110 dBm | Fair |
| -111 to -119 dBm | Poor |
| Around -120 dBm | Dead zone |
Bars can't do this job. There's no industry standard for how bars map to measured signal, so each manufacturer draws its own lines, and the same tower can light up three bars on one phone and two on another. Bars also say nothing about signal quality, which is a separate problem we break down in our guide to signal strength versus signal quality.
How to Install a Cell Phone Signal Booster at Home
A home installation follows the signal path itself. The signal runs from the outside antenna through the coax to the amplifier, then on to the inside antenna and the rooms that need coverage. The exact steps vary by model and building, but this process fits most residential systems.
Step 1: Find the Strongest Outdoor Cellular Signal
Test on every accessible side of the building before you choose the outside antenna's spot, and take several readings per side rather than trusting one. Readings shift with tower direction, terrain, trees, and nearby buildings. If you're not sure where your serving tower even is, our guide to finding your closest cell tower will get you pointed the right way.
With a directional antenna, find both the strongest location and the strongest direction. Rotate in small steps and give your phone time to catch up between readings.
Resist the pull of the convenient spot. A short cable run helps, but a stronger, cleaner outside signal usually matters more.
Step 2: Choose the Correct Outside Antenna
Home systems use either an omnidirectional or a directional outside antenna.
| Antenna Type | How It Receives | Best Fit | Install Consideration |
|---|---|---|---|
| Omnidirectional | Receives from every horizontal direction at once | Decent outside signal, or towers in different directions | No precise aiming needed |
| Directional | Concentrates reception toward one direction | Weak rural signal or a single distant tower | Must be aimed at the most useful signal |
The omni is the easier install and makes sense when outside signal is reasonably strong or your carriers use towers in different spots. A directional antenna, like a Yagi, focuses on one direction, which is what you want with weak rural signal or a distant tower. Neither is universally better, your towers and terrain decide. You can compare booster antennas by type once you know which way your install leans.

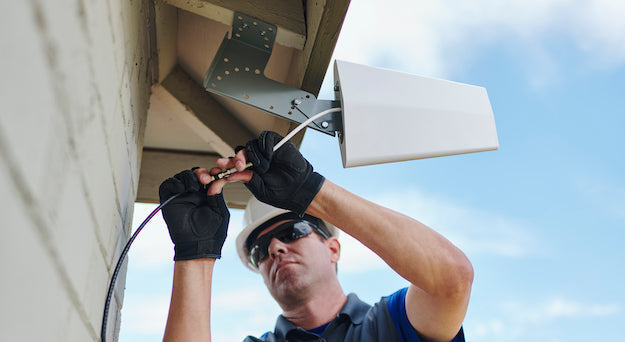

Step 3: Mount the Outside Antenna
Mount it wherever testing said the signal is strongest. That might be the roofline, a chimney mount, a mast, or an exterior wall. Height often helps because it clears obstructions, but the highest spot isn't automatically the best one, your measurements outrank the ladder.
Keep the antenna clear of large metal where you can. Metal roofing, HVAC units, solar hardware, and vents all reflect or block radio energy. Follow the manufacturer's orientation instructions too, since many antennas need to stay vertical to work as designed.
Stay away from overhead power lines, use real fall protection, and hand the job to a qualified installer the moment it exceeds your comfort or your equipment. No signal upgrade is worth a ladder accident.
Step 4: Route the Coax Cable Into the Building
Connect the approved coax to the outside antenna and route it toward the amplifier location, keeping the run as short and direct as you can. Coax loses a little signal for every foot it travels, which installers call insertion loss, so a long meandering run gives away performance before the amplifier ever gets involved.
Avoid sharp bends, crushed sections, and pointless loops, and use an existing entry point when one works, like an attic vent, a wall penetration, or a utility entry. For a permanent rooftop or mast install, add an inline lightning surge protector where the cable enters the building and ground it to code. The National Electrical Code covers outdoor antennas, and local requirements vary, so check yours. Seal the penetrations against weather only after the system has proven itself.
Step 5: Choose a Location for the Amplifier
The amplifier wants a dry, ventilated indoor spot near power. Keep it away from water, direct sun, temperature extremes, and anything that blocks airflow, since it produces heat while running.
It doesn't need to sit in the middle of the coverage area. The inside antenna decides where the boosted signal goes, the amplifier just needs practical cable routes to both antennas. Leave it unpowered until everything is connected, weBoost's guides are explicit about that order.
Step 6: Install the Inside Antenna
Put the inside antenna where you actually need the coverage. Home systems typically use a panel antenna, which mounts on a wall and broadcasts forward into a room or hallway, or a dome antenna, which mounts on a ceiling and spreads coverage around and below itself in open floor plans.
Building materials decide how far that indoor coverage reaches. Concrete, brick, metal framing, and ductwork all shave it down, so place the antenna near the rooms where phones get used most instead of expecting one unit to blanket every floor.
Step 7: Maintain Separation Between the Antennas
Keep real distance between the outside and inside antennas. Without it you get oscillation, the booster equivalent of pointing a microphone at its own speaker. The amplified indoor signal leaks back into the outside antenna and gets boosted all over again.
Boosters protect the network from this automatically by cutting their own gain or shutting down the affected bands, which means poor separation quietly costs you coverage even though the lights stay on. weBoost's home guides call for 50 feet of horizontal separation or 20 feet of vertical, and vertical is the better kind, since the floors between the antennas add isolation. Check your own system's guide for its exact requirement.
Step 8: Connect and Power On the Booster
Match each cable to its labeled port, most boosters mark the outside antenna and inside antenna connections separately, and reversing them is one of the classic reasons a brand-new install doesn't work. Finger-tighten the connectors only, no tools, then plug in the amplifier and read its indicator lights against the manual, since light patterns differ by model.
Step 9: Test Cellular Signal and Coverage
Test in several rooms with the booster on, then off, and compare dBm readings, call reliability, and data speeds. Give your phone a moment to re-register after each change.
Start near the inside antenna. If things improve there but not two rooms over, the system is likely working fine and the coverage area is simply limited by the outside signal or the building itself.
Once you're satisfied, and only then, mount everything permanently and seal the penetrations. weBoost calls this the soft install, and it's the single piece of advice our support team repeats most. Testing before you drill costs minutes, re-drilling costs a weekend.
How to Install a Cell Phone Signal Booster in a Vehicle
Vehicle installs are quicker than home installs. The cables are shorter, the antennas are made for mobile use, and there are only a few placement decisions to make.
Step 1: Mount the Outside Vehicle Antenna
Put the outside antenna on the roof, near the center when you can. weBoost's vehicle guides ask for at least 12 inches from windows and any other antennas, and the roof position keeps it above the body metal with a clear view toward the towers. Magnetic mounts need a metal surface, so aluminum roofs take an adhesive mounting disk instead. Keep it clear of racks, cargo, and light bars.
Step 2: Route the Antenna Cable
Run the cable into the cabin through a door jamb or hatch opening, tucked under the weather stripping so the seal closes without pinching it. Keep it away from hinges, sharp edges, pedals, seat tracks, and hot components, and don't coil the excess into tight loops unless the manual allows it.
Step 3: Install the Vehicle Amplifier
Secure the amplifier somewhere dry with decent airflow, under or behind a seat is the usual home. Keep it clear of airbags, seat rails, pedals, and anything safety-related, then connect the outside antenna cable to its port.
Step 4: Position the Inside Vehicle Antenna
Place the inside antenna close to where the phones actually ride. weBoost's Drive Reach guide puts it 18 to 36 inches from the device, and closer matters more as the outside signal gets weaker, since vehicle boosters create a fairly tight bubble of coverage. The metal roof between the two antennas provides isolation, but follow your system's separation requirements all the same.
Step 5: Connect Power and Test the System
Connect to the 12V power source the manual specifies, then test calls, texts, data, and hotspot performance parked somewhere safe. Never adjust phones or the booster while driving. Conditions change constantly on the road, and a booster extends your usable range without ever creating coverage your carrier doesn't have.
Home vs. Vehicle Signal Booster Installation
Home and vehicle systems boost signal the same way but install differently.
| Installation Factor | Home Booster | Vehicle Booster |
|---|---|---|
| Outside antenna | Roof, wall, chimney, or mast mounted | Vehicle roof or approved exterior mount |
| Outside antenna type | Directional or omnidirectional | Typically omnidirectional |
| Inside antenna | Wall-mounted panel or ceiling dome | Compact low-profile antenna |
| Cable length | Longer runs are common | Short runs |
| Antenna separation | Distance and building materials provide isolation | The metal roof and spacing provide isolation |
| Coverage goal | A room, a floor, or a building | Driver and passengers |
Don't run a home booster in a moving vehicle. Stationary and mobile systems are certified under different FCC rules, and the equipment isn't interchangeable.
Common Cell Phone Signal Booster Installation Mistakes
These are the mistakes our support team untangles most often.
- Mounting the outside antenna wherever the ladder reaches. Convenient is not the same as strong, and the booster can't give back what a poor location never received. Measure first.
- Judging everything by bars. Use dBm readings and test real calls and data.
- Putting the antennas too close together. Oscillation makes the booster cut its own gain, so more separation means more coverage.
- Using more coax than the run needs. Every extra foot adds loss, and cables shouldn't be swapped or shortened unless the manufacturer approves the change.
- Aiming a directional antenna at the nearest tower on a map. Aim at the strongest usable signal instead, which sometimes arrives by reflection or from a farther tower.
- Drilling before testing. The soft install exists for a reason, so run the whole system temporarily before anything becomes permanent.
Factors That Affect Signal Booster Performance After Installation
The outside signal is the input that decides everything else. Stronger, cleaner input supports a bigger indoor footprint, while distance from the tower, terrain, antenna height and aim, cable length, and building materials each take their cut. Congestion is the one thing the system can't touch, since a booster improves your radio link without adding capacity to the tower itself.
What a Cell Phone Signal Booster Cannot Fix
A booster can't create coverage where no usable carrier signal exists. If nothing workable reaches the outside antenna, there's nothing to boost, and relocating or raising the antenna is the only lever left.
A booster also can't:
- Add bandwidth to a congested tower
- Guarantee a specific download or upload speed
- Improve Wi-Fi, since it works on cellular frequencies
- Boost frequencies outside its approved operating bands
- Fix a damaged phone, inactive SIM, or suspended account
Choosing a Cell Phone Signal Booster and Antennas
Match the system to the building, the outside signal, the coverage you want, and your carriers. An apartment, a large house, a pickup, and a metal warehouse are four different problems, and advertised coverage numbers assume favorable outside signal, so treat them as ceilings rather than promises.
Browse home signal boosters or vehicle signal boosters to see what fits, and compare antennas if your system supports different configurations. Not sure what your situation needs? Call us at 1-888-974-8237, Monday through Friday, 9am to 5pm ET. Our team has walked more installs over the phone than we could count, and if your outside signal won't support a booster, we'll say so before you spend anything. Orders $99 and up ship free.
