WilsonPro 1050 Enterprise Signal Booster and Inline Amplifier | 460230 [Discontinued]

The WilsonPro 1050 Enterprise Signal Booster and Inline Amplifier (460230) is the first and only signal booster system on the market to incorporate an inline amplifier, making it the ideal solution for situations requiring very long cable runs between the main amplifier and the indoor coverage area. It boosts 2G, 3G, 4G LTE, and 5G signals for major North American carriers, providing up to 30,000 sq ft of coverage in areas with strong outside signals.

Designed to compensate for signal loss equivalent to between 100 and 300 ft of LMR400 cable, it's perfect for highrise buildings, basements, and equipment rooms. The system's +15 dBm downlink power and Extended Dynamic Range (XDR) technology allow it to handle any outside signal environment by adjusting the boosting power as needed to prevent overload from nearby towers.

Features of the WilsonPro 1050 include:

• An enterprise-grade, wall-mount main amplifier with integrated power supply.
• An inline amplifier that calculates signal loss along the cable and compensates accordingly.
• XDR Technology to scale boosting power and prevent overload.
• A digital display with a built-in signal meter for installation ease.
• A comprehensive kit with ultra-low loss cables, commercial-grade antennas, and a lightning protector.

Key points about the inline amplifier:

• Provides additional gain to compensate for long cable runs.
• Must be used with the main amplifier; no other components should be inserted between them.

Cable length estimates for compatibility between the Main and Inline Amplifiers vary by cable type, from RG-6 to 900 Series, supporting lengths from 50 to 700 ft.

Custom System Design:

A professional design is recommended to maximize the system's effectiveness. A free service is available to create a tailored solution that includes even higher quality components.

Coverage Area:

The coverage area depends on the external signal strength, with up to 30,000 sq ft possible under optimal conditions. Various factors, including building materials and layout, affect the actual coverage.

Supported Carriers:

The system boosts signals for virtually all U.S. and Canadian carriers, covering a range of frequencies. It may not be compatible with carriers in Europe, Asia, and Africa due to different frequency uses.

Accessories:

The kit includes all necessary components for immediate installation, but additional accessories like the Pole Mount Assembly may enhance the setup.

In the Box:

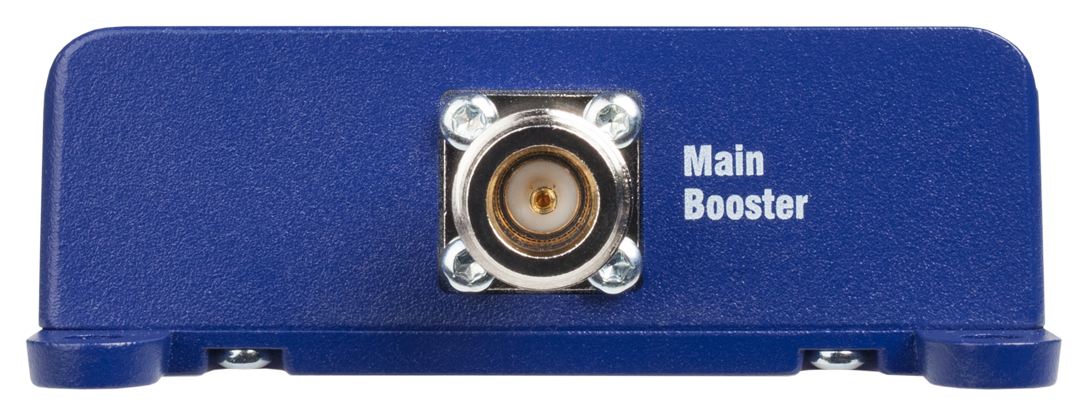

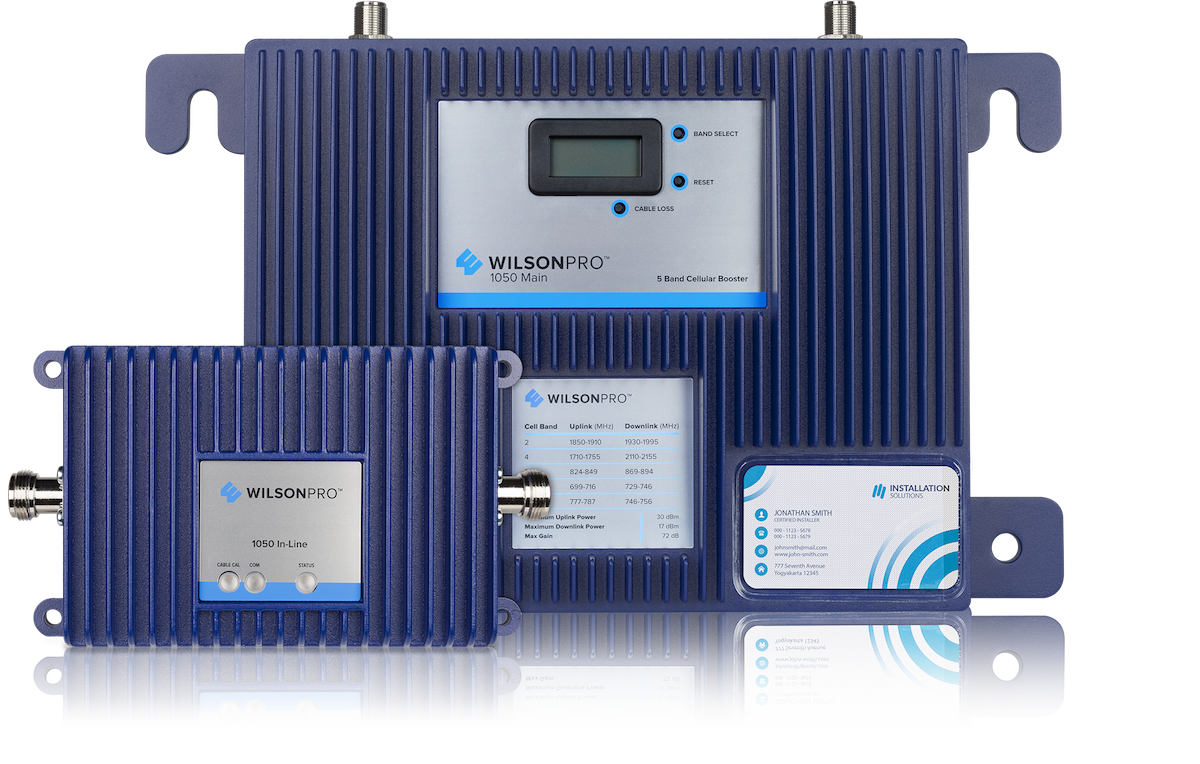

• WilsonPro 1050 Wall Mountable Main Amplifier with Integrated Power Supply

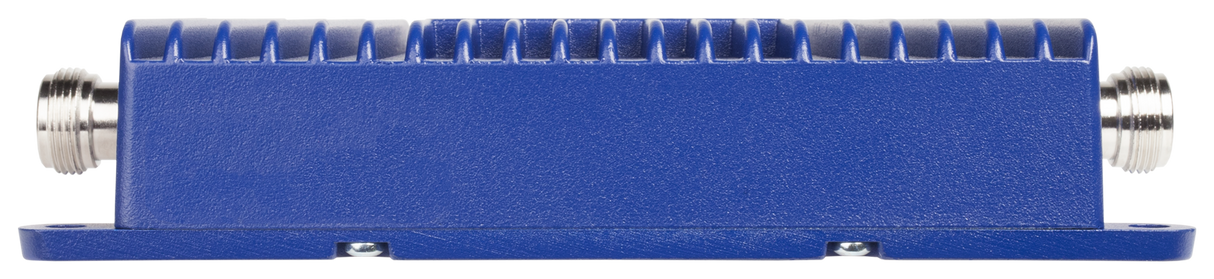

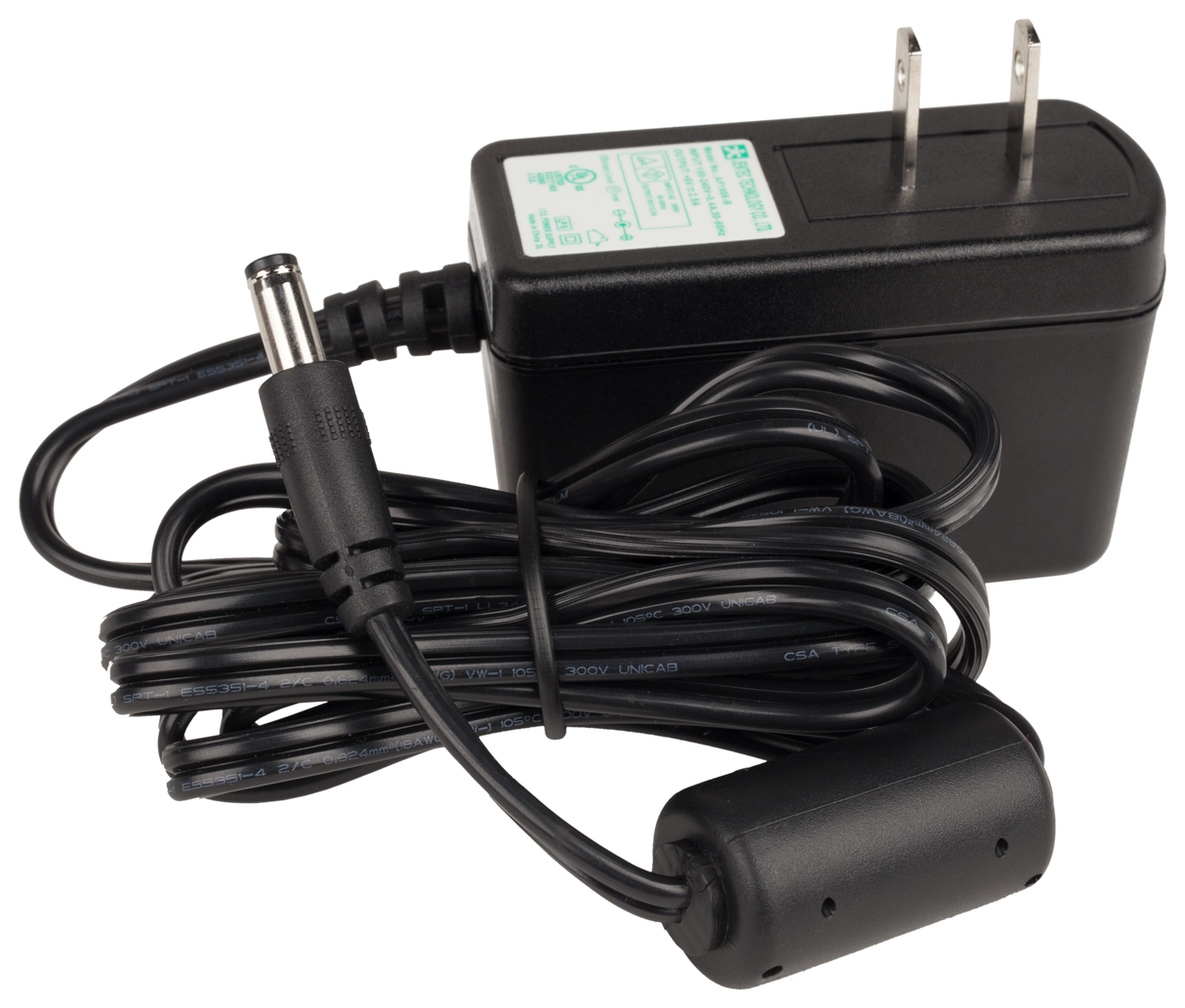

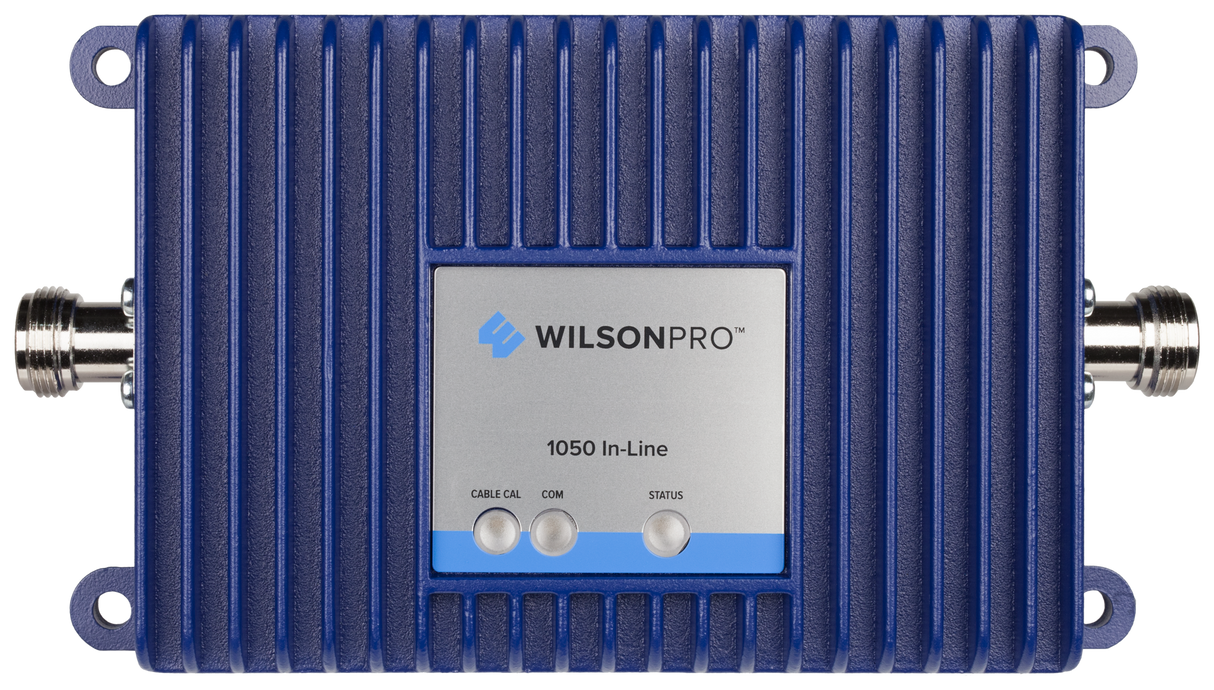

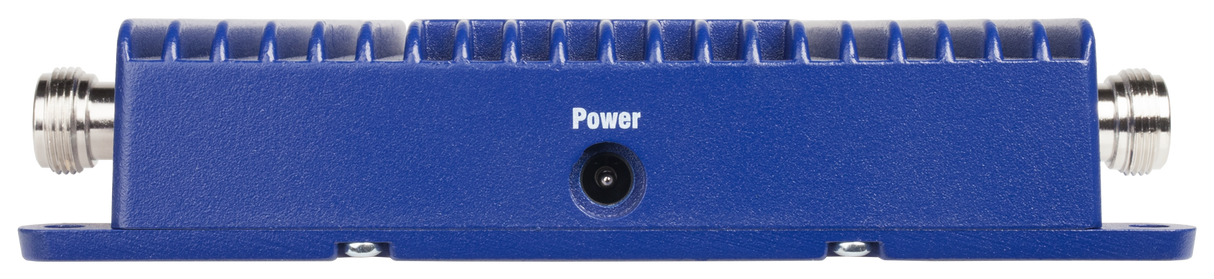

• WilsonPro 1050 Inline Amplifier with Power Supply

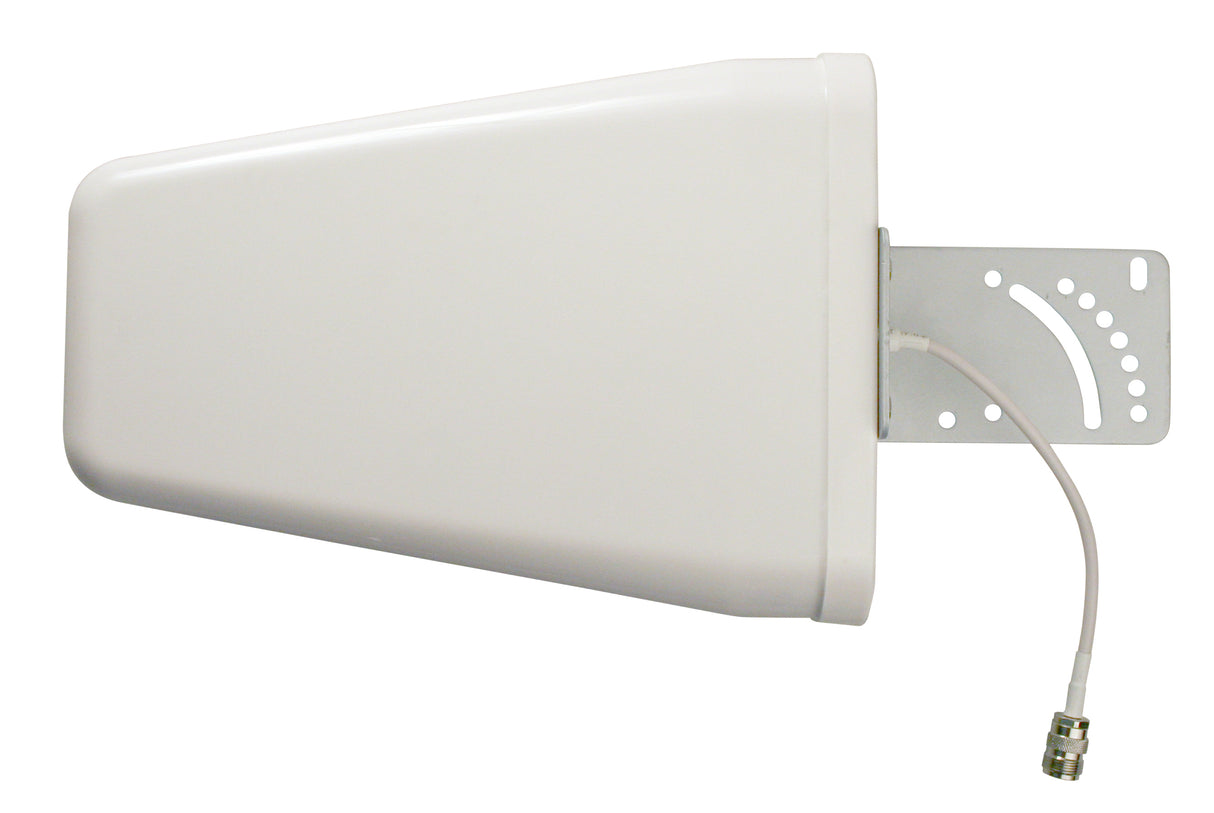

• Wilson Yagi Directional Outside Antenna
• Wilson Dome Inside Antennas

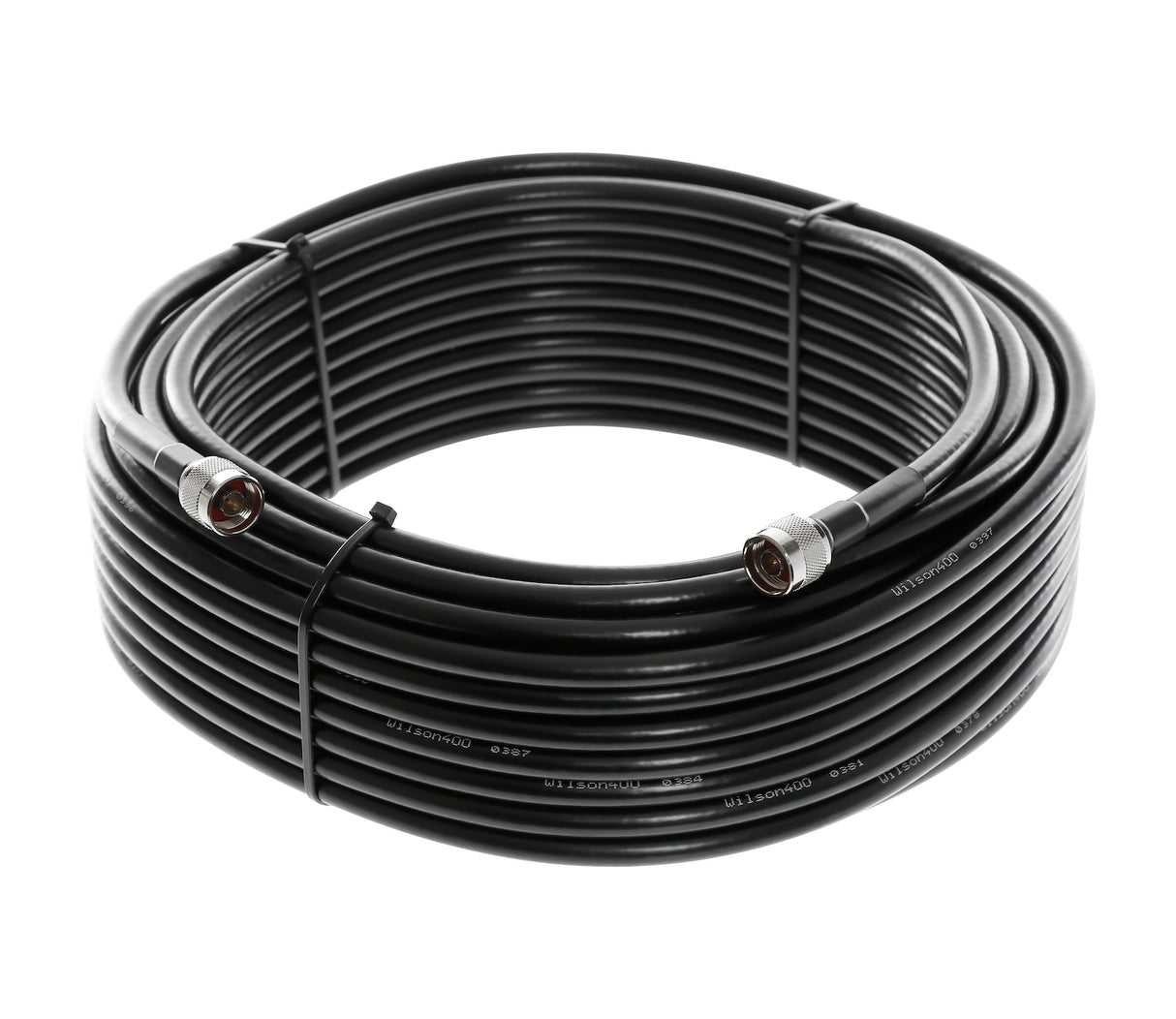

• 75' Black Ultra Low Loss Cable
• 2 x 100' Black Ultra Low Loss Cable

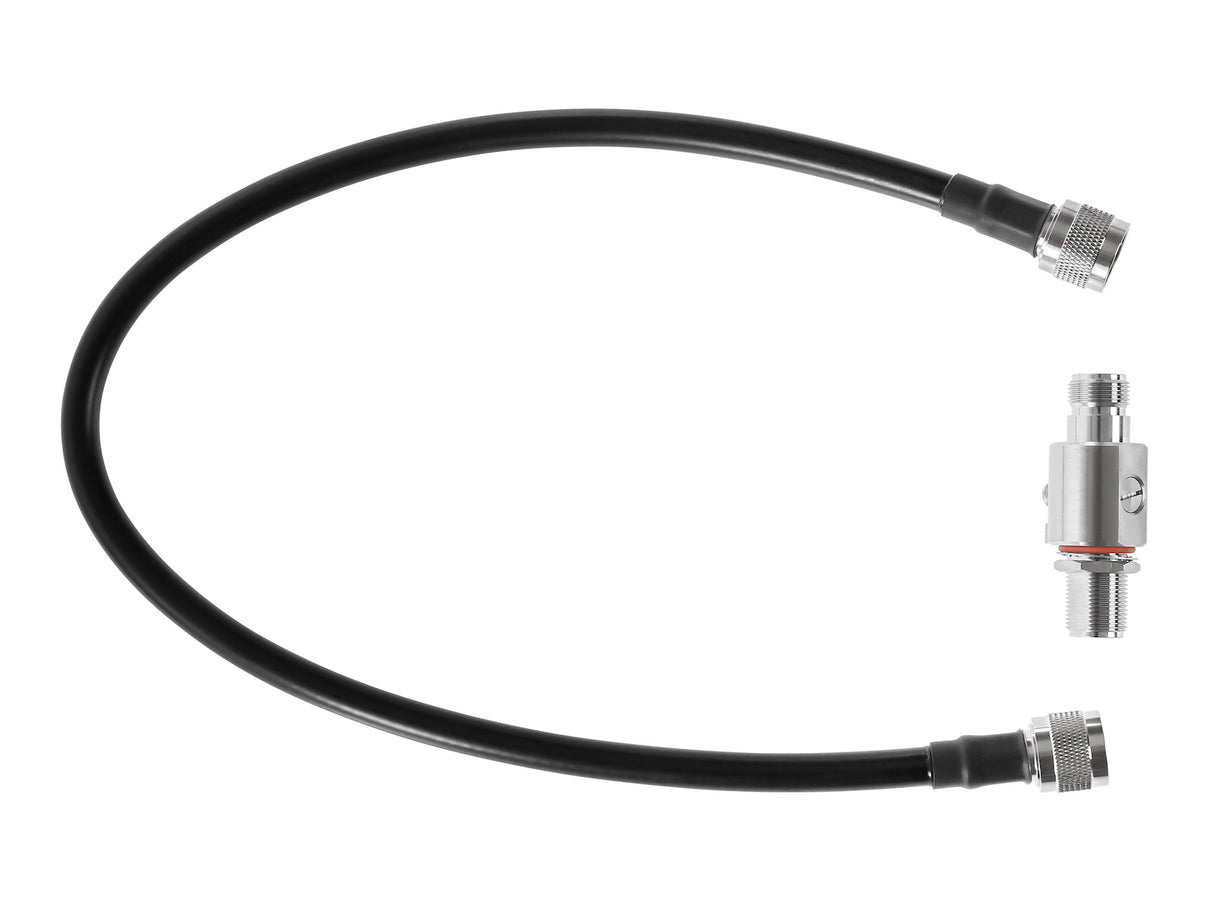

• Wilson Lightning Surge Protector with 2' Black Ultra Low Loss Cable

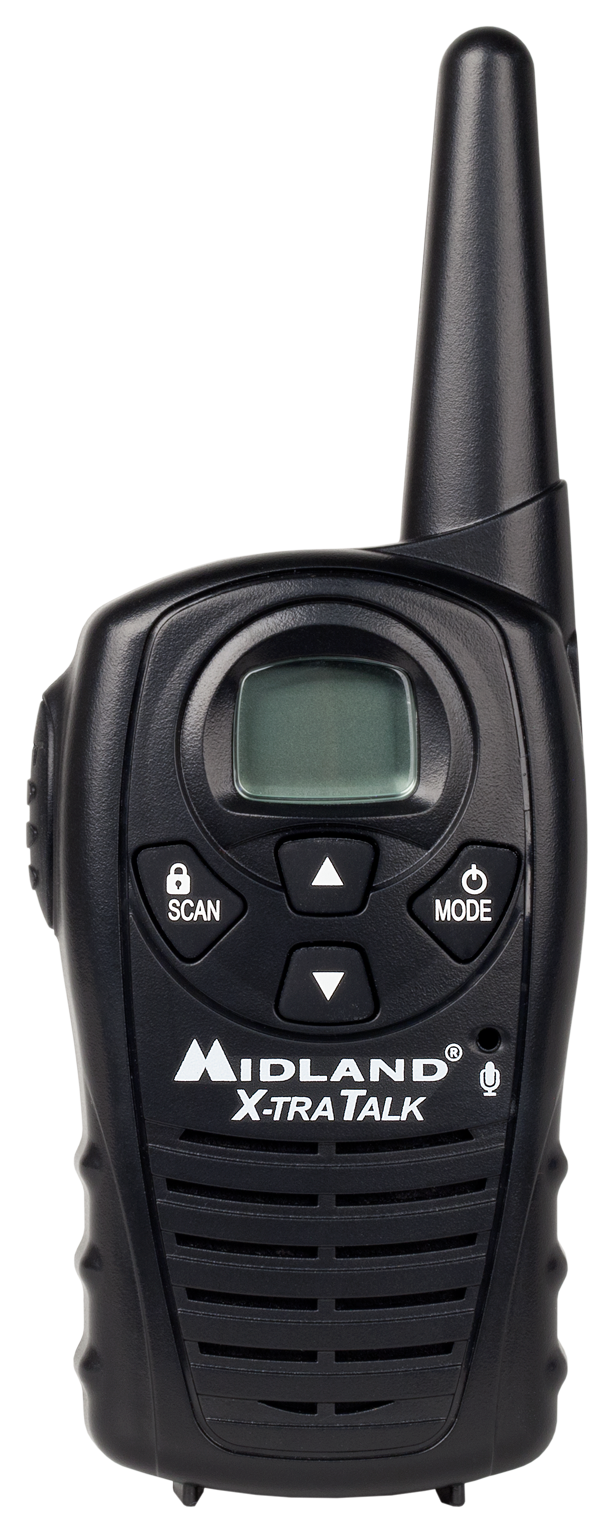

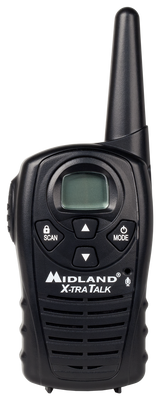

• BONUS: Walkie Talkie Set for Installation Communication

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
