The weBoost 470510 Drive 4G-X Mobile Signal Booster Kit is the most powerful mobile signal booster allowed by the FCC. This means the Drive 4G-X can give you a usable cell phone reception in locations where other mobile boosters have stopped working. The Drive 4G-X boosts the 2G, 3G, and 4G LTE networks for all of the major carriers in the United States and Canada, so you get fewer dropped calls, fewer delayed text messages and the fastest 4G download speeds possible. Unlike other signal boosters, the Drive 4G-X communicates with your phone wirelessly and does not require your phone to sit in a cradle. Since it is wireless, the Drive 4G-X also supports multiple phones and data devices simultaneously.
The weBoost 470510 Drive 4G-X's inside coverage area will depend on your existing outside signal strength. In areas where you have a moderate existing outside signal, the Drive 4G-X will fill a normal vehicle with boosted coverage. As the outside signal gets weaker, the inside coverage area will shrink, until you may have to keep your phone within about 18 inches from the inside antenna in order to take advantage of the boosted signal.
The weBoost 470510 Drive 4G-X Kit supports the voice, 3G, and 4G LTE networks from all major carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.
Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:
- AT&T 2G, 3G, 4G HSPA+ & 4G LTE
- Verizon 2G, 3G, 4G LTE & XLTE
- Sprint 2G, 3G
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

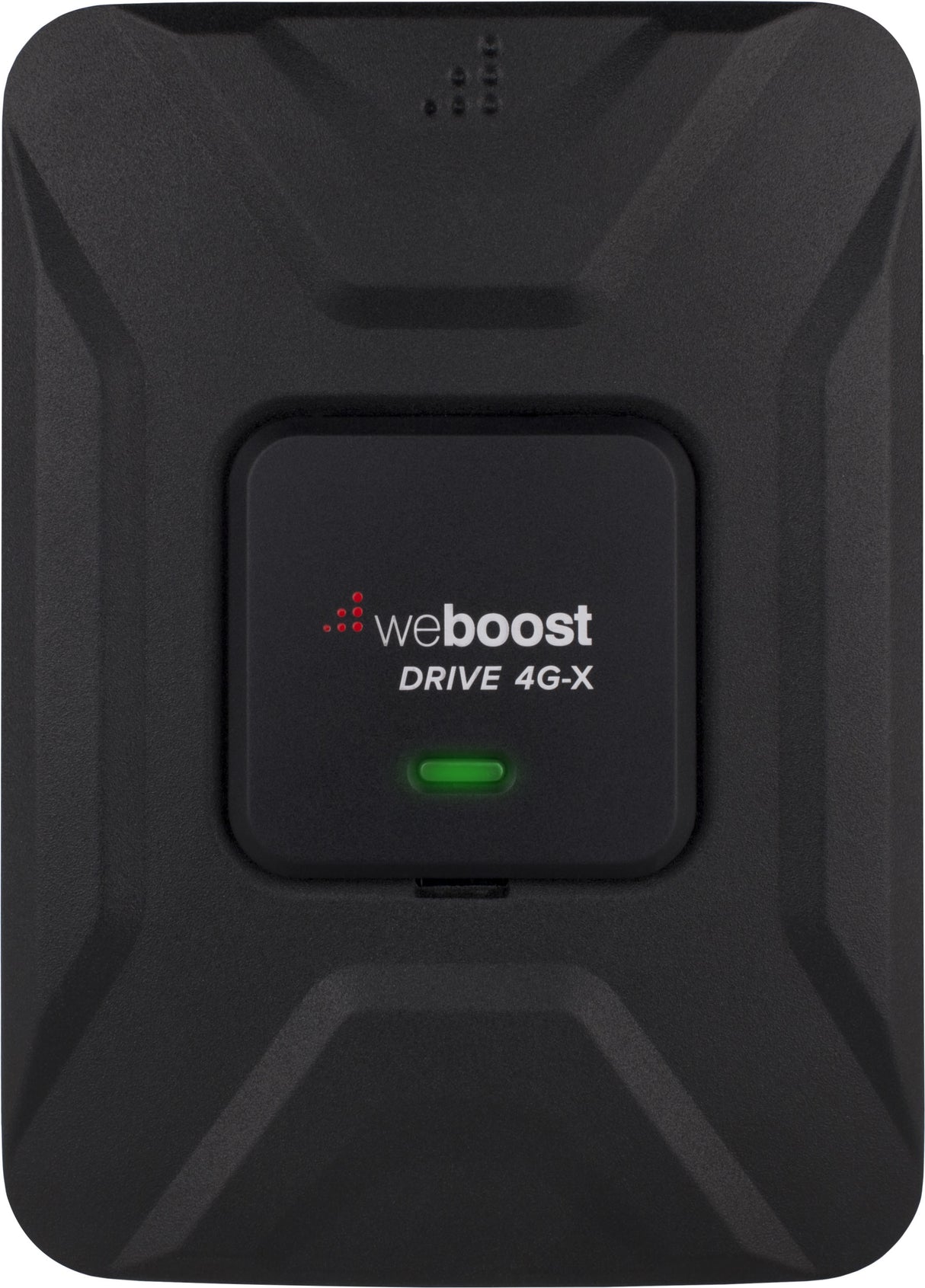

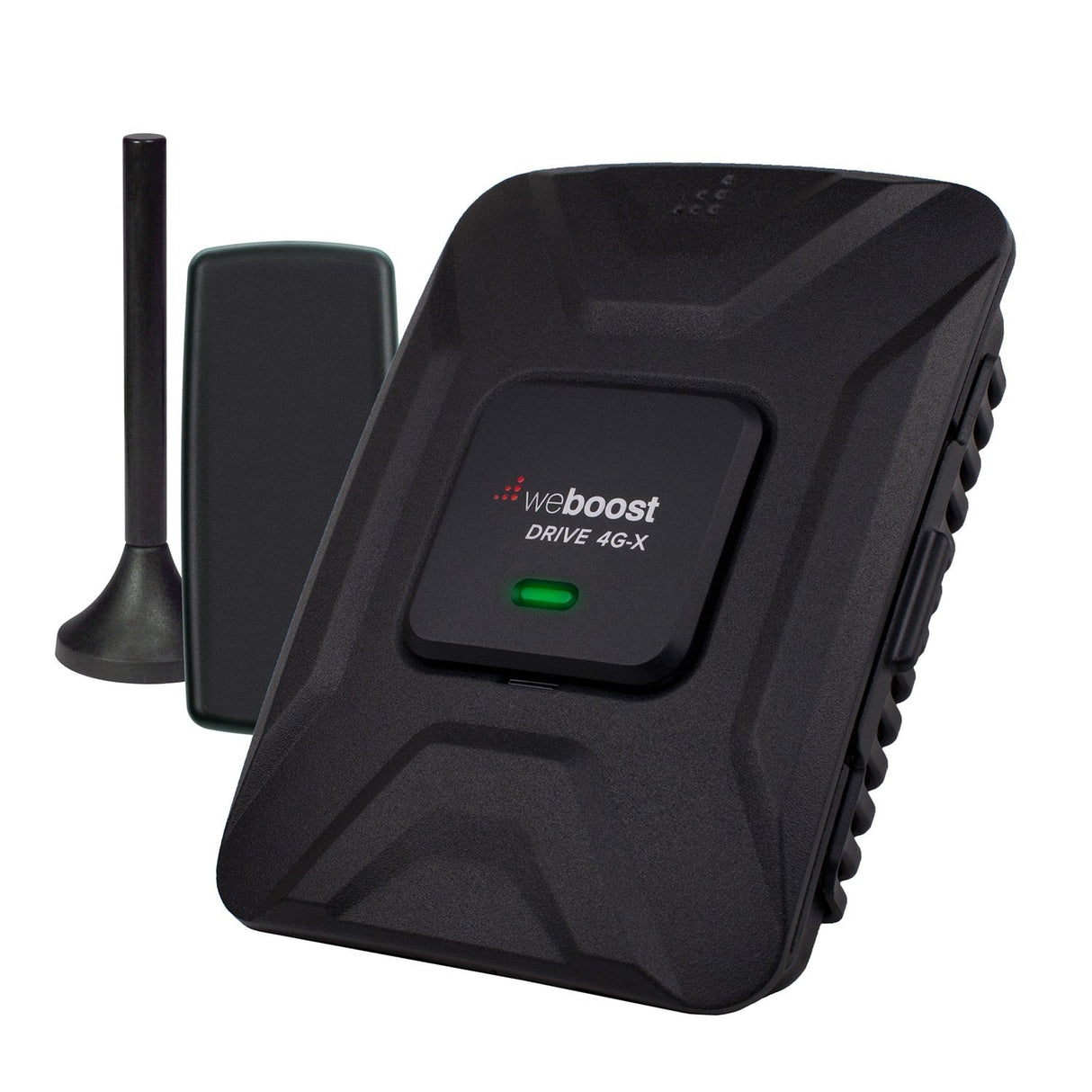

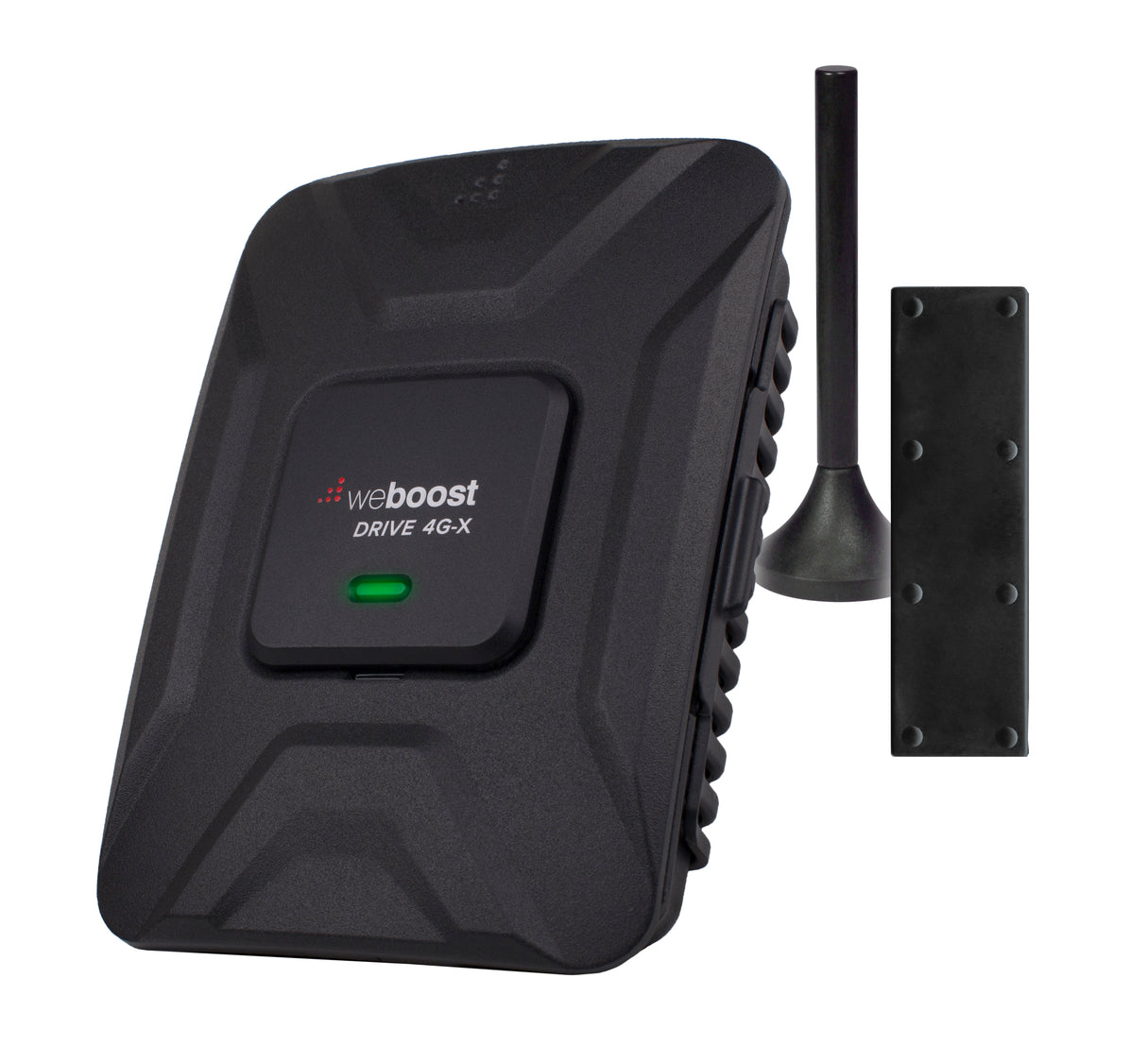

- weBoost Drive 4G-X Mobile Amplifier
- DC Power Adapter
- Outside magnetic mount antenna with 10' Coax Cable
- Inside Low-Profile Antenna
The Drive 4G-X can be outfitted with additional accessories to help with installation and operation. For use in larger vehicles, the optional Wilson RV and Trucker Spring Mount Antenna is more powerful. Boats can benefit from the optional Wilson 318430 Marine Antenna Kit. If you have any questions regarding which outside antenna may work best for you, feel free to contact us for help.
Installing the weBoost 470510 Drive 4G-X kit is very easy and can usually be done in just a few minutes. Because nothing is permanent, the kit can be transferred to another vehicle as needed.
To start, mount the mini-mag antenna on the roof of the vehicle. The antenna must be stuck to a metal surface. If you have a sunroof, position the antenna well behind the sunroof to increase the separation between the inside and outside antennas. Run the cable in through a door opening, under the door weather stripping to protect the cable. Connect the cable to the amplifier's Outside Antenna port. To the inside connect the inside antenna cable. Locate the inside antenna near where you'll typically be using the phone, for example, in the center console or on the side of the driver's seat. Ensure that the cables and amplifier won't be damaged if the front seats are adjusted. Keep inside antenna at least 8 inches for any person and approximately 18 inches from where you typically use your phone. See the below video for more information.
|System Type||Wireless Coverage over a very small area|
|Coverage Area||Up to 6 ft. from antenna|
|User and Installation Manual|
|Frequency Bands||700 MHz, 800 MHz, 1900 MHz, 1700/2100 MHz (AWS)|
|Specific Frequency (Up/Down)||704 - 716 MHz / 734 - 746 MHz, 776 - 787 MHz / 746 - 757 MHz, 824 - 849 MHz / 869 - 894 MHz, 1850 - 1910 MHz / 1930 - 1990 MHz, 1710 - 1755 MHz / 2110 - 2155 MHz|
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
